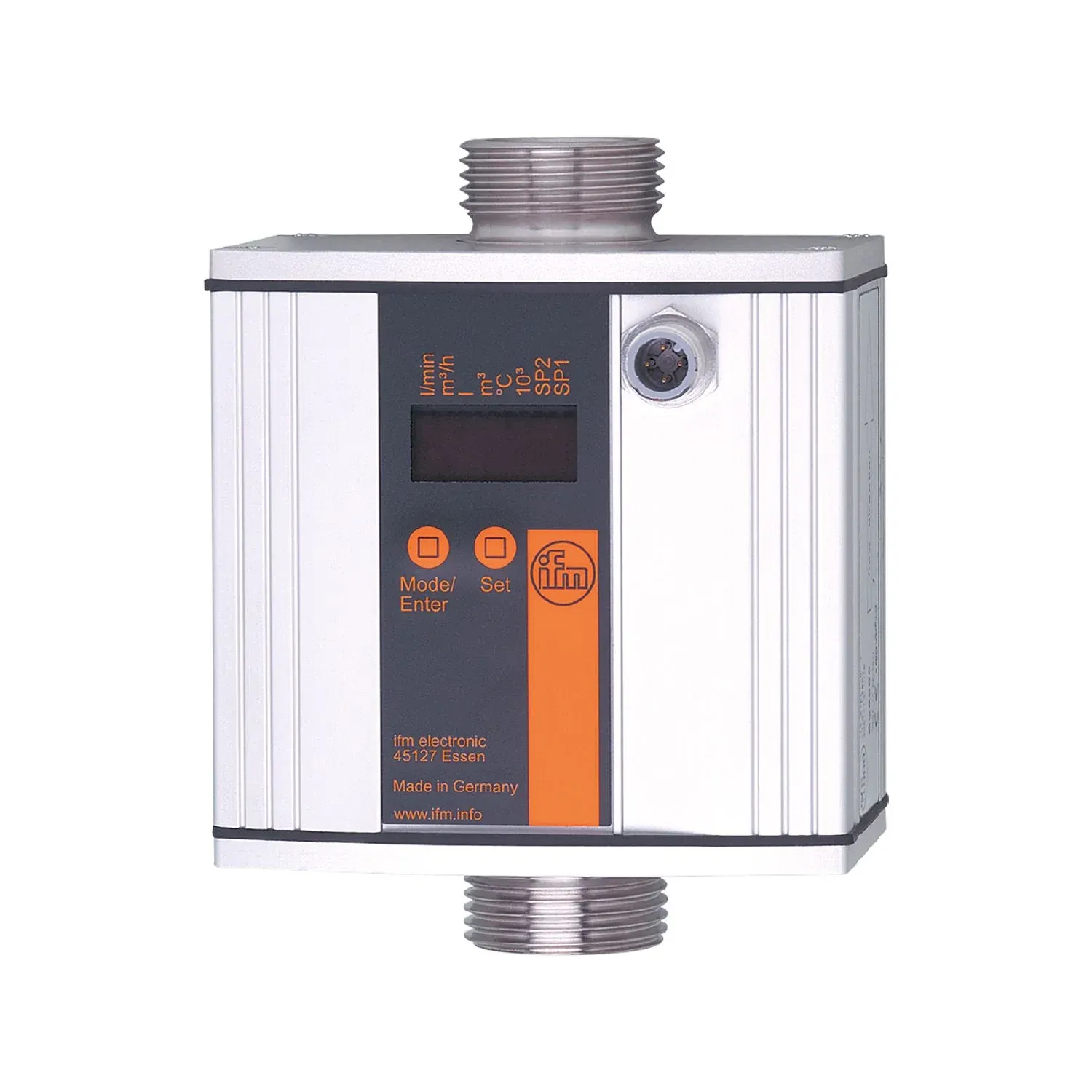

IFM SU8200

SU8200

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Reliable detection of flow and medium temperature
Suitable for water, oils and glycol solutions
For installation in pipes
With two programmable switching outputs
Clearly visible 4-digit LED display

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2
Measuring range0...100 l/min
0...26.42 gpm
0...100 l/min0...26.42 gpm
Process connectionthreaded connection G 1 external thread flat seal

Application

Special featureGold-plated contacts
Applicationfor industrial applications
Installationconnection to pipe by means of an adapter
Mediawater; glycol solutions; coolants; oils
Note on medialow-viscosity oils with viscosity: 7...40 mm²/s (40 °C)
high-viscosity oils with viscosity: 30...68 mm²/s (40 °C)
Medium temperature[°C] [°C]-10...80
Pressure rating16 bar
1.6 MPa
16 bar1.6 MPa

Electrical data

Operating voltage[V] [V]19...30 DC; (to SELV/PELV)
Current consumption[mA] [mA]100
Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]10
Measuring principleultrasonic

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2

Outputs

Total number of outputs2
Output signalswitching signal
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]250; (per output)
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range0...100 l/min
0...26.42 gpm
0...100 l/min0...26.42 gpm
Display range0...120 l/min
0...31.7 gpm
0...120 l/min0...31.7 gpm
Resolution0.1 l/min
0.02 gpm
0.1 l/min0.02 gpm
Set point SP0.2...100 l/min
0.06...26.42 gpm
0.2...100 l/min0.06...26.42 gpm
Reset point rP0...99.8 l/min
0...26.38 gpm
0...99.8 l/min0...26.38 gpm
Max. flow rate[l/min] [l/min]110
In steps of0.1 l/min
0.02 gpm
Measuring range[°C] [°C]-10...80
Resolution[°C] [°C]0.2
Set point SP[°C] [°C]-9.8...80
Reset point rP[°C] [°C]-10...79.8
In steps of[°C] [°C]0.2

Accuracy / deviations

Accuracy (in the measuring range)water: < ± (3 % MW + 0,2 % MEW); glycol (35 %), oil (viscosity 68 mm²/s at 40 °C): < ± (5 % MW + 0,5 % MEW)
Repeatability0,2 l/min (0,05 gpm)
Accuracy[K] [K]0,2

Response times

Response time[s] [s]0.25; (dAP = 0)
Delay time programmable dS, dr[s] [s]0...50
Damping process value dAP[s] [s]0...1
Dynamic response T05 / T09[s] [s]T09 = 70 (Q > 5 l/min); (water)

Software / programming

Parameter setting optionsFlow monitoring; Temperature monitoring

Operating conditions

Ambient temperature[°C] [°C]-10...60
Storage temperature[°C] [°C]-25...80
ProtectionIP 67

Tests / approvals

EMCEN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5 kV
EN 61000-4-6 HF conducted
10 V
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-5 Surge0,5 kV
EN 61000-4-6 HF conducted10 V
CPA approvalmodel number
001US
accuracy class
3
maximum allowable error
-
Q (min)
0,3 m³/h
Q (t)
0,54 m³/h
Q (max)
6 m³/h
model number001US
accuracy class3
maximum allowable error-
Q (min)0,3 m³/h
Q (t)0,54 m³/h
Q (max)6 m³/h
Shock resistanceDIN IEC 68-2-27
20 g (11 ms)
DIN IEC 68-2-2720 g (11 ms)
Vibration resistanceDIN IEC 68-2-6
5 g (10...2000 Hz)
DIN IEC 68-2-65 g (10...2000 Hz)
MTTF[years] [years]246
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]1694
Housingrectangular
Dimensions[mm] [mm]130 x 100 x 80.5
Materialshousing: AlMgSi0,5 anodised; Sealing: FKM; PA 6.6; cover film: PA
Materials (wetted parts)Pipe section: stainless steel (316L/1.4404); Process connection sealing: NBR reinforced fibre Flat seal; FKM; PES
Process connectionthreaded connection G 1 external thread flat seal

Displays / operating elements

DisplayDisplay unit
4 x LED, green (l/min, m³/h, gal/min, gal/h)
Display unit
2 x LED, yellow (°C / °F)
switching status
2 x LED, yellow
measured values
alphanumeric display, 4-digit
programming
alphanumeric display, 4-digit
Display unitl/min; m³/h; gpm; gph; °C; °F
switching status2 x LED, yellow
measured valuesalphanumeric display, 4-digit
programmingalphanumeric display, 4-digit

Accessories

Items suppliedsealings: 2, Centellen
Accessories (optional)adapter for pipe: 1 x R 1/2, stainless steel, E40179
adapter for pipe: 1 x R 3/4, stainless steel, E40180
adapter for pipe: 1 x 1/2" NPT, stainless steel, E40192
adapter for pipe: 1 x 3/4" NPT, stainless steel, E40193
adapter for pipe: 1 x R 1/2, brass, E40152
adapter for pipe: 1 x R 3/4, brass, E40153
adapter for pipe: 1 x 1/2" NPT, brass, E40155
adapter for pipe: 1 x 3/4" NPT, brass, E40156

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
sealing: only with supplied Centellen seals
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Moulded body: brass, Optalloy-plated; Contacts: gold-plated
