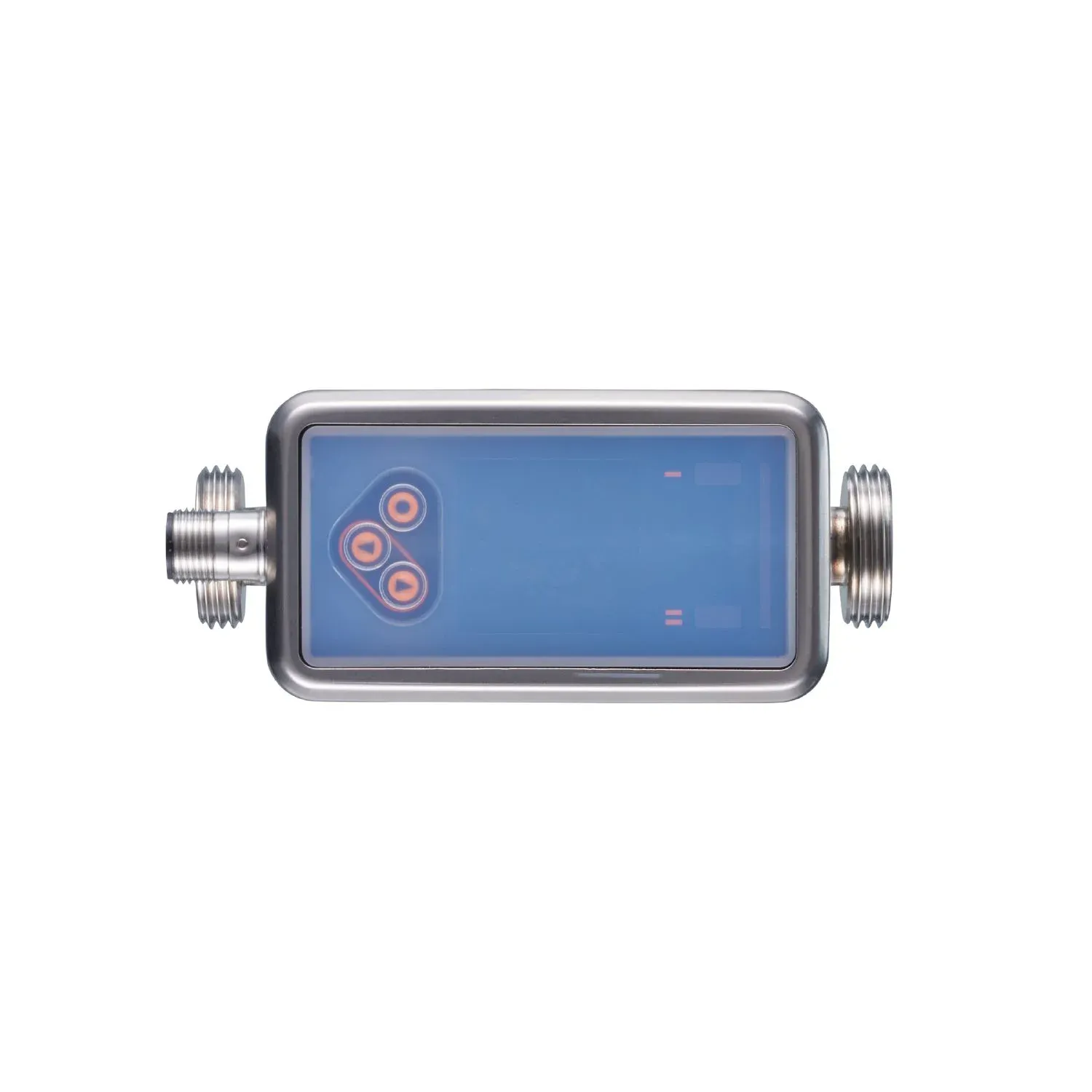

IFM SU7030

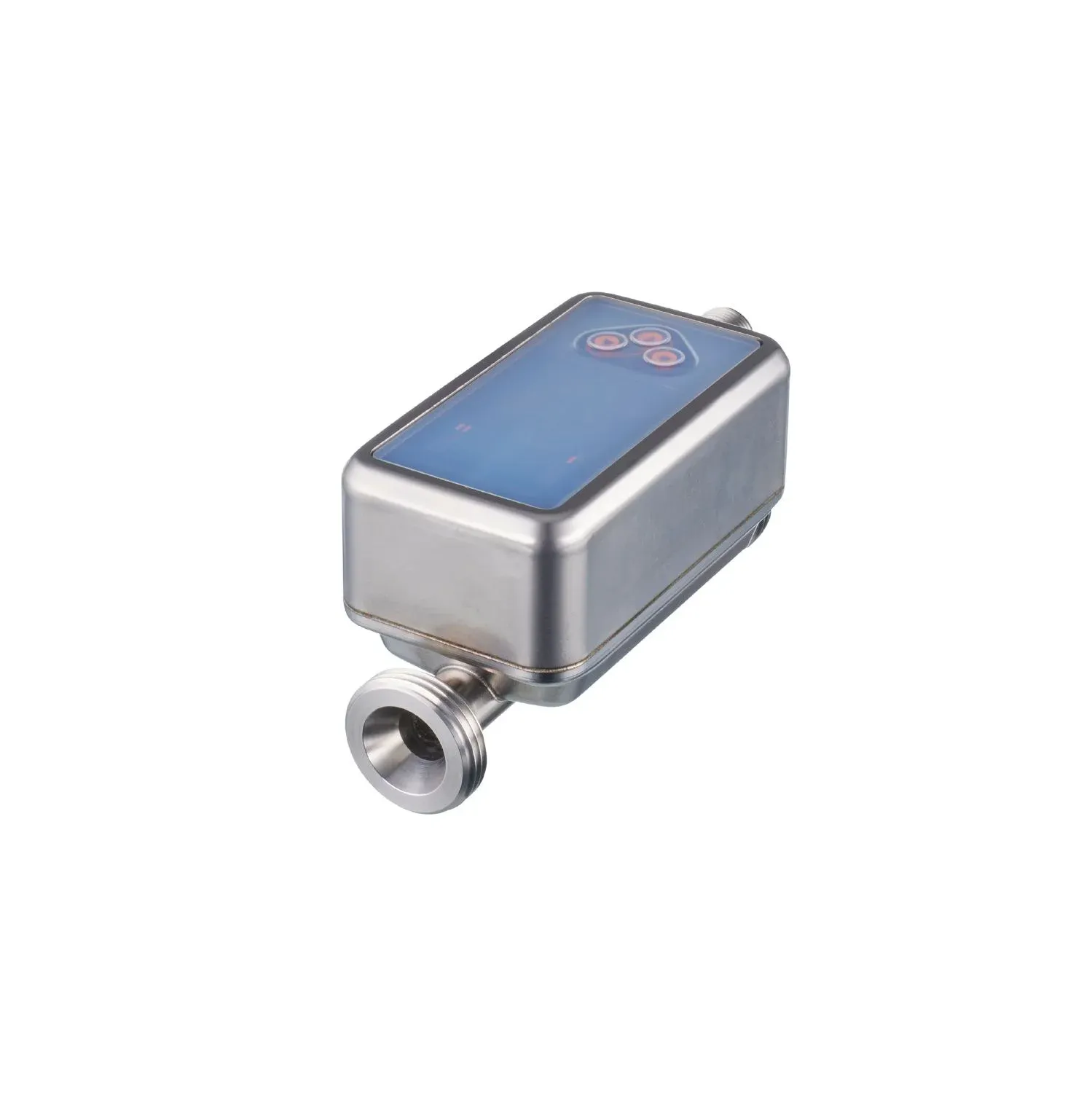

IFM SU7030 - Image 2

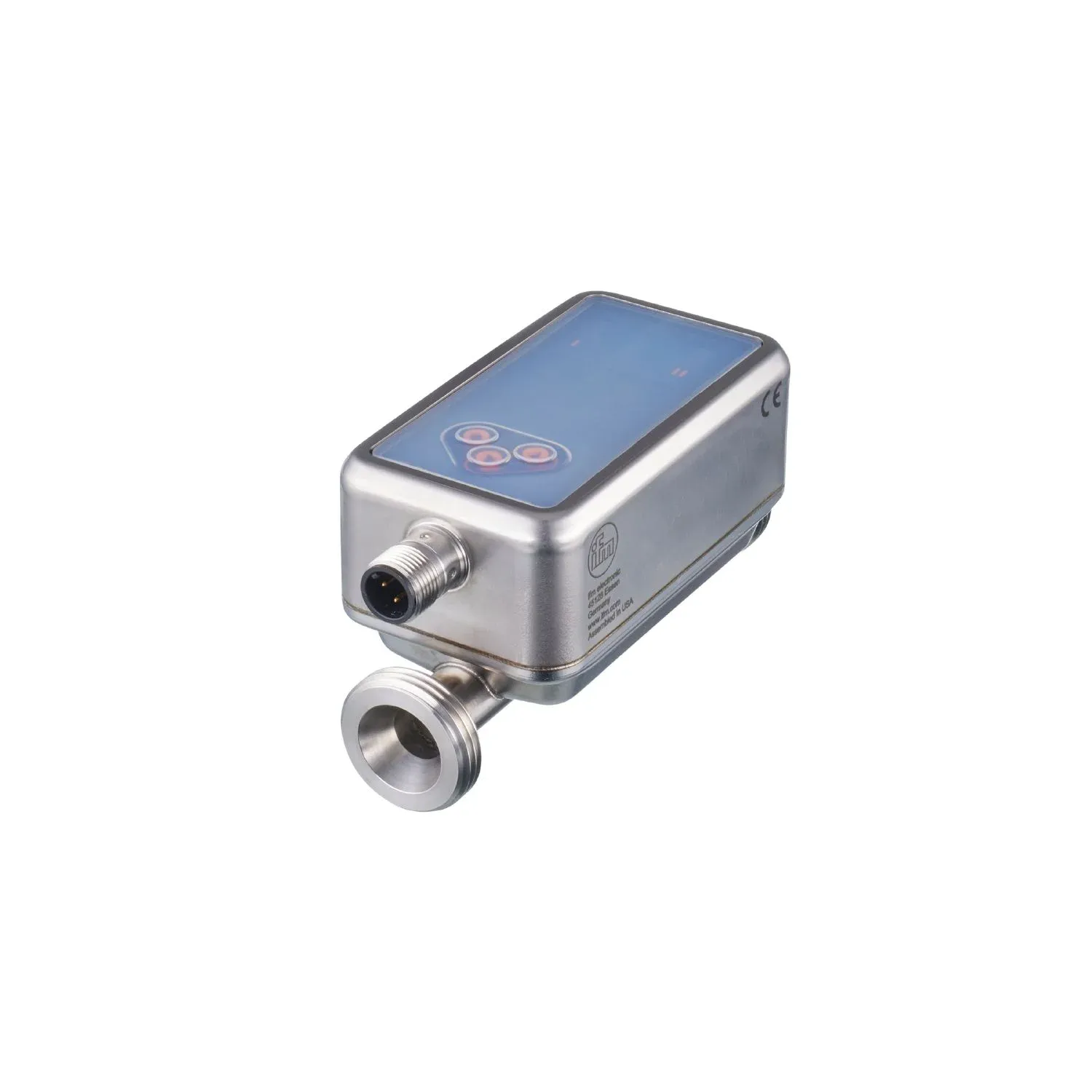

IFM SU7030 - Image 3
IFM SU7030 - Image 4
IFM SU7030 - Image 5
IFM SU7030 - Image 6

Fast delivery within 72 Hours

IFM SU7030

SU7030

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Accurate flow measurement of ultrapure water, water, oils and glycol solutions
A robust, component-free measuring pipe made of stainless steel offers high media resistance and permanent ingress resistance
The highly accurate inline measurement process eliminates any influence of varying wall thicknesses and pipe materials
Operating status LED signals the sensor status and allows conclusions about process quality
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Measuring range0.5...75 l/min
30...4500 l/h
0.104...15.601 m/s
0.03...4.5 m³/h
0.5...75 l/min30...4500 l/h
Process connectionthreaded connection G 3/4 external thread DN20

Application

Special featureGold-plated contacts
Mediaultra-pure water; water; hydrous media; glycol solutions; oils; coolants
Note on mediahydrous media: for media with >10 % additives, the repeatability is the only available value
low-viscosity oils with viscosity: 7...40 mm²/s (40 °C)
high-viscosity oils with viscosity: 30...68 mm²/s (40 °C)
Medium temperature[°C] [°C]-20...100
Min. burst pressure150 bar
15 MPa
150 bar15 MPa
Pressure rating100 bar
10 MPa
100 bar10 MPa
Vacuum resistance[mbar] [mbar]-1000

Electrical data

Operating voltage[V] [V]18...32 DC; (to SELV/PELV)
Current consumption[mA] [mA]< 75
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]5
Measuring principleultrasonic

Inputs

Inputscounter reset

Outputs

Total number of outputs2
Output signalswitching signal; pulse signal; analogue signal; IO-Link; frequency signal; diagnostic signal; totaliser switching signal
Electrical designPNP/NPN
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]100
Switching frequency DC[Hz] [Hz]0...10000
Analogue current output[mA] [mA]4...20
Max. load[Ω] [Ω]500
Pulse outputflow rate meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range0.5...75 l/min
30...4500 l/h
0.104...15.601 m/s
0.03...4.5 m³/h
0.5...75 l/min30...4500 l/h
Display range-90...90 l/min
-5400...5400 l/h
-18.721...18.721 m/s
-5.4...5.4 m³/h
-90...90 l/min-5400...5400 l/h
Resolution0.1 l/min
2 l/h
0.001 m/s
0.002 m³/h
0.1 l/min2 l/h
Set point SP0.9...75 l/min
55...4500 l/h
0.192...15.601 m/s
0.055...4.5 m³/h
0.9...75 l/min55...4500 l/h
Reset point rP0.5...74.6 l/min
32...4477 l/h
0.112...15.521 m/s
0.032...4.477 m³/h
0.5...74.6 l/min32...4477 l/h
Analogue start point ASP-75...60 l/min
-4500...3600 l/h
-15.604...12.481 m/s
-4.5...3.6 m³/h
-75...60 l/min-4500...3600 l/h
Analogue end point AEP-60...75 l/min
-3600...4500 l/h
-12.481...15.601 m/s
-3.6...4.5 m³/h
-60...75 l/min-3600...4500 l/h
Low flow cut-off LFC0.5...3.2 l/min
30...195 l/h
0.104...0.676 m/s
0.03...0.195 m³/h
0.5...3.2 l/min30...195 l/h
Frequency end point, FEP15...75 l/min
903...4500 l/h
3.13...15.601 m/s
0.903...4.5 m³/h
15...75 l/min903...4500 l/h
Frequency at the end point FRP[Hz] [Hz]1...10000
Pulse length[s] [s]0.002...2
Pulse value0.02...99990000 l
Measuring range[°C] [°C]-20...100
Display range[°C] [°C]-44...124
Resolution[°C] [°C]0.1
Set point SP[°C] [°C]-19.6...100
Reset point rP[°C] [°C]-20...99.6
Analogue start point[°C] [°C]-20...76
Analogue end point[°C] [°C]4...100
Frequency start point, FSP[°C] [°C]-20...76
Frequency end point, FEP[°C] [°C]4...100

Accuracy / deviations

Accuracy (in the measuring range)glycol solutions (35%)
±(5,0 % MW + 0,5 % MEW)
high-viscosity oils with viscosity 46mm2/s (40°C)
±(5,0 % MW + 1,0 % MEW)
low-viscosity oils with viscosity 10mm2/s (40°C)
±(5,0 % MW + 1,0 % MEW)
water
± (2,0 % MW + 0,5 % MEW)
glycol solutions (35%)±(5,0 % MW + 0,5 % MEW)
high-viscosity oils with viscosity 46mm2/s (40°C)±(5,0 % MW + 1,0 % MEW)
low-viscosity oils with viscosity 10mm2/s (40°C)±(5,0 % MW + 1,0 % MEW)
water± (2,0 % MW + 0,5 % MEW)
Repeatability± 0,2 % MEW
Accuracy[K] [K]± 2,5 (Q > 5 % MEW)
Temperature coefficient[% of the span / 10 K] [% of the span / 10 K]0,2

Response times

Response time[s] [s]< 0.25; (dAP = 0, T09)
Damping process value dAP[s] [s]0...5
Dynamic response T05 / T09[s] [s]5,7 / 86

Software / programming

Diagnostic functionsdirection of flow detection; signal quality

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1.3
SDCI standardIEC 61131-9: 2013-07
ProfilesBLOB
Binary Large Object transfer
Common - I&D
Identification and Diagnosis
BLOBBinary Large Object transfer
Common - I&DIdentification and Diagnosis
Required master port typeA
Process data analogue3
Process data binary2
Min. process cycle time[ms] [ms]9.6
IO-Link process data (cyclical)totaliser
32
Flow monitoring
32
Temperature monitoring
32
status
4
Output 1
1
Output 2
1
totaliser32
Flow monitoring32
Temperature monitoring32
status4
Output 11
Output 21
Supported DeviceIDsdefault
1756
default1756

Operating conditions

Ambient temperature[°C] [°C]-20...60
Storage temperature[°C] [°C]-25...80
ProtectionIP 67

Tests / approvals

EMCDIN 61326-1:2021
Shock resistanceDIN IEC 68-2-27
20 g (11ms)
DIN IEC 68-2-2720 g (11ms)
Vibration resistanceDIN IEC 68-2-6
20 g (10...2000Hz)
DIN IEC 68-2-620 g (10...2000Hz)
MTTF[years] [years]160
UL approvalUL approval no.
I034
UL approval no.I034
Pressure Equipment Directivecan be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]492.8
Housingrectangular
Type of mountinginlet pipe length 5xDN; outlet pipe length 1xDN
Dimensions[mm] [mm]110 x 48 x 57.8
Materialshousing: stainless steel (316L/1.4404); Display: PFA; Sealing Display: FKM; connector: PBT
Materials (wetted parts)Pipe section: stainless steel (316L/1.4404); Process connection sealing: NBR reinforced fibre Flat seal
Process connectionthreaded connection G 3/4 external thread DN20
Surface characteristics Ra/Rz of the wetted partsRa < 1.25 µm

Displays / operating elements

Displaycolour display 1,44", 128 x 128 pixels
Switching function
2 x LED, yellow
diagnosis
1 x LED, three-colour
Switching function2 x LED, yellow
diagnosis1 x LED, three-colour
Display unitl/min; l/h; m³/h; m/s

Accessories

Items suppliedFlat seal 2, Centellen
package insert

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
pulse and totaliser signal are only available for one of the two outputs
the accuracy indications are adhered to over the entire application area
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
