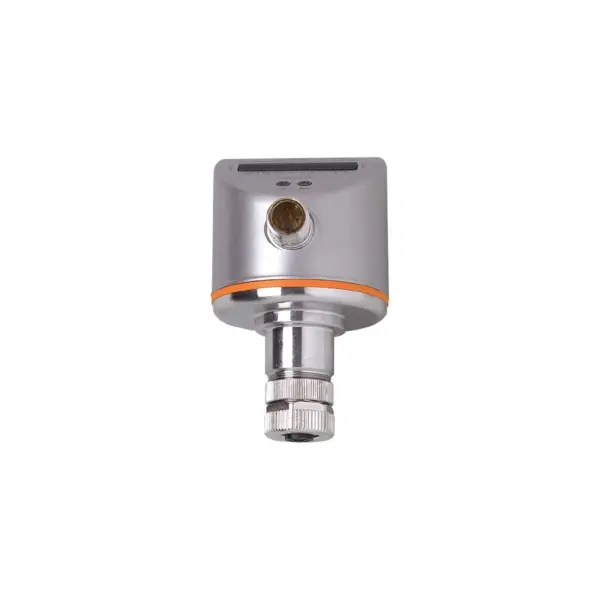

IFM SR5900
SR5900
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable monitoring of liquids and gases in pipes
For the connection of flow sensors with large immersion depths
For sensors made of ceramics, high-grade stainless steel and titanium
Easy setting of the switch points for quick set-up
LED bar graph for indication of switch point and flow
Specification
Application
| Application | Flow monitoring; Wire monitoring |
|---|
Electrical data
| Operating voltage[V] [V] | 19...36 DC |
|---|---|
| Current consumption[mA] [mA] | < 70 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 10 |
| Number of channels | 1 |
Outputs
| Electrical design | PNP |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Switching function flow monitoring | output switches when flow is present: ON for output function = normally open / OFF for output function = normally closed |
| Short-circuit protection | yes |
| Overload protection | yes |
Software / programming
| Adjustment of the switch point | pushbutton |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 67; (with sensor attached) |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| Shock resistance | DIN IEC 68-2-27 30 g (6 ms) |
| DIN IEC 68-2-27 | 30 g (6 ms) |
| Vibration resistance | DIN IEC 68-2-6 5 g (55...2000 Hz) |
| DIN IEC 68-2-6 | 5 g (55...2000 Hz) |
| MTTF[years] [years] | 342 |
Mechanical data
| Weight[g] [g] | 225.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 50 / L = 83 |
| Materials | stainless steel (316L/1.4404); stainless steel (304/1.4301); PC; PBT-GF20; EPDM/X; brass |
Displays / operating elements
| Display | function LED, bar graph switching status LED, orange flash in case of wire break |
|---|---|
| function | LED, bar graph |
| switching status | LED, orange flash in case of wire break |
Remarks
| Remarks | Connection for flow sensor without short-circuit protection / reverse polarity protection. The flow sensor must be directly connected to the control monitor. A connection by means of extension cables is not allowed. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
