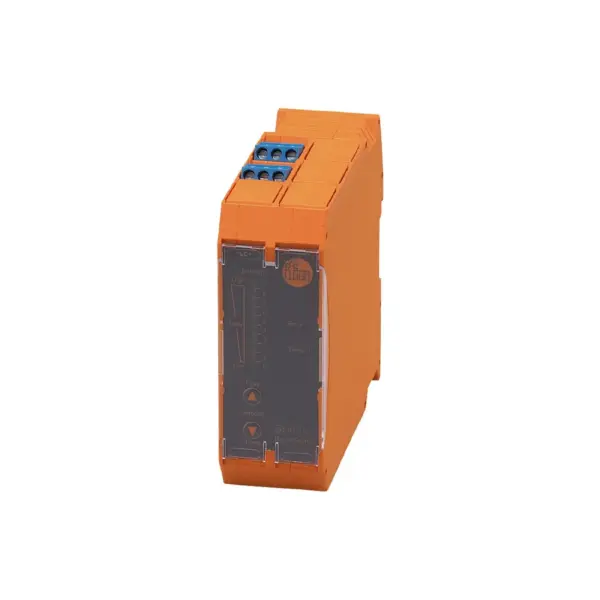

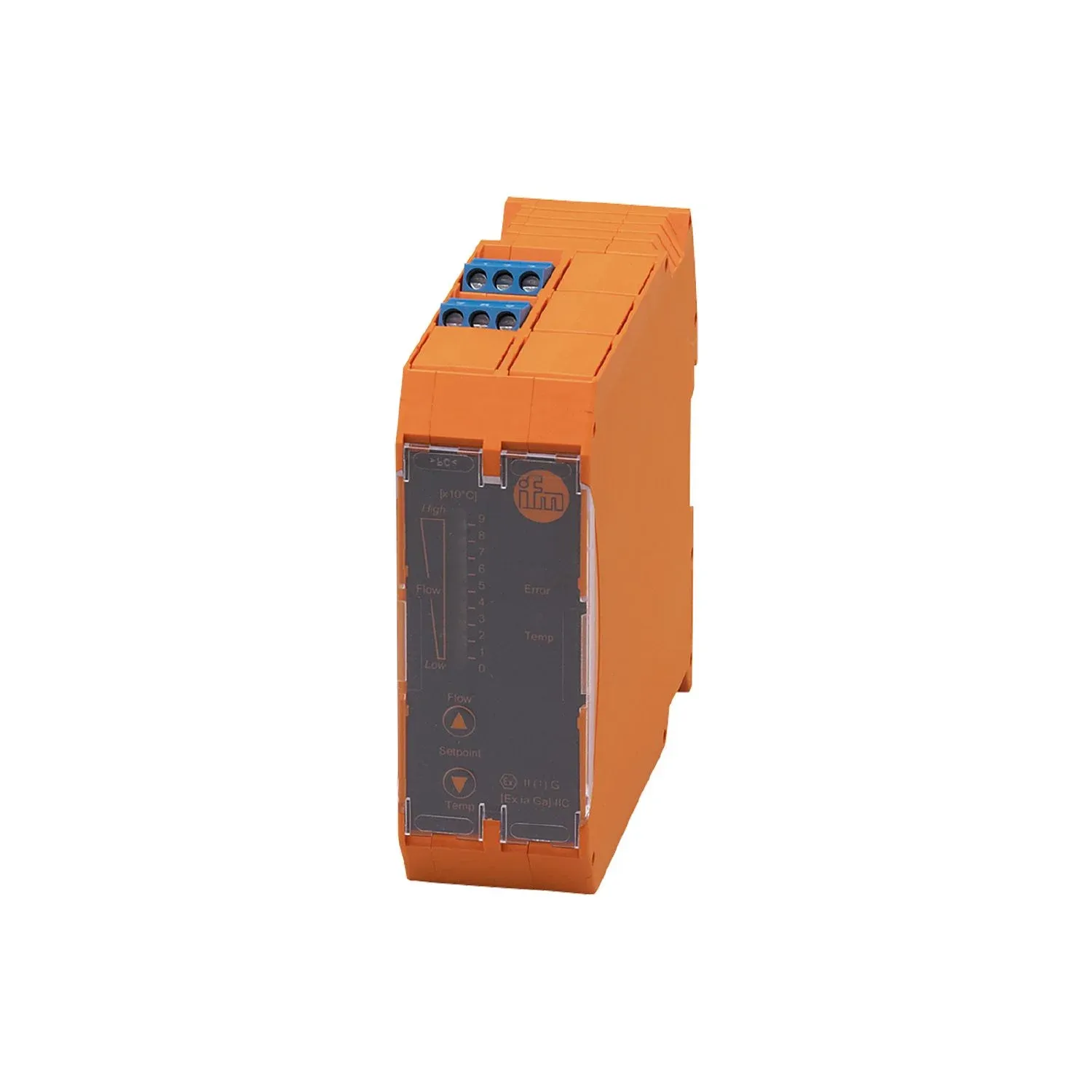

IFM SR307A
SR307A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Integrated flow, temperature and wire monitoring
Intuitive setting of switch point and medium
For the connection of intrinsically safe flow sensors
Clearly visible multi-colour LED bargraph display
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | Flow monitoring; Temperature monitoring; Wire monitoring |
Electrical data
| Operating voltage tolerance[%] [%] | -15...15 |
|---|---|
| Operating voltage[V] [V] | 24 DC |
| Current consumption[mA] [mA] | 100 |
| Reverse polarity protection | no |
| Power-on delay time[s] [s] | 10 |
| Number of channels | 1 |
Outputs
| Performance in case of a fault | Relay de-energised in case of the following faults: wire break, reverse polarity or short circuit of the sensor cable, undervoltage, internal fault |
|---|---|
| Electrical design | relay |
| Contact rating | 4 A (250 V AC cos phi > 0,7) ; 0,2 A (250 V DC); 4 A (24 V DC) |
| Switching function flow monitoring | relay energised when flow is present |
| Switching function temperature monitoring | relay de-energised when temperature is exceeded |
| Short-circuit proof | no |
| Overload protection | no |
Software / programming
| Adjustment of the switch point | programming buttons |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 20 |
| Protection rating terminals | IP 20 |
Tests / approvals
| Approval | CSANe 21ATEX2238; IECEx CSA 21.0044 |
|---|---|
| ATEX marking | II (1) G [Ex ia Ga] IIC |
| MTTF[years] [years] | 124 |
Mechanical data
| Weight[g] [g] | 368 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 104.5 x 32.5 x 113.6 |
| Materials | PA |
Displays / operating elements
| Display | fault LED, red function LED, bar graph switching status LED, yellow |
|---|---|
| fault | LED, red |
| function | LED, bar graph |
| switching status | LED, yellow |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting; Place the fuse outside the hazardous area. |
|---|
Remarks
| Remarks | Caution The control monitor must be mounted outside the hazardous area. Recommendation Check the safe functioning of the unit after a short circuit. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| terminals | 15 x ...2.5 mm² |
|---|
