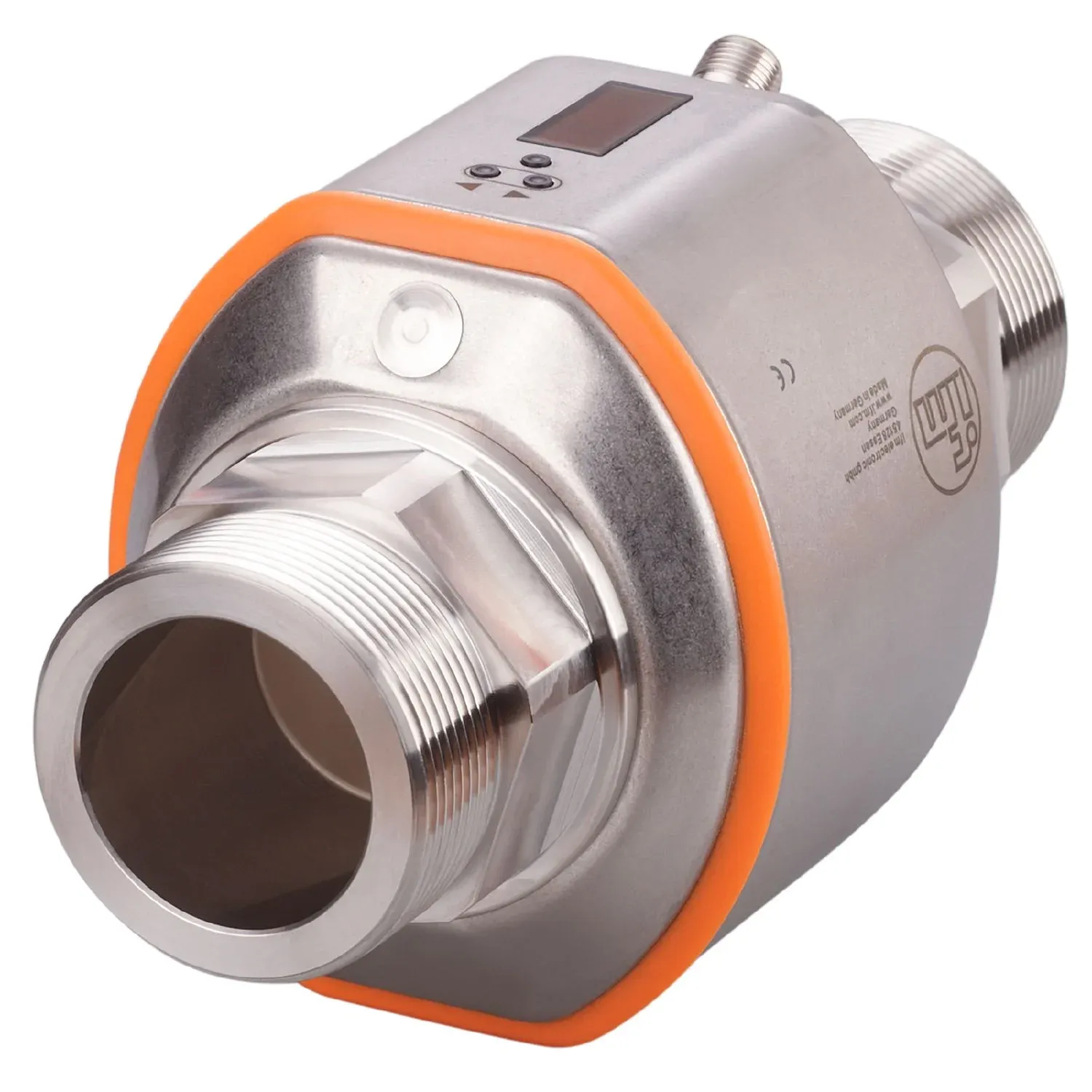

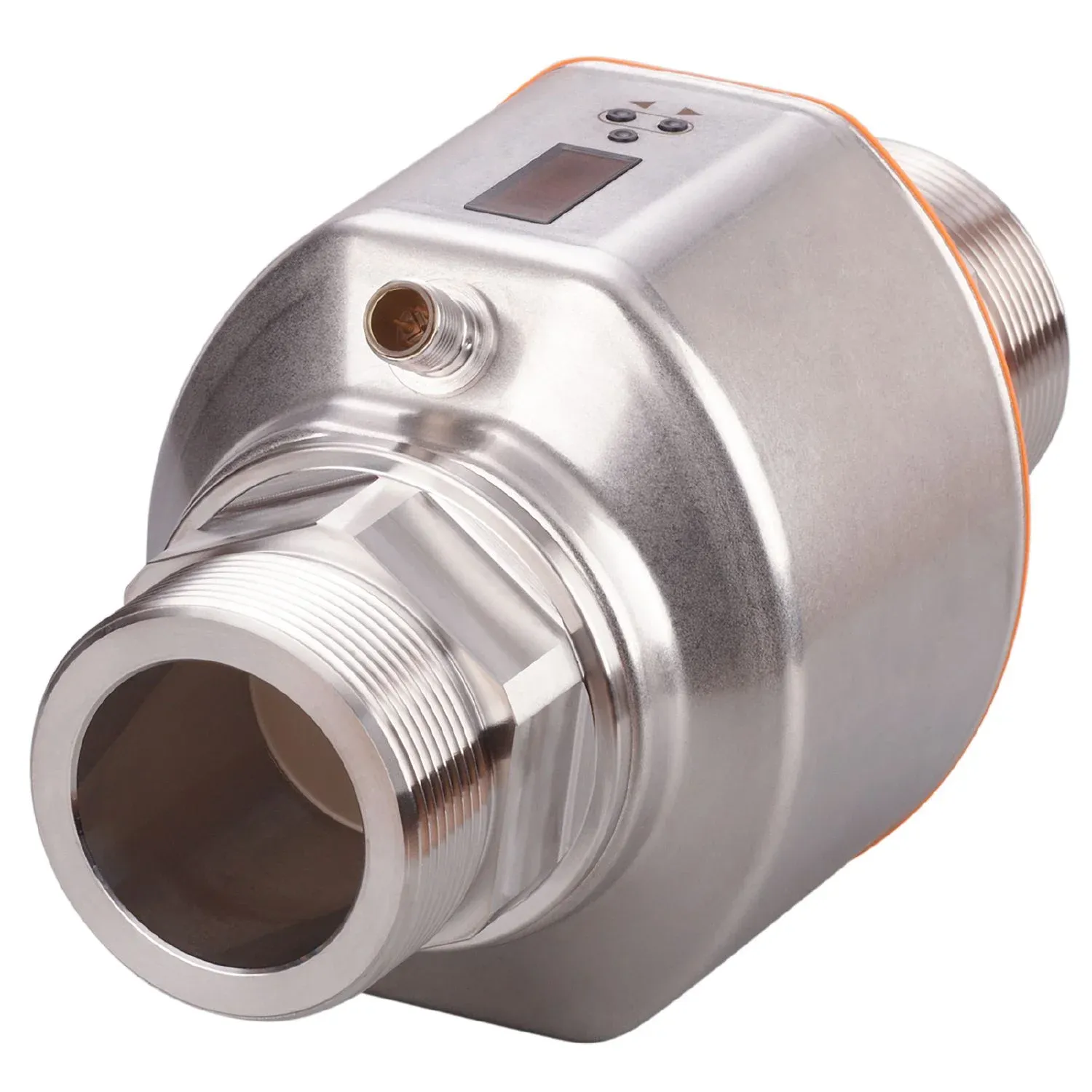

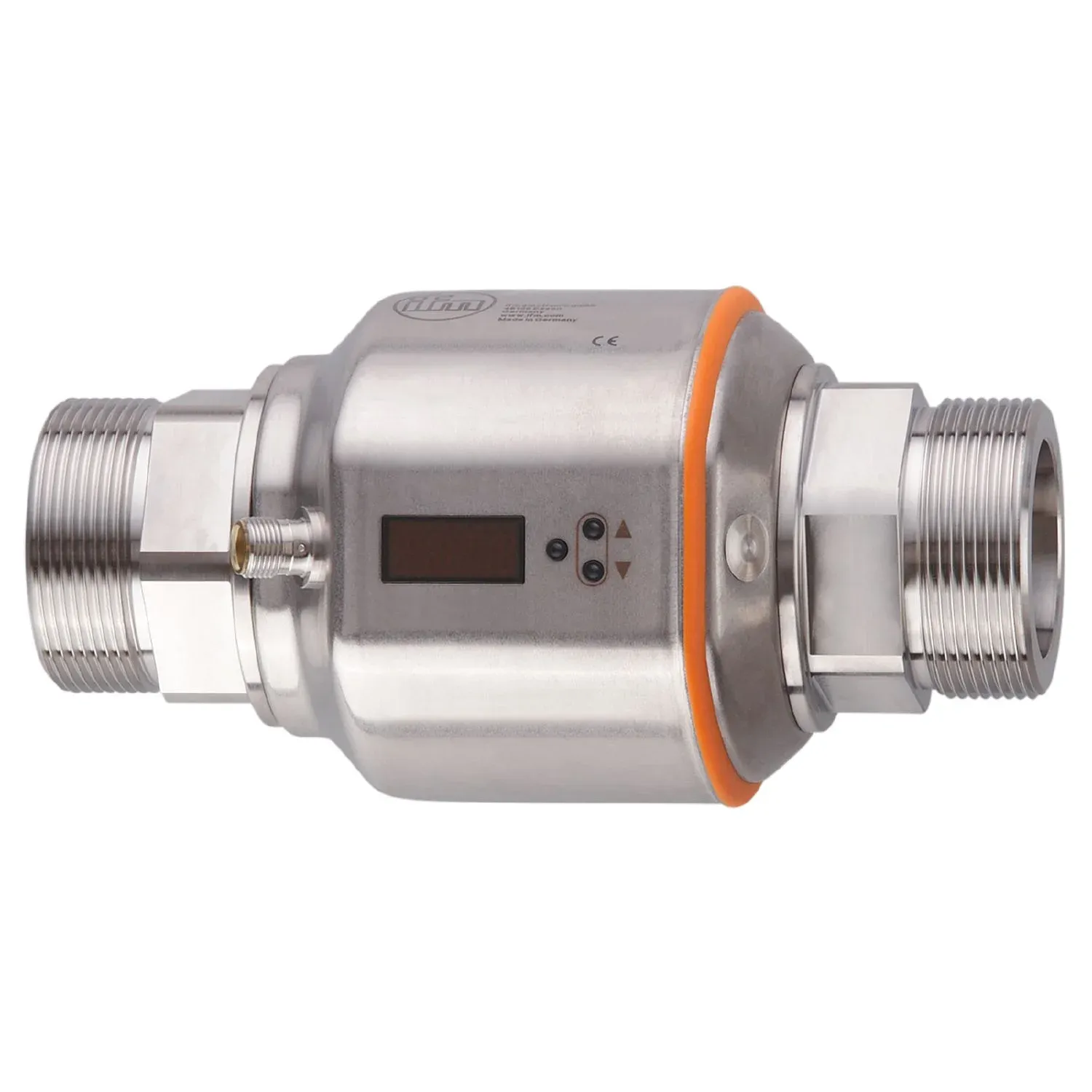

IFM SM9100

SM9100

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Precise measurement of flow, consumption and medium temperature
High accuracy, repeatability and measurement dynamics
Precise empty pipe detection
With switching output, analogue output and pulse output
Clearly visible 4-digit LED display
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range5...300 l/min
0.3...18 m³/h
5...300 l/min0.3...18 m³/h
Process connectionthreaded connection G 2 external thread DN50 flat seal

Application

Special featureGold-plated contacts
Applicationtotaliser function; empty pipe detection; for industrial applications
Installationconnection to pipe by means of an adapter
Mediaconductive liquids; water; hydrous media
Note on mediaconductivity: ≥ 20 µS/cm
viscosity: < 70 mm²/s (40 °C)
Medium temperature[°C] [°C]-10...90
Pressure rating16 bar
1.6 MPa
16 bar1.6 MPa
MAWP for applications according to CRN8.9 bar
0.89 MPa
8.9 bar0.89 MPa

Electrical data

Operating voltage[V] [V]18...32 DC; (to SELV/PELV)
Current consumption[mA] [mA]< 150
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]5
Measuring principlemagnetic-inductive

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Inputs

Inputscounter reset

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; pulse signal; frequency signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]250; (per output)
Number of analogue outputs1
Analogue current output[mA] [mA]4...20; (scalable)
Max. load[Ω] [Ω]500
Analogue voltage output[V] [V]0...10; (scalable)
Min. load resistance[Ω] [Ω]2000
Pulse outputflow rate meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Frequency of the output[Hz] [Hz]0.1...10000

Measuring/setting range

Measuring range5...300 l/min
0.3...18 m³/h
5...300 l/min0.3...18 m³/h
Display range-360...360 l/min
-21.6...21.6 m³/h
-360...360 l/min-21.6...21.6 m³/h
Resolution0.5 l/min
0.02 m³/h
0.5 l/min0.02 m³/h
Set point SP6.5...300 l/min
0.4...18 m³/h
6.5...300 l/min0.4...18 m³/h
Reset point rP5...298.5 l/min
0.3...17.9 m³/h
5...298.5 l/min0.3...17.9 m³/h
Analogue start point ASP0...240 l/min
0...14.4 m³/h
0...240 l/min0...14.4 m³/h
Analogue end point AEP60...300 l/min
3.6...18 m³/h
60...300 l/min3.6...18 m³/h
Low flow cut-off LFC< 15 l/min
< 0.9 m³/h
< 15 l/min< 0.9 m³/h
In steps of0.0001 m³
Measuring dynamics1:60
Pulse value0.0001...300 x 10³ m³
Pulse length[s] [s]0,016...2
Measuring range[°C] [°C]-20...80
Display range[°C] [°C]-40...100
Resolution[°C] [°C]0.2
Set point SP[°C] [°C]-19.2...80
Reset point rP[°C] [°C]-19.6...79.6
Analogue start point[°C] [°C]-20...60
Analogue end point[°C] [°C]0...80
In steps of[°C] [°C]0.2

Accuracy / deviations

Accuracy (in the measuring range)± (0,8 % MW + 0,5 % MEW)
Repeatability± 0,2% MEW
Temperature drift± 0,0333 °C / K
Accuracy[K] [K]± 1 (25 °C; Q > 15 l/min)

Response times

Response time[s] [s]0.35; (dAP = 0)
Delay time programmable dS, dr[s] [s]0...50
Damping process value dAP[s] [s]0...5
Dynamic response T05 / T09[s] [s]T09 = 3 (Q > 15 l/min)

Software / programming

Parameter setting optionsFlow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/frequency/pulse output; start-up delay; display can be deactivated; Display unit; empty pipe detection

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9 CDV
ProfilesSmart Sensor - SSP 0
Generic Profiled Sensor
Function
Device identification
Function
Process data variable
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionProcess data variable
SIO modeyes
Required master port typeA
Process data analogue3
Process data binary2
Min. process cycle time[ms] [ms]5
Supported DeviceIDsdefault
391
default391

Operating conditions

Ambient temperature[°C] [°C]-10...60
Storage temperature[°C] [°C]-25...80
ProtectionIP 65; IP 67

Tests / approvals

EMCDIN EN 60947-5-9
CPA approvalmodel number
004MI
accuracy class
-
maximum allowable error
± 1,5 % FS
Q (min)
0,3 m³/h
Q (t)
-
Q (max)
18 m³/h
Medium temperature
-10...70°C
model number004MI
accuracy class-
maximum allowable error± 1,5 % FS
Q (min)0,3 m³/h
Q (t)-
Q (max)18 m³/h
Medium temperature-10...70°C
Shock resistanceDIN EN 60068-2-27
20 g (11 ms)
DIN EN 60068-2-2720 g (11 ms)
Vibration resistanceDIN EN 60068-2-6
5 g (10...2000 Hz)
DIN EN 60068-2-65 g (10...2000 Hz)
MTTF[years] [years]85
UL approvalUL approval no.
I008
File number UL
E174189
UL approval no.I008
File number ULE174189
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]3050
Housingrectangular
Inlet pipe length3 x DN
Outlet pipe length1 x DN
Dimensions[mm] [mm]200 x 103 x 117
Materialsstainless steel (316L/1.4404); stainless steel (316Ti/1.4571); PEI; FKM; PBT-GF20; TPE-U
Materials (wetted parts)Pipe section: stainless steel (316L/1.4404); Process connection sealing: NBR reinforced fibre Flat seal; stainless steel (316Ti/1.4571); PEEK; EPDM
Process connectionthreaded connection G 2 external thread DN50 flat seal

Displays / operating elements

DisplayDisplay unit
6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status
2 x LED, yellow
measured values
alphanumeric display, 4-digit
programming
alphanumeric display, 4-digit
Display unit6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status2 x LED, yellow
measured valuesalphanumeric display, 4-digit
programmingalphanumeric display, 4-digit

Accessories

Items suppliedsealings: 2, Centellen
Label

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
