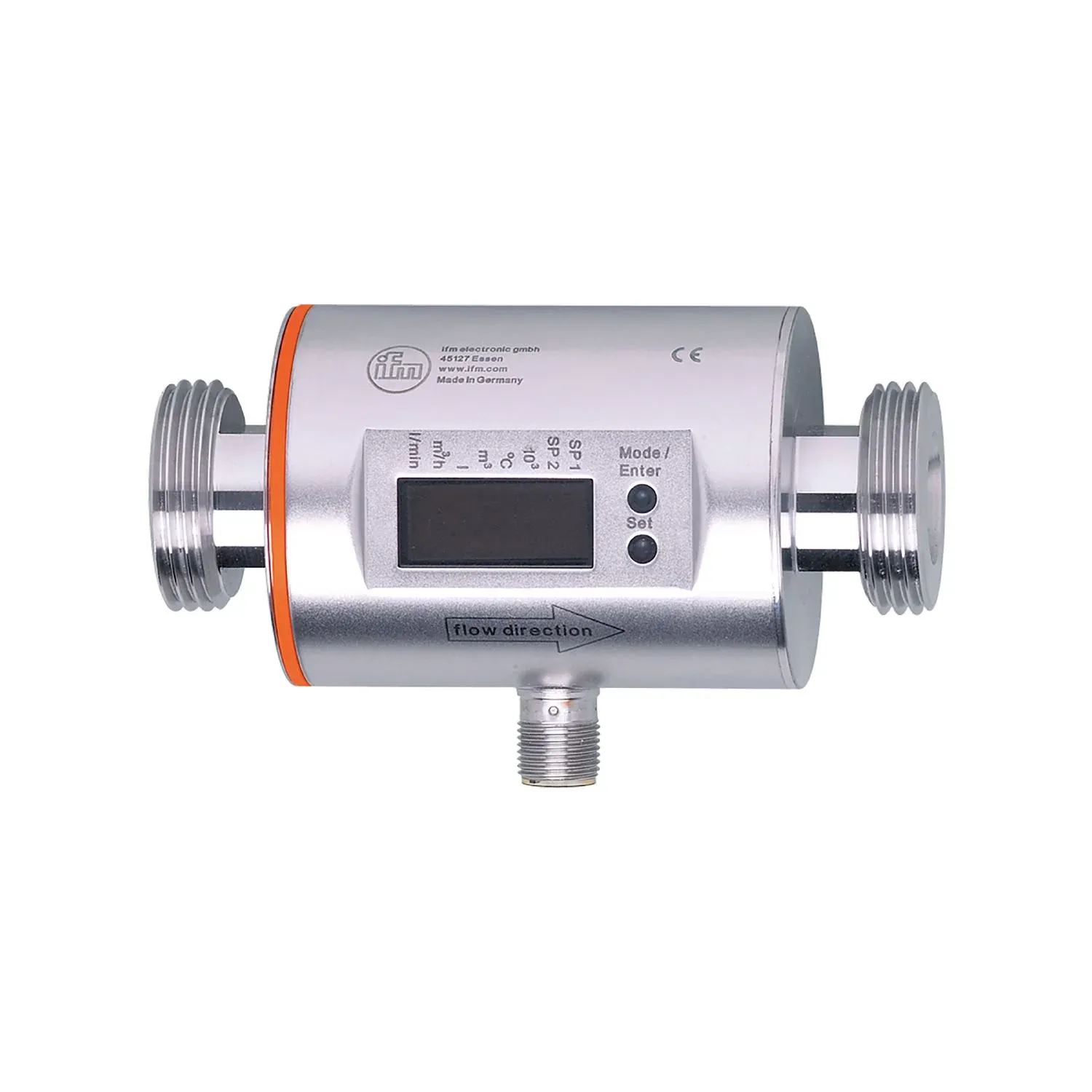

IFM SM8000

SM8000

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Precise measurement of flow, consumption and medium temperature
High accuracy, repeatability and measurement dynamics
With switching output, analogue output and pulse output
Clearly visible 4-digit LED display
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range0.2...100 l/min
0.01...6 m³/h
0.2...100 l/min0.01...6 m³/h
Process connectionthreaded connection G 1 external thread DN25 flat seal

Application

Special featureGold-plated contacts
Applicationtotaliser function; for industrial applications
Installationconnection to pipe by means of an adapter
Mediaconductive liquids; water; hydrous media
Note on mediaconductivity: ≥ 20 µS/cm
viscosity: < 70 mm²/s (40 °C)
Medium temperature[°C] [°C]-10...70
Pressure rating16 bar
1.6 MPa
16 bar1.6 MPa
MAWP for applications according to CRN10.4 bar
1.04 MPa
10.4 bar1.04 MPa

Electrical data

Operating voltage[V] [V]18...30 DC; (to SELV/PELV)
Current consumption[mA] [mA]95; (24 V)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]5
Measuring principlemagnetic-inductive

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Inputs

Inputscounter reset

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; pulse signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]200
Number of analogue outputs1
Analogue current output[mA] [mA]4...20; (scalable)
Max. load[Ω] [Ω]500
Analogue voltage output[V] [V]0...10; (scalable)
Min. load resistance[Ω] [Ω]2000
Pulse outputflow rate meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range0.2...100 l/min
0.01...6 m³/h
0.2...100 l/min0.01...6 m³/h
Display range-120...120 l/min
-7.2...7.2 m³/h
-120...120 l/min-7.2...7.2 m³/h
Resolution0.1 l/min
0.005 m³/h
0.1 l/min0.005 m³/h
Set point SP0.7...100 l/min
0.04...6 m³/h
0.7...100 l/min0.04...6 m³/h
Reset point rP0.2...99.5 l/min
0.01...5.97 m³/h
0.2...99.5 l/min0.01...5.97 m³/h
Analogue start point ASP0...80 l/min
0...4.8 m³/h
0...80 l/min0...4.8 m³/h
Analogue end point AEP20...100 l/min
1.2...6 m³/h
20...100 l/min1.2...6 m³/h
In steps of0.1 l/min
0.005 m³/h
Pulse value0.00001...100 000 m³
Pulse length[s] [s]0,0025...2
Measuring range[°C] [°C]-20...80
Resolution[°C] [°C]0.2
Set point SP[°C] [°C]-19.2...80
Reset point rP[°C] [°C]-19.6...79.6
Analogue start point[°C] [°C]-20...60
Analogue end point[°C] [°C]0...80
In steps of[°C] [°C]0.2

Accuracy / deviations

Accuracy (in the measuring range)± (0,8 % MW + 0,5 % MEW)
Repeatability± 0,2% MEW
Accuracy[K] [K]± 2,5 (Q > 5 l/min)

Response times

Response time[s] [s]0.15; (dAP = 0, T19)
Delay time programmable dS, dr[s] [s]0...50
Damping process value dAP[s] [s]0...5
Dynamic response T05 / T09[s] [s]T09 = 20 (Q > 5 l/min)

Software / programming

Parameter setting optionsFlow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/pulse output; start-up delay; display can be deactivated; Display unit

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesSmart Sensor - SSP 0
Generic Profiled Sensor
Function
Device identification
Function
Process data variable
Function
Device diagnosis
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionDevice diagnosis
SIO modeyes
Required master port typeA
Process data analogue3
Process data binary2
Min. process cycle time[ms] [ms]5
Supported DeviceIDsdefault
575
default575

Operating conditions

Ambient temperature[°C] [°C]-10...60
Storage temperature[°C] [°C]-25...80
ProtectionIP 67

Tests / approvals

EMCDIN EN 60947-5-9
CPA approvalmodel number
002MI
accuracy class
-
maximum allowable error
± 1,5 % FS
Q (min)
0,01 m³/h
Q (t)
-
Q (max)
6 m³/h
model number002MI
accuracy class-
maximum allowable error± 1,5 % FS
Q (min)0,01 m³/h
Q (t)-
Q (max)6 m³/h
Shock resistanceDIN IEC 68-2-27
20 g (11 ms)
DIN IEC 68-2-2720 g (11 ms)
Vibration resistanceDIN IEC 68-2-6
5 g (10...2000 Hz)
DIN IEC 68-2-65 g (10...2000 Hz)
MTTF[years] [years]145
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]577
Housingcylindrical
Inlet pipe length3 x DN
Outlet pipe length1 x DN
Dimensions[mm] [mm]Ø 54 / L = 110
Materialsstainless steel (316L/1.4404); PBT-GF20; PC; FKM; TPE
Materials (wetted parts)stainless steel (316L/1.4404); PEEK; FKM
Process connectionthreaded connection G 1 external thread DN25 flat seal

Displays / operating elements

DisplayDisplay unit
6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status
2 x LED, yellow
measured values
alphanumeric display, 4-digit
programming
alphanumeric display, 4-digit
Display unit6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status2 x LED, yellow
measured valuesalphanumeric display, 4-digit
programmingalphanumeric display, 4-digit

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
