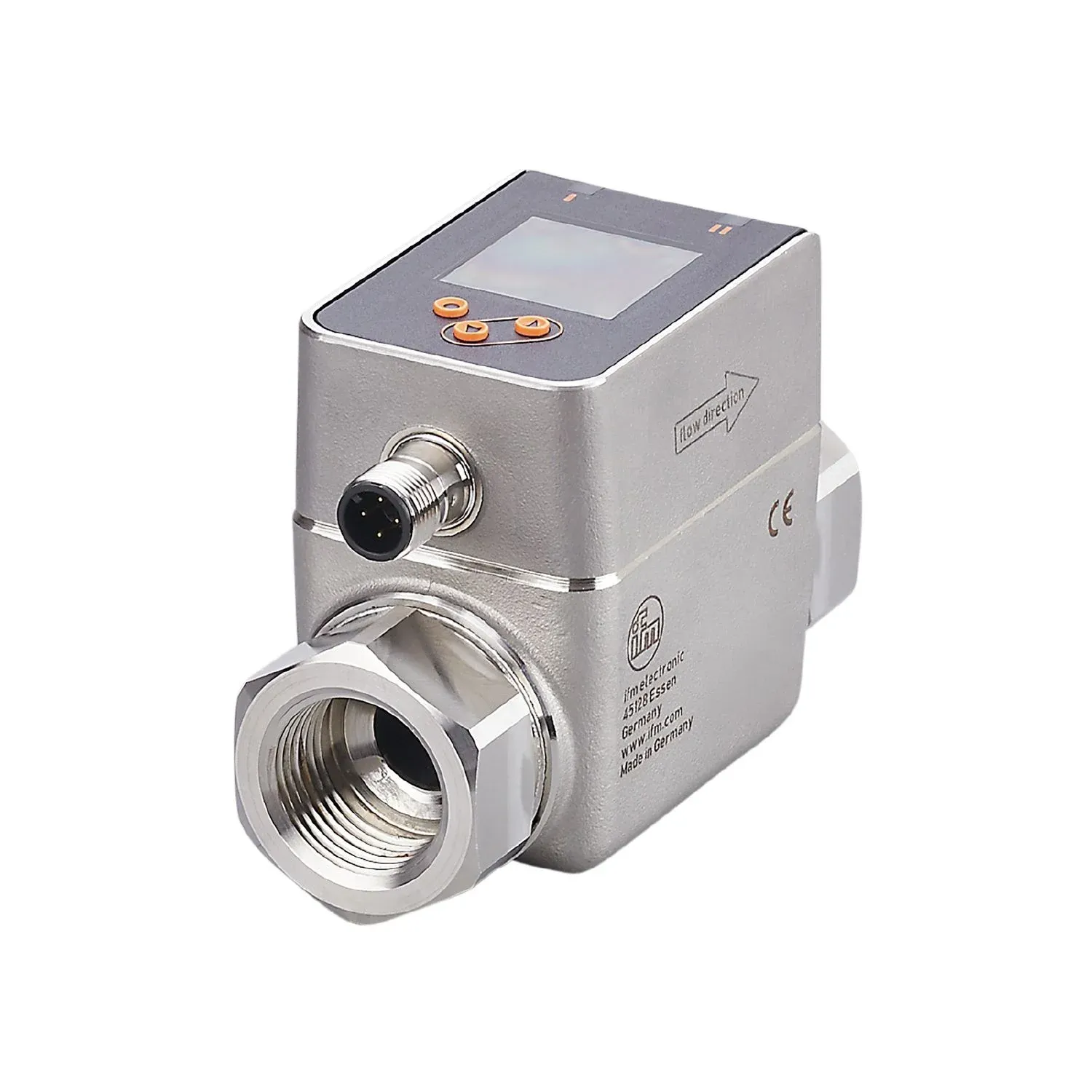

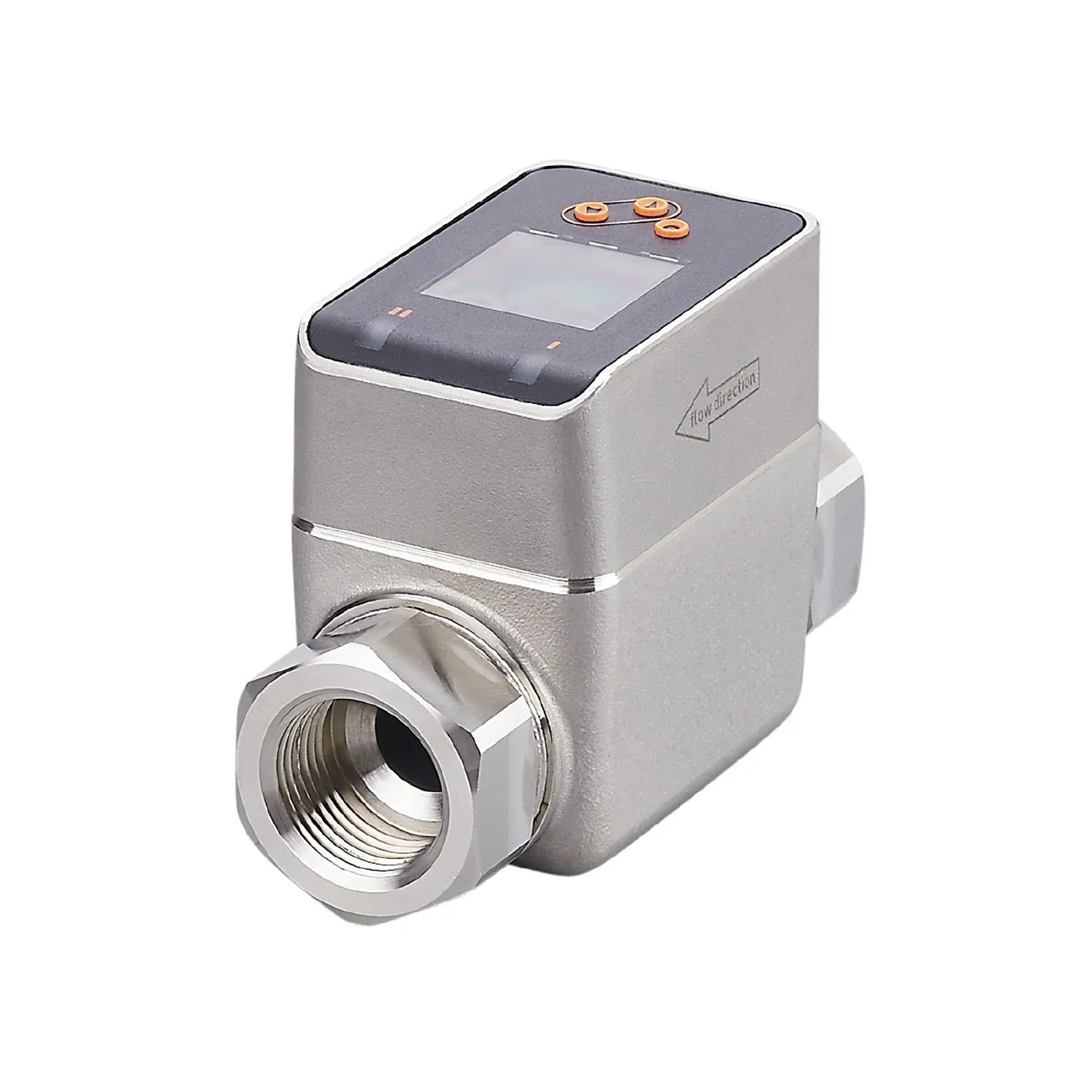

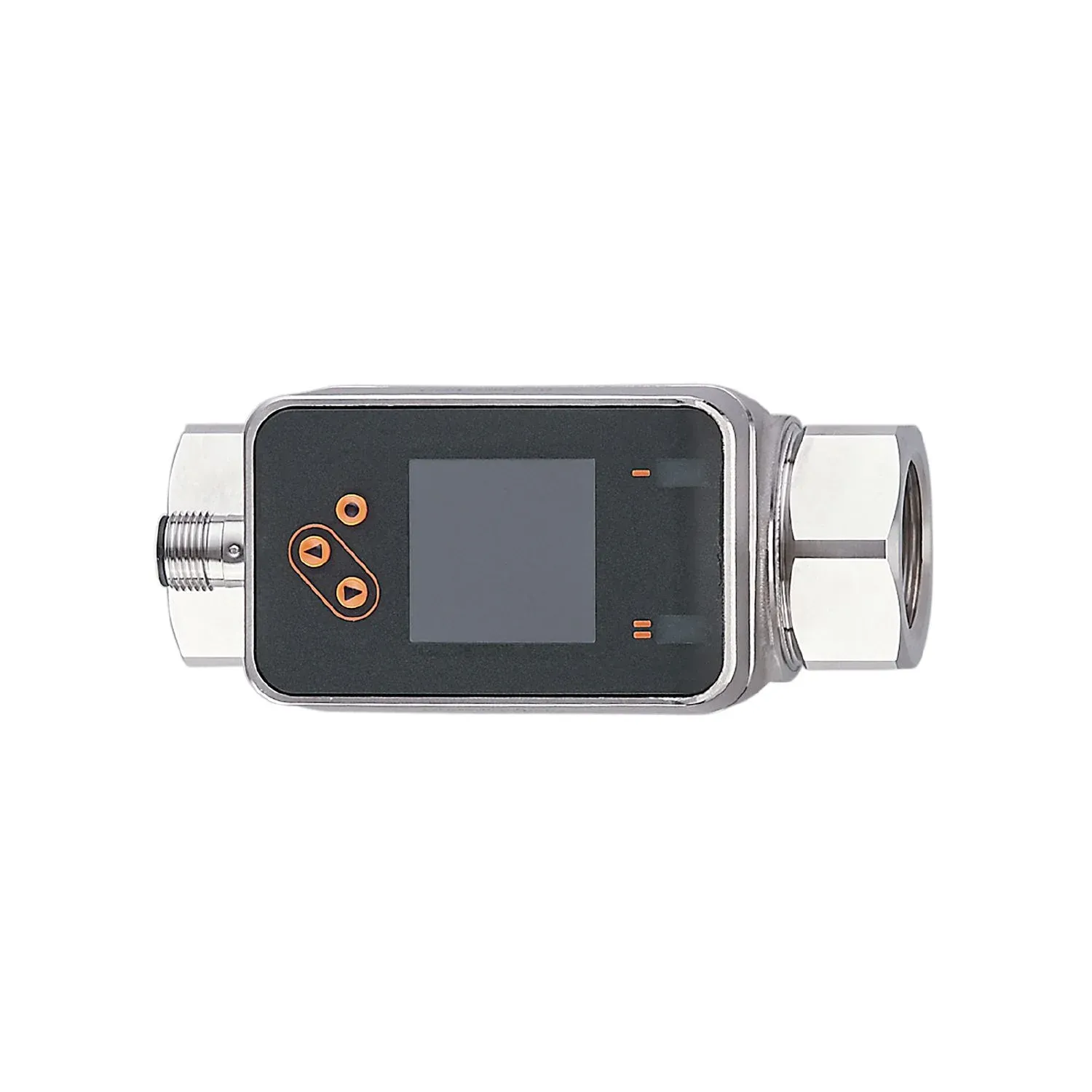

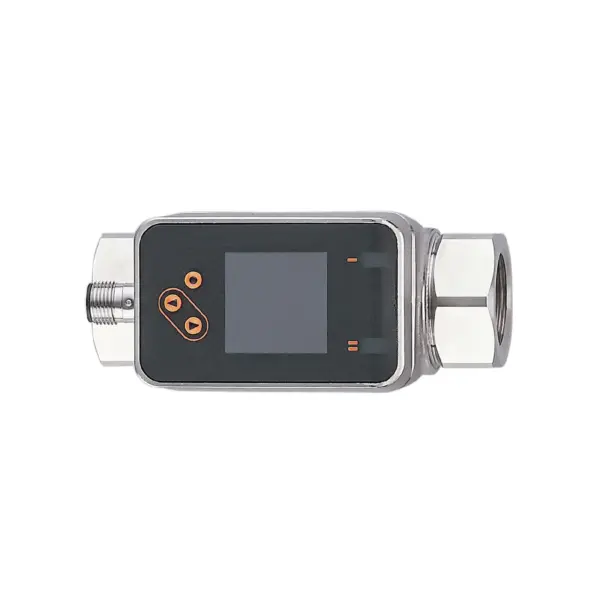

IFM SM7420

SM7420

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Precise measurement of flow, consumption and medium temperature
High accuracy, repeatability and measurement dynamics
With switching output, analogue output and pulse output
Clearly readable colour display with red/green colour change
No inlet and output pipe lengths required
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range0.1...75 l/min
0.006...4.5 m³/h
1.2...1190 gph
0.02...19.82 gpm
0.1...75 l/min0.006...4.5 m³/h
Process connectionthreaded connection Rc 3/4 internal thread DN20

Application

Special featureGold-plated contacts
Mediaconductive liquids; water; hydrous media
Note on mediaconductivity: ≥ 20 µS/cm
viscosity: < 70 mm²/s (40 °C)
Medium temperature[°C] [°C]-20...90
Pressure rating16 bar
1.6 MPa
16 bar1.6 MPa

Electrical data

Operating voltage[V] [V]18...30 DC; (to SELV/PELV)
Current consumption[mA] [mA]< 80
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]5
Measuring principlemagnetic-inductive

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Inputs

Inputscounter reset

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; pulse signal; IO-Link; frequency signal; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]100
Number of analogue outputs1
Analogue current output[mA] [mA]4...20; (scalable)
Max. load[Ω] [Ω]500
Pulse outputflow rate meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range0.1...75 l/min
0.006...4.5 m³/h
1.2...1190 gph
0.02...19.82 gpm
0.1...75 l/min0.006...4.5 m³/h
Display range-90...90 l/min
-5.4...5.4 m³/h
-1426.8...1426.8 gph
-23.78...23.78 gpm
-90...90 l/min-5.4...5.4 m³/h
Resolution0.1 l/min
0.006 m³/h
0.6 gph
0.01 gpm
0.1 l/min0.006 m³/h
Set point SP0.5...75 l/min
0.03...4.5 m³/h
8.4...1189 gph
0.14...19.81 gpm
0.5...75 l/min0.03...4.5 m³/h
Reset point rP0.1...74.6 l/min
0.006...4.48 m³/h
1.2...1183 gph
0.03...19.71 gpm
0.1...74.6 l/min0.006...4.48 m³/h
Analogue start point ASP0...59.9 l/min
0...3.6 m³/h
0...950 gph
0...15.82 gpm
0...59.9 l/min0...3.6 m³/h
Analogue end point AEP15.1...75 l/min
0.9...4.5 m³/h
240...1189 gph
3.99...19.81 gpm
15.1...75 l/min0.9...4.5 m³/h
Low flow cut-off LFC0.1...3.8 l/min
0.006...0.23 m³/h
1.8...59.4 gph
0.03...0.99 gpm
0.1...3.8 l/min0.006...0.23 m³/h
Frequency end point, FEP15.1...75 l/min
0.9...4.5 m³/h
240...1189 gph
3.99...19.81 gpm
Frequency at the end point FRP[Hz] [Hz]1...10000
Pulse length[s] [s]0.003...2
Pulse value0.01...99990000 I
Measuring range[°C] [°C]-20...90
Display range[°C] [°C]-42...112
Resolution[°C] [°C]0.1
Set point SP[°C] [°C]-19.6...90
Reset point rP[°C] [°C]-20...89.6
Analogue start point[°C] [°C]-20...68
Analogue end point[°C] [°C]2...90
In steps of[°C] [°C]0.1

Accuracy / deviations

Accuracy (in the measuring range)± (0,8 % MW + 0,2 % MEW)
Repeatability± 0,2 % MEW
Accuracy[K] [K]± 2,5 (Q > 5 % MEW)

Response times

Start-up delay[s] [s]0...50
Response time[s] [s]15; (Q > 10 % MEW, T09)
Damping process value dAP[s] [s]0...5

Software / programming

Parameter setting optionshysteresis / window; normally open / normally closed; switching logic; frequency output; current/pulse output; start-up delay; display can be deactivated; Display unit

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesCommon - I&D
Identification and Diagnosis
Function
Measurement data, standard resolution
Common - I&DIdentification and Diagnosis
FunctionMeasurement data, standard resolution
SIO modeyes
Required master port typeA
Process data analogue3
Process data binary2
Min. process cycle time[ms] [ms]8
Supported DeviceIDsdefault
960
default960

Operating conditions

Ambient temperature[°C] [°C]-20...60
Storage temperature[°C] [°C]-25...80
ProtectionIP 65; IP 67

Tests / approvals

EMCDIN EN 60947-5-9
CPA approvalmodel number
006MI
accuracy class
-
maximum allowable error
± 1,0 % FS
Q (min)
0,006 m³/h
Q (t)
-
Q (max)
4,5 m³/h
model number006MI
accuracy class-
maximum allowable error± 1,0 % FS
Q (min)0,006 m³/h
Q (t)-
Q (max)4,5 m³/h
Shock resistanceDIN IEC 68-2-27
20 g (11 ms)
DIN IEC 68-2-2720 g (11 ms)
Vibration resistanceDIN IEC 68-2-6:
5 g (10...2000 Hz)
DIN IEC 68-2-6:5 g (10...2000 Hz)
MTTF[years] [years]114
UL approvalUL approval no.
I014
File number UL
E174189
UL approval no.I014
File number ULE174189
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]848.7
Housingrectangular
Dimensions[mm] [mm]110 x 48 x 73
Materialsstainless steel (316/1.4408); stainless steel (316L/1.4404); PC; PBT+PC-GF30
Materials (wetted parts)stainless steel (316L/1.4404); PEEK; carbon fibre PEEK; FKM
Process connectionthreaded connection Rc 3/4 internal thread DN20

Displays / operating elements

Displaycolour display 1,44", 128 x 128 pixels
2 x LED, yellow

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
