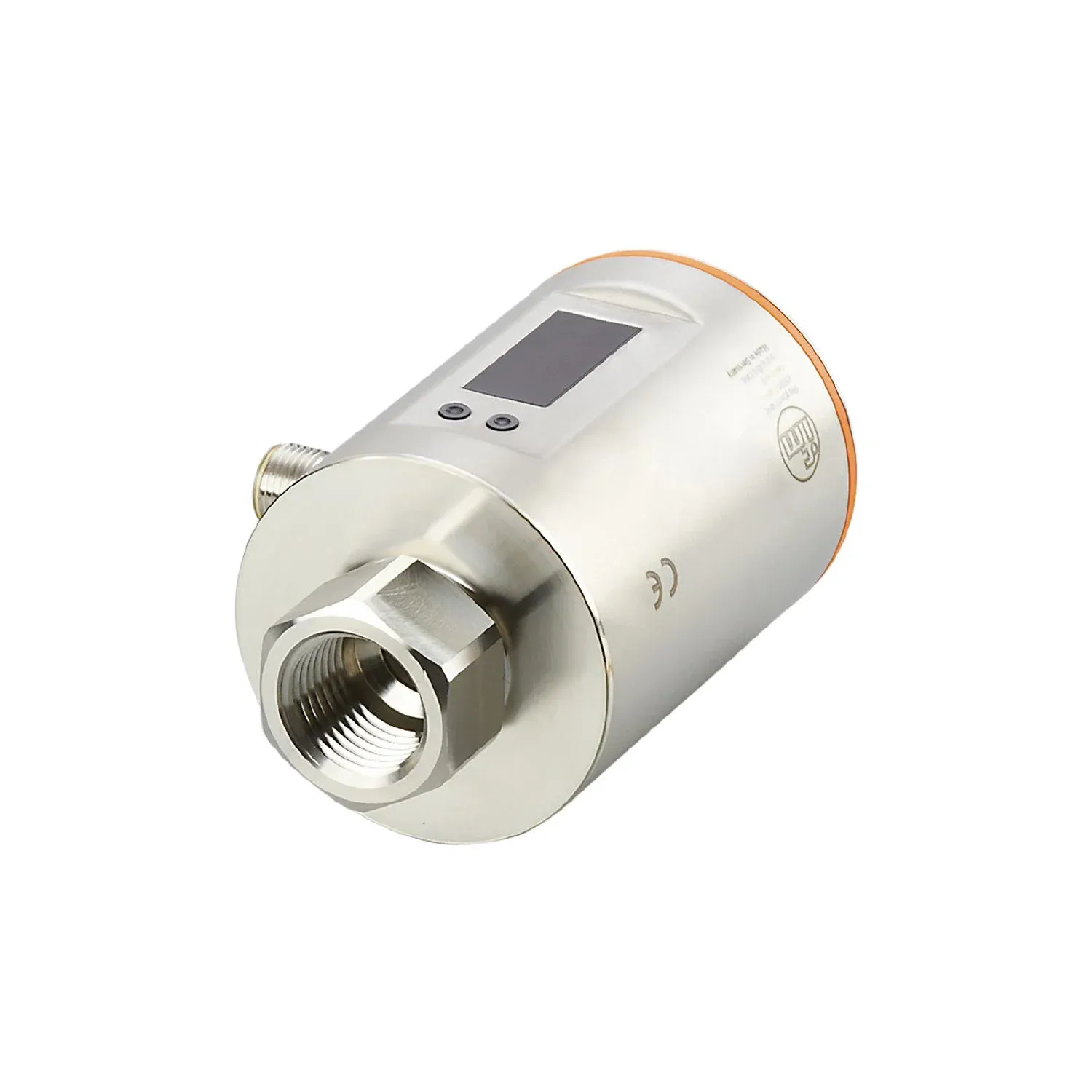

IFM SM6604
SM6604
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise measurement of flow, consumption and medium temperature
High accuracy, repeatability and measurement dynamics
For use in water cooling circuits
With two precise analogue outputs
Clearly visible 4-digit LED display
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|---|
| Measuring range | 0.1...25 l/min 0.03...6.6 gpm |
| 0.1...25 l/min | 0.03...6.6 gpm |
| Process connection | threaded connection 1/2" NPT internal thread DN15 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Media | conductive liquids; water; hydrous media |
| Note on media | conductivity: ≥ 20 µS/cm viscosity: < 70 mm²/s (40 °C) |
| Medium temperature[°C] [°C] | -10...70 |
| Pressure rating | 16 bar 1.6 MPa |
| 16 bar | 1.6 MPa |
| MAWP for applications according to CRN | 15.3 bar 1.53 MPa |
| 15.3 bar | 1.53 MPa |
Electrical data
| Operating voltage[V] [V] | 20...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | 120; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 5 |
| Measuring principle | magnetic-inductive |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 2 |
| Analogue current output[mA] [mA] | 4...20; (scalable) |
| Max. load[Ω] [Ω] | 500 |
| Overload protection | yes |
Measuring/setting range
| Measuring range | 0.1...25 l/min 0.03...6.6 gpm |
|---|---|
| 0.1...25 l/min | 0.03...6.6 gpm |
| Display range | -30...30 l/min -7.92...7.92 gpm |
| -30...30 l/min | -7.92...7.92 gpm |
| Resolution | 0.05 l/min 0.01 gpm |
| 0.05 l/min | 0.01 gpm |
| Analogue start point ASP | 0...20 l/min 0...5.28 gpm |
| 0...20 l/min | 0...5.28 gpm |
| Analogue end point AEP | 5...25 l/min 1.32...6.6 gpm |
| 5...25 l/min | 1.32...6.6 gpm |
| In steps of | 0.02 l/min 0.01 gpm |
| 0.02 l/min | 0.01 gpm |
| Measuring range[°C] [°C] | -20...80 |
| Resolution[°C] [°C] | 0.2 |
| Analogue start point[°C] [°C] | -20...60 |
| Analogue end point[°C] [°C] | 0...80 |
| In steps of[°C] [°C] | 0.2 |
Accuracy / deviations
| Accuracy (in the measuring range) | ± (2 % MW + 0,5 % MEW) |
|---|---|
| Repeatability | ± 0,2% MEW |
| Accuracy[K] [K] | ± 2,5 (Q > 1 l/min) |
Response times
| Response time[s] [s] | 0.15; (dAP = 0, T19) |
|---|---|
| Damping process value dAP[s] [s] | 0...3 |
| Dynamic response T05 / T09[s] [s] | T09 = 20 (Q > 1 l/min) |
Operating conditions
| Ambient temperature[°C] [°C] | -10...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| EMC | DIN EN 60947-5-9 500 V withstand voltage (V DC) |
|---|---|
| DIN EN 60947-5-9 | 500 V withstand voltage (V DC) |
| CPA approval | model number 008MI accuracy class - maximum allowable error ± 2,5 % FS Q (min) 0,005 m³/h Q (t) - Q (max) 1,5 m³/h |
| model number | 008MI |
| accuracy class | - |
| maximum allowable error | ± 2,5 % FS |
| Q (min) | 0,005 m³/h |
| Q (t) | - |
| Q (max) | 1,5 m³/h |
| Shock resistance | DIN EN 60068-2-27 20 g (11 ms) |
| DIN EN 60068-2-27 | 20 g (11 ms) |
| Vibration resistance | DIN EN 68000-2-6 5 g (10...2000 Hz) |
| DIN EN 68000-2-6 | 5 g (10...2000 Hz) |
| MTTF[years] [years] | 175 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 523.15 |
|---|---|
| Housing | cylindrical |
| Inlet pipe length | 3 x DN |
| Outlet pipe length | 1 x DN |
| Dimensions[mm] [mm] | Ø 54 / L = 110 |
| Materials | stainless steel (316L/1.4404); PBT-GF20; PC; FKM; TPE |
| Materials (wetted parts) | stainless steel (316L/1.4404); PEEK; FKM |
| Process connection | threaded connection 1/2" NPT internal thread DN15 |
Displays / operating elements
| Display | Display unit 6 x LED, green (l/min, m³/h, gpm, gph, °C, °F) measured values alphanumeric display, 4-digit programming alphanumeric display, 4-digit |
|---|---|
| Display unit | l/min; m³/h; gpm; gph; °C; °F |
| measured values | alphanumeric display, 4-digit |
| programming | alphanumeric display, 4-digit |
Remarks
| Remarks | MW = measured value MEW = Final value of the measuring range |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
