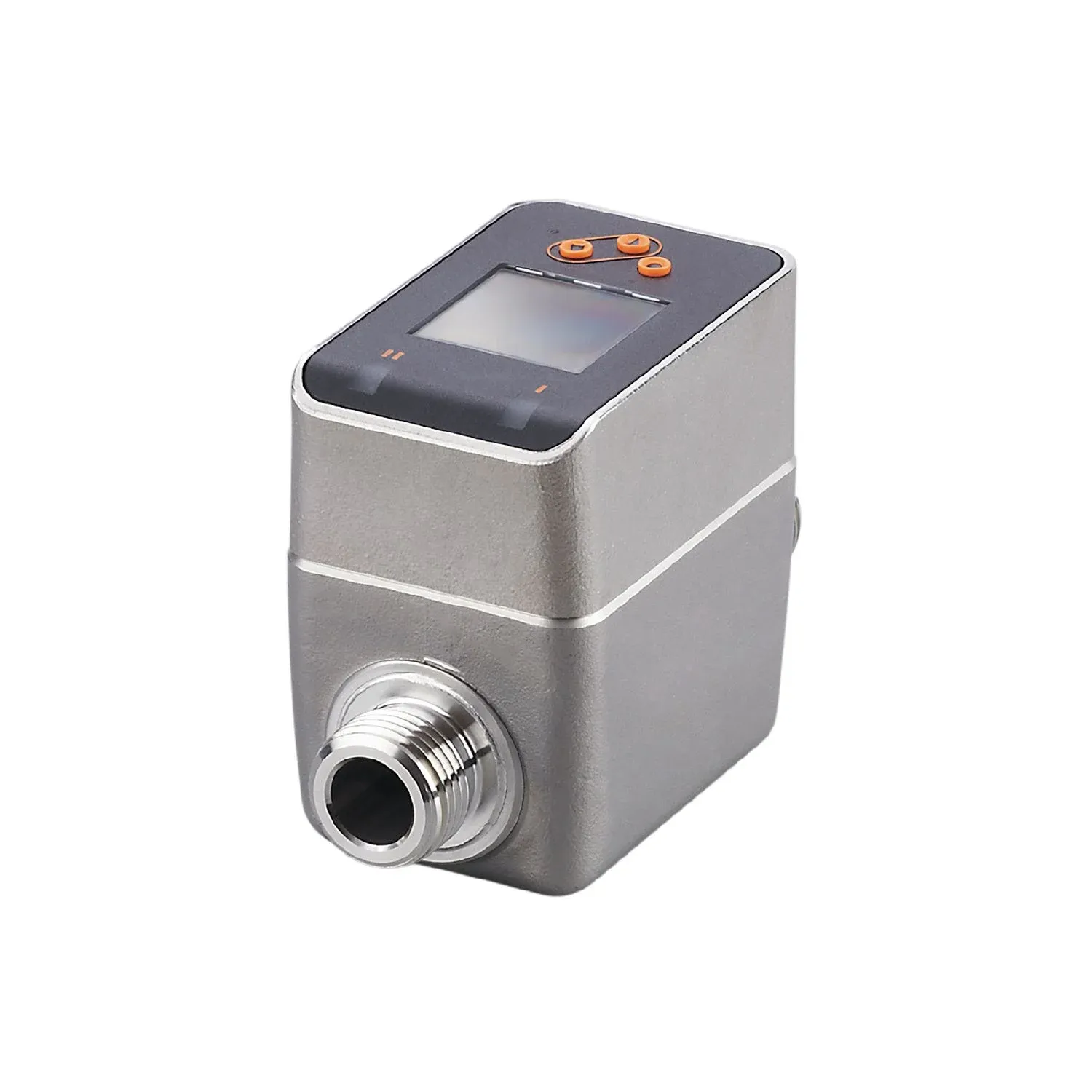

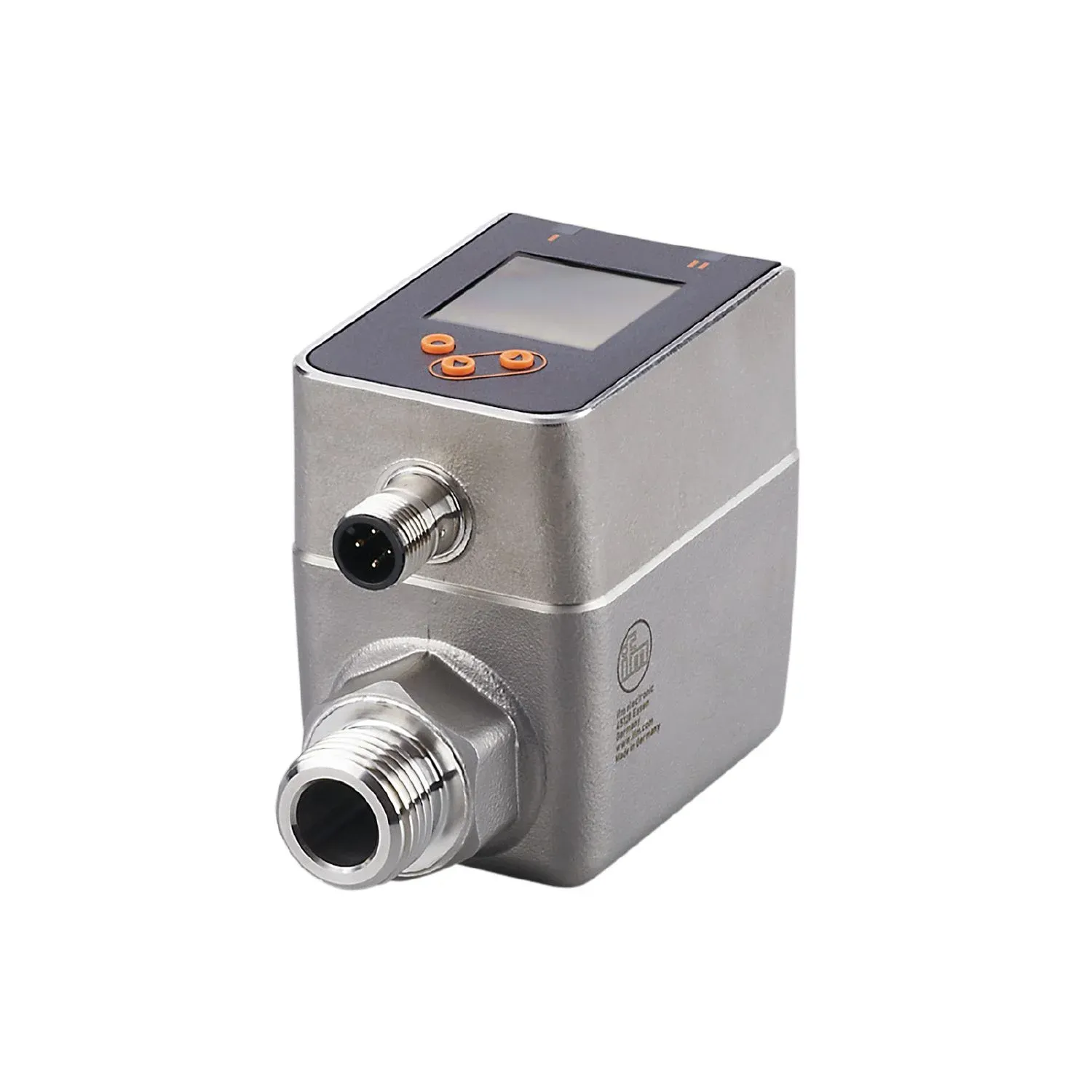

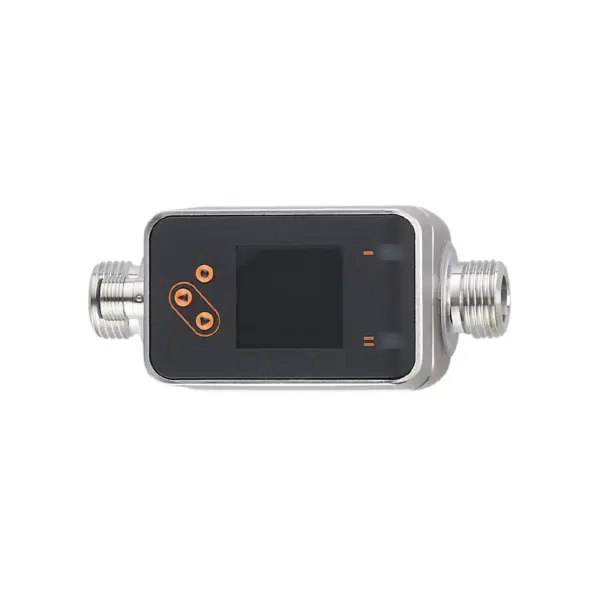

IFM SM4020
SM4020
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise measurement of flow, consumption and medium temperature
High accuracy, repeatability and measurement dynamics
With switching output, analogue output and pulse output
Clearly readable colour display with red/green colour change
No inlet and output pipe lengths required
Convenient operation via buttons or parameter setting via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|---|
| Measuring range[ml/min] [ml/min] | 5...5000 |
| Process connection | threaded connection G 1/4 external thread DN6 flat seal |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Media | conductive liquids; water; hydrous media |
| Note on media | conductivity: ≥ 20 µS/cm viscosity: < 70 mm²/s (40 °C) |
| Medium temperature[°C] [°C] | -20...90 |
| Pressure rating | 16 bar 1.6 MPa |
| 16 bar | 1.6 MPa |
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | < 80 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 5 |
| Measuring principle | magnetic-inductive |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|
Inputs
| Inputs | counter reset |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; pulse signal; IO-Link; frequency signal; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20; (scalable) |
| Max. load[Ω] [Ω] | 500 |
| Pulse output | flow rate meter |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range[ml/min] [ml/min] | 5...5000 |
|---|---|
| Display range[ml/min] [ml/min] | -6000...6000 |
| Resolution[ml/min] [ml/min] | 1 |
| Set point SP[ml/min] [ml/min] | 33...5000 |
| Reset point rP[ml/min] [ml/min] | 7...4974 |
| Analogue start point ASP[ml/min] [ml/min] | 0...3993 |
| Analogue end point AEP[ml/min] [ml/min] | 1007...5000 |
| Low flow cut-off LFC[ml/min] [ml/min] | 5...250 |
| Frequency end point, FEP[ml/min] [ml/min] | 1005...5000 |
| Frequency at the end point FRP[Hz] [Hz] | 1...10000 |
| Pulse length[s] [s] | 0.005...2 |
| Pulse value | 0.001...99990000 I |
| Measuring range[°C] [°C] | -20...90 |
| Display range[°C] [°C] | -42...112 |
| Resolution[°C] [°C] | 0.1 |
| Set point SP[°C] [°C] | -19.6...90 |
| Reset point rP[°C] [°C] | -20...89.6 |
| Analogue start point[°C] [°C] | -20...68 |
| Analogue end point[°C] [°C] | 2...90 |
| In steps of[°C] [°C] | 0.1 |
Accuracy / deviations
| Accuracy (in the measuring range) | ± (0,8 % MW + 0,2 % MEW) |
|---|---|
| Repeatability | ± 0,2 % MEW |
| Accuracy[K] [K] | ± 2,5 (Q > 1 l/min) |
Response times
| Start-up delay[s] [s] | 0...50 |
|---|---|
| Response time[s] [s] | 15; (Q > 1 l/min, T09) |
| Damping process value dAP[s] [s] | 0...5 |
Software / programming
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; frequency output; current/pulse output; start-up delay; display can be deactivated; Display unit |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis |
| Common - I&D | Identification and Diagnosis |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 3 |
| Process data binary | 2 |
| Min. process cycle time[ms] [ms] | 8 |
| Supported DeviceIDs | default 943 |
| default | 943 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | DIN EN 60947-5-9 |
|---|---|
| Shock resistance | DIN IEC 68-2-27 20 g (11 ms) |
| DIN IEC 68-2-27 | 20 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6: 5 g (10...2000 Hz) |
| DIN IEC 68-2-6: | 5 g (10...2000 Hz) |
| MTTF[years] [years] | 114 |
| UL approval | UL approval no. I014 File number UL E174189 |
| UL approval no. | I014 |
| File number UL | E174189 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 712.8 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 110 x 48 x 73 |
| Materials | stainless steel (316/1.4408); stainless steel (316L/1.4404); PC; PBT+PC-GF30 |
| Materials (wetted parts) | Pipe section: stainless steel (316L/1.4404); Process connection sealing: NBR reinforced fibre Flat seal; FKM; PEEK; carbon fibre PEEK |
| Process connection | threaded connection G 1/4 external thread DN6 flat seal |
Displays / operating elements
| Display | colour display 1,44", 128 x 128 pixels 2 x LED, yellow |
|---|
Remarks
| Remarks | MW = measured value MEW = Final value of the measuring range |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
