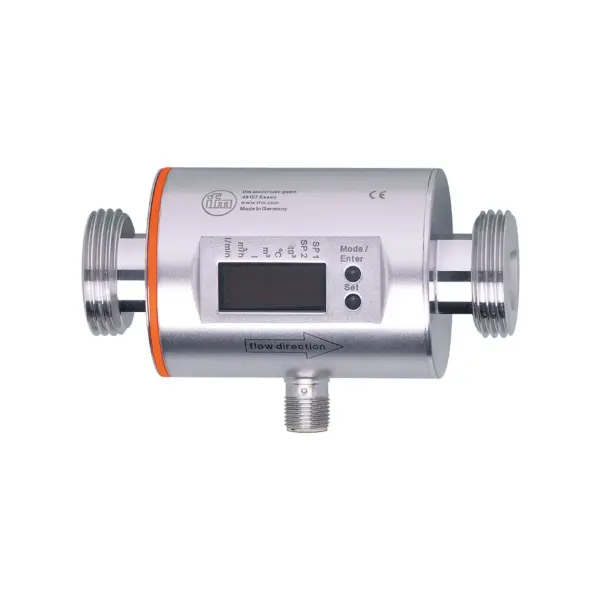

IFM SM0505

SM0505

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Precise measurement of flow, consumption and medium temperature
High accuracy, repeatability and measurement dynamics
Precise empty pipe detection
With switching output, analogue output and pulse output
Clearly visible 4-digit LED display

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range0.2...100 l/min
0.01...6 m³/h
0.2...100 l/min0.01...6 m³/h
Process connectionthreaded connection G 1 external thread DN25 flat seal

Application

Special featureGold-plated contacts
Applicationempty pipe detection; totaliser function; for industrial applications
Mediaconductive liquids; water; hydrous media
Note on mediaconductivity: ≥ 20 µS/cm
viscosity: < 70 mm²/s (40 °C)
Medium temperature[°C] [°C]-10...70
Pressure rating16 bar
1.6 MPa
16 bar1.6 MPa
MAWP for applications according to CRN10.4 bar
1.04 MPa
10.4 bar1.04 MPa

Electrical data

Operating voltage[V] [V]18...30 DC; (to SELV/PELV)
Current consumption[mA] [mA]95; (24 V)
Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]5
Measuring principlemagnetic-inductive

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Inputs

Inputscounter reset

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; pulse signal; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]200
Number of analogue outputs1
Analogue current output[mA] [mA]4...20; (scalable)
Max. load[Ω] [Ω]500
Analogue voltage output[V] [V]0...10; (scalable)
Min. load resistance[Ω] [Ω]2000
Pulse outputflow rate meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range0.2...100 l/min
0.01...6 m³/h
0.2...100 l/min0.01...6 m³/h
Display range-120...120 l/min
-7.2...7.2 m³/h
-120...120 l/min-7.2...7.2 m³/h
Resolution0.1 l/min
0.005 m³/h
0.1 l/min0.005 m³/h
Set point SP0.7...100 l/min
0.04...6 m³/h
0.7...100 l/min0.04...6 m³/h
Reset point rP0.2...99.5 l/min
0.01...5.97 m³/h
0.2...99.5 l/min0.01...5.97 m³/h
Analogue start point ASP0...80 l/min
0...4.8 m³/h
0...80 l/min0...4.8 m³/h
Analogue end point AEP20...100 l/min
1.2...6 m³/h
20...100 l/min1.2...6 m³/h
In steps of0.1 l/min
0.005 m³/h
Pulse value0.1 l...100 000 m³
Pulse length[s] [s]0,025...2
Measuring range[°C] [°C]-20...80
Resolution[°C] [°C]0.2
Set point SP[°C] [°C]-19.2...80
Reset point rP[°C] [°C]-19.6...79.6
Analogue start point[°C] [°C]-20...60
Analogue end point[°C] [°C]0...80
In steps of[°C] [°C]0.2

Accuracy / deviations

Accuracy (in the measuring range)± (2 % MW + 0,5 % MEW)
Repeatability± 0,2% MEW
Accuracy[K] [K]± 2,5 (Q > 5 l/min)

Response times

Response time[s] [s]0.15; (dAP = 0)
Delay time programmable dS, dr[s] [s]0...50
Damping process value dAP[s] [s]0...5
Dynamic response T05 / T09[s] [s]T09 = 30 (Q > 5 l/min)

Software / programming

Parameter setting optionsFlow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/pulse output; start-up delay; display can be deactivated; Display unit; empty pipe detection

Operating conditions

Ambient temperature[°C] [°C]-10...60
Storage temperature[°C] [°C]-25...80
ProtectionIP 67

Tests / approvals

EMCDIN EN 60947-5-9
500 V withstand voltage (V DC)
DIN EN 60947-5-9500 V withstand voltage (V DC)
CPA approvalmodel number
009MI
accuracy class
-
maximum allowable error
± 2,5 % FS
Q (min)
0,01 m³/h
Q (t)
-
Q (max)
6 m³/h
model number009MI
accuracy class-
maximum allowable error± 2,5 % FS
Q (min)0,01 m³/h
Q (t)-
Q (max)6 m³/h
Shock resistanceDIN IEC 68-2-27
20 g (11 ms)
DIN IEC 68-2-2720 g (11 ms)
Vibration resistanceDIN IEC 68-2-6
5 g (10...2000 Hz)
DIN IEC 68-2-65 g (10...2000 Hz)
MTTF[years] [years]130
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]576
Housingcylindrical
Inlet pipe length5 x DN
Outlet pipe length2 x DN
Dimensions[mm] [mm]Ø 54 / L = 110
Materialsstainless steel (316L/1.4404); PBT-GF20; PC; EPDM/X
Materials (wetted parts)stainless steel (316L/1.4404); PEEK; EPDM/X
Process connectionthreaded connection G 1 external thread DN25 flat seal

Displays / operating elements

DisplayDisplay unit
6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status
2 x LED, yellow
measured values
alphanumeric display, 4-digit
programming
alphanumeric display, 4-digit
Display unit6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status2 x LED, yellow
measured valuesalphanumeric display, 4-digit
programmingalphanumeric display, 4-digit

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
