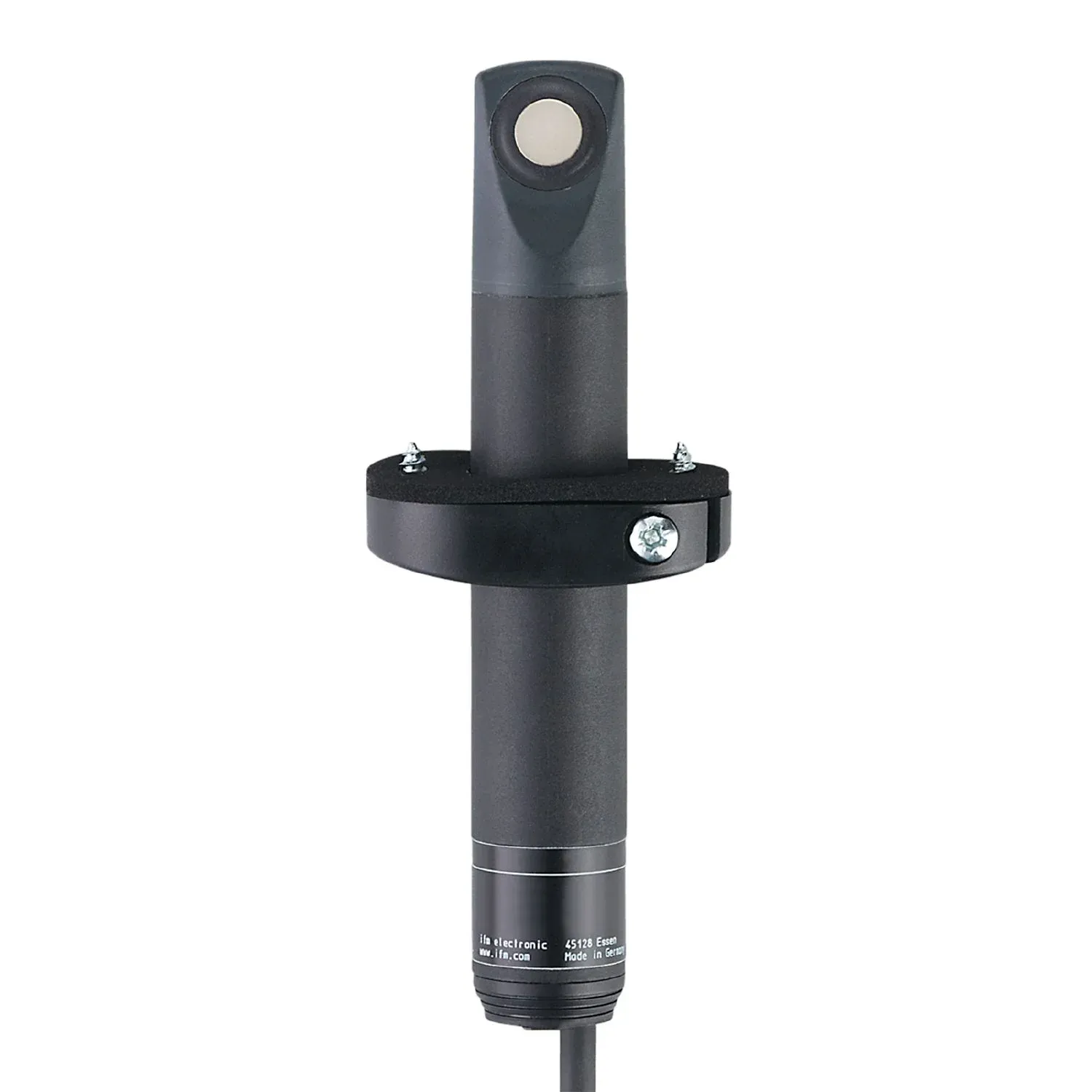

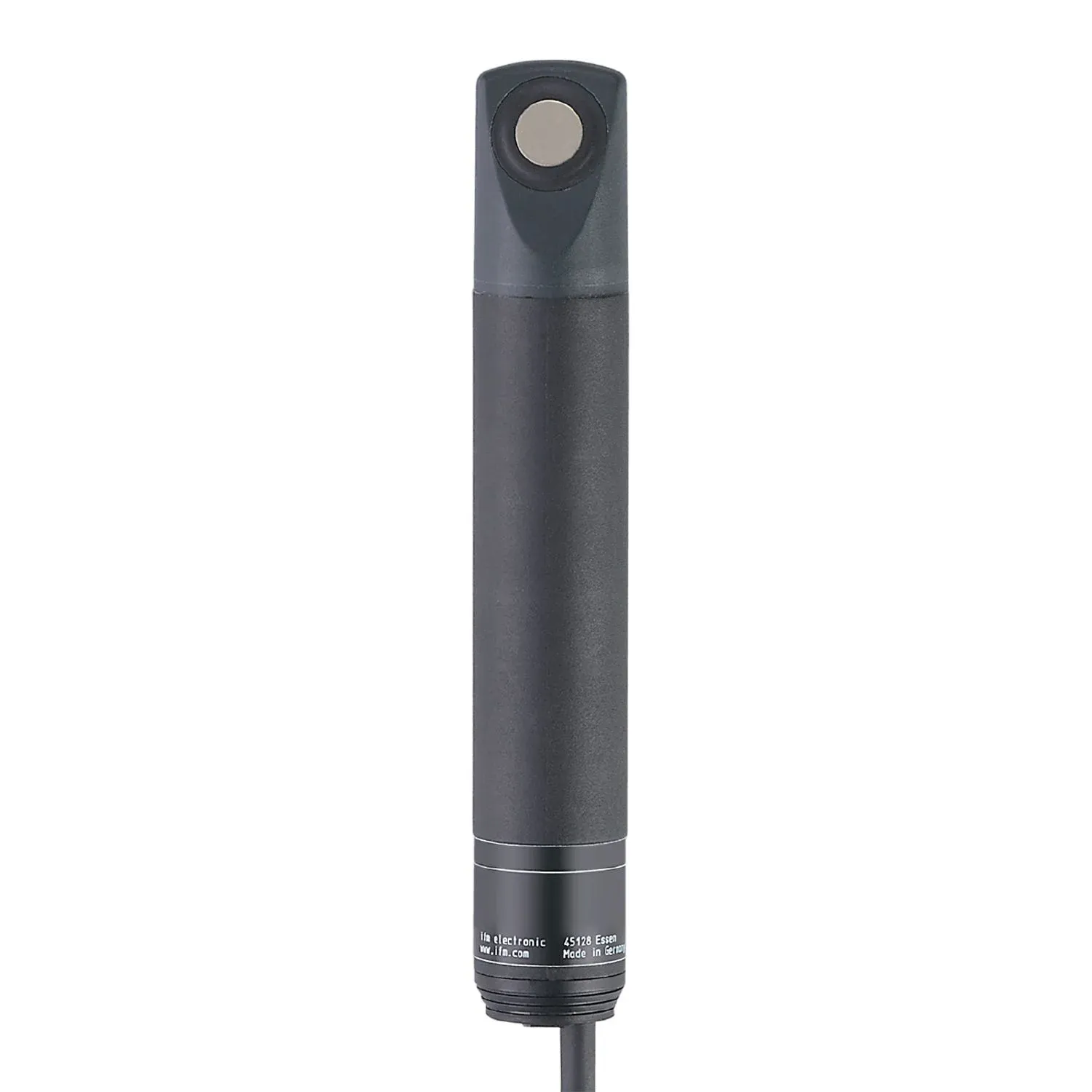

IFM SL5105
SL5105
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable airflow monitoring
For use in ventilation systems in building automation
User-friendly setting of the requested immersion depth of the sensor
Intuitive setting of the switch point via potentiometer
Signal output via potential-free relay contacts
Specification
Product characteristics
| Number of inputs and outputs | Number of relay outputs: 1 |
|---|---|
| Process connection | clamp adapter Ø 23 mm |
Application
| Medium temperature[°C] [°C] | -10...50 |
|---|---|
| Pressure rating | 1 bar 0.1 MPa |
| 1 bar | 0.1 MPa |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | 50 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
Inputs / outputs
| Number of inputs and outputs | Number of relay outputs: 1 |
|---|
Outputs
| Output signal | switching signal |
|---|---|
| Number of relay outputs | 1 |
| Contact rating | 3 A (30 V DC / 250 V AC // cULus: 30 V DC / AC) |
| Switching function flow monitoring | relay energised when flow is present |
Measuring/setting range
| Setting range[cm/s] [cm/s] | 100...1000 |
|---|---|
| Greatest sensitivity[cm/s] [cm/s] | 100...400 |
Accuracy / deviations
| Temperature gradient[K/min] [K/min] | 5 |
|---|
Response times
| Response time[s] [s] | 3...60 |
|---|
Software / programming
| Adjustment of the switch point | potentiometer |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90 |
| Protection | IP 65 |
Tests / approvals
| MTTF[years] [years] | 1294 |
|---|---|
| UL approval | UL approval no. I029 File number UL E174189 |
| UL approval no. | I029 |
| File number UL | E174189 |
Mechanical data
| Weight[g] [g] | 192.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 23 / L = 142 |
| Materials | housing: PBT; sensor surface: titanium |
| Materials (wetted parts) | PBT; titanium |
| Process connection | clamp adapter Ø 23 mm |
Displays / operating elements
| Display | function 1 x LED, red function 1 x LED, green |
|---|---|
| function | 1 x LED, green |
Accessories

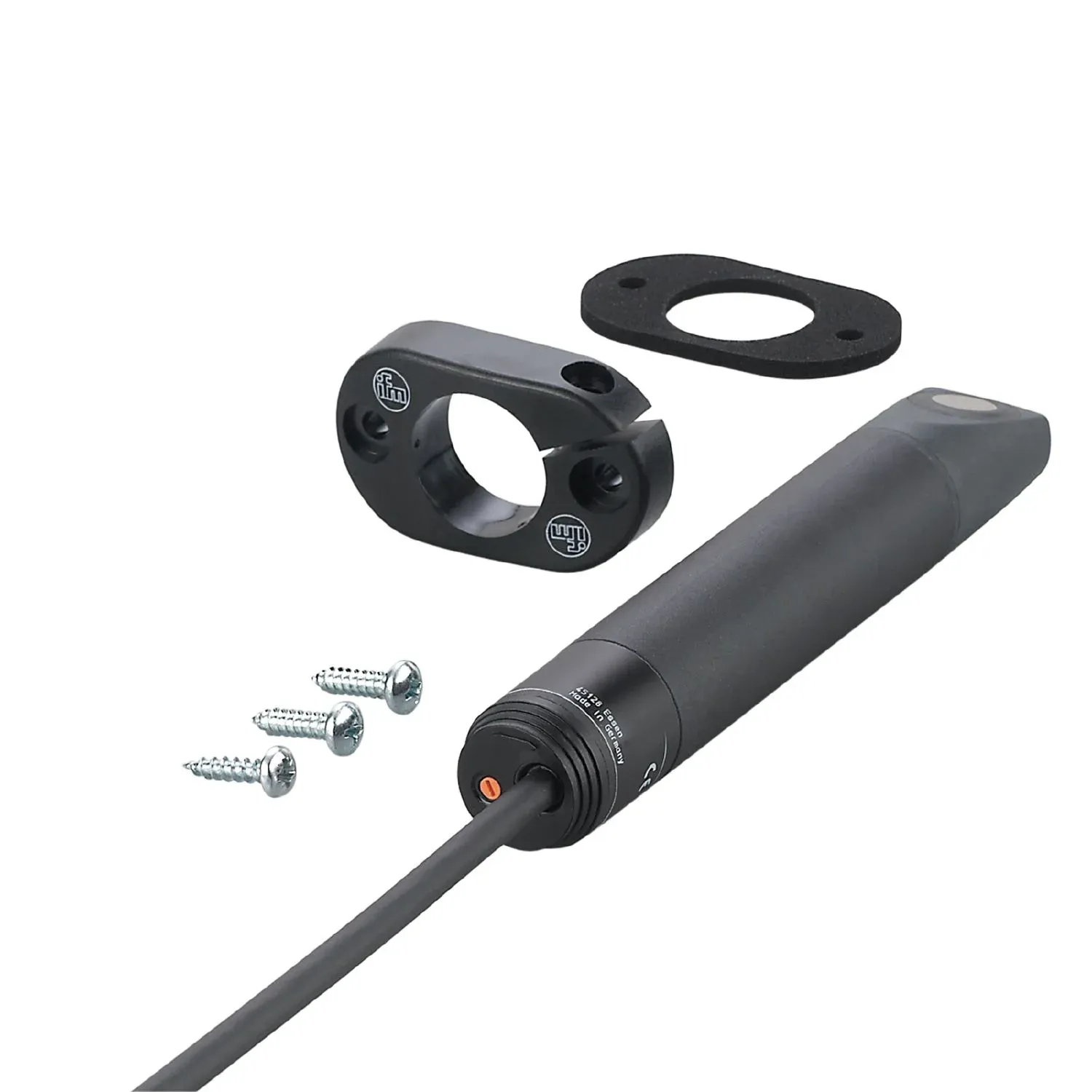

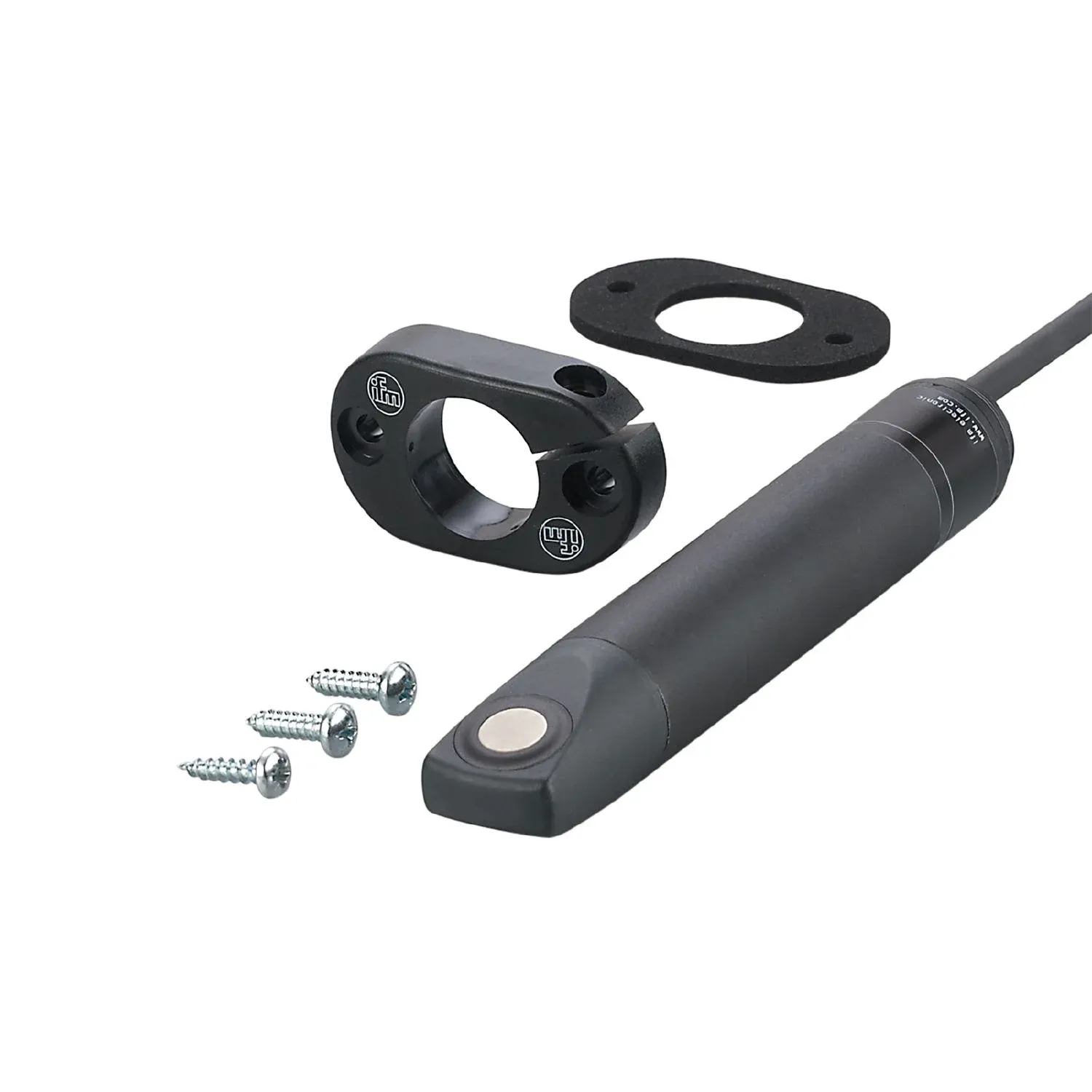

| Items supplied | Mounting clamp: 1, E40048 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PUR; 4 x 0.5 mm², PVC |
|---|
