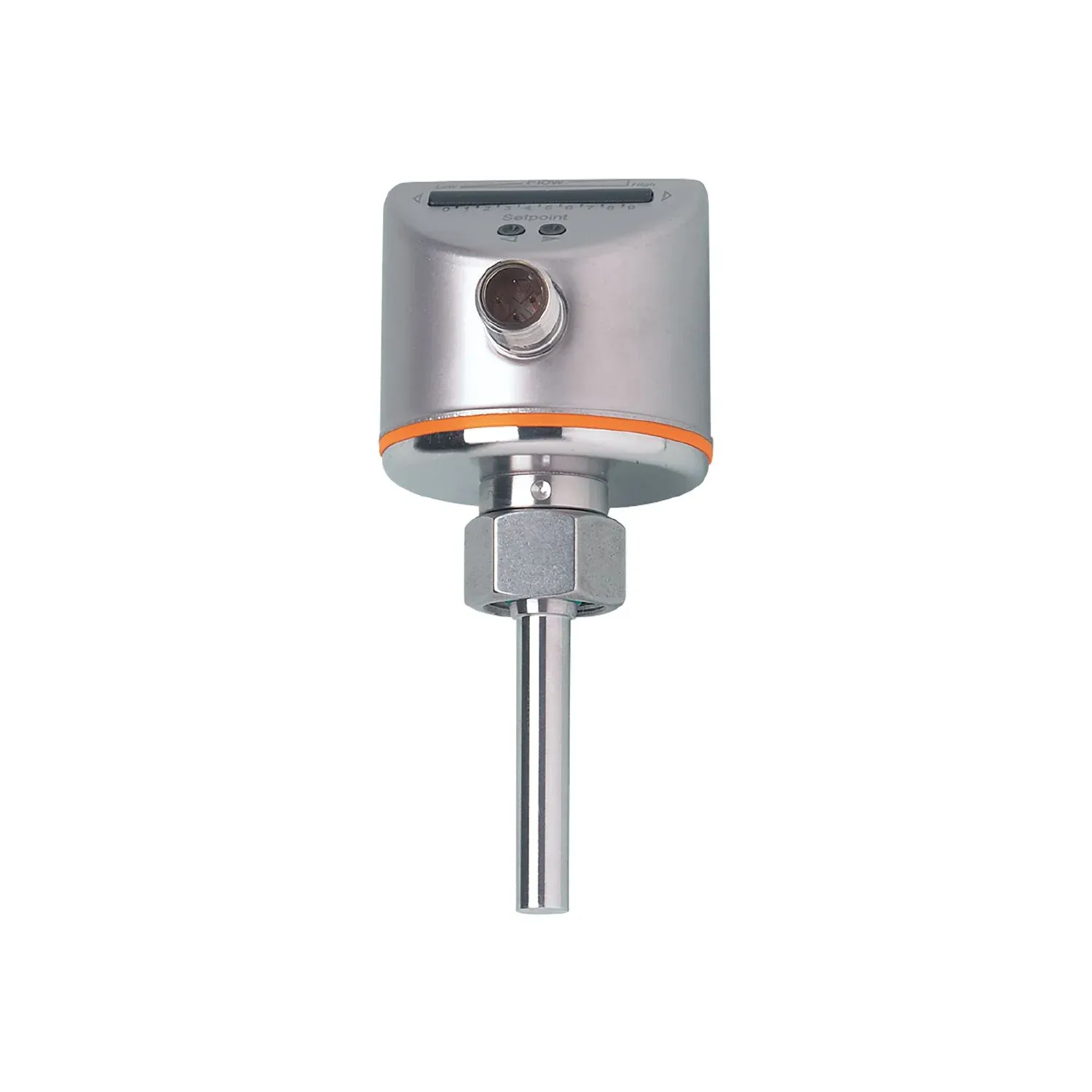

IFM SI5002 - Image 1

Fast delivery within 72 Hours

IFM SI5002

SI5002

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Reliable monitoring of liquids and gases in pipes
Variable process connection using adapters
Easy setting of the switch points for quick set-up
Robust stainless steel housing for use in harsh industrial environments
LED bar graph for indication of switch point and flow
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2
Process connectionthreaded connection M18 x 1,5 internal thread

Application

MediaLiquids; Gases
Medium temperature[°C] [°C]-25...80
Pressure rating300 bar
30 MPa
300 bar30 MPa

Electrical data

Operating voltage[V] [V]18...36 DC
Current consumption[mA] [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]10

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2

Outputs

Total number of outputs2
Output signalswitching signal; IO-Link; (configurable)
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2.5
Permanent current rating of switching output DC[mA] [mA]250
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Probe length L[mm] [mm]45
Setting range[cm/s] [cm/s]200...3000
Greatest sensitivity[cm/s] [cm/s]200...800

Accuracy / deviations

Repeatability[cm/s] [cm/s]1...5
Note on repeatabilityfor water 5...100 cm/s; 25 °C
Factory setting
Temperature drift[cm/s x 1/K] [cm/s x 1/K]0.1; (for water 5...100 cm/s; 10...70 °C)
Temperature gradient[K/min] [K/min]300
Switch point accuracy[cm/s] [cm/s]± 2...± 10; (for water 5...100 cm/s; 25 °C; Factory setting)
Hysteresis[cm/s] [cm/s]2...5; (for water 5...100 cm/s; 25 °C; Factory setting)

Response times

Response time[s] [s]1...10

Software / programming

Adjustment of the switch pointpushbutton

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesSmart Sensor - SSP 0
Generic Profiled Sensor
Function
Device identification
Function
Process data variable
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionProcess data variable
SIO modeyes
Required master port typeA
Process data analogue2
Process data binary2
Min. process cycle time[ms] [ms]3
Supported DeviceIDsdefault
51
default51

Operating conditions

Ambient temperature[°C] [°C]-25...80
Storage temperature[°C] [°C]-25...100
ProtectionIP 65; IP 67

Tests / approvals

EMCDIN EN 60947-5-9
Shock resistanceDIN IEC 60068-2-27
50 g (11 ms)
DIN IEC 60068-2-2750 g (11 ms)
Vibration resistanceDIN EN 60068-2-6
20 g (55...2000 Hz)
DIN EN 60068-2-620 g (55...2000 Hz)
MTTF[years] [years]277

Mechanical data

Weight[g] [g]247.5
Housingcylindrical
Dimensions[mm] [mm]Ø 50 / L = 113
Materialsstainless steel (316L/1.4404); stainless steel (301/1.4310); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (316L/1.4404); O-ring: FKM 80 Shore A
Process connectionthreaded connection M18 x 1,5 internal thread
Probe diameter[mm] [mm]8.2
Installation length EL[mm] [mm]45

Displays / operating elements

Displayfunction
10 x LED, three-colour
function10 x LED, three-colour

Remarks

Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A
