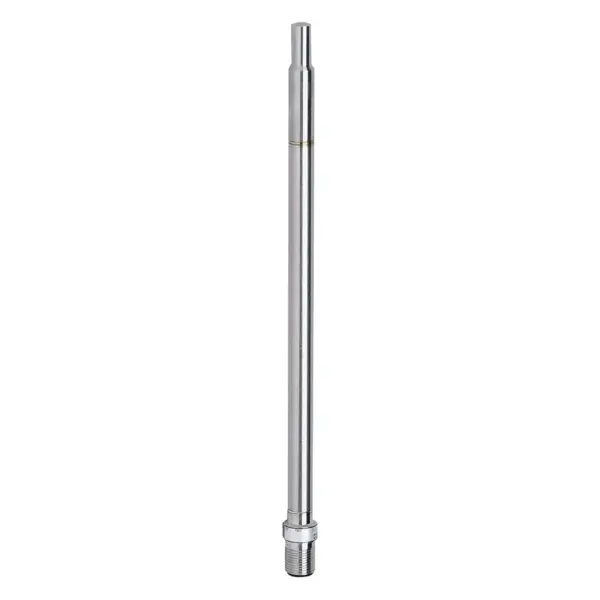

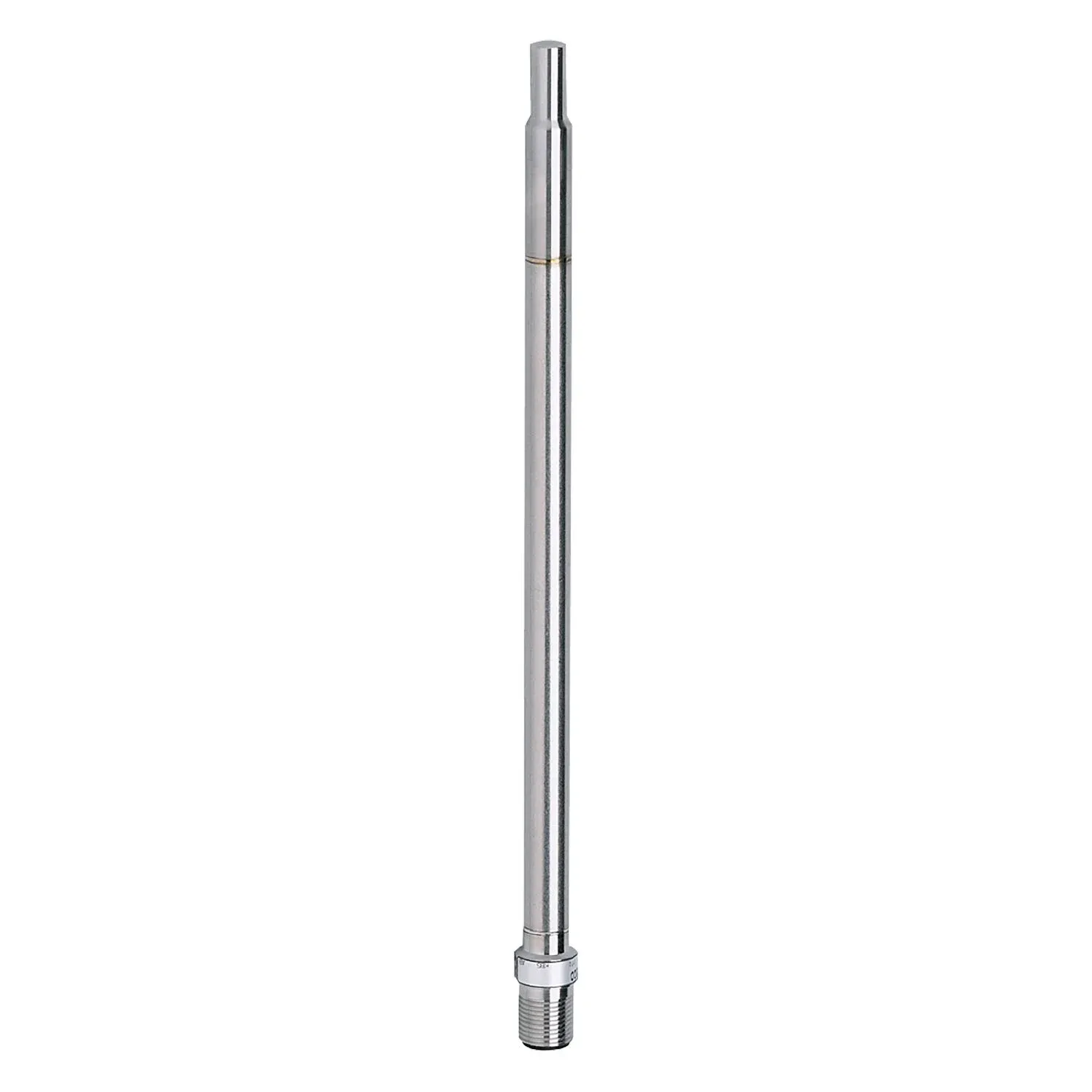

IFM SF6201
SF6201
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable monitoring of liquids and gases in pipes
For connection to an evaluation unit
Easy adjustment of the immersion depth via clamp adapter
Robust design for use in harsh industrial environments
M12 connector for fast and easy connection
Specification
Product characteristics
| Probe length L[mm] [mm] | 15...107 |
|---|---|
| Process connection | clamp adapter Ø 10 mm |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | high-temperature range |
| Installation | sensor suitable for clamp fitting |
| Media | Liquids; Gases |
| Medium temperature[°C] [°C] | -25...80 |
| Pressure rating | 30 bar 3 MPa |
| 30 bar | 3 MPa |
Electrical data
| Connection to control monitor | VS3000 |
|---|
Measuring/setting range
| Probe length L[mm] [mm] | 15...107 |
|---|---|
| Setting range[cm/s] [cm/s] | 200...3000 |
| Greatest sensitivity[cm/s] [cm/s] | 200...800 |
Accuracy / deviations
| Temperature gradient[K/min] [K/min] | 30 |
|---|
Response times
| Response time[s] [s] | 1...10 |
|---|
Operating conditions
| Storage temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Shock resistance | DIN IEC 68-2-27 40 g (11 ms) |
|---|---|
| DIN IEC 68-2-27 | 40 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 10 g (55...2000 Hz) |
| DIN IEC 68-2-6 | 10 g (55...2000 Hz) |
| MTTF[years] [years] | 8393.77 |
Mechanical data
| Weight[g] [g] | 62.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 10 / L = 132 |
| Materials | stainless steel (316L/1.4404) several parts, welded |
| Materials (wetted parts) | stainless steel (316L/1.4404) several parts, welded |
| Process connection | clamp adapter Ø 10 mm |
| Probe diameter[mm] [mm] | 7.7 |
Accessories
| Accessories (optional) | Clamp adapter: R 1/2, E40160 Clamp adapter: 1/2" NPT, E40174 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated; Maximum cable length: 100 m |
|---|
