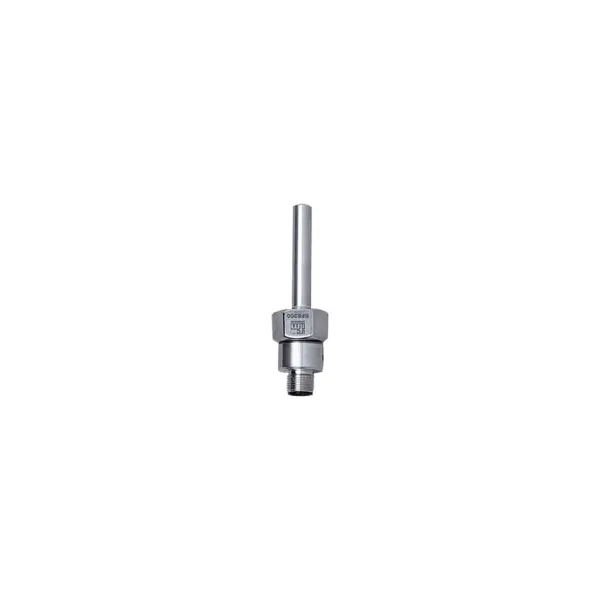

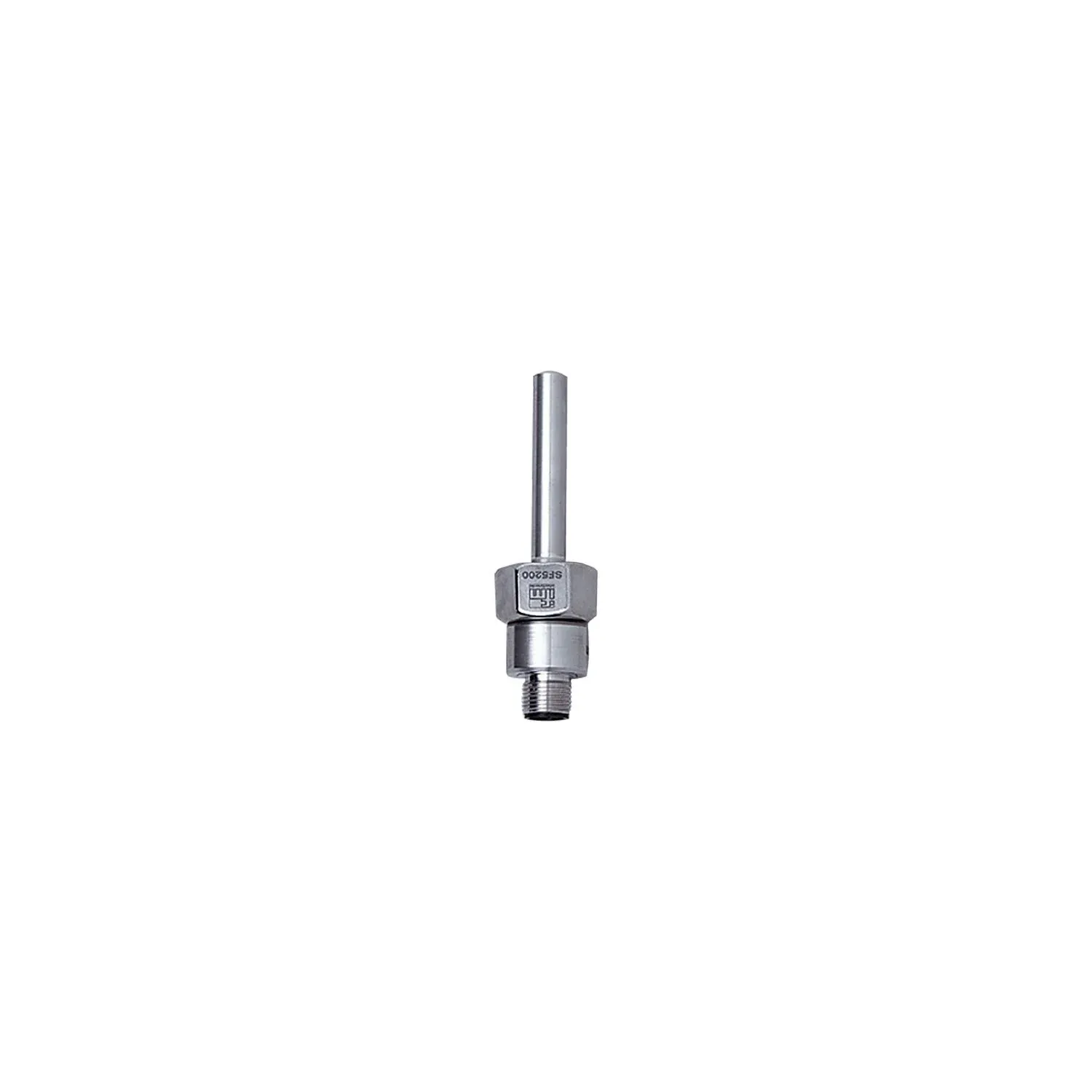

IFM SF5200
SF5200
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable monitoring of liquids and gases in pipes
For connection to an evaluation unit
Simple process connection via adapter
Very high pressure rating
M12 connector for fast and easy connection
Specification
Product characteristics
| Process connection | threaded connection M18 x 1,5 internal thread |
|---|
Application
| Application | high-temperature range |
|---|---|
| Media | Liquids; Gases |
| Medium temperature[°C] [°C] | -25...80 |
| Pressure rating | 300 bar 30 MPa |
| 300 bar | 30 MPa |
Electrical data
| Connection to control monitor | VS3000 |
|---|
Measuring/setting range
| Setting range[cm/s] [cm/s] | 200...3000 |
|---|---|
| Greatest sensitivity[cm/s] [cm/s] | 200...800 |
Accuracy / deviations
| Temperature gradient[K/min] [K/min] | 300 |
|---|
Response times
| Response time[s] [s] | 1...10 |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| Shock resistance | DIN IEC 68-2-27 40 g (11 ms) |
|---|---|
| DIN IEC 68-2-27 | 40 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 10 g (55...2000 Hz) |
| DIN IEC 68-2-6 | 10 g (55...2000 Hz) |
| MTTF[years] [years] | 8213 |
Mechanical data
| Weight[g] [g] | 88.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | M18 x 1.5 / L = 82 |
| Thread designation | M18 x 1.5 |
| Materials | stainless steel (316L/1.4404) |
| Materials (wetted parts) | stainless steel (316L/1.4404); O-ring: FKM 80 Shore A |
| Process connection | threaded connection M18 x 1,5 internal thread |
| Probe diameter[mm] [mm] | 8.2 |
| Installation length EL[mm] [mm] | 44 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A; Maximum cable length: 100 m |
|---|
