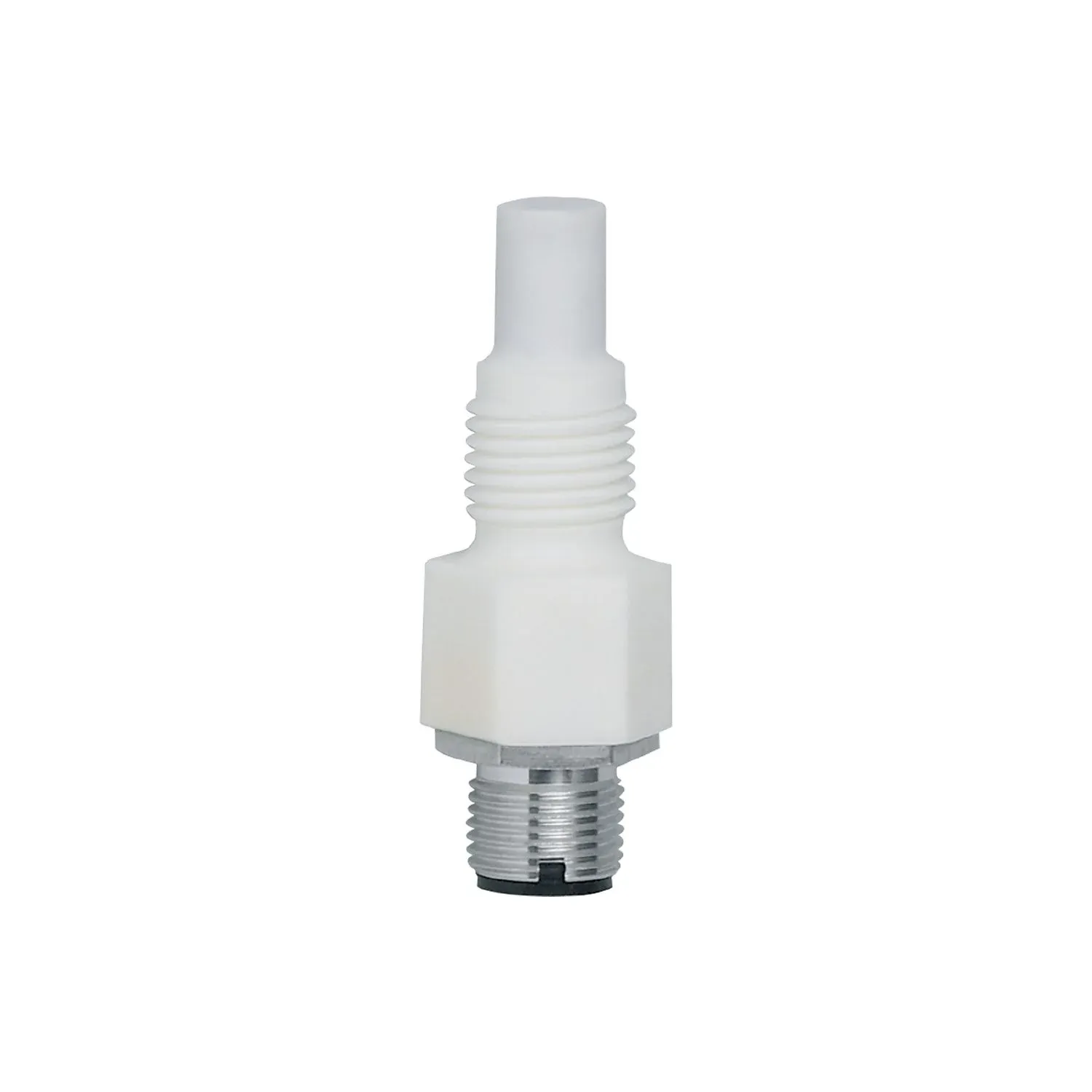

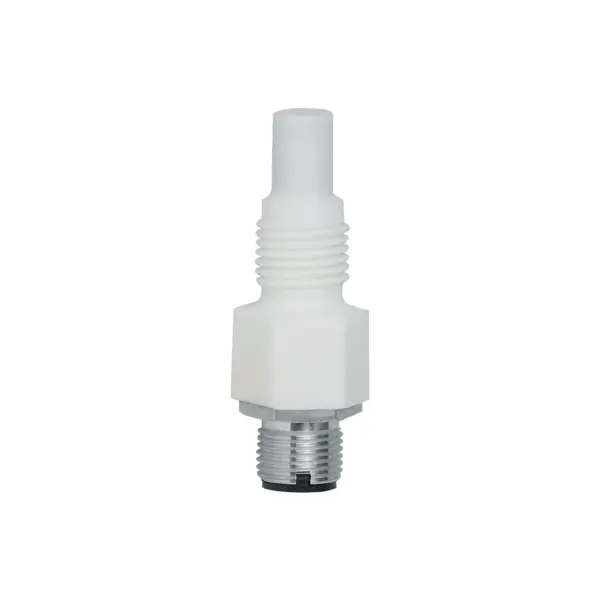

IFM SF2405
SF2405
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable monitoring of aggressive liquids in pipes
For connection to an evaluation unit
Ceramic materials for contact with the medium
Robust design for use in harsh industrial environments
Simple process connection via adapter
Specification
Product characteristics
| Probe length L[mm] [mm] | 12 |
|---|---|
| Process connection | threaded connection G 1/4 external thread |
Application
| Media | Liquids; aggressive media |
|---|---|
| Medium temperature[°C] [°C] | 5...70 |
| Pressure rating | 30 bar 3 MPa |
| 30 bar | 3 MPa |
Electrical data
| Connection to control monitor | VS3000 |
|---|
Measuring/setting range
| Probe length L[mm] [mm] | 12 |
|---|---|
| Setting range[cm/s] [cm/s] | 3...60 |
| Greatest sensitivity[cm/s] [cm/s] | 3...40 |
Accuracy / deviations
| Temperature gradient[K/min] [K/min] | 7 |
|---|
Response times
| Response time[s] [s] | 2...20 |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| Shock resistance | DIN IEC 68-2-27 40 g (11 ms) |
|---|---|
| DIN IEC 68-2-27 | 40 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 10 g (55...2000 Hz) |
| DIN IEC 68-2-6 | 10 g (55...2000 Hz) |
| MTTF[years] [years] | 8648 |
Mechanical data
| Weight[g] [g] | 41.5 |
|---|---|
| Housing | cylindrical |
| Materials | ceramics (99.7 % Al2O3) |
| Materials (wetted parts) | ceramics (99.7 % Al2O3) |
| Process connection | threaded connection G 1/4 external thread |
| Probe diameter[mm] [mm] | 8.6 |
| Installation length EL[mm] [mm] | 27 |
Accessories
| Items supplied | sealings: 1, PTFE |
|---|
Remarks
| Remarks | For sealing use the supplied PTFE packing washer. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Maximum cable length: 100 m |
|---|
