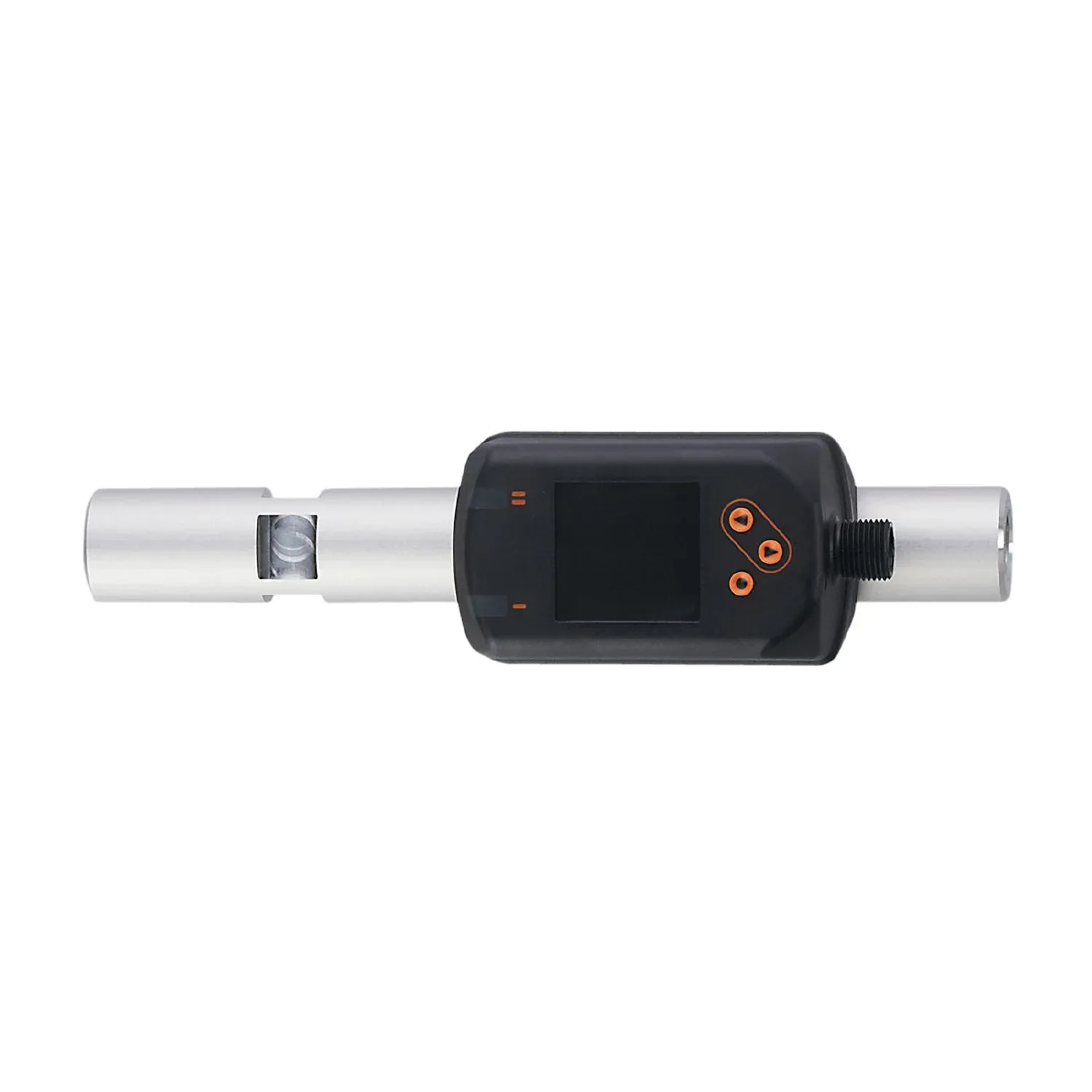

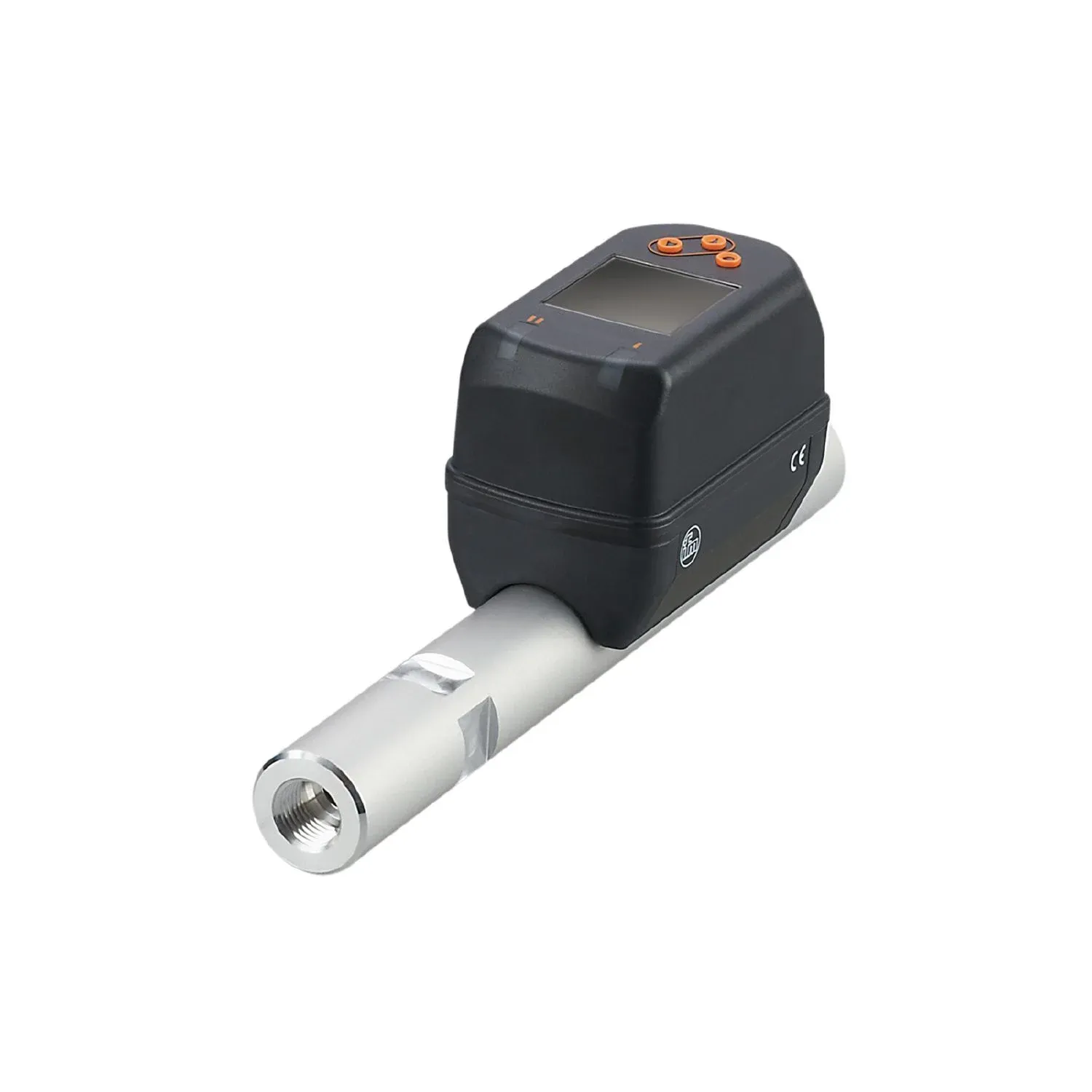

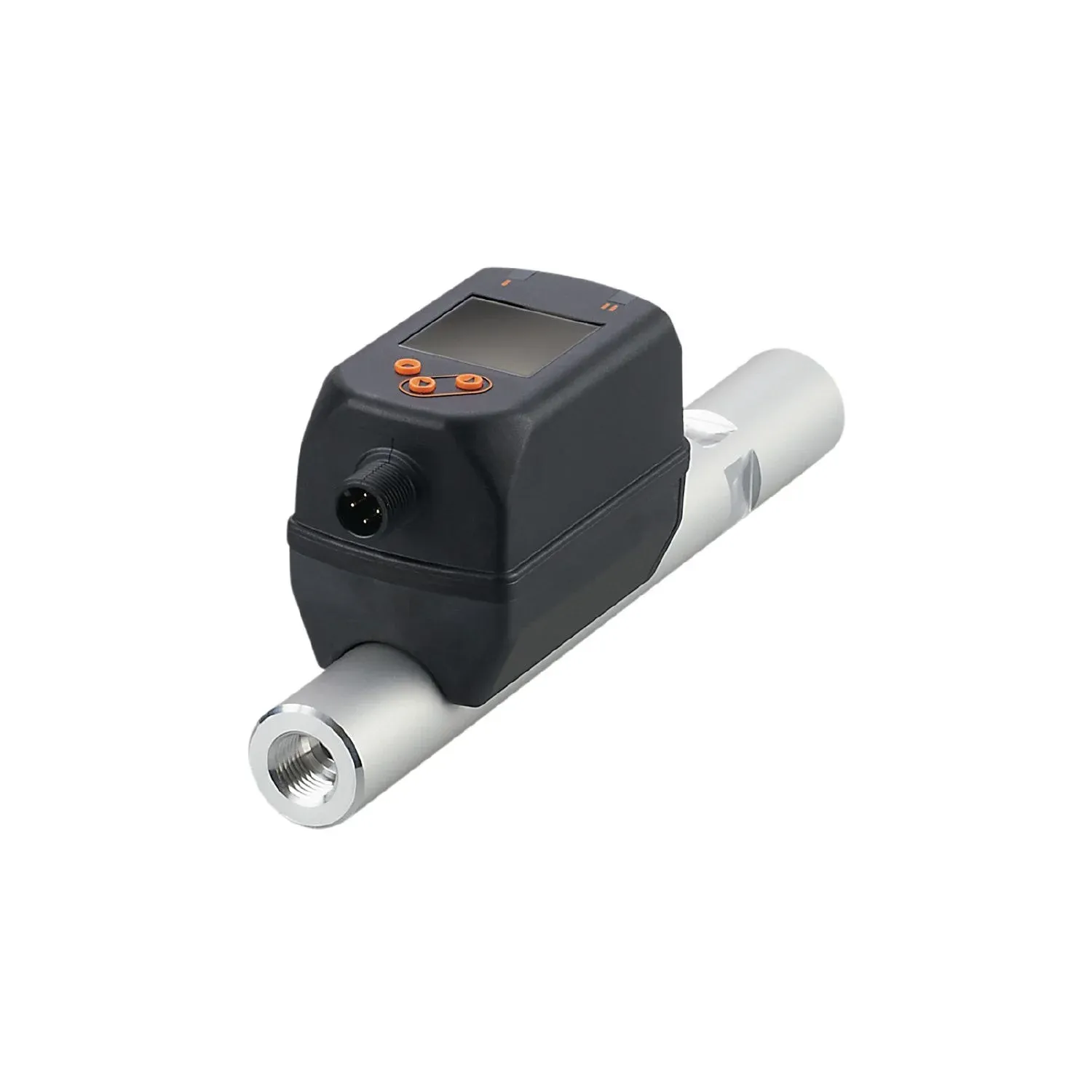

IFM SDP110

SDP110

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Air gap provided as absolute value
Precise values at all times thanks to pressure-compensated measuring principle
Enables zero gap and clogging detection
Self-cleaning measuring channel even resists purge air pressure
Easy teaching of thresholds with just one click
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Process connectionthreaded connection G 1/4 internal thread DN8
Measuring range[µm] [µm]0...400; (depending on the nozzle used)

Application

Applicationfor industrial applications
Mediacompressed air
Medium temperature[°C] [°C]-10...60
Min. burst pressure64 bar
6.4 MPa
64 bar6.4 MPa
Pressure rating16 bar
1.6 MPa
16 bar1.6 MPa
MAWP for applications according to CRN16 bar
1.6 MPa

Electrical data

Operating voltage[V] [V]18...30 DC; (to SELV/PELV)
Current consumption[mA] [mA]< 80
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]1

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Inputs

Inputsteach input

Outputs

Output signalswitching signal; analogue signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2.5
Permanent current rating of switching output DC[mA] [mA]150; (per output)
Number of analogue outputs1
Analogue current output[mA] [mA]4...20; (scalable)
Max. load[Ω] [Ω]500
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range[µm] [µm]0...400; (depending on the nozzle used)
Setting range[µm] [µm]0...500; (depending on the nozzle used)
Resolution[µm] [µm]1
Set point SP[µm] [µm]2...500
Reset point rP[µm] [µm]0...498
Analogue start point ASP[µm] [µm]0...400
Analogue end point AEP[µm] [µm]100...500
In steps of[µm] [µm]1
Measuring range0.8...100 l/min
0.3...33.2 m/s
0.05...6 m³/h
Setting range0...1000
Resolution0.2 l/min
0.1 m/s
0.01 m³/h
Set point SP1.4...100 l/min
0.5...33.2 m/s
0.08...6 m³/h
Reset point rP0.9...99.5 l/min
0.3...33 m/s
0.05...5.97 m³/h
Analogue start point ASP0...80 l/min
0...26.6 m/s
0...4.8 m³/h
Analogue end point AEP20...100 l/min
6.6...33.2 m/s
1.2...6 m³/h
In steps of0.1 l/min
0.1 m/s
0.01 m³/h
Measuring range[bar] [bar]-1...16
Display range[bar] [bar]-1...20
Resolution[bar] [bar]0.05
Set point SP[bar] [bar]-0.92...16
Reset point rP[bar] [bar]-1...15.92
Analogue start point[bar] [bar]-1...12.8
Analogue end point[bar] [bar]2.2...16
In steps of[bar] [bar]0.01
0.8...100 l/min0.3...33.2 m/s
Display range0...120 l/min
0...39.8 m/s
0...7.2 m³/h
0...120 l/min0...39.8 m/s
0.2 l/min0.1 m/s
1.4...100 l/min0.5...33.2 m/s
0.9...99.5 l/min0.3...33 m/s
0...80 l/min0...26.6 m/s
20...100 l/min6.6...33.2 m/s
Low flow cut-off LFC0.6...1 l/min
0.2...0.3 m/s
0.04...0.06 m³/h
0.6...1 l/min0.2...0.3 m/s
0.1 l/min0.1 m/s

Accuracy / deviations

Accuracy (in the measuring range)class 141: ± (2 % MW + 1 % MEW); class 344: ± (6 % MW + 1,2 % MEW) ; air quality to ISO 8573-1:2010; at medium temperature 23 °C
Repeatability± (0,8 % MW + 0,4 % MEW)
Repeatability[% of the final value] [% of the final value]± 0,2
Characteristics deviation[% of the final value] [% of the final value]< ± 0,5; (BFSL = Best Fit Straight Line)
Greatest TEMPCO of the span[% MEW / 10 K] [% MEW / 10 K]± 0,3
Greatest TEMPCO of the zero point[% MEW / 10 K] [% MEW / 10 K]± 0,1
Temperature coefficient[1/K] [1/K]± 0,07 % MW

Response times

Response time[s] [s]0.1; (dAP = 0)
Damping process value dAP[s] [s]0...5

Software / programming

Parameter setting optionshysteresis / window; normally open / normally closed; current output; display can be rotated and switched off; Display unit; Teach function

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesCommon - I&D
Identification and Diagnosis
Function
Measurement data, standard resolution
Common - I&DIdentification and Diagnosis
FunctionMeasurement data, standard resolution
SIO modeyes
Required master port typeA
Process data analogue7
Process data binary2
Min. process cycle time[ms] [ms]5.9
Supported DeviceIDsdefault
1333
default1333
NoteFor further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature[°C] [°C]0...60
Storage temperature[°C] [°C]-20...85
Max. relative air humidity[%] [%]90
ProtectionIP 65; IP 67

Tests / approvals

EMCDIN EN 60947-5-9
Vibration resistanceDIN EN 68000-2-6
5 g (10...2000 Hz)
DIN EN 68000-2-65 g (10...2000 Hz)
MTTF[years] [years]167
UL approvalUL approval no.
I012
File number UL
E174189
UL approval no.I012
File number ULE174189
Pressure Equipment DirectiveSound engineering practice; can be used for stable gases fluid group 2

Mechanical data

Weight[g] [g]548.2
Housingrectangular
Dimensions[mm] [mm]182 x 45.4 x 67.8
MaterialsPBT+PC-GF30; PPS GF40; stainless steel (304/1.4301); stainless steel (303/1.4305); steel (1.5523) galvanised; 2.0401 (brass / CW614N); FKM
Materials (wetted parts)EN AW-6082 (aluminium); stainless steel (303/1.4305); FKM; ceramics glass passivated; PPS GF40; Al2O3 (ceramics); acrylate; SINT-A51; stainless steel (304/1.4301); CW510L (brass)
Process connectionthreaded connection G 1/4 internal thread DN8

Displays / operating elements

Displaycolour display 1,44", 128 x 128 pixels
2 x LED, yellow

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533.
For information about installation and operation please see the operating instructions.
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A
