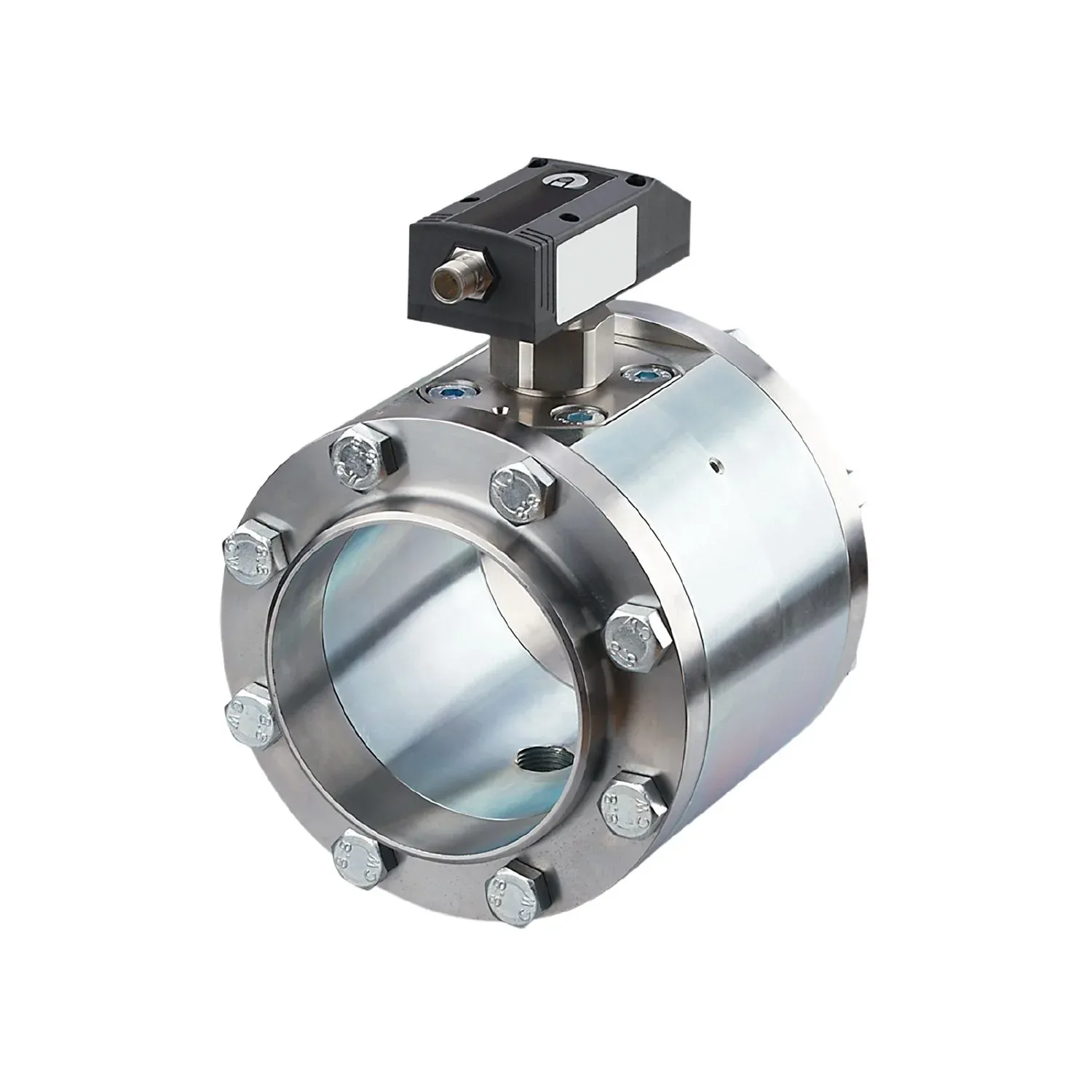

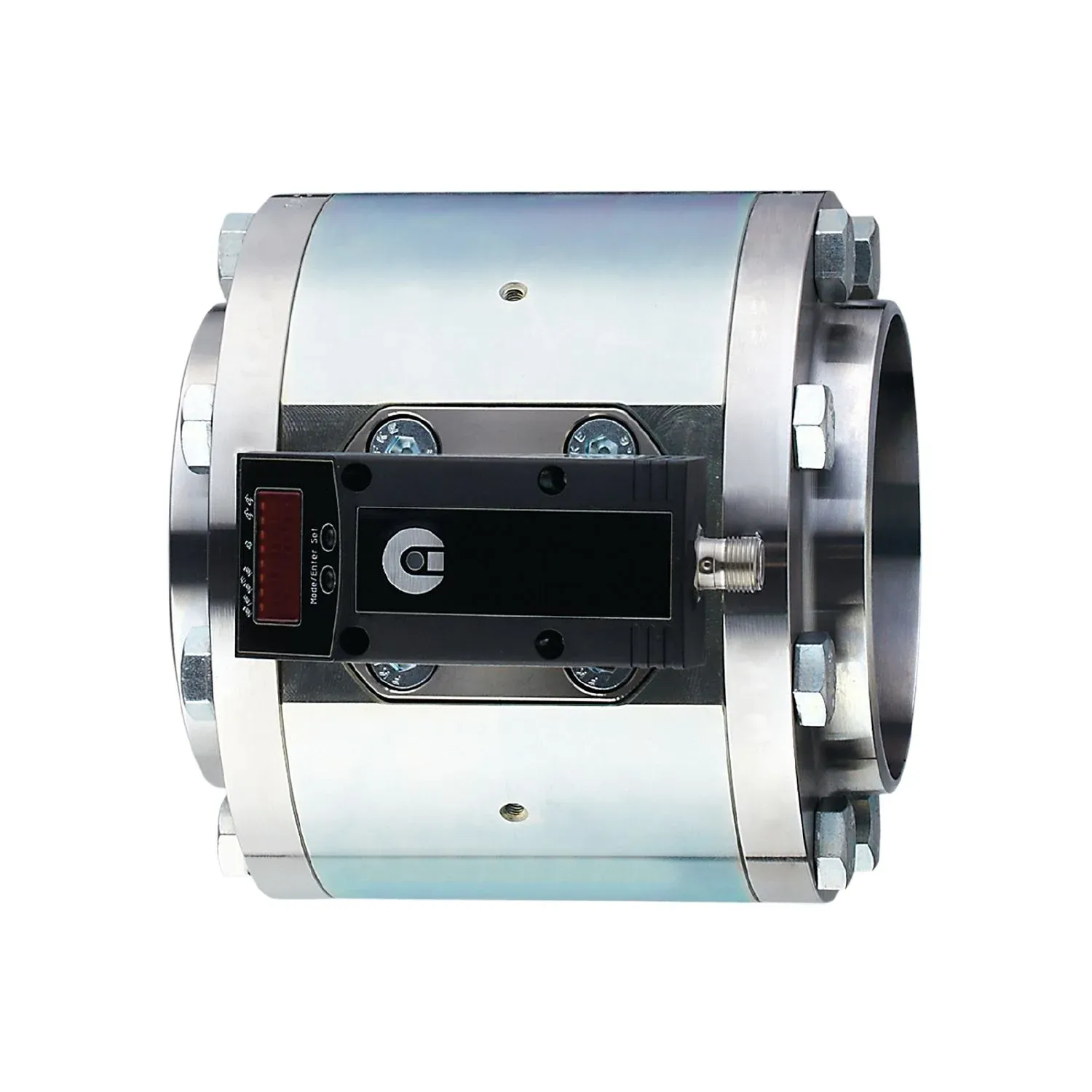

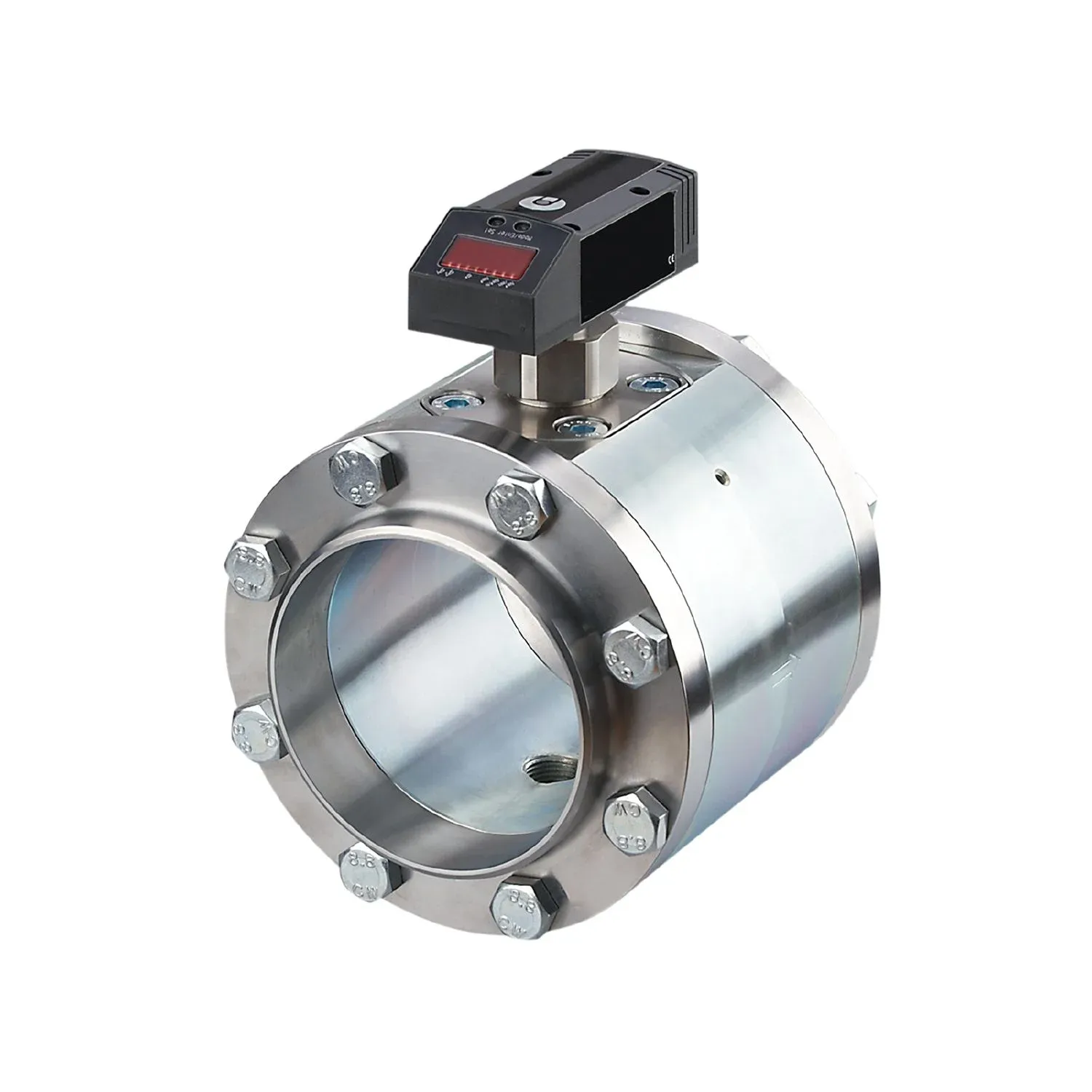

IFM SDG080
SDG080
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise measurement of flow and consumption
High accuracy, repeatability and measurement dynamics
For detecting compressed air in industrial use
With switching output, analogue output and pulse output
Clearly visible 4-digit LED display
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|---|
| Measuring range[m³/h] [m³/h] | 9...2750 |
| Process connection | flange DN80 according to:DIN EN 10220 |
Application
| Application | totaliser function |
|---|---|
| Media | compressed air |
| Note on media | air quality ISO 8573-1 class 141 class 344 |
| Medium temperature[°C] [°C] | 0...60 |
| Pressure rating | 16 bar 1.6 MPa |
| 16 bar | 1.6 MPa |
Electrical data
| Operating voltage[V] [V] | 19...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 100 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 0.5 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; pulse signal; (configurable) |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 250; (per output) |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20; (scalable) |
| Max. load[Ω] [Ω] | 500 |
| Pulse output | consumed quantity meter |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range[m³/h] [m³/h] | 9...2750 |
|---|---|
| Display range[m³/h] [m³/h] | 0...3300 |
| Pulse value | 1 Nm³ |
| Pulse length[s] [s] | 0,1 |
Accuracy / deviations
| Accuracy (in the measuring range) | ± (3 % MW + 0,3 % MEW) / ± (6 % MW + 0,6 % MEW); (class 141 /; class 344) |
|---|
Response times
| Response time[s] [s] | 0.1; (dAP = 0) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | 0...60 |
|---|---|
| Storage temperature[°C] [°C] | -20...85 |
| Max. relative air humidity[%] [%] | 90 |
| Protection | IP 65 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| Vibration resistance | DIN IEC 68-2-6 5 g (55...2000 Hz) |
| DIN IEC 68-2-6 | 5 g (55...2000 Hz) |
| MTTF[years] [years] | 214 |
Mechanical data
| Weight[g] [g] | 11625 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 160 x 141 x 198 |
| Materials | PBT-GF20; PC; PC; stainless steel (304/1.4301); FKM; pipe section: steel galvanised |
| Materials (wetted parts) | stainless steel (316 / 1.4401); stainless steel (304/1.4301); ceramics glass passivated; PEEK; polyester; FKM; aluminium anodised; pipe section: steel galvanised |
| Process connection | flange DN80 according to:DIN EN 10220 |
Remarks
| Remarks | MW = measured value MEW = Final value of the measuring range Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533. For information about installation and operation please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
