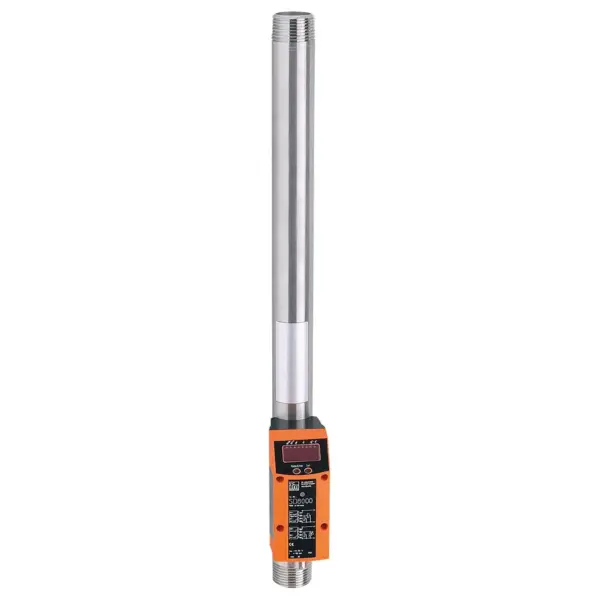

IFM SD8001
SD8001
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise measurement of flow, consumption and medium temperature
High accuracy, repeatability and measurement dynamics
For detecting compressed air in industrial use
With switching output, analogue output and pulse output
Clearly visible 4-digit LED display
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|---|
| Measuring range | 30...7946 scfh 1...132.4 scfm |
| 30...7946 scfh | 1...132.4 scfm |
| Process connection | threaded connection 1" NPT external thread DN25 |
Application
| Application | for industrial applications |
|---|---|
| Media | compressed air |
| Note on media | air quality ISO 8573-1 class 141 class 344 |
| Medium temperature[°F] [°F] | 32...140 |
| Pressure rating | 16 bar 232 psi 1.6 MPa |
| 16 bar | 232 psi |
| MAWP for applications according to CRN[bar] [bar] | 16 |
Electrical data
| Operating voltage[V] [V] | 19...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | < 100 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 0.5 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; pulse signal; (configurable) |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 250; (per output) |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20; (scalable) |
| Max. load[Ω] [Ω] | 500 |
| Pulse output | consumed quantity meter |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range | 30...7946 scfh 1...132.4 scfm |
|---|---|
| 30...7946 scfh | 1...132.4 scfm |
| Display range | 0...9535 scfh 0...158.9 scfm |
| 0...9535 scfh | 0...158.9 scfm |
| Set point SP | 70...7945 scfh 1.2...132.4 scfm |
| 70...7945 scfh | 1.2...132.4 scfm |
| Reset point rP | 30...7905 scfh 0.5...131.7 scfm |
| 30...7905 scfh | 0.5...131.7 scfm |
| Analogue start point ASP | 0...5960 scfh 0...99.3 scfm |
| 0...5960 scfh | 0...99.3 scfm |
| Analogue end point AEP | 1985...7945 scfh 33.1...132.4 scfm |
| 1985...7945 scfh | 33.1...132.4 scfm |
| In steps of | 0.020...1000 scf |
| 5 scfh | 0.1 scfm |
| Pulse value | 0.120...4 000 000 scf |
| Pulse length[s] [s] | 0,045...2 |
| Measuring range[°F] [°F] | 32...140 |
| Display range[°F] [°F] | 32...140 |
Accuracy / deviations
| Repeatability[% of the measured value] [% of the measured value] | ± 1,5 |
|---|---|
| Accuracy (in the measuring range) | ± (3 % MW + 0,3 % MEW) / ± (6 % MW + 0,6 % MEW); (class 141 /; class 344; conditions: installation to DIN ISO 2533; installation in pipes: DN25) |
| Accuracy[K] [K] | ± 2; (medium flow in the limit area of the flow measurement range) |
Response times
| Response time[s] [s] | 0.1; (dAP = 0) |
|---|---|
| Damping process value dAP in steps[s] [s] | 0 - 0,2 - 0,4 - 0,6 - 0,8 - 1 |
Software / programming
| Parameter setting options | Flow monitoring; quantity meter; Preset counter; hysteresis / window; normally open / normally closed; current/pulse output; display can be rotated and switched off; Display unit |
|---|
Operating conditions
| Ambient temperature[°F] [°F] | 32...140 |
|---|---|
| Storage temperature[°F] [°F] | -4...185 |
| Max. relative air humidity[%] [%] | 90 |
| Protection | IP 65 |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Vibration resistance | DIN EN 68000-2-6 5 g (55...2000 Hz) |
| DIN EN 68000-2-6 | 5 g (55...2000 Hz) |
| MTTF[years] [years] | 227 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 1979.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 475 x 45 x 88.5 |
| Materials | PBT-GF20; NBR; PC; stainless steel (304L/1.4306); PTFE; brass coated; aluminium powder-coated |
| Materials (wetted parts) | stainless steel (304L/1.4306); FKM; ceramics glass passivated; PEEK GF30; polyester; aluminium |
| Process connection | threaded connection 1" NPT external thread DN25 |
Displays / operating elements
| Display | Display unit 4 x LED, green (scfm, scfh, scf, °F) function display 1 x LED, yellow switching status 2 x LED, yellow measured values alphanumeric display, 4-digit programming alphanumeric display, 4-digit |
|---|---|
| Display unit | 4 x LED, green (scfm, scfh, scf, °F) |
| function display | 1 x LED, yellow |
| switching status | 2 x LED, yellow |
| measured values | alphanumeric display, 4-digit |
| programming | alphanumeric display, 4-digit |
Remarks
| Remarks | scf = standard cubic feet scfh = standard cubic feet per hour scfm = standard cubic feet per minute MW = measured value MEW = Final value of the measuring range Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533. For information about installation and operation please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
