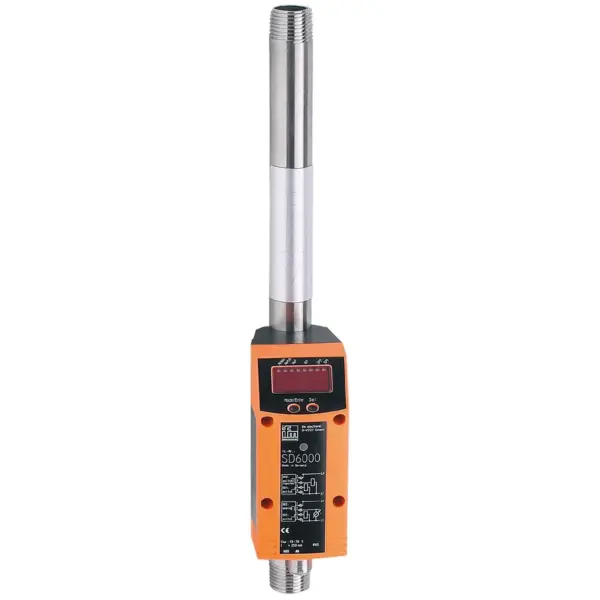

IFM SD6101

SD6101

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Precise measurement of flow, consumption and medium temperature
High accuracy, repeatability and measurement dynamics
For detecting argon (Ar), carbon dioxide (CO2), nitrogen (N2)
With switching output, analogue output and pulse output
Clearly visible 4-digit LED display
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Process connectionthreaded connection 1/2" NPT external thread DN15
Measuring range10...2650 scfh
0.15...44.15 scfm
1...339.5 sfs
15...4310 scfh0.2...71.8 scfm
10...2640 scfh0.15...44 scfm
10...2650 scfh0.15...44.15 scfm

Application

Applicationfor industrial applications
MediaArgon (Ar); carbon dioxide (CO2); nitrogen (N2)
Medium temperature[°F] [°F]32...140
Pressure rating16 bar
232 psi
1.6 MPa
16 bar232 psi
MAWP for applications according to CRN[bar] [bar]16

Electrical data

Operating voltage[V] [V]18...30 DC; (to SELV/PELV)
Current consumption[mA] [mA]< 100
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]1

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; pulse signal; IO-Link; (configurable)
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]250; (per output)
Number of analogue outputs1
Analogue current output[mA] [mA]4...20; (scalable)
Max. load[Ω] [Ω]500
Pulse outputconsumed quantity meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Low flow cut-off LFC< 46 scfh
< 0.76 scfm
1...5.8 sfs
< 46 scfh< 0.76 scfm
Measuring dynamics1:300
Pulse value0.040...4 000 000 scf
In steps of5 scfh
0.05 scfm
0.5 sfs
Pulse length[s] [s]0,007...2
Measuring range10...2650 scfh
0.15...44.15 scfm
1...339.5 sfs
15...4310 scfh0.2...71.8 scfm
Display range0...3175 scfh
0...52.95 scfm
0...407.5 sfs
0...5170 scfh0...86.2 scfm
Resolution5 scfh
0.05 scfm
0.5 sfs
5 scfh0.05 scfm
Set point SP25...2650 scfh
0.4...44.15 scfm
3...339.5 sfs
40...4310 scfh0.7...71.8 scfm
Reset point rP15...2635 scfh
0.2...43.95 scfm
1.5...338 sfs
20...4290 scfh0.4...71.5 scfm
Analogue start point ASP0...2120 scfh
0...35.3 scfm
0...271.5 sfs
0...3445 scfh0...57.4 scfm
Analogue end point AEP530...2650 scfh
8.85...44.15 scfm
68...339.5 sfs
860...4310 scfh14.4...71.8 scfm
10...2640 scfh0.15...44 scfm
0...3170 scfh0...52.8 scfm
25...2640 scfh0.4...44 scfm
15...2630 scfh0.2...43.8 scfm
0...2110 scfh0...35.2 scfm
530...2640 scfh8.8...44 scfm
10...2650 scfh0.15...44.15 scfm
0...3175 scfh0...52.95 scfm
25...2650 scfh0.4...44.15 scfm
15...2635 scfh0.2...43.95 scfm
0...2120 scfh0...35.3 scfm
530...2650 scfh8.85...44.15 scfm
Measuring range[°F] [°F]32...140
Display range[°F] [°F]10.5...161.5
Resolution[°F] [°F]0.5
Set point SP[°F] [°F]32.5...140
Reset point rP[°F] [°F]32...139.5
Analogue start point[°F] [°F]32...118.5
Analogue end point[°F] [°F]53.5...140
In steps of[°F] [°F]0.5

Accuracy / deviations

Repeatability[% of the measured value] [% of the measured value]± 1,5
Accuracy (in the measuring range)± (6 % MW + 0,6 % MEW); (conditions: installation to DIN ISO 2533; installation in pipes: DN15)
Accuracy[K] [K]± 2; (medium flow in the limit area of the flow measurement range)

Response times

Response time[s] [s]0.1; (dAP = 0)
Damping process value dAP in steps[s] [s]0 - 0,2 - 0,4 - 0,6 - 0,8 - 1

Software / programming

Parameter setting optionsFlow monitoring; quantity meter; Preset counter; hysteresis / window; normally open / normally closed; current/pulse output; display can be rotated and switched off; Display unit; medium selection

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesSmart Sensor - SSP 0
Generic Profiled Sensor
Function
Device identification
Function
Process data variable
Function
Device diagnosis
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionDevice diagnosis
SIO modeyes
Required master port typeA
Process data analogue3
Process data binary2
Min. process cycle time[ms] [ms]4.1
Supported DeviceIDsdefault
266
default266

Operating conditions

Ambient temperature[°F] [°F]32...140
Storage temperature[°F] [°F]-4...185
Max. relative air humidity[%] [%]90
ProtectionIP 65

Tests / approvals

EMCEN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-6 HF conducted10 V
Vibration resistanceDIN IEC 68-2-6
5 g (55...2000 Hz)
DIN IEC 68-2-65 g (55...2000 Hz)
MTTF[years] [years]227
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]925.5
Housingrectangular
Dimensions[mm] [mm]300 x 45 x 79.5
MaterialsPBT-GF20; PC; PC; stainless steel (304/1.4301); FKM
Materials (wetted parts)stainless steel (304/1.4301); ceramics glass passivated; PEEK; polyester; FKM; aluminium anodised
Process connectionthreaded connection 1/2" NPT external thread DN15

Displays / operating elements

DisplayDisplay unit
4 x LED, green (scfm, scfh, scf, °F)
function display
1 x LED, yellow
switching status
2 x LED, yellow
measured values
alphanumeric display, 4-digit
programming
alphanumeric display, 4-digit
Display unitscfm; scfh; scf; °F
function display1 x LED, yellow
switching status2 x LED, yellow
measured valuesalphanumeric display, 4-digit
programmingalphanumeric display, 4-digit

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533.
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A
