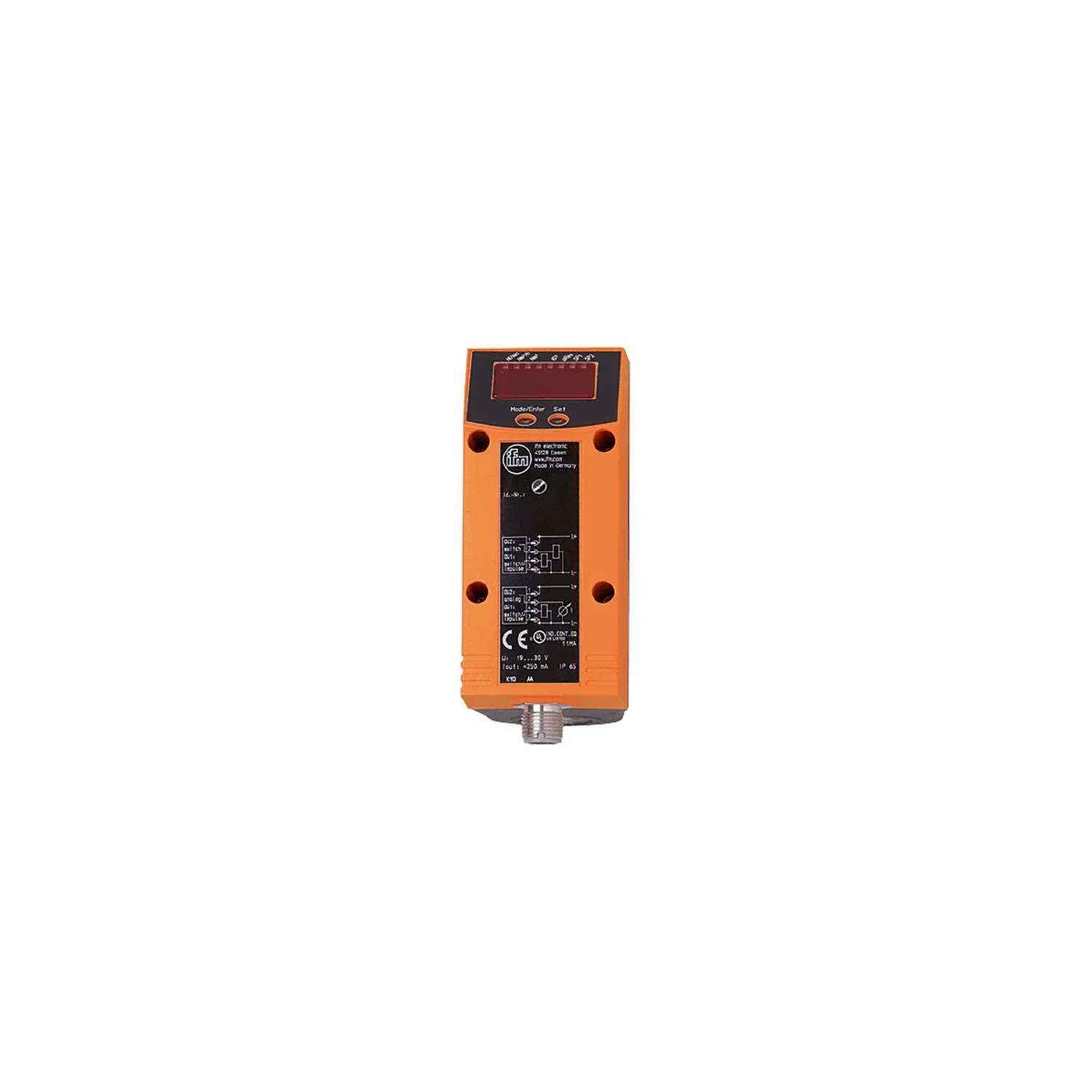

IFM SD6050

SD6050

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Precise measurement of flow, consumption and medium temperature
High accuracy, repeatability and measurement dynamics
For detecting compressed air in industrial use
With switching output, analogue output and pulse output
Clearly visible 4-digit LED display
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range10...1250 l/min
0.3...103.6 m/s
0.2...75 m³/h
10...1250 l/min0.3...103.6 m/s
Process connectionthreaded connection G 1/2 internal thread DN15

Application

Applicationfor industrial applications
Mediacompressed air
Medium temperature[°C] [°C]0...60
Pressure rating16 bar
1.6 MPa
16 bar1.6 MPa

Electrical data

Operating voltage[V] [V]18...30 DC; (to SELV/PELV)
Current consumption[mA] [mA]< 110
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]1

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; pulse signal; IO-Link; (configurable)
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]250; (per output)
Number of analogue outputs1
Analogue current output[mA] [mA]4...20; (scalable)
Max. load[Ω] [Ω]500
Pulse outputconsumed quantity meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range10...1250 l/min
0.3...103.6 m/s
0.2...75 m³/h
10...1250 l/min0.8...103.6 m/s
Display range0...1500 l/min
0...124.3 m/s
0...90 m³/h
0...1500 l/min0...124.3 m/s
Set point SP10...1250 l/min
0.8...103.6 m/s
0.6...75 m³/h
Reset point rP4...1244 l/min
0.3...103.1 m/s
0.2...74.6 m³/h
4...1244 l/min0.3...103.1 m/s
Analogue start point ASP0...938 l/min
0...77.7 m/s
0...56.3 m³/h
0...938 l/min0...77.7 m/s
Analogue end point AEP312...1250 l/min
25.9...103.6 m/s
18.7...75 m³/h
312...1250 l/min25.9...103.6 m/s
In steps of0.001 m³
1 l/min0.1 m/s
Pulse value0.001...1000000 m³
Pulse length[s] [s]0,02...2
Measuring range[°C] [°C]0...60
Display range[°C] [°C]-12...72

Accuracy / deviations

Repeatability[% of the measured value] [% of the measured value]± 1,5
Accuracy (in the measuring range)± (15 % MW + 1,5 % MEW); (maximum value to be achieved for air quality class 344 (DIN 8573-1); when using pipes of tolerance class T3/T4; inlet and outlet pipe lengths without edges and abrupt diameter changes; inner surface of the pipe free of burrs)
Accuracy[K] [K]± 2; (medium flow in the limit area of the flow measurement range)

Response times

Response time[s] [s]0.1; (dAP = 0)
Damping process value dAP in steps[s] [s]0 - 0,2 - 0,4 - 0,6 - 0,8 - 1

Software / programming

Parameter setting optionsFlow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; current/pulse output; display can be rotated and switched off; Display unit; totaliser

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9 CDV
SIO modeyes
Required master port typeA
Process data analogue3
Process data binary2
Min. process cycle time[ms] [ms]4.1
Supported DeviceIDsdefault
262
default262

Operating conditions

Ambient temperature[°C] [°C]0...60
Storage temperature[°C] [°C]-20...85
Max. relative air humidity[%] [%]90
ProtectionIP 65

Tests / approvals

EMCDIN EN 61000-6-2
DIN EN 61000-6-3
CPA approvalmodel number
004TG
accuracy class
-
maximum allowable error
± 16,5 % FS
Q (min)
0,2 m³/h
Q (t)
-
Q (max)
75 m³/h
model number004TG
accuracy class-
maximum allowable error± 16,5 % FS
Q (min)0,2 m³/h
Q (t)-
Q (max)75 m³/h
Vibration resistanceDIN EN 68000-2-6
5 g (55...2000 Hz)
DIN EN 68000-2-65 g (55...2000 Hz)
MTTF[years] [years]227
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]579
Housingrectangular
Dimensions[mm] [mm]111 x 45 x 80.4
MaterialsPBT-GF20; NBR; PC; stainless steel (304/1.4301); PTFE; brass coated; FKM; aluminium powder-coated
Materials (wetted parts)stainless steel (304/1.4301); FKM; ceramics glass passivated; PEEK GF30; polyester; aluminium
Tightening torque[Nm] [Nm]50
Process connectionthreaded connection G 1/2 internal thread DN15

Displays / operating elements

DisplayDisplay unit
5 x LED, green (Nl/min, Nm³/h, Nm/s, Nm³, °C)
function display
1 x LED, green
switching status
2 x LED, yellow
measured values
alphanumeric display, 4-digit
programming
alphanumeric display, 4-digit
Display unit5 x LED, green (Nl/min, Nm³/h, Nm/s, Nm³, °C)
function display1 x LED, green
switching status2 x LED, yellow
measured valuesalphanumeric display, 4-digit
programmingalphanumeric display, 4-digit

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533.
For information about installation and operation please see the operating instructions.
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A
