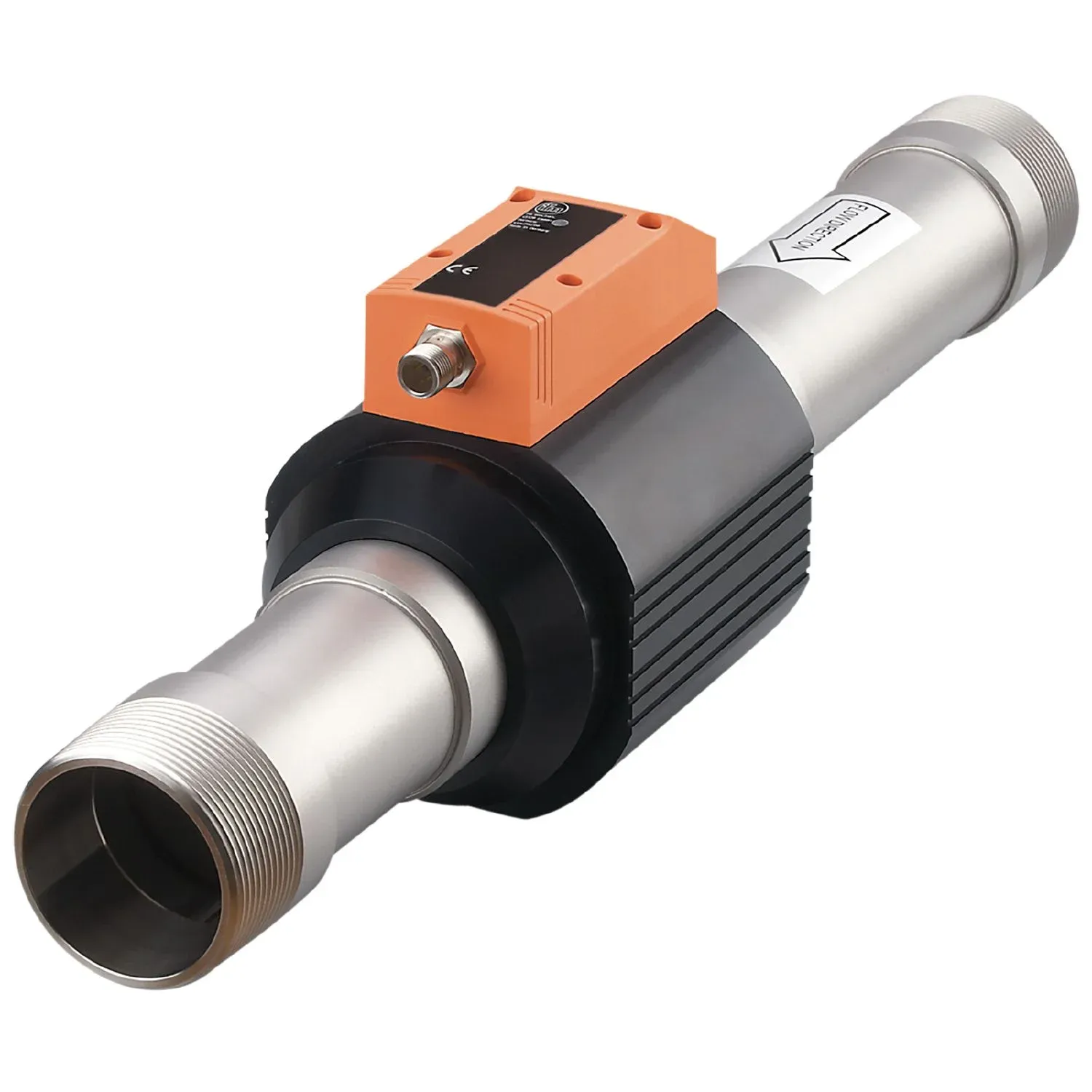

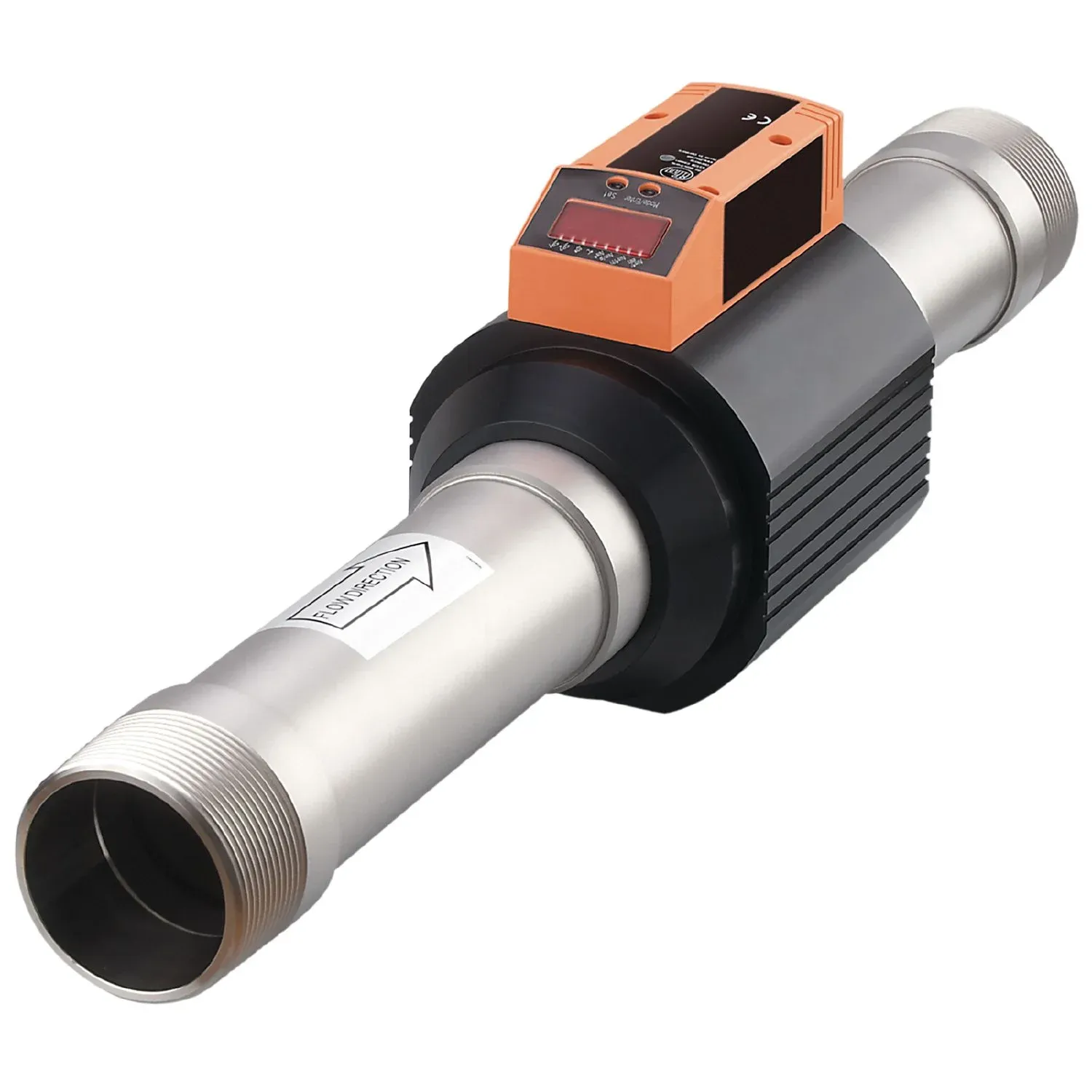

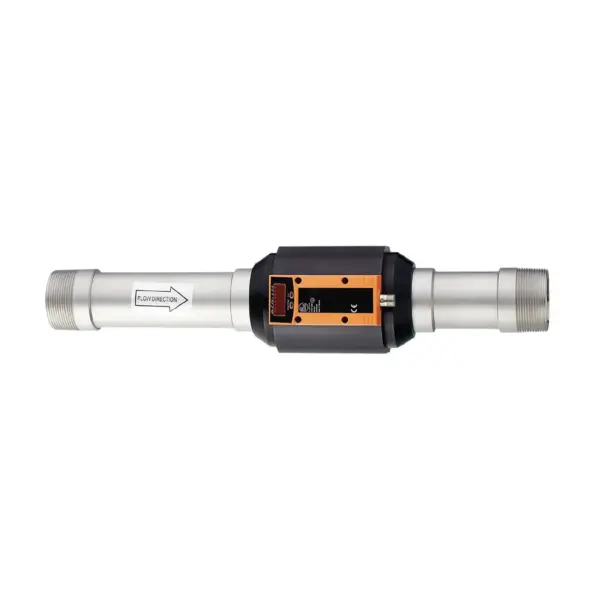

IFM SD2000

SD2000

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Precise measurement of flow, consumption and medium temperature
High accuracy, repeatability and measurement dynamics
For detecting compressed air in industrial use
With switching output, analogue output and pulse output
Clearly visible 4-digit LED display
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range0.3...95.2 m/s
3...700 m³/h
0.04...11.66 m³/min
0.3...95.2 m/s3...700 m³/h
Process connectionthreaded connection R 2 external thread DN50

Application

Applicationfor industrial applications
Mediacompressed air
Note on mediaair quality ISO 8573-1
class 141
class 344
Medium temperature[°C] [°C]0...60
Pressure rating16 bar
1.6 MPa
16 bar1.6 MPa

Electrical data

Operating voltage[V] [V]18...30 DC; (to SELV/PELV)
Current consumption[mA] [mA]< 110
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]1

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; pulse signal; IO-Link; (configurable)
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]250; (per output)
Number of analogue outputs1
Analogue current output[mA] [mA]4...20; (scalable)
Max. load[Ω] [Ω]500
Pulse outputconsumed quantity meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range0.3...95.2 m/s
3...700 m³/h
0.04...11.66 m³/min
0.3...95.2 m/s3...700 m³/h
Display range0...114.2 m/s
0...840 m³/h
0...13.99 m³/min
0...114.2 m/s0...840 m³/h
Set point SP0.7...95.2 m/s
5...700 m³/h
0.09...11.66 m³/min
0.7...95.2 m/s5...700 m³/h
Reset point rP0.3...94.8 m/s
2...697 m³/h
0.04...11.61 m³/min
0.3...94.8 m/s2...697 m³/h
Analogue start point ASP0...71.4 m/s
0...525 m³/h
0...8.75 m³/min
0...71.4 m/s0...525 m³/h
Analogue end point AEP23.8...95.2 m/s
175...700 m³/h
2.91...11.66 m³/min
23.8...95.2 m/s175...700 m³/h
In steps of0.010 m³
0.1 m/s1 m³/h
Pulse value0.010...4000000 m³
Pulse length[s] [s]0,021...2
Measuring range[°C] [°C]0...60
Display range[°C] [°C]-12...72

Accuracy / deviations

Repeatability[% of the measured value] [% of the measured value]± 1,5
Accuracy (in the measuring range)± (3 % MW + 0,3 % MEW) / ± (6 % MW + 0,6 % MEW); (class 141 /; class 344; conditions: installation to DIN ISO 2533; installation in pipes: DN50)
Accuracy[K] [K]± 2; (medium flow in the limit area of the flow measurement range)

Response times

Response time[s] [s]0.1; (dAP = 0)
Damping process value dAP in steps[s] [s]0 - 0,2 - 0,4 - 0,6 - 0,8 - 1

Software / programming

Parameter setting optionsFlow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; current/pulse output; display can be rotated and switched off; Display unit; totaliser

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9 CDV
SIO modeyes
Required master port typeA
Process data analogue3
Process data binary2
Min. process cycle time[ms] [ms]4.1
Supported DeviceIDsdefault
270
default270

Operating conditions

Ambient temperature[°C] [°C]0...60
Storage temperature[°C] [°C]-20...85
Max. relative air humidity[%] [%]90
ProtectionIP 65

Tests / approvals

EMCDIN EN 61000-6-2
DIN EN 61000-6-3
CPA approvalmodel number
002TG
accuracy class
-
maximum allowable error
± 4 % FS
Q (min)
3 m³/h
Q (t)
-
Q (max)
700 m³/h
model number002TG
accuracy class-
maximum allowable error± 4 % FS
Q (min)3 m³/h
Q (t)-
Q (max)700 m³/h
Vibration resistanceDIN EN 68000-2-6
5 g (55...2000 Hz)
DIN EN 68000-2-65 g (55...2000 Hz)
MTTF[years] [years]227
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]4313
Housingrectangular
Dimensions[mm] [mm]475 x 100 x 133
MaterialsPBT-GF20; NBR; PC; stainless steel (304/1.4301); PTFE; brass coated; FKM; aluminium powder-coated
Materials (wetted parts)stainless steel (304/1.4301); FKM; ceramics glass passivated; PEEK GF30; polyester; aluminium
Process connectionthreaded connection R 2 external thread DN50

Displays / operating elements

DisplayDisplay unit
5 x LED, green (Nm³/min, Nm³/h, Nm/s, Nm³, °C)
function display
1 x LED, green
switching status
2 x LED, yellow
measured values
alphanumeric display, 4-digit
programming
alphanumeric display, 4-digit
Display unit5 x LED, green (Nm³/min, Nm³/h, Nm/s, Nm³, °C)
function display1 x LED, green
switching status2 x LED, yellow
measured valuesalphanumeric display, 4-digit
programmingalphanumeric display, 4-digit

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533.
For information about installation and operation please see the operating instructions.
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A
