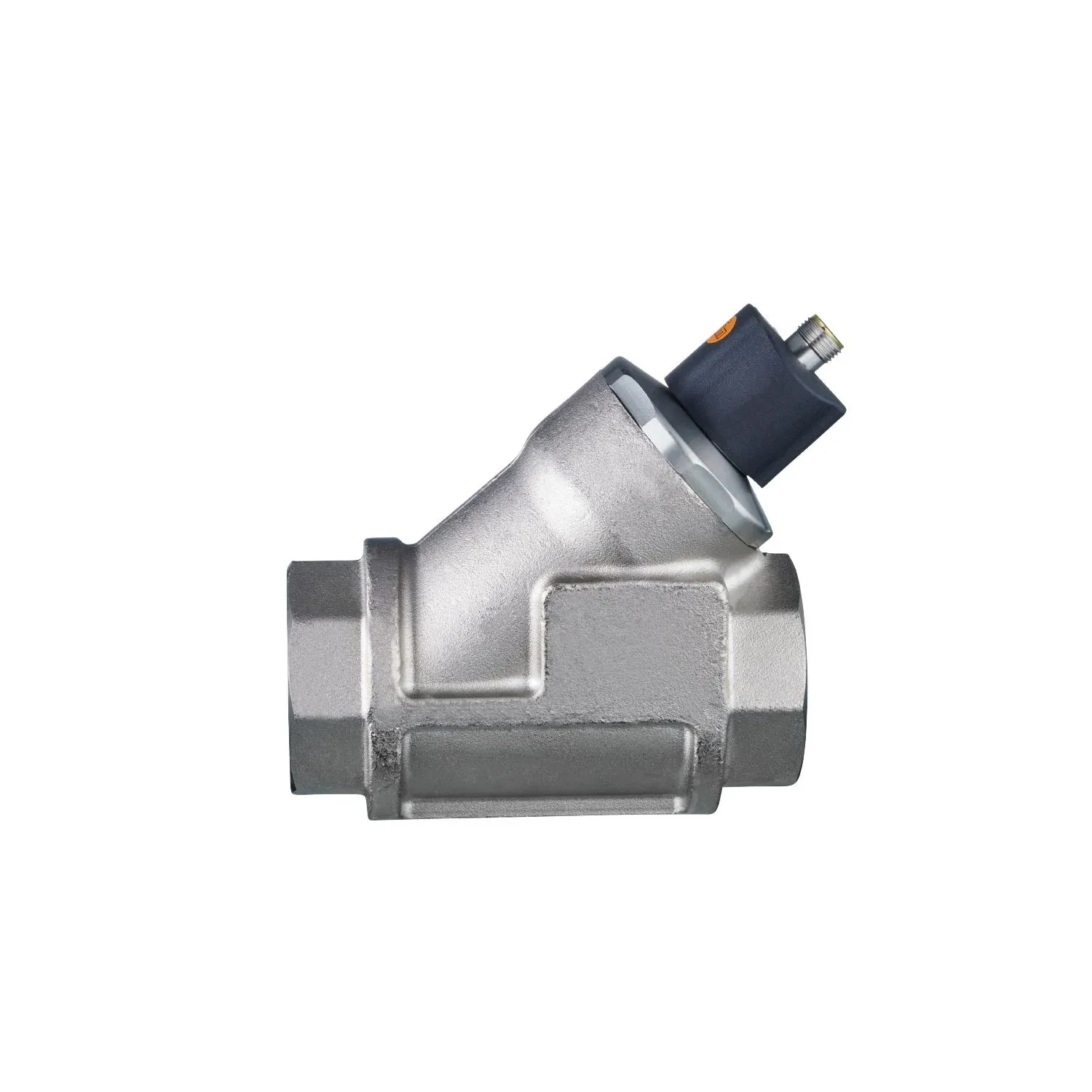

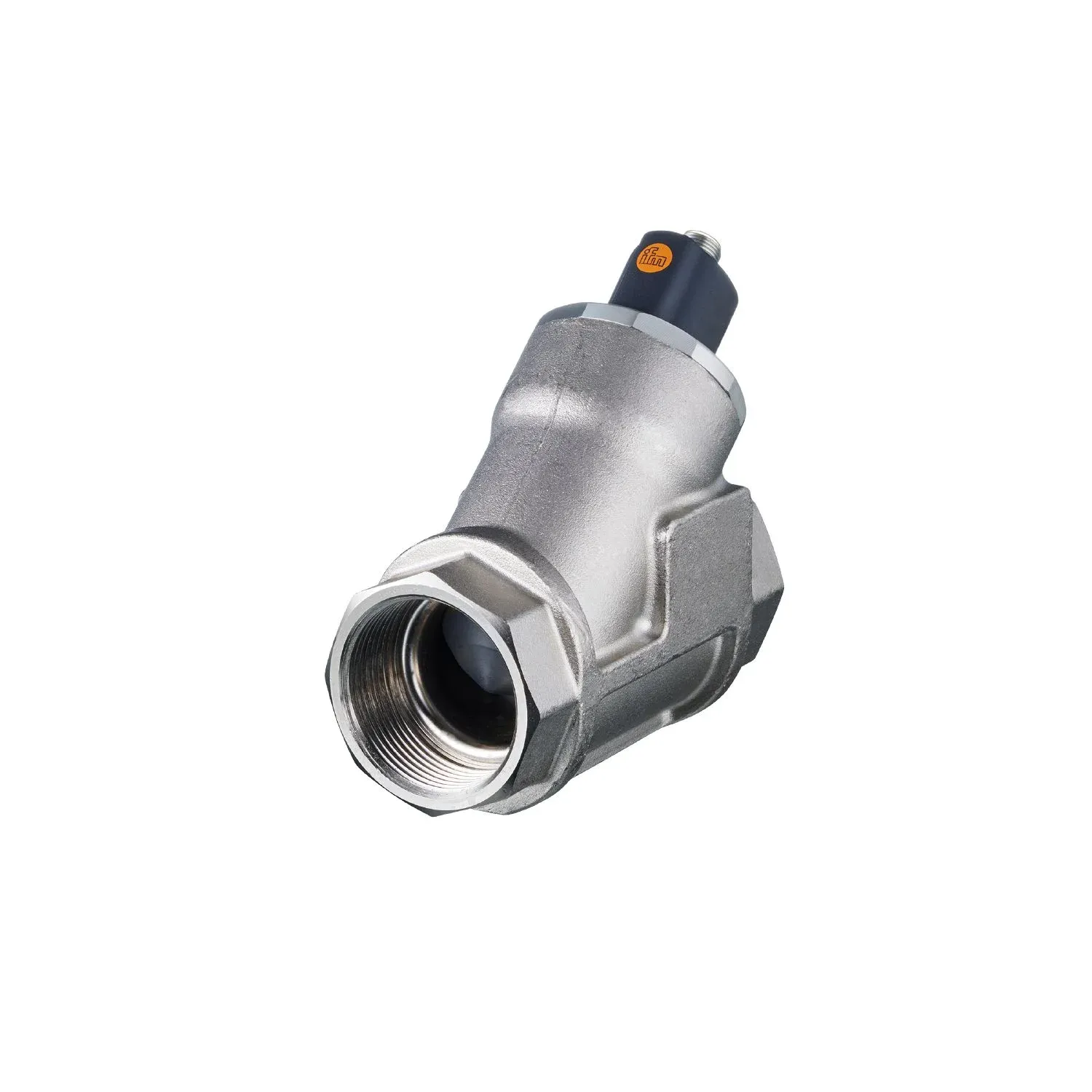

IFM SBY458
SBY458
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise detection of flow in pipes
Suitable for water, coolants, oil and glycol solutions
Precise linearized analogue output
Robust housing with very high pressure rating
Very fast response time (~10 ms)
Specification
Product characteristics
| Measuring range[l/min] [l/min] | 7...350 |
|---|---|
| Process connection | threaded connection Rp 1 1/2 internal thread |
Application
| Media | Liquids; water; glycol solutions; coolants |
|---|---|
| Medium temperature[°C] [°C] | -10...100 |
| Pressure rating | 25 bar 2.5 MPa |
| 25 bar | 2.5 MPa |
Electrical data
| Operating voltage[V] [V] | 18...32 DC; (to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | < 35 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Output signal | analogue signal |
|---|---|
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 500 |
| Short-circuit protection | yes |
| Overload protection | yes |
Measuring/setting range
| Measuring range[l/min] [l/min] | 7...350 |
|---|
Accuracy / deviations
| Repeatability[% of the final value] [% of the final value] | 1 |
|---|---|
| Measuring error[% of the final value] [% of the final value] | ± 5 |
Response times
| Response time[s] [s] | < 0.01 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | 0...60 |
|---|---|
| Storage temperature[°C] [°C] | -15...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 20 g (11 ms) |
| DIN EN 60068-2-27 | 20 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 5 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 5 g (10...2000 Hz) |
| MTTF[years] [years] | 778 |
| UL approval | File number UL E174189 |
| File number UL | E174189 |
Mechanical data
| Weight[g] [g] | 2236.5 |
|---|---|
| Materials | brass chemically nickel-plated; PP; stainless steel (316L/1.4404); aluminium anodised; PA |
| Materials (wetted parts) | stainless steel (316 / 1.4401); brass; brass chemically nickel-plated; PP; PPS; spacer: POM; O-ring: FKM |
| Process connection | threaded connection Rp 1 1/2 internal thread |
| Switching cycles mechanical | 10 million |
Remarks
| Remarks | Recommendation Use 200 micron filtration All data refer to water (20 °C). |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
