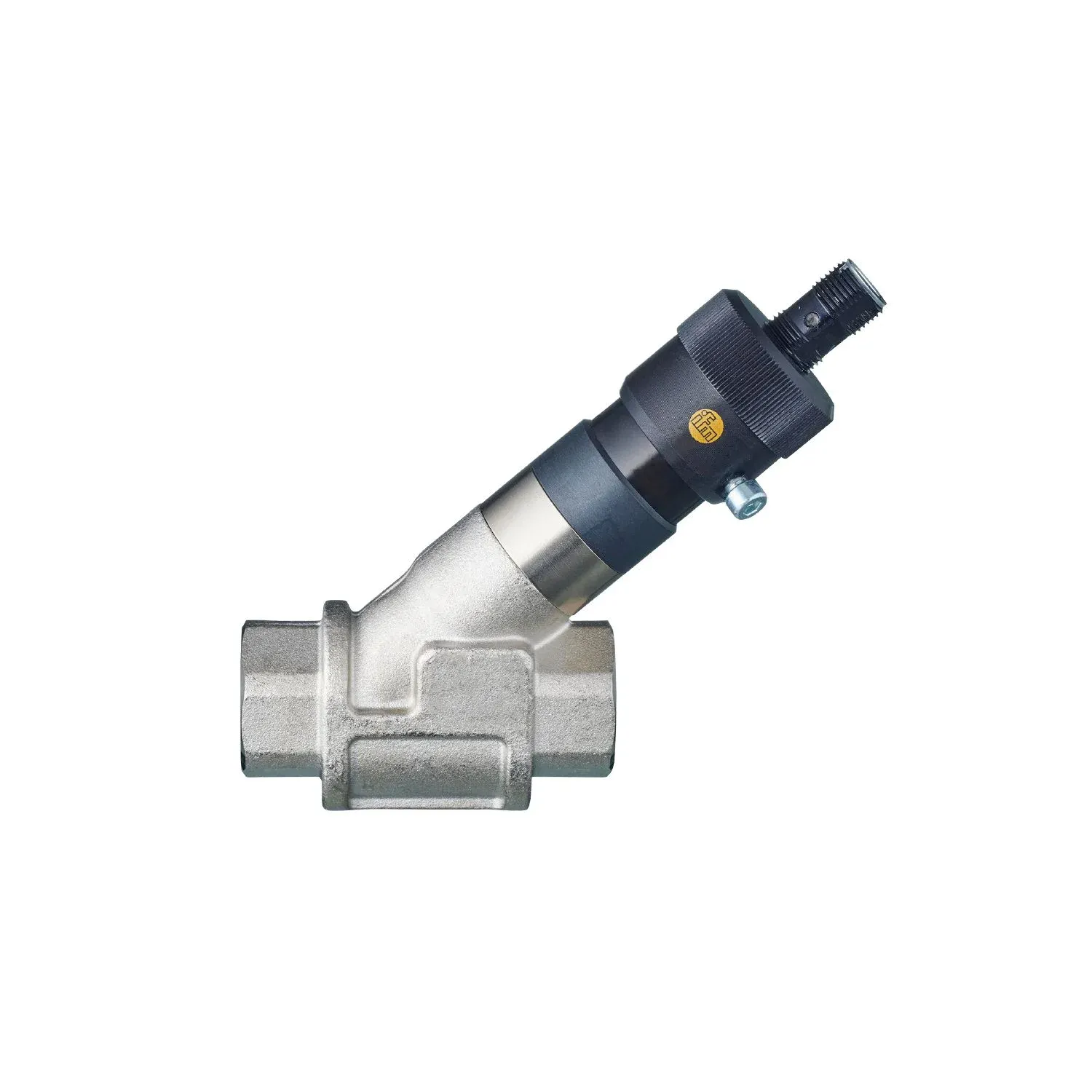

IFM SBY323
SBY323
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise detection of flow in pipes
Suitable for water, oils and glycol solutions
Intuitive continuous adjustment of the switch point
Robust housing with very high pressure rating
Very fast response time (~10 ms)
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|---|
| Process connection | threaded connection Rp 1/2 internal thread |
Application
| Media | Liquids; water; glycol solutions; coolants |
|---|---|
| Medium temperature[°C] [°C] | 0...85 |
| Pressure rating | 25 bar 2.5 MPa |
| 25 bar | 2.5 MPa |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
Measuring/setting range
| Setting range[l/min] [l/min] | 2...20 |
|---|
Accuracy / deviations
| Repeatability[% of the final value] [% of the final value] | 1 |
|---|---|
| Hysteresis[l/min] [l/min] | 0,3...4 |
| Measuring error[% of the final value] [% of the final value] | ± 5 |
Response times
| Response time[s] [s] | < 0.01 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | 0...60 |
|---|---|
| Storage temperature[°C] [°C] | -15...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 20 g (11 ms) |
| DIN EN 60068-2-27 | 20 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 5 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 5 g (10...2000 Hz) |
| MTTF[years] [years] | 15.78 |
Mechanical data
| Weight[g] [g] | 422.75 |
|---|---|
| Materials | brass chemically nickel-plated; PP; aluminium anodised; PA |
| Materials (wetted parts) | stainless steel (301/1.4310); stainless steel (304/1.4301); PBT; brass chemically nickel-plated; PP; PPS; O-ring: FKM |
| Process connection | threaded connection Rp 1/2 internal thread |
| Switching cycles mechanical | 10 million |
Displays / operating elements
| Display | switching status 4 x LED, yellow |
|---|---|
| switching status | 4 x LED, yellow |
Accessories
| Items supplied | Allen key |
|---|
Remarks
| Remarks | Caution Do not turn the setting screw beyond the maximum value of the setting range. All data refer to water (20 °C). |
|---|---|
| Notes | Please note the changed housing design! |
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
