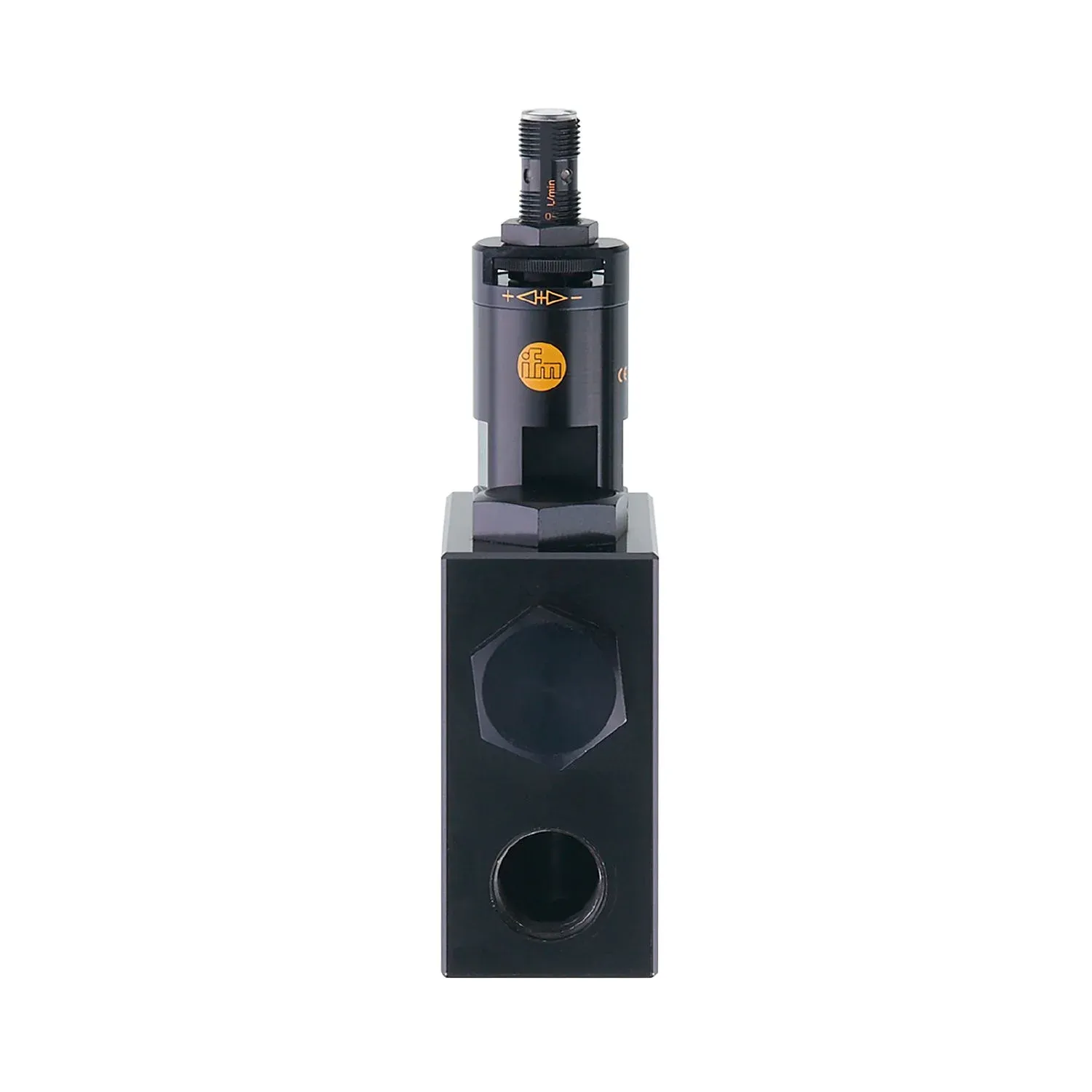

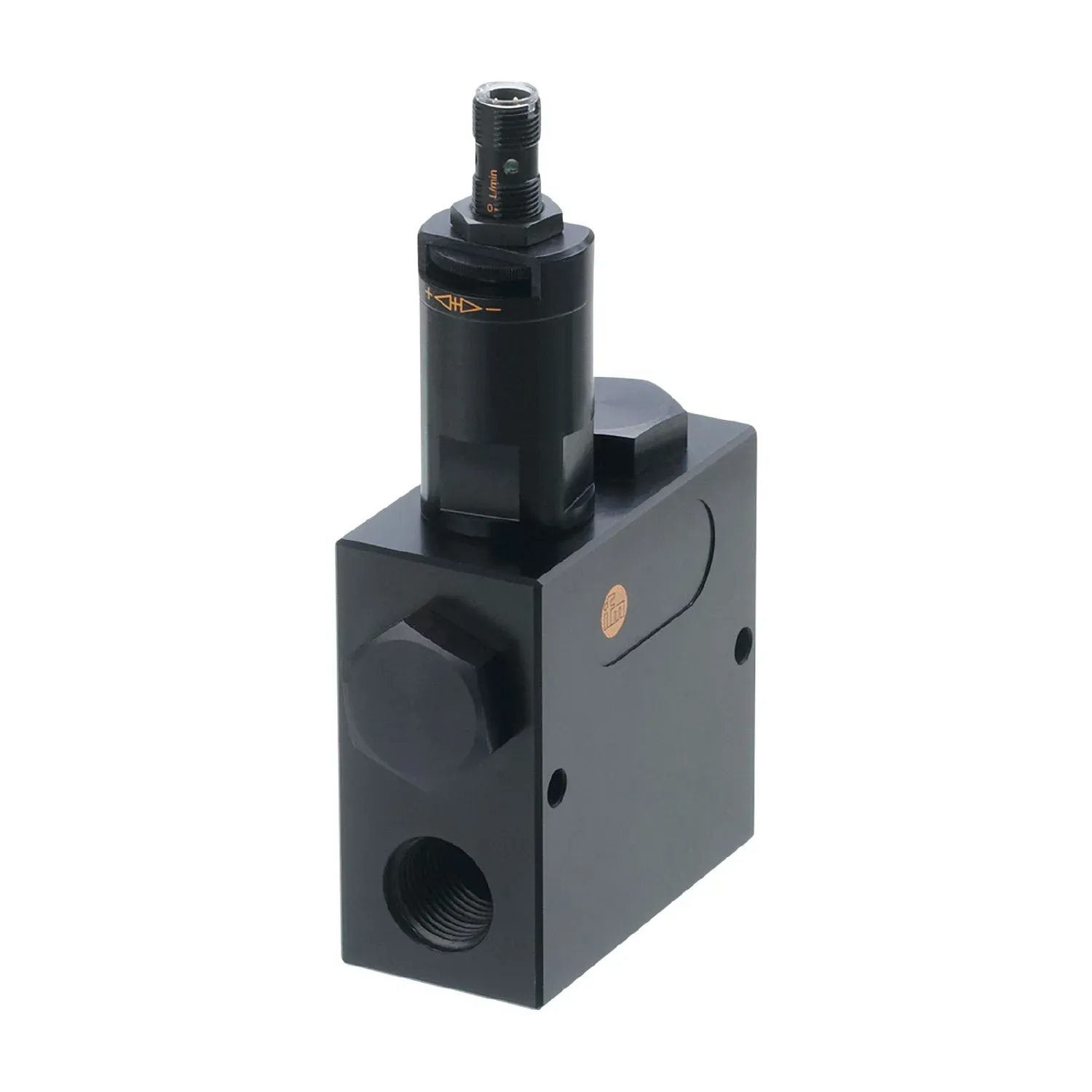

IFM SBU324
SBU324
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable volumetric flow monitoring of the internal cooling of the drill on machine tools
With integrated backflow preventer
Intuitive continuous adjustment of the switch points
Robust housing with very high pressure rating
Very short response time
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|---|
| Process connection | threaded connection G 1/2 internal thread |
Application
| Application | machine tools; Internal cooling of drill |
|---|---|
| Media | Liquids; water; glycol solutions; coolants |
| Medium temperature[°C] [°C] | 0...60 |
| Pressure rating | 200 bar 20 MPa |
| 200 bar | 20 MPa |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
Measuring/setting range
| Flow range[l/min] [l/min] | 75 |
|---|---|
| Setting range[l/min] [l/min] | 0.3...50 |
Accuracy / deviations
| Repeatability[% of the final value] [% of the final value] | 1 |
|---|---|
| Hysteresis[l/min] [l/min] | 0,1...1,5 |
| Measuring error[% of the final value] [% of the final value] | ± 5 |
Response times
| Response time[s] [s] | < 0.01 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | 0...60 |
|---|---|
| Storage temperature[°C] [°C] | -15...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 20 g (11 ms) |
| DIN EN 60068-2-27 | 20 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 5 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 5 g (10...2000 Hz) |
| MTTF[years] [years] | 15.78 |
Mechanical data
| Weight[g] [g] | 764 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 167 x 80 x 40 |
| Materials | aluminium anodised; PA |
| Materials (wetted parts) | stainless steel (301/1.4310); stainless steel (304/1.4301); aluminium anodised; PBT; PU; O-ring: FKM |
| Process connection | threaded connection G 1/2 internal thread |
| Switching cycles mechanical | 10 million |
Displays / operating elements
| Display | switching status 4 x LED, yellow |
|---|---|
| switching status | 4 x LED, yellow |
Accessories
| Items supplied | sealing plugs |
|---|
Remarks
| Remarks | Temperature changes slightly affect the specified standard settings for coolants. For oils, the settings are influenced by temperature and viscosity. Recommendation Use 200 micron filtration All data refer to coolants (20 °C). |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
