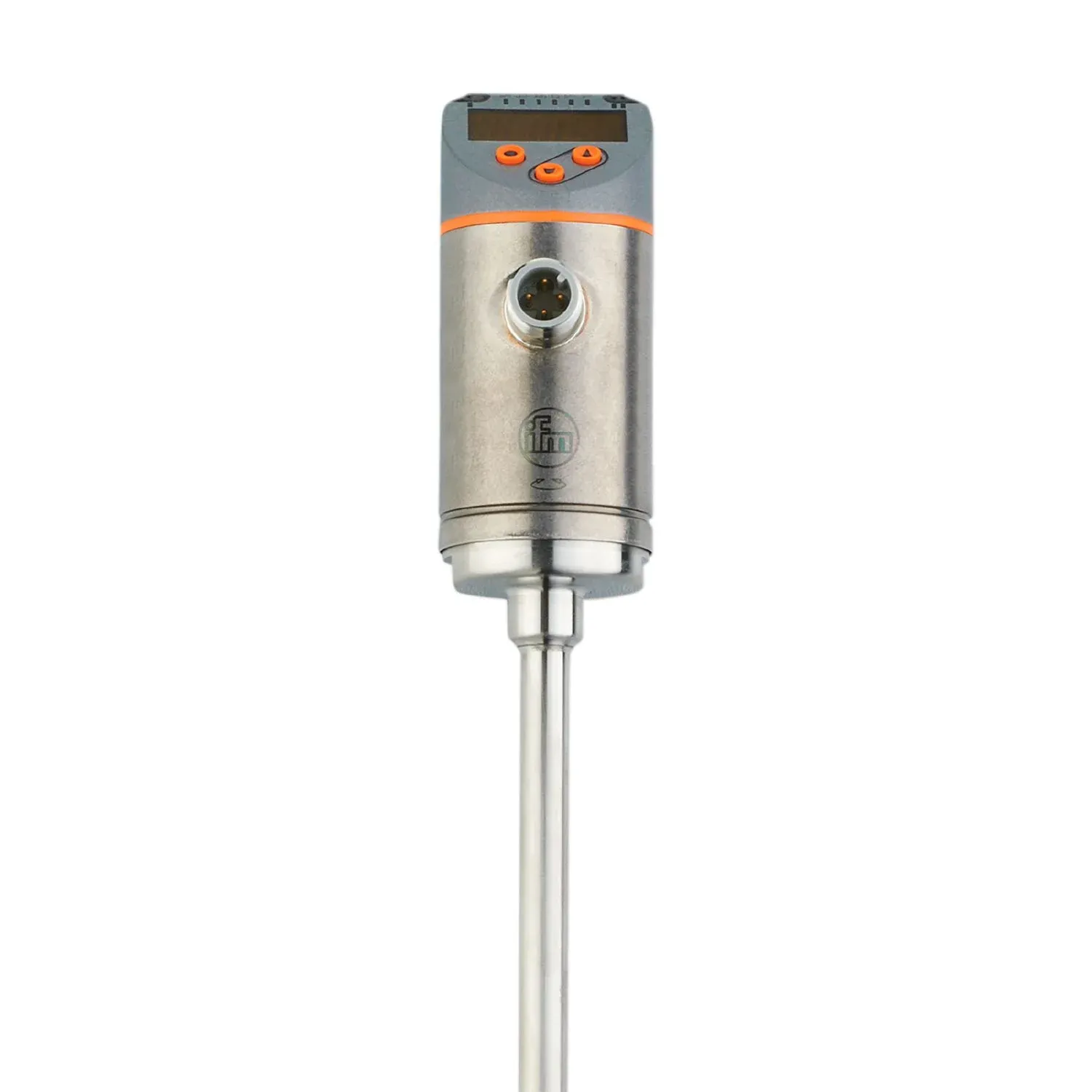

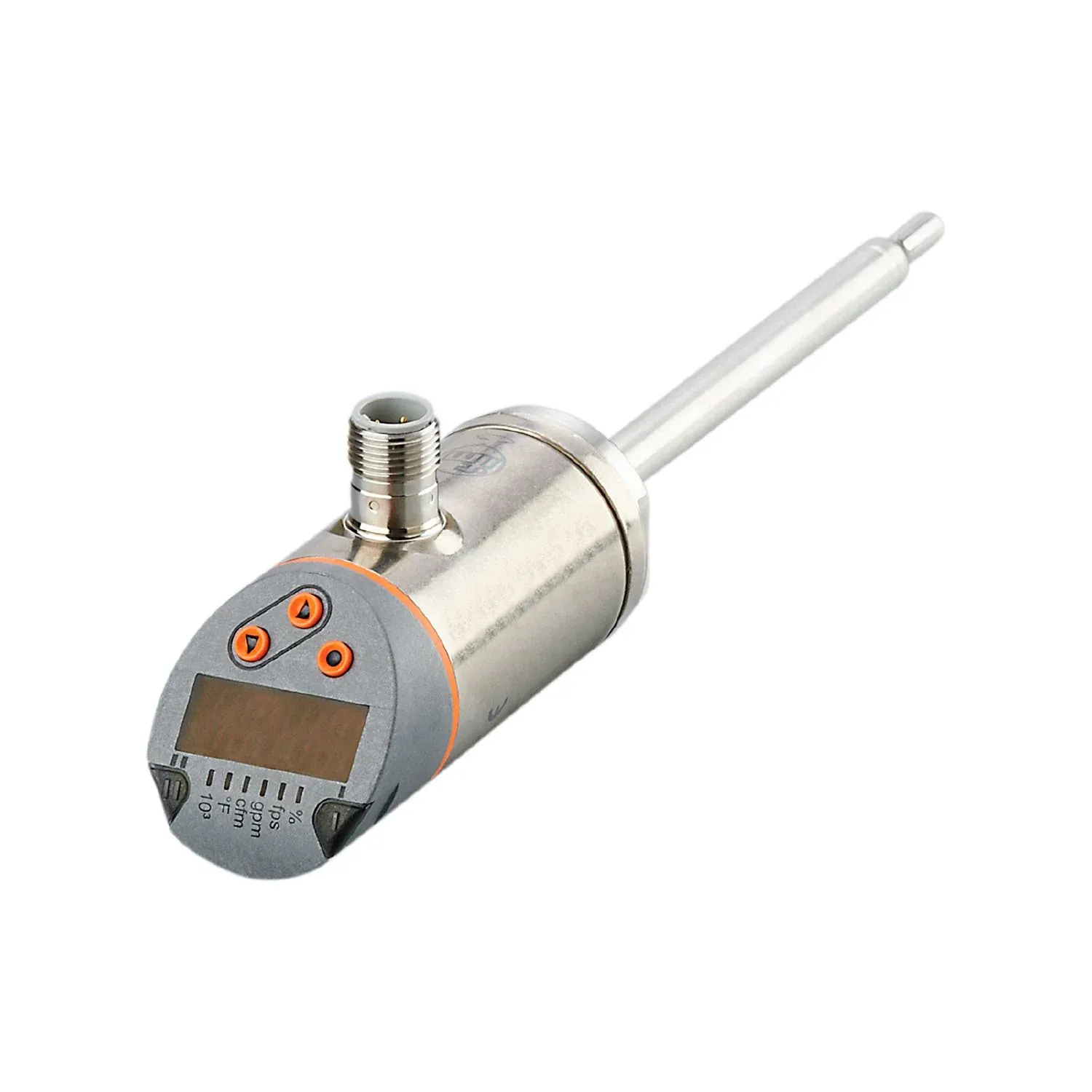

IFM SA4110
SA4110
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Measurement of flow and temperature at the same time
Optimised for water, oils and air
Red/green display for clear identification of the acceptable range
With switching output, analogue signal and IO-Link
The process connection can be rotated for optimum alignment
Convenient operation via buttons or parameter setting via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|---|
| Process connection | clamp adapter Ø 8 mm |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Media | water; glycol solutions; air; oils |
| Note on media | low-viscosity oils with viscosity: ≤ 40 mm²/s (104 °F) high-viscosity oils with viscosity: > 40 mm²/s (104 °F) |
| Medium temperature[°F] [°F] | -4...212 |
| Pressure rating | 50 bar 725 psi 5 MPa |
| 50 bar | 725 psi |
| MAWP for applications according to CRN[bar] [bar] | 50 |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 100 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 10 |
| Measuring principle | calorimetric |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; frequency signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20; (scalable) |
| Max. load[Ω] [Ω] | 350 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Frequency of the output[Hz] [Hz] | 0...1000 |
Measuring/setting range
| Probe length L[mm] [mm] | 100 |
|---|---|
| Operating mode | relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended; Factory setting: relative) |
| Measuring range[°F] [°F] | -4...212 |
| Resolution[°F] [°F] | 0.5 |
| Setting range[ft/s] [ft/s] | 6...656 |
| Greatest sensitivity[ft/s] [ft/s] | 6...328 |
Accuracy / deviations
| Temperature drift[cm/s x 1/K] [cm/s x 1/K] | 0,01 fps x 1/K (< 68 °F; > 158 °F) |
|---|---|
| Temperature gradient[K/min] [K/min] | 100 |
| Repeatability | 0,05 m/s; (water; flow velocity: 0,05...3 m/s) |
| Accuracy | ± (7 % MW + 2 % MEW); (for relative mode in the range of maximum sensitivity under the following conditions:; water: 68...158 °F; inlet length: 5 ft; DN25 (DIN 2448); mounting position according to instructions; Accuracy can differ for other media and mounting positions.) |
| Temperature drift | ± 0,003 K/°F |
| Accuracy[K] [K] | ± 0,3 / ± 1; (water; flow velocity: 1...9,85 fps / air; flow velocity: > 32,8 fps) |
Response times
| Response time[s] [s] | 0.5; (T09; water; glycol: 0,8 s; air: 7 s; oil: 1,8 s; each T09) |
|---|---|
| Dynamic response T05 / T09[s] [s] | 1,5 (T09); (water; flow velocity: 1...9,85 fps) |
Software / programming
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; current/frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 2 |
| Process data binary | 2 |
| Min. process cycle time[ms] [ms] | 3 |
| Supported DeviceIDs | Factory setting / ModE = (REL) 537 ModE = (GAS) 551 ModE = (LIQU) 544 |
| Factory setting / ModE = (REL) | 537 |
| ModE = (GAS) | 551 |
| ModE = (LIQU) | 544 |
Operating conditions
| Ambient temperature[°F] [°F] | -40...176 |
|---|---|
| Storage temperature[°F] [°F] | -40...212 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | DIN EN 60947-5-9 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 5 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 5 g (10...2000 Hz) |
| MTTF[years] [years] | 143 |
| UL approval | UL approval no. I017 File number UL E174189 |
| UL approval no. | I017 |
| File number UL | E174189 |
Mechanical data
| Weight[g] [g] | 241.4 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 8 / L = 192 |
| Materials | stainless steel (316L/1.4404); PBT-GF20; PBT-GF30 |
| Materials (wetted parts) | stainless steel (316L/1.4404) |
| Process connection | clamp adapter Ø 8 mm |

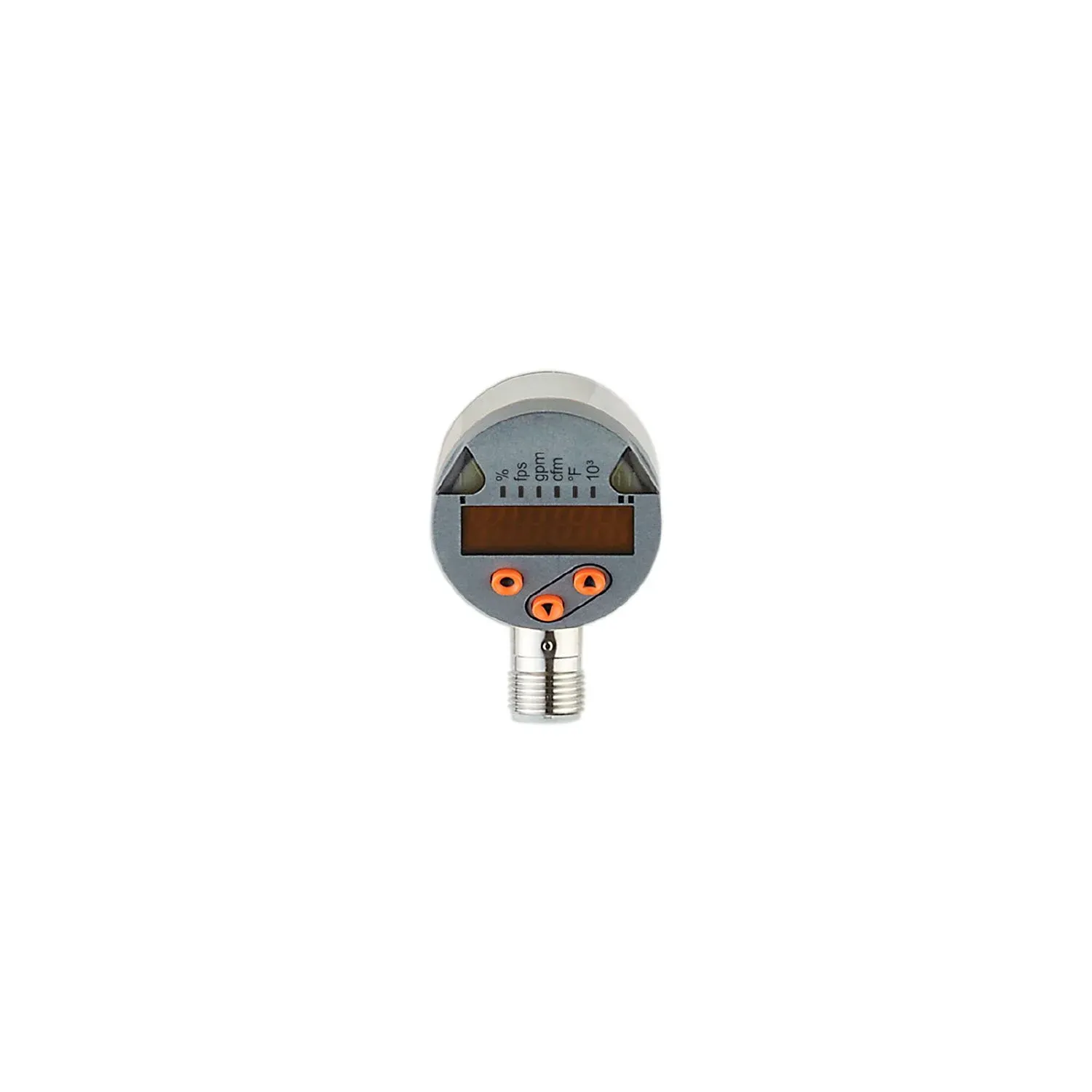

Displays / operating elements
| Display | Display unit 6 x LED, green (%, fps, gpm, cfm, °F, 10³) switching status 2 x LED, yellow measured values alphanumeric display, red/green 4-digit |
|---|---|
| Display unit | 6 x LED, green (%, fps, gpm, cfm, °F, 10³) |
| switching status | 2 x LED, yellow |
| measured values | alphanumeric display, red/green 4-digit |
Remarks
| Remarks | MW = measured value MEW = Final value of the measuring range |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
