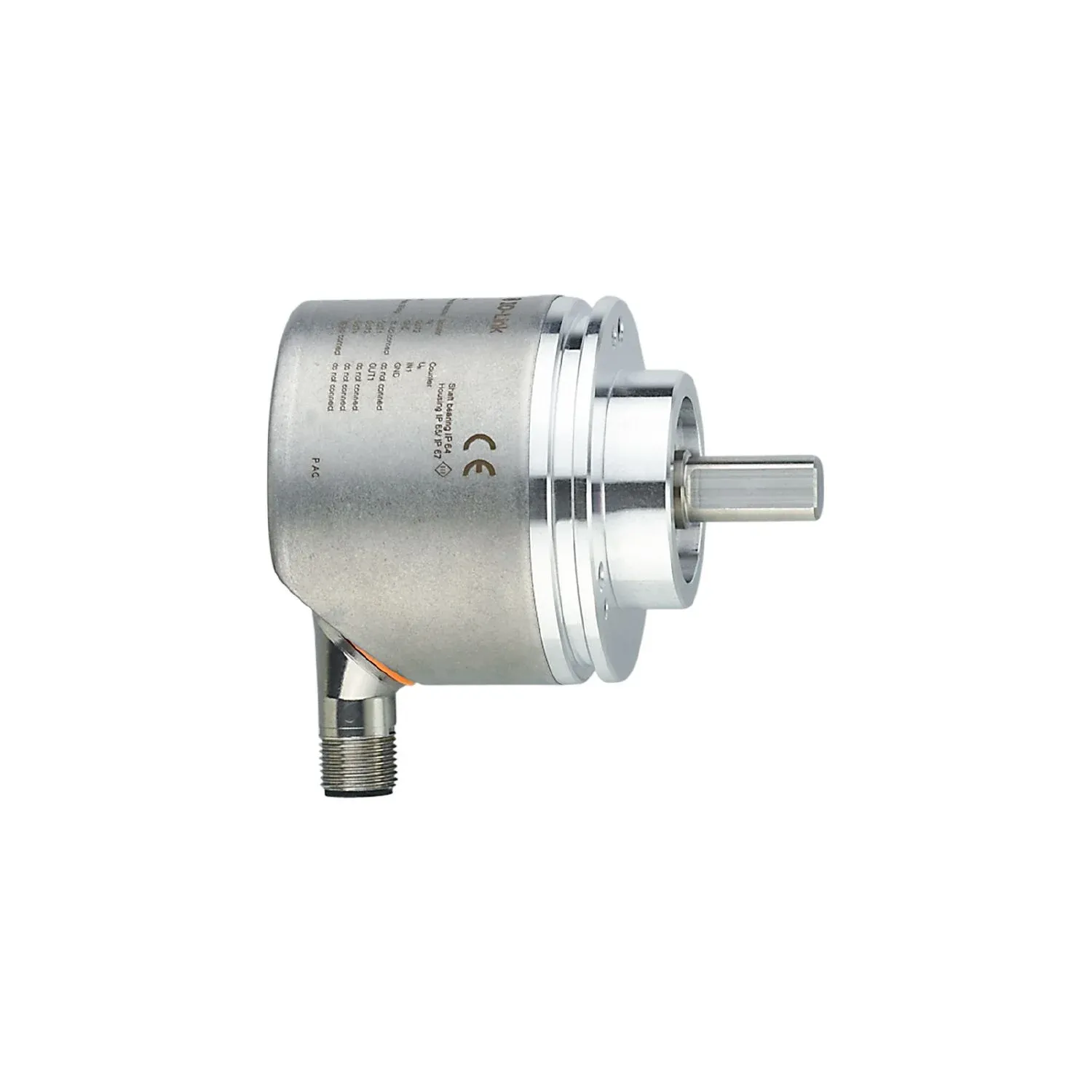

IFM RVP510
RVP510
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Can be configured as encoder, speed monitor or counter
Clearly visible LED display with red/green colour change
High shock and vibration resistance thanks to magnetic sensing principle
Resolution freely programmable from 1 … 10,000
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Resolution | 1...10000; (parameterisable; Factory setting: 1024) resolution |
|---|---|
| Communication interface | IO-Link |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 10 |
Application
| Function principle | incremental |
|---|---|
| Detection system | magnetic |
| Application | encoder; Speed monitor; counter |
Electrical data
| Operating voltage[V] [V] | 4.75...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 350 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. revolution electrical[U/min] [U/min] | 12000 |
Outputs
| Electrical design | HTL/TTL |
|---|---|
| Switching frequency[kHz] [kHz] | 1000 |
| Factory setting | Output function: HTL (50 mA) |
| Short-circuit protection | yes |
| Phase difference A and B[°] [°] | 90 |
Measuring/setting range
| Resolution | 1...10000; (parameterisable; Factory setting: 1024) resolution |
|---|---|
| Set point SP | -9994...9999 U/min -166.6...166.7 Hz |
| -9994...9999 U/min | -166.6...166.7 Hz |
| Reset point rP | -9999...9994 U/min -166.7...166.6 Hz |
| -9999...9994 U/min | -166.7...166.6 Hz |
| Preset point | 1...9999 |
Accuracy / deviations
| Accuracy[°] [°] | 0.1 |
|---|
Software / programming
| Parameter setting options | encoder; Resolution; direction of rotation; HTL; TTL; Speed monitor; Resolution |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | yes |
| Min. process cycle time[ms] [ms] | 2.7 |
| Supported DeviceIDs | default 496 |
| default | 496 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 95; (condensation not permissible) |
| Protection | IP 65; (on the housing: IP 67; on the shaft: IP 64) |
Tests / approvals
| Shock resistance | 100 g |
|---|---|
| Vibration resistance | 20 g |
| MTTF[years] [years] | 218 |
Mechanical data
| Weight[g] [g] | 429 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 58 / L = 80.2 |
| Materials | flange: aluminium; housing: stainless steel (444/1.4521); display window: PEI |
| Max. revolution, mechanical[U/min] [U/min] | 12000 |
| Max. starting torque[Nm] [Nm] | 0.01 |
| Reference temperature torque[°C] [°C] | 20 |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 10 |
| Shaft material | stainless steel |
| Max. shaft load axial (at the shaft end)[N] [N] | 40 |
| Max. shaft load radial (at the shaft end)[N] [N] | 60 |
| Fixing flange | clamping flange |
Displays / operating elements
| Display | 10-segment display, red/green 4-digit parameterisable 2 x LED, yellow 5 x LED, green |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (316 / 1.4401); Maximum cable length: 100 m; (IO-Link: max. 20 m) |
|---|
