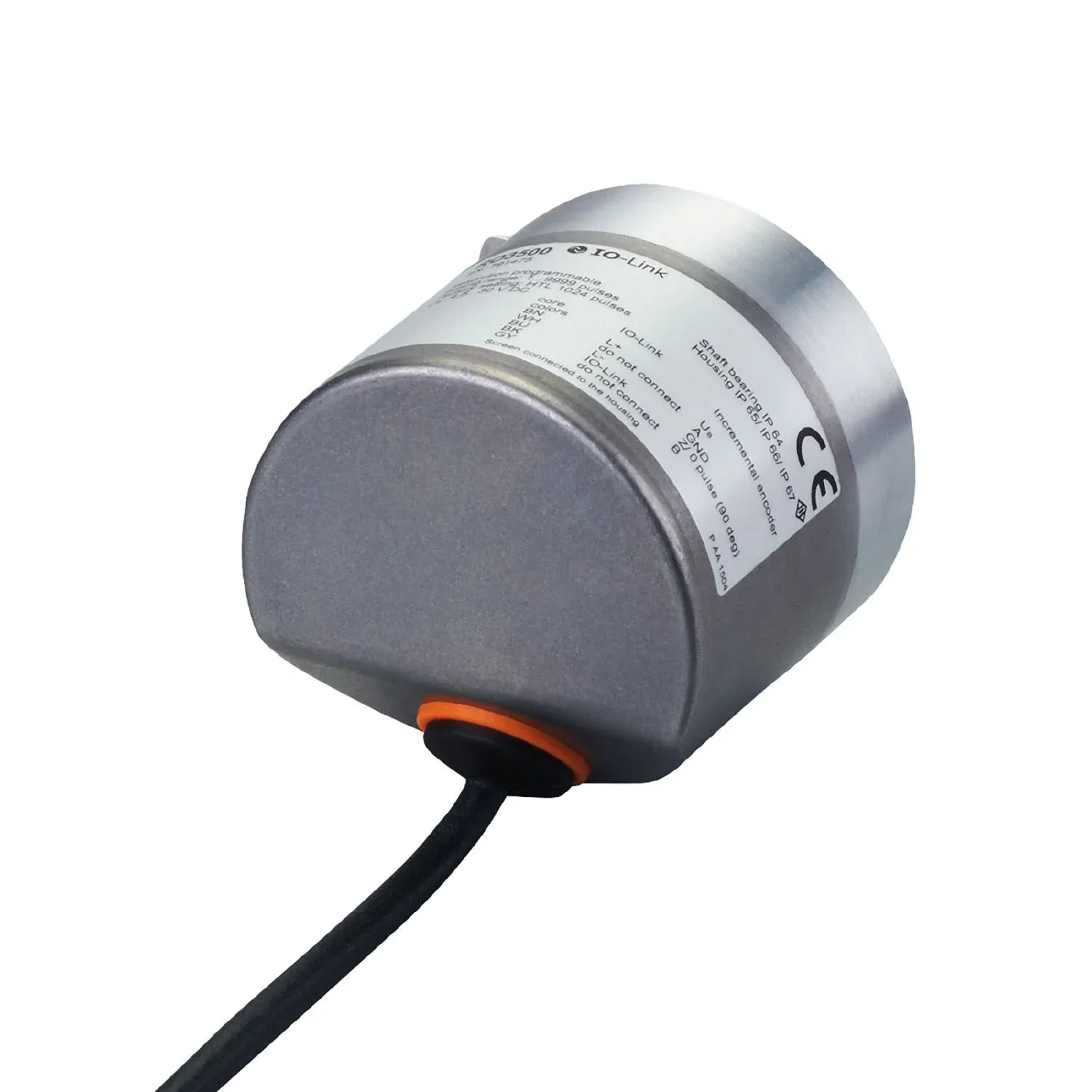

IFM RO3500
RO3500
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Defined pulse sequence for the reliable detection of rotational speeds
For precise position determination and linear measurement
High shock and vibration resistance thanks to magnetic sensing principle
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Resolution | 1...10000; (parameterisable; Factory setting: 1024) resolution |
|---|---|
| Communication interface | IO-Link |
| Shaft design | hollow shaft open to one side |
| Shaft diameter[mm] [mm] | 12 |
Application
| Function principle | incremental |
|---|---|
| Detection system | magnetic |
Electrical data
| Operating voltage[V] [V] | 4.75...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 0.5 |
| Max. revolution electrical[U/min] [U/min] | 12000 |
Outputs
| Electrical design | HTL/TTL |
|---|---|
| Switching frequency[kHz] [kHz] | 1000 |
| Factory setting | Output function: HTL (50 mA) |
| Short-circuit protection | yes |
| Phase difference A and B[°] [°] | 90 |
Measuring/setting range
| Resolution | 1...10000; (parameterisable; Factory setting: 1024) resolution |
|---|
Accuracy / deviations
| Accuracy[°] [°] | 0.1 |
|---|
Software / programming
| Parameter setting options | Resolution; direction of rotation; HTL; TTL |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | yes |
| Min. process cycle time[ms] [ms] | 2.3 |
| Supported DeviceIDs | default 499 |
| default | 499 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...80 |
|---|---|
| Note on ambient temperature | for flexibly laid cable: -25 °C |
| Storage temperature[°C] [°C] | -40...80 |
| Max. relative air humidity[%] [%] | 95; (condensation not permissible) |
| Protection | IP 65; IP 66; (on the housing: IP 67; on the shaft: IP 65) |
Tests / approvals
| Shock resistance | 100 g |
|---|---|
| Vibration resistance | 20 g |
| MTTF[years] [years] | 292 |
Mechanical data
| Weight[g] [g] | 478 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 58.5 / L = 68.6 |
| Materials | flange: aluminium; housing: stainless steel (444/1.4521); cable plug: PA |
| Tightening torque[Nm] [Nm] | < 0.7; (Mounting screw) |
| Max. revolution, mechanical[U/min] [U/min] | 12000 |
| Max. starting torque[Nm] [Nm] | 0.02 |
| Reference temperature torque[°C] [°C] | 20 |
| Shaft design | hollow shaft open to one side |
| Shaft diameter[mm] [mm] | 12 |
| Shaft material | stainless steel |
| Installation depth of shaft[mm] [mm] | 27 |
| Max. axial shaft misalignment[mm] [mm] | 0,5 |
| Fixing flange | Ø 58.5 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, Ø 4.9 mm; radial, can also be used axially; 5 x 0.14 mm² |
|---|
