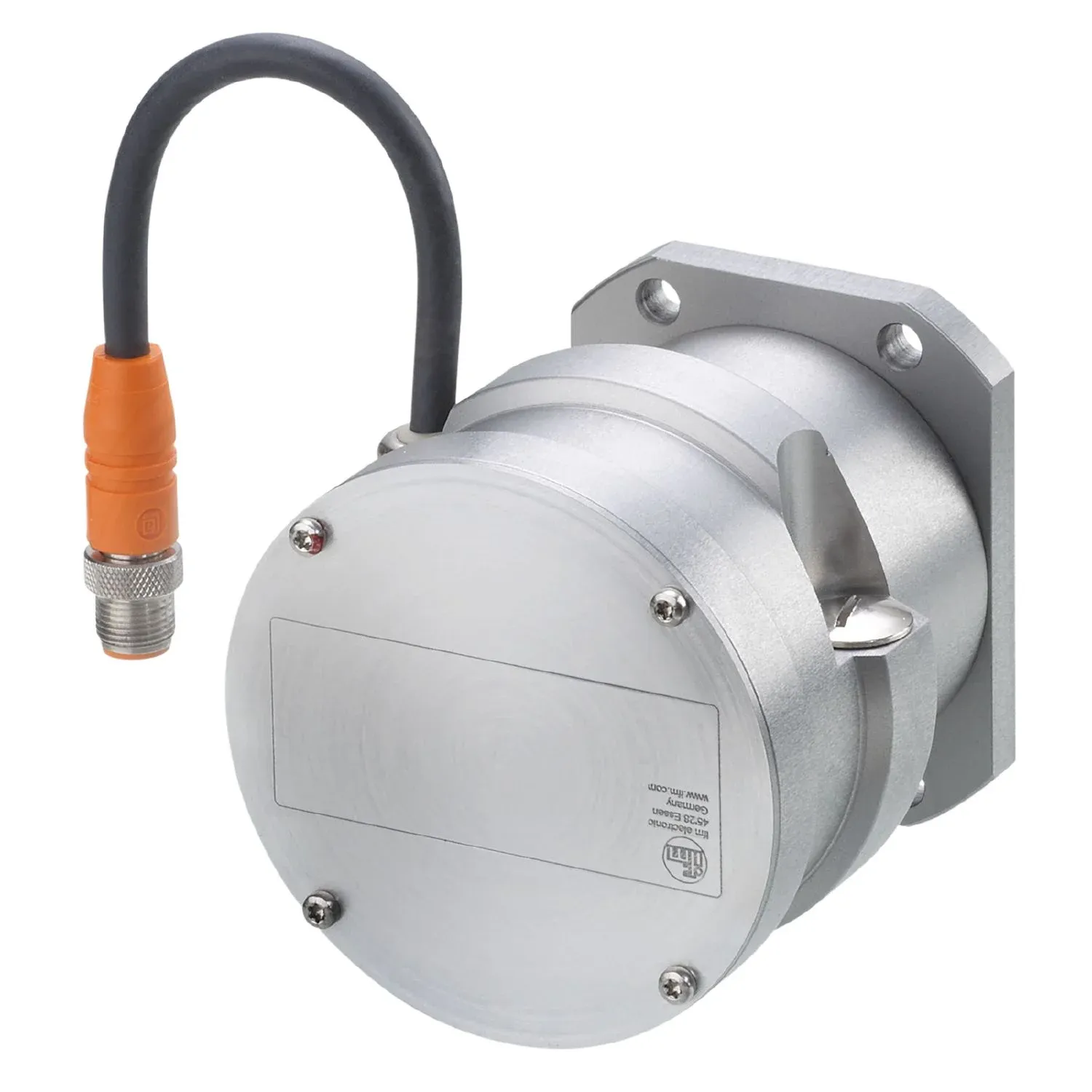

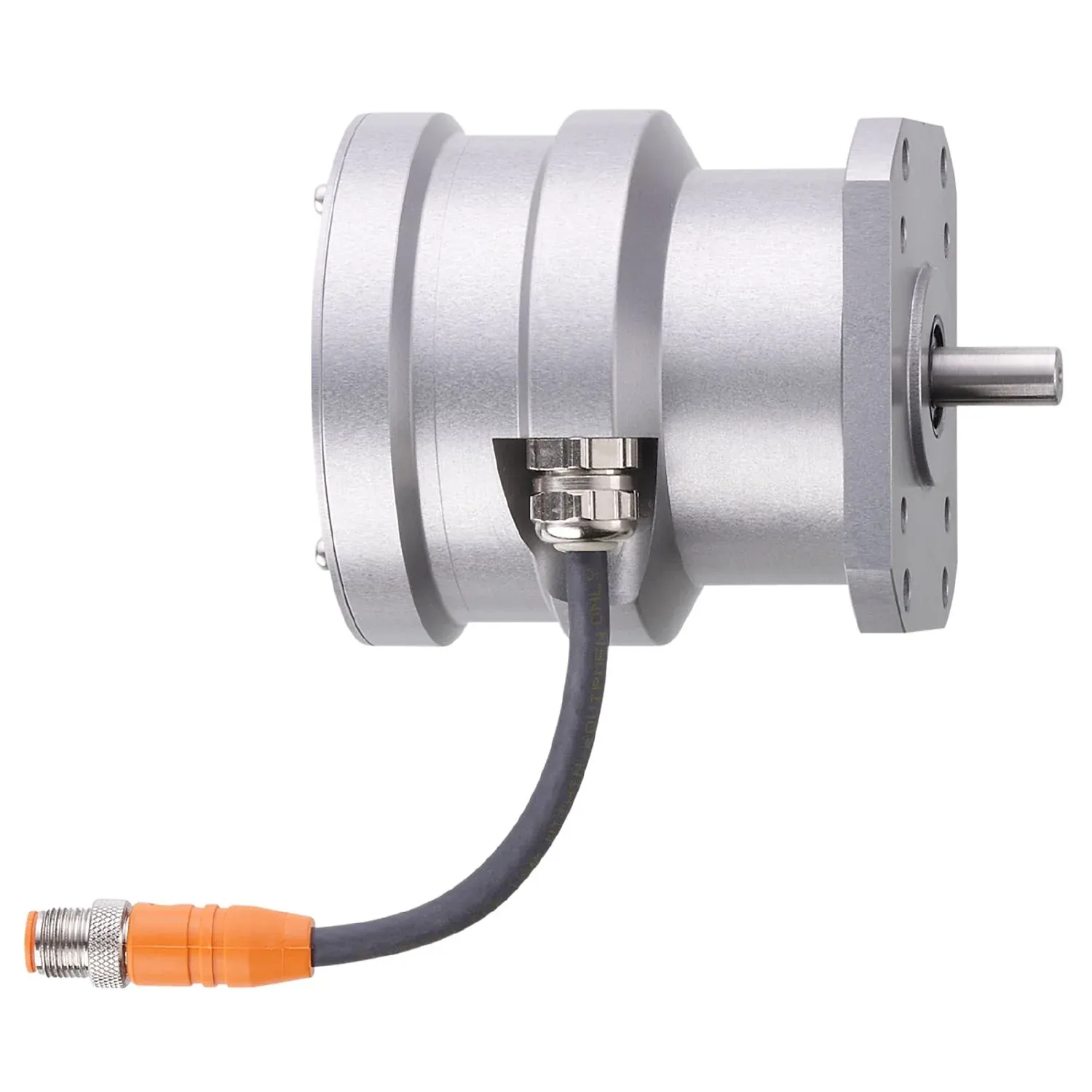

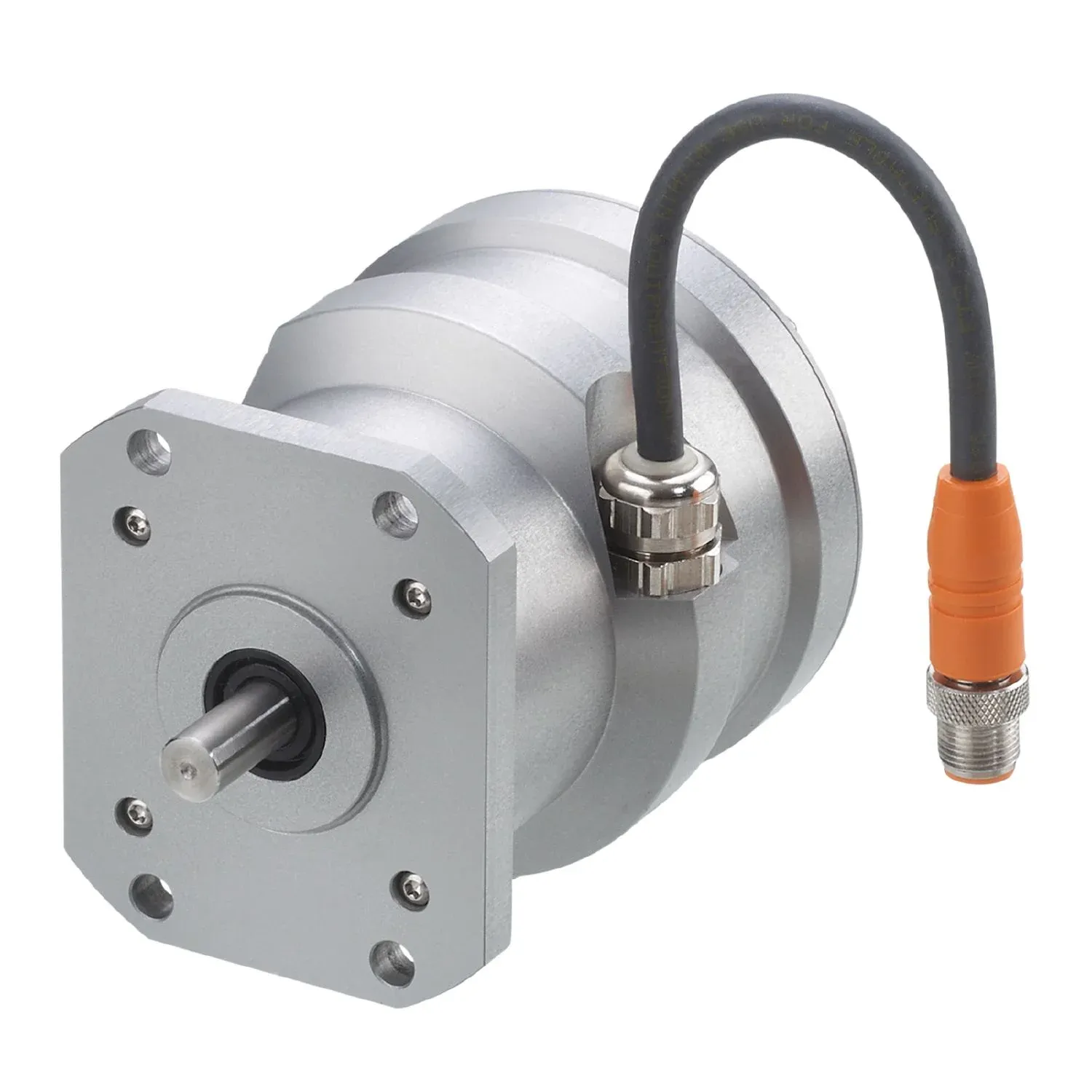

IFM RN6066
RN6066
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For precise position, speed, angular and linear measurement
Robust housing for use in harsh industrial environments
Direct output of the values via SSI interface
Specification
Product characteristics
| Resolution | 65536 steps |
|---|---|
| Communication interface | SSI data interface |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 10 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | singleturn |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 100 |
Inputs
| Inputs | reversal of direction of rotation; reset to zero |
|---|
Outputs
| Code | Gray code; (increasing code values when turned clockwise (seen on the shaft)) |
|---|---|
| Code signal | Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signals, data, and data (inv.) |
Measuring/setting range
| Resolution | 65536 steps |
|---|
Interfaces
| Communication interface | SSI data interface |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...100 |
|---|---|
| Max. relative air humidity[%] [%] | 98 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN IEC 61000-6-4 radiation of interference / industrial environments EN IEC 61000-6-2 immunity / industrial environments |
|---|---|
| EN IEC 61000-6-4 | radiation of interference / industrial environments |
| EN IEC 61000-6-2 | immunity / industrial environments |
| Shock resistance | EN 60068-2-27 < 50 g 6 ms |
| EN 60068-2-27 | < 50 g 6 ms |
| Vibration resistance | EN 60068-2-6 < 10 g / 55...2000 Hz |
| EN 60068-2-6 | < 10 g / 55...2000 Hz |
| MTTF[years] [years] | 289 |
Mechanical data
| Weight[g] [g] | 1113.3 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 89 / L = 116 |
| Materials | flange: aluminium anodised; housing: aluminium anodised |
| Max. revolution, mechanical[U/min] [U/min] | 6000 |
| Max. starting torque[Nm] [Nm] | 0.04 |
| Reference temperature torque[°C] [°C] | 25 |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 10 |
| Shaft material | stainless steel (303/1.4305) |
| Max. shaft load axial (at the shaft end)[N] [N] | 40 |
| Max. shaft load radial (at the shaft end)[N] [N] | 110 |
| Fixing flange | Ø 89 mm |
Remarks
| Remarks | Wires/pins not connected (n.c.) must not be used. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 0.15 m, PUR |
|---|---|
| Connector | 1 x M12; coding: A |
