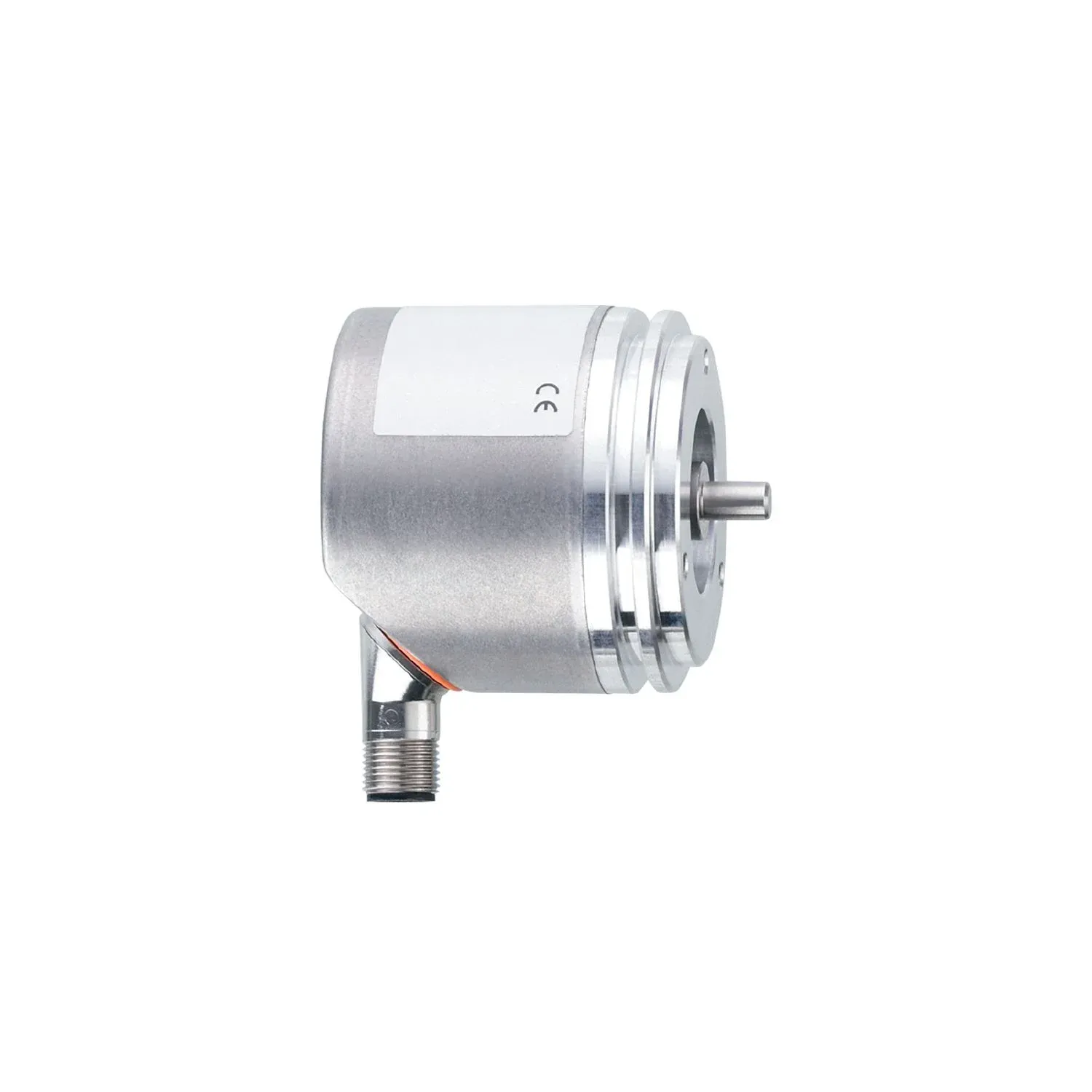

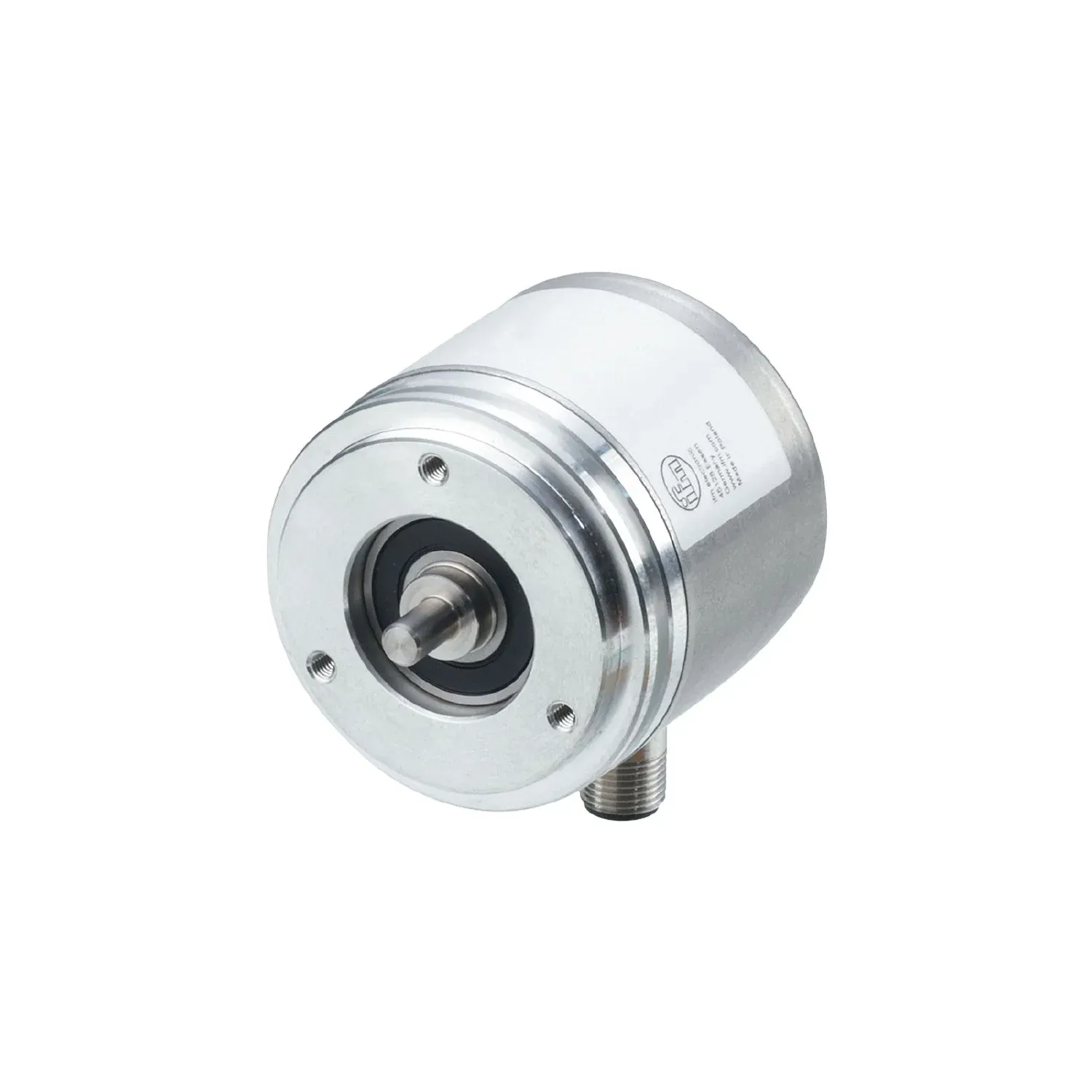

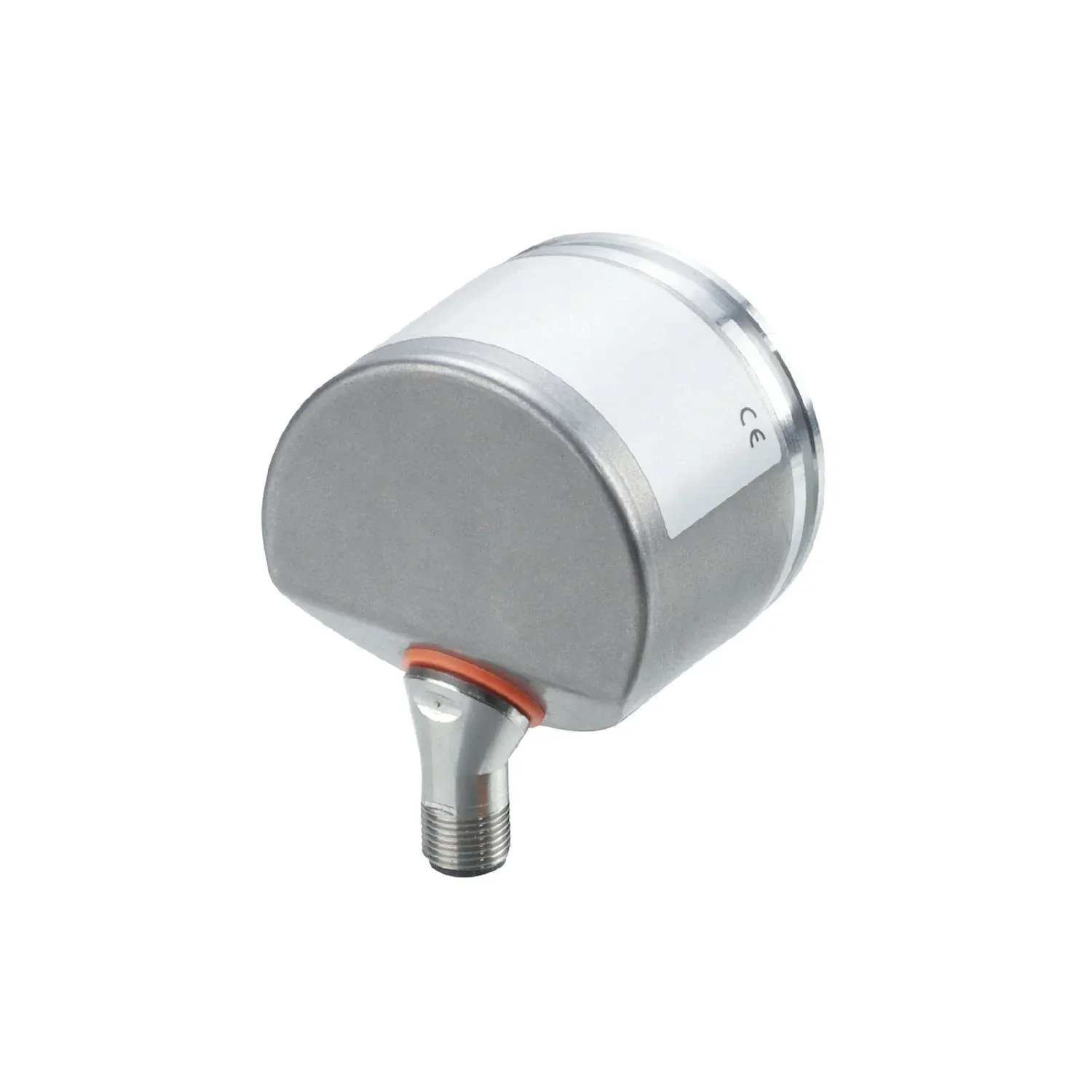

IFM RMU400
RMU400
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For precise position, speed, angular and linear measurement
Direct output of the values via SSI interface
Multiturn encoder with 24 bit total resolution
Configurable direction of rotation and zero setting via pin connection
High shock and vibration resistance thanks to magnetic sensing principle
Specification
Product characteristics
| Resolution | 4096 steps; 4096 revolutions |
|---|---|
| Communication interface | SSI data interface |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 6 |
Application
| Function principle | absolute |
|---|---|
| Detection system | magnetic |
Electrical data
| Operating voltage[V] [V] | 4.5...30 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 500 |
| Settling time[ms] [ms] | 32 |
| Max. revolution electrical[U/min] [U/min] | 12000 |
Outputs
| Short-circuit protection | yes |
|---|---|
| Code | Gray code; (increasing code values when turned clockwise (seen on the shaft)) |
| Code signal | Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signals, data, and data (inv.) |
Measuring/setting range
| Resolution | 4096 steps; 4096 revolutions |
|---|
Accuracy / deviations
| Accuracy | ±0.1 INL |
|---|
Software / programming
| Parameter setting options | zero point; direction of rotation |
|---|
Interfaces
| Communication interface | SSI data interface |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 95; (condensation not permissible) |
| Protection | IP 65; (on the housing: IP67) |
Tests / approvals
| Shock resistance | EN 60068-2-27 100 g half-sine / 6 ms |
|---|---|
| EN 60068-2-27 | 100 g half-sine / 6 ms |
| Vibration resistance | EN 60068-2-29 10 g half-sine / 16 ms |
| EN 60068-2-29 | 10 g half-sine / 16 ms |
| MTTF[years] [years] | 350 |
Mechanical data
| Weight[g] [g] | 348.1 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 58.6 / L = 63.5 |
| Materials | flange: aluminium; housing: stainless steel (444/1.4521) |
| Max. revolution, mechanical[U/min] [U/min] | 12000 |
| Max. starting torque[Nm] [Nm] | 0.01 |
| Reference temperature torque[°C] [°C] | 20 |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 6 |
| Shaft material | stainless steel |
| Max. shaft load axial (at the shaft end)[N] [N] | 40 |
| Max. shaft load radial (at the shaft end)[N] [N] | 60 |
| Fixing flange | synchro-flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (316 / 1.4401); Maximum cable length: 100 m |
|---|
