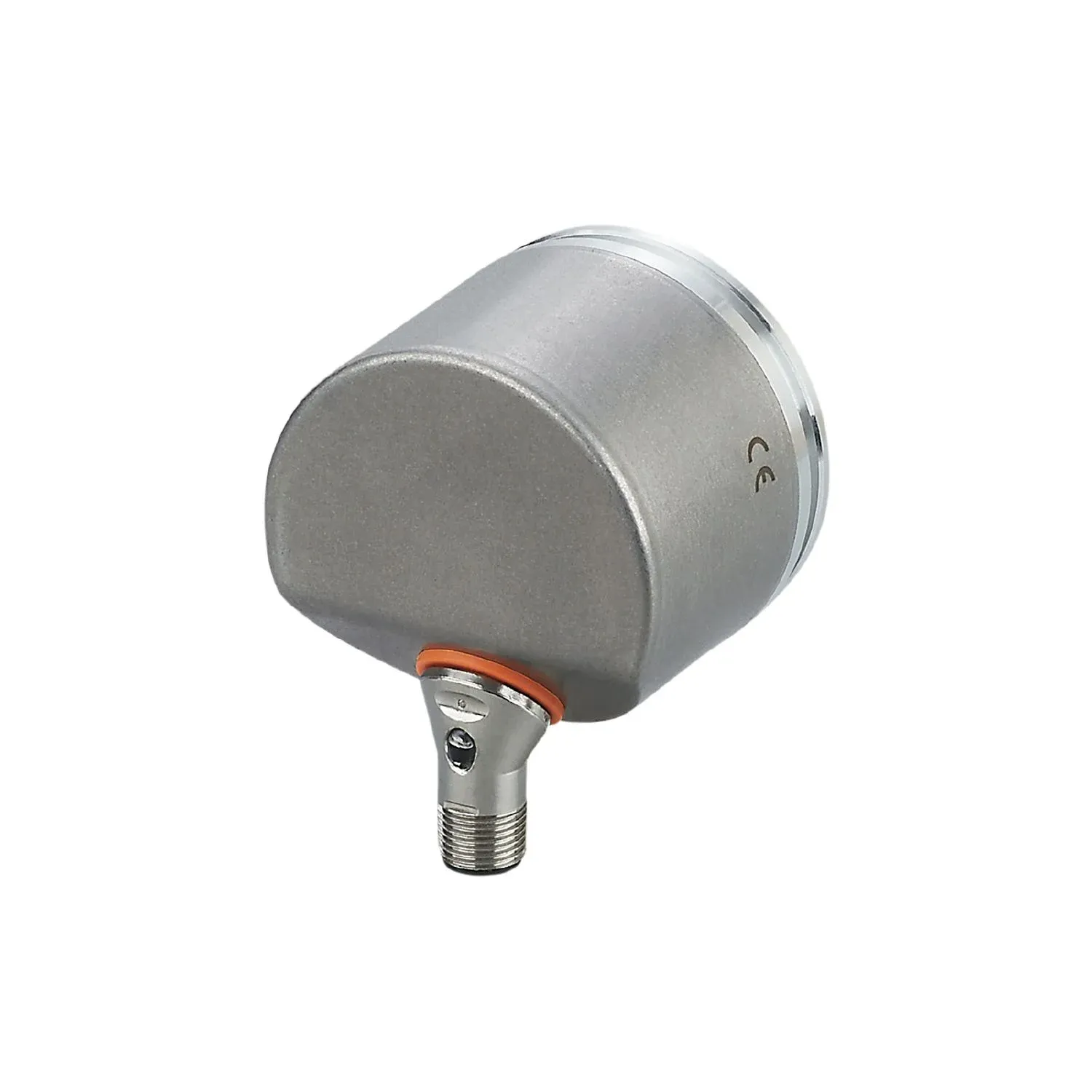

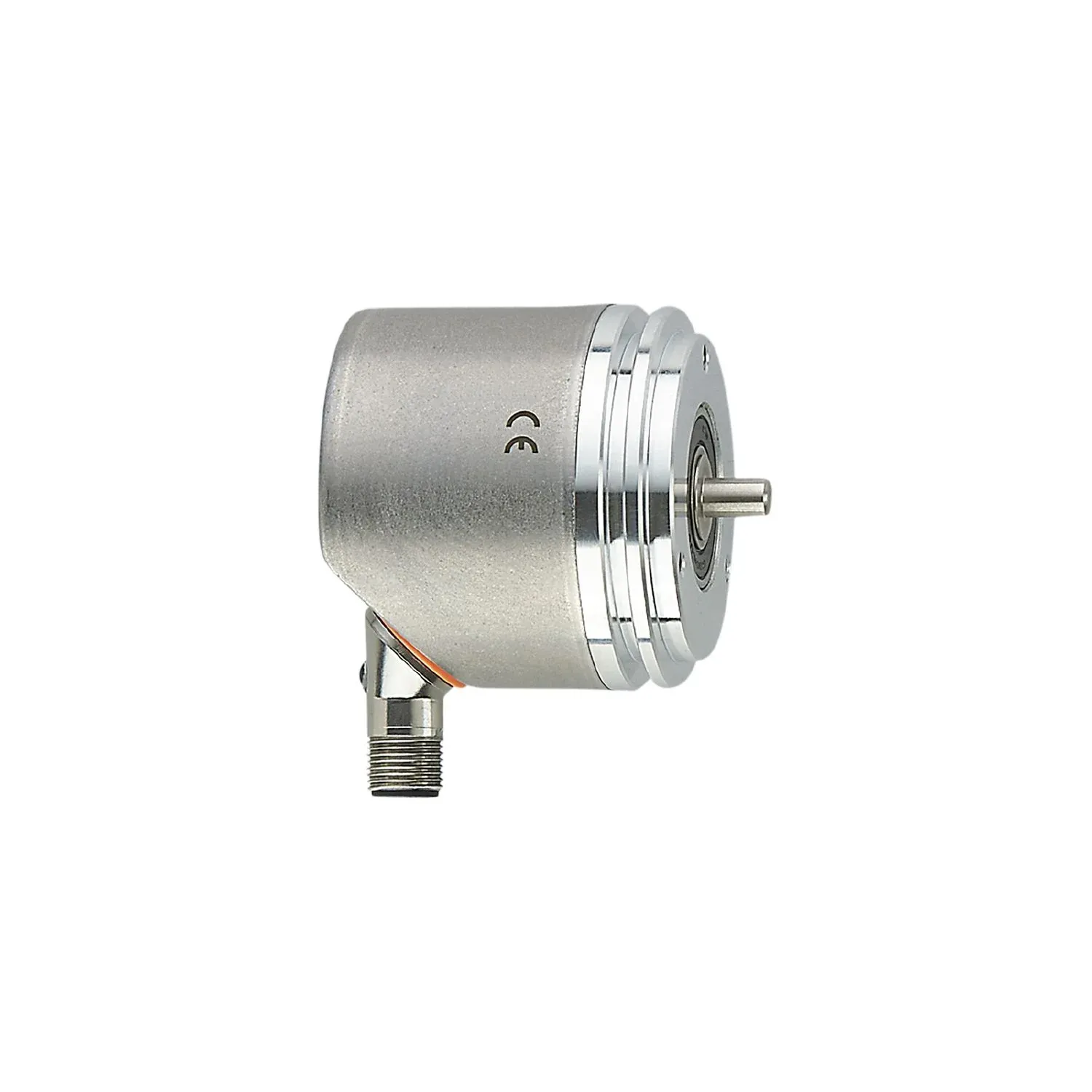

IFM RMU300
RMU300
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Absolute position traceability even when unpowered
Bearing operating time measurement for efficient maintenance planning
Freely programmable total resolution up to 31 bits
Programmable digital switching input/output
High shock and vibration resistance thanks to magnetic sensing principle
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Resolution | 65536 steps; 32768 revolutions; 31 bit |
|---|---|
| Communication interface | IO-Link |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 6 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | multiturn |
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (; to PELV) |
|---|---|
| Rated insulation voltage[V] [V] | 30 |
| Current consumption[mA] [mA] | < 75 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 1000 |
| Max. revolution electrical[U/min] [U/min] | 12000 |
Outputs
| Short-circuit protection | yes |
|---|
Measuring/setting range
| Resolution | 65536 steps; 32768 revolutions; 31 bit |
|---|
Accuracy / deviations
| Accuracy[°] [°] | 0.1 |
|---|
Software / programming
| Parameter setting options | preset; zero point; direction of rotation; rotational speed |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 CDV |
| Profiles | Common - I&D Identification and Diagnosis Function Multiple switching signal Function Measurement data, high resolution |
| Common - I&D | Identification and Diagnosis |
| Function | Measurement data, high resolution |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 2.3 |
| IO-Link process data (cyclical) | process value 96 device status 4 binary switching information 5 |
| process value | 96 |
| device status | 4 |
| binary switching information | 5 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; internal temperature; switching cycles counter |
| Supported DeviceIDs | default 1064 |
| default | 1064 |
| Note | For further information please see the IODD PDF file under "Downloads" |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 98; (condensation not permissible) |
| Protection | IP 65; (on the housing: IP 67; on the shaft: IP 65) |
Tests / approvals
| EMC | DIN EN 61000-4-2 ESD 4 kV CD DIN EN 61000-4-3 HF radiated 10 V/m DIN EN 61000-4-4 Burst 2 kV DIN EN 61000-4-6 HF conducted 10 V |
|---|---|
| DIN EN 61000-4-2 ESD | 4 kV CD |
| DIN EN 61000-4-3 HF radiated | 10 V/m |
| DIN EN 61000-4-4 Burst | 2 kV |
| DIN EN 61000-4-6 HF conducted | 10 V |
| Vibration resistance | 30 g (10...1000 Hz) |
| DIN EN 60068-2-6 | 10 g / 10...1000 Hz half-sine |
| Shock resistance | DIN EN 60068-2-27 100 g 6 ms |
| DIN EN 60068-2-27 | 100 g 6 ms |
| Continuous shock resistance | DIN EN 60068-2-29 10 g / 16 ms half-sine |
| DIN EN 60068-2-29 | 10 g / 16 ms half-sine |
| MTTF[years] [years] | 283 |
| UL approval | power supply Class 2 |
| power supply | Class 2 |
Mechanical data
| Weight[g] [g] | 362.9 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 58.6 / L = 63.5 |
| Materials | flange: aluminium; housing: stainless steel (444/1.4521) |
| Max. starting torque[Nm] [Nm] | 0.01 |
| Reference temperature torque[°C] [°C] | 20 |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 6 |
| Shaft material | stainless steel |
| Max. shaft load axial (at the shaft end)[N] [N] | 40 |
| Max. shaft load radial (at the shaft end)[N] [N] | 110 |
| Fixing flange | synchro-flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Moulded body: stainless steel (316 / 1.4401) |
|---|
