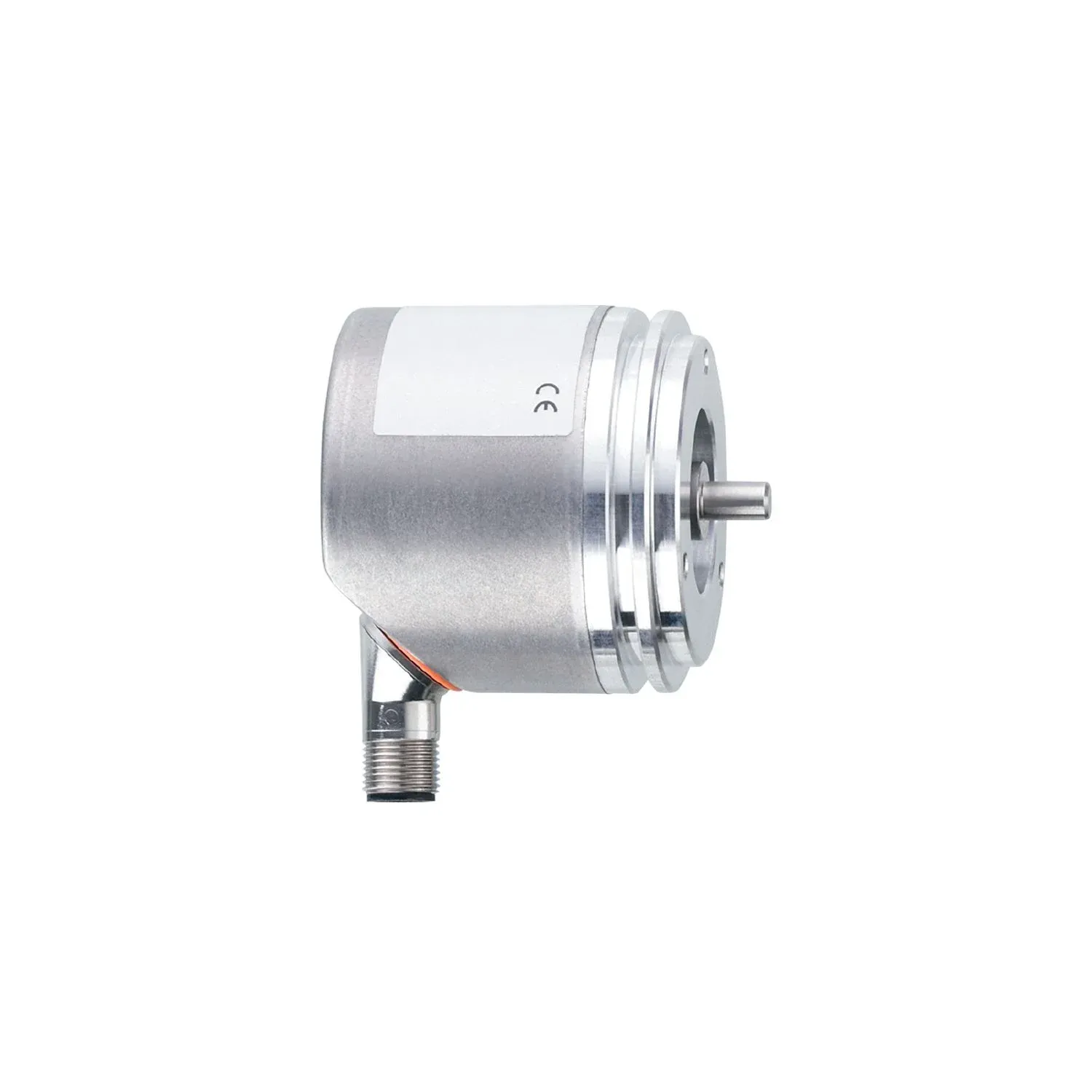

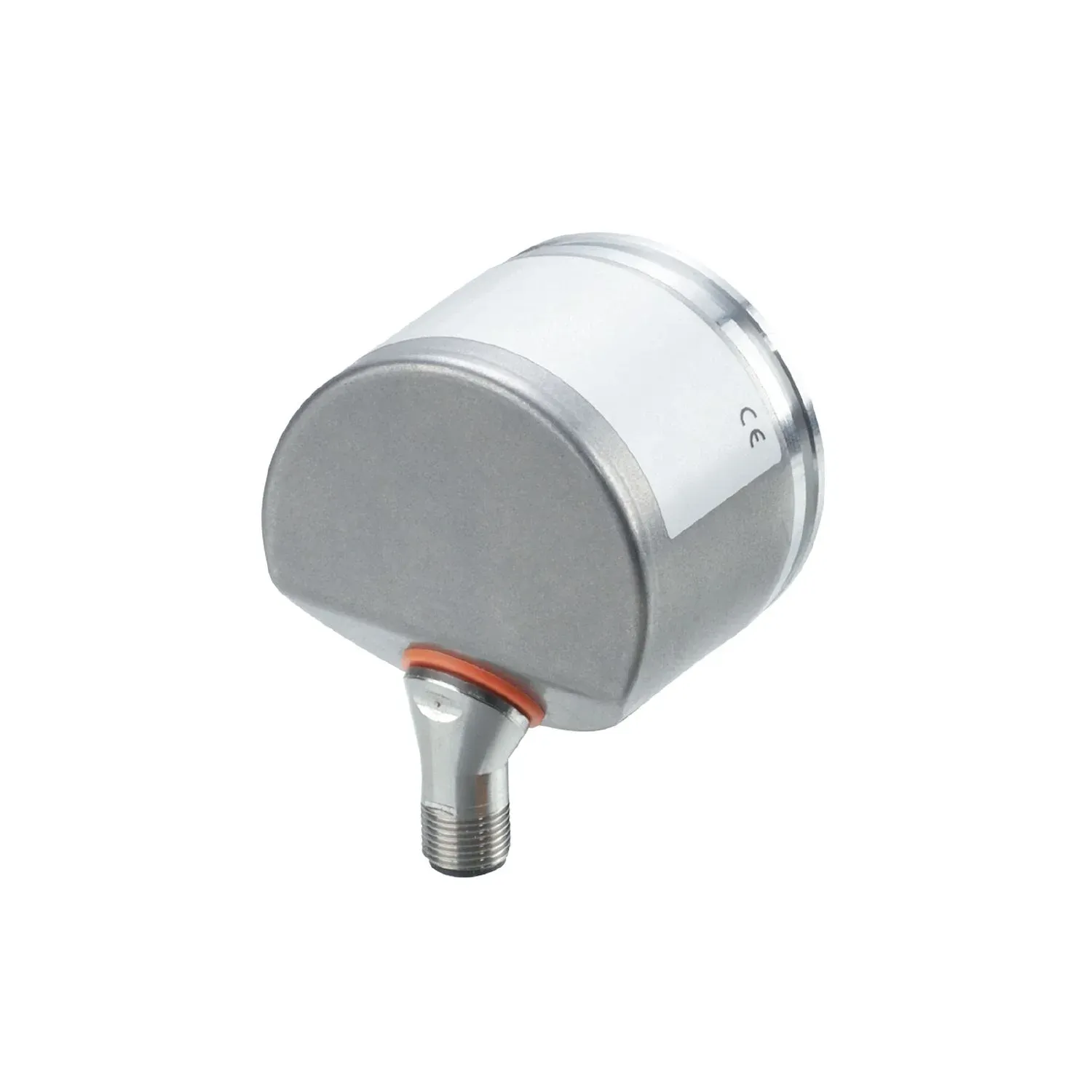

IFM RMU200
RMU200
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For precise position, angle and distance measurement
Analogue output 0-10 V with 13 bit total resolution
Configurable measuring range via pin connection
Dead zone indication if scaling range is exceeded / not reached
High shock and vibration resistance thanks to magnetic sensing principle
Specification
Product characteristics
| Resolution | 8192 steps; 16 revolutions; 17 bit |
|---|---|
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 6 |
Application
| Function principle | absolute |
|---|---|
| Detection system | magnetic |
Electrical data
| Operating voltage[V] [V] | 8...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 500 |
| Settling time[ms] [ms] | 32 |
| Max. revolution electrical[U/min] [U/min] | 12000 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Number of analogue outputs | 1 |
|---|---|
| Analogue voltage output[V] [V] | 0...10 |
| Min. load resistance[Ω] [Ω] | 5000 |
| Short-circuit protection | yes |
Measuring/setting range
| Resolution | 8192 steps; 16 revolutions; 17 bit |
|---|
Accuracy / deviations
| Accuracy | 10 V ± 10 mV; (accuracy INL: ± 0.1) |
|---|---|
| Linearity deviation | ± 0,15 % FSO |
Software / programming
| Parameter setting options | start position; end position; central position |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 95; (condensation not permissible) |
| Protection | IP 65; (on the housing: IP67) |
Tests / approvals
| Shock resistance | EN 60068-2-27 100 g half-sine / 6 ms |
|---|---|
| EN 60068-2-27 | 100 g half-sine / 6 ms |
| Vibration resistance | EN 60068-2-29 10 g half-sine / 16 ms |
| EN 60068-2-29 | 10 g half-sine / 16 ms |
| MTTF[years] [years] | 258 |
| UL approval | power supply Class 2 |
| power supply | Class 2 |
Mechanical data
| Weight[g] [g] | 347.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 58.6 / L = 63.5 |
| Materials | flange: aluminium; housing: stainless steel (444/1.4521) |
| Max. revolution, mechanical[U/min] [U/min] | 12000 |
| Max. starting torque[Nm] [Nm] | 0.01 |
| Reference temperature torque[°C] [°C] | 20 |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 6 |
| Shaft material | stainless steel |
| Max. shaft load axial (at the shaft end)[N] [N] | 40 |
| Max. shaft load radial (at the shaft end)[N] [N] | 60 |
| Fixing flange | synchro-flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (316 / 1.4401); Maximum cable length: 100 m |
|---|
