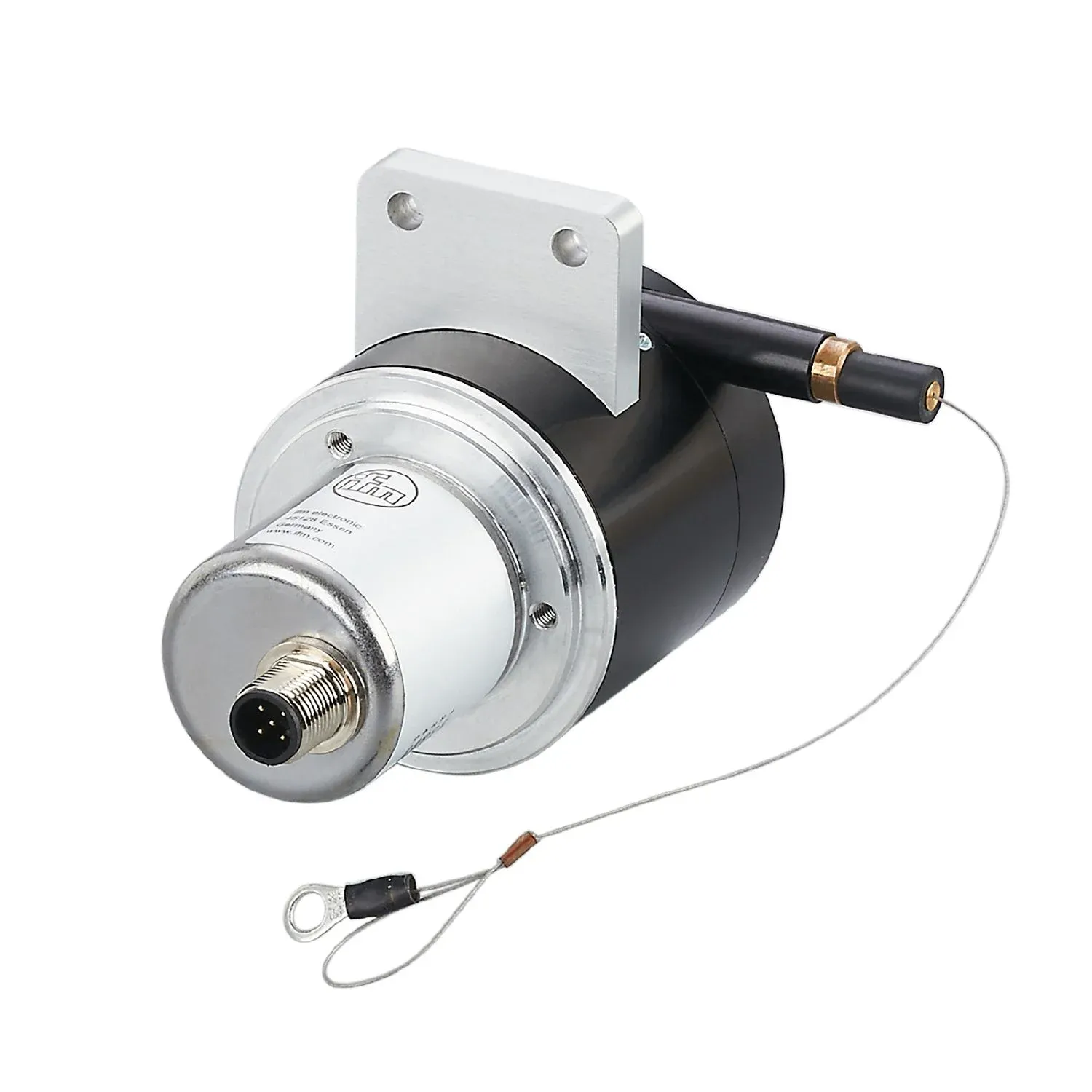

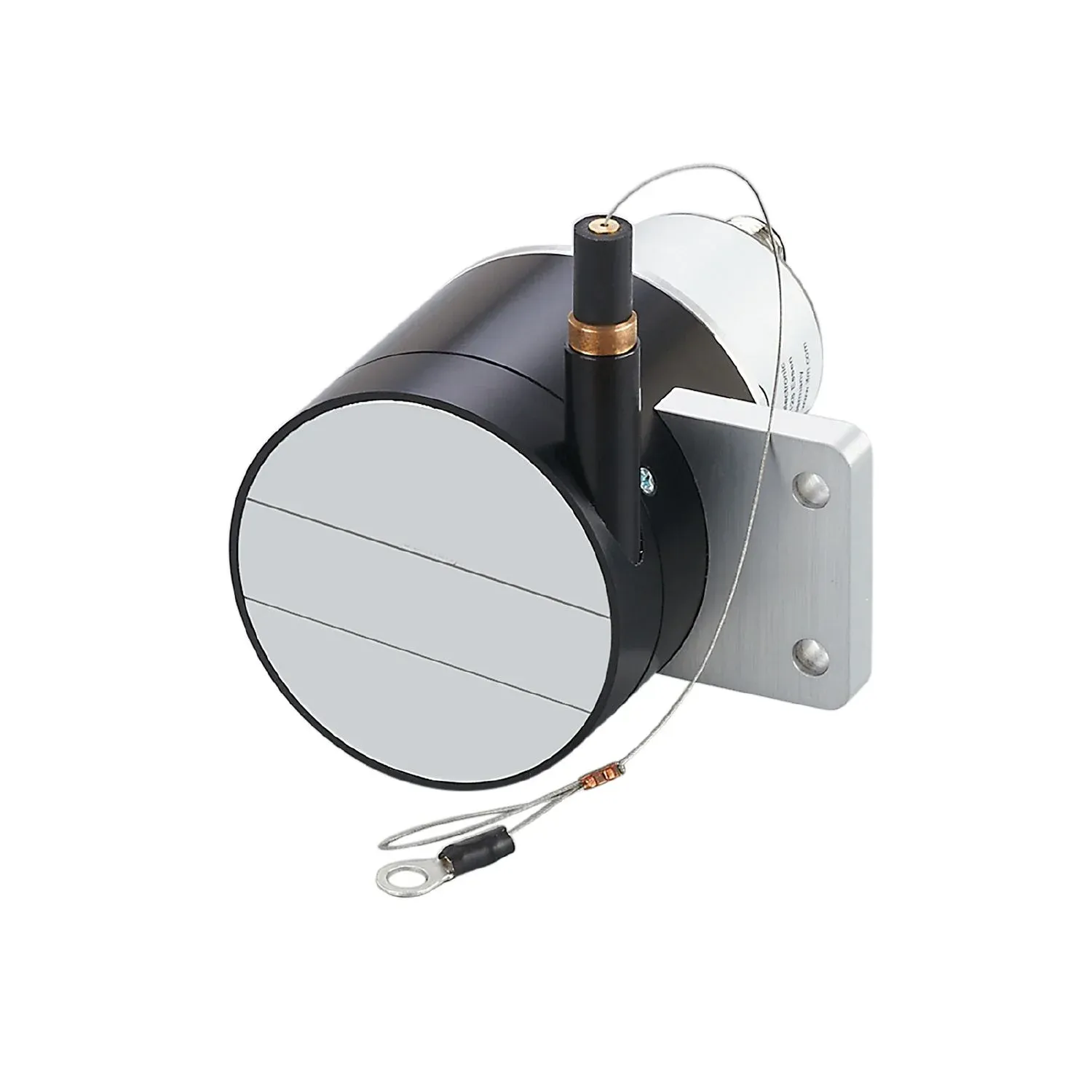

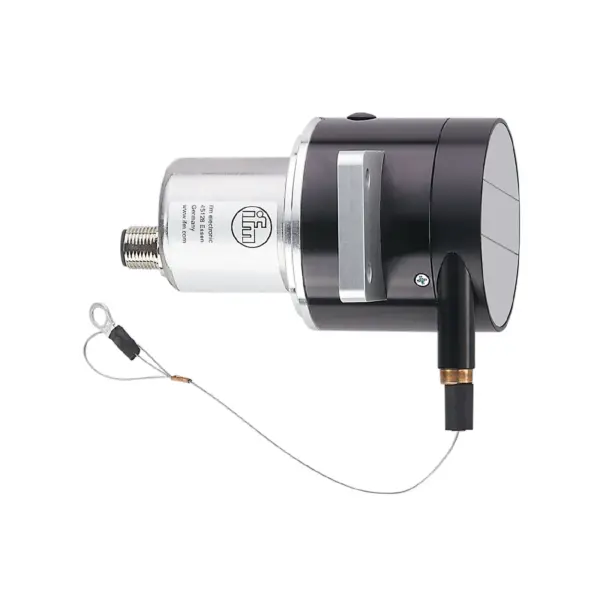

IFM RMS001
RMS001
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Configurable measuring range via pin connection
Dead zone indication if scaling range is exceeded / not reached
Particularly small housing for use where space is restricted
Coated stainless steel cables reduce maintenance
Specification
Product characteristics
| Resolution | 8192 steps; 16 revolutions; 17 bit |
|---|
Application
| Function principle | absolute |
|---|---|
| Detection system | magnetic |
| Application | encoder |
Electrical data
| Operating voltage[V] [V] | 8...32 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 500 |
| Settling time[ms] [ms] | 32 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Number of analogue outputs | 1 |
|---|---|
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 500 |
| Precision analogue output[%] [%] | 0,1 |
| Short-circuit protection | yes |
Measuring/setting range
| Resolution | 8192 steps; 16 revolutions; 17 bit |
|---|
Accuracy / deviations
| Accuracy | ± 0.02 % FSO |
|---|---|
| Repeatability | ± 0,006 % FSO |
Software / programming
| Parameter setting options | start position; end position; central position |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 95; (condensation not permissible) |
| Protection | IP 64; (on the housing: IP 65) |
Tests / approvals
| MTTF[years] [years] | 241 |
|---|
Mechanical data
| Weight[g] [g] | 561 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 58 / L = 90.5 |
| Materials | housing: steel; wire drum: aluminium; wire: stainless steel polyamide coated |
| Max. measuring length[mm] [mm] | 1900 |
| Wire drum circumference[mm] [mm] | 150 |
| Wire diameter[mm] [mm] | 0.45 |
| Wire connection | Ø 5 mm; (eyelet) |
| Wire properties | max. speed of wire displacement [m /s] 2 max. wire acceleration [g] 12 max. extension force [N] 5 max. retraction force [N] 3,5 |
| max. speed of wire displacement | [m /s] |
| max. wire acceleration | [g] |
| max. extension force | [N] |
| max. retraction force | [N] |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12, for axial use; coding: A |
|---|
