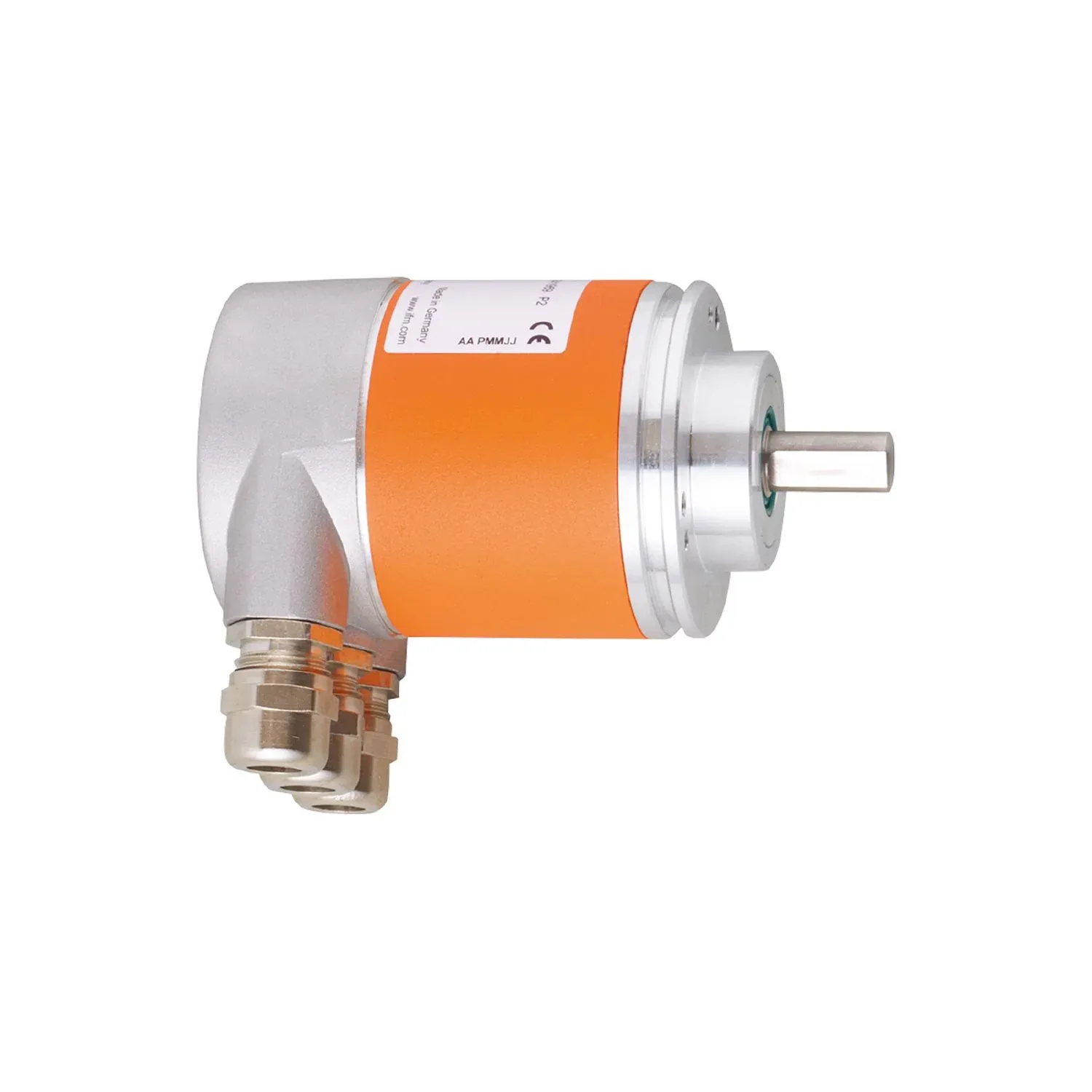

IFM RM7013
RM7013
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For precise position, speed, angular and linear measurement
Direct output of the values via DeviceNet interface
Robust housing for use in harsh industrial environments
High shock and vibration resistance
Easy wiring and programming
Specification
Product characteristics
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|---|
| Communication interface | DeviceNet |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 10 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | multiturn |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 230; ((10 V DC); 100 (24 V DC)) |
| Reverse polarity protection | yes |
Outputs
| Short-circuit protection | yes |
|---|---|
| Code | binary |
Measuring/setting range
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|
Software / programming
| Parameter setting options | resolution per revolution; total resolution; direction of rotation; preset value; Type of operation; MAC ID; Baud rate |
|---|---|
| Addressing | address selector switch; 0...99; terminating resistor |
Interfaces
| Communication interface | DeviceNet |
|---|---|
| Protocol | CIP (Common Industrial Protocol) |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Max. relative air humidity[%] [%] | 98 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance | 100 g (6 ms) |
|---|---|
| Vibration resistance | 10 g (10...1000 Hz) |
| MTTF[years] [years] | 13 |
Mechanical data
| Weight[g] [g] | 592 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 58 / L = 110 |
| Materials | housing cap: aluminium; housing: steel |
| Max. revolution, mechanical[U/min] [U/min] | 12000 |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 10 |
| Shaft material | stainless steel (303/1.4305) |
| Max. shaft load axial (at the shaft end)[N] [N] | 40 |
| Max. shaft load radial (at the shaft end)[N] [N] | 110 |
| Fixing flange | clamping flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
