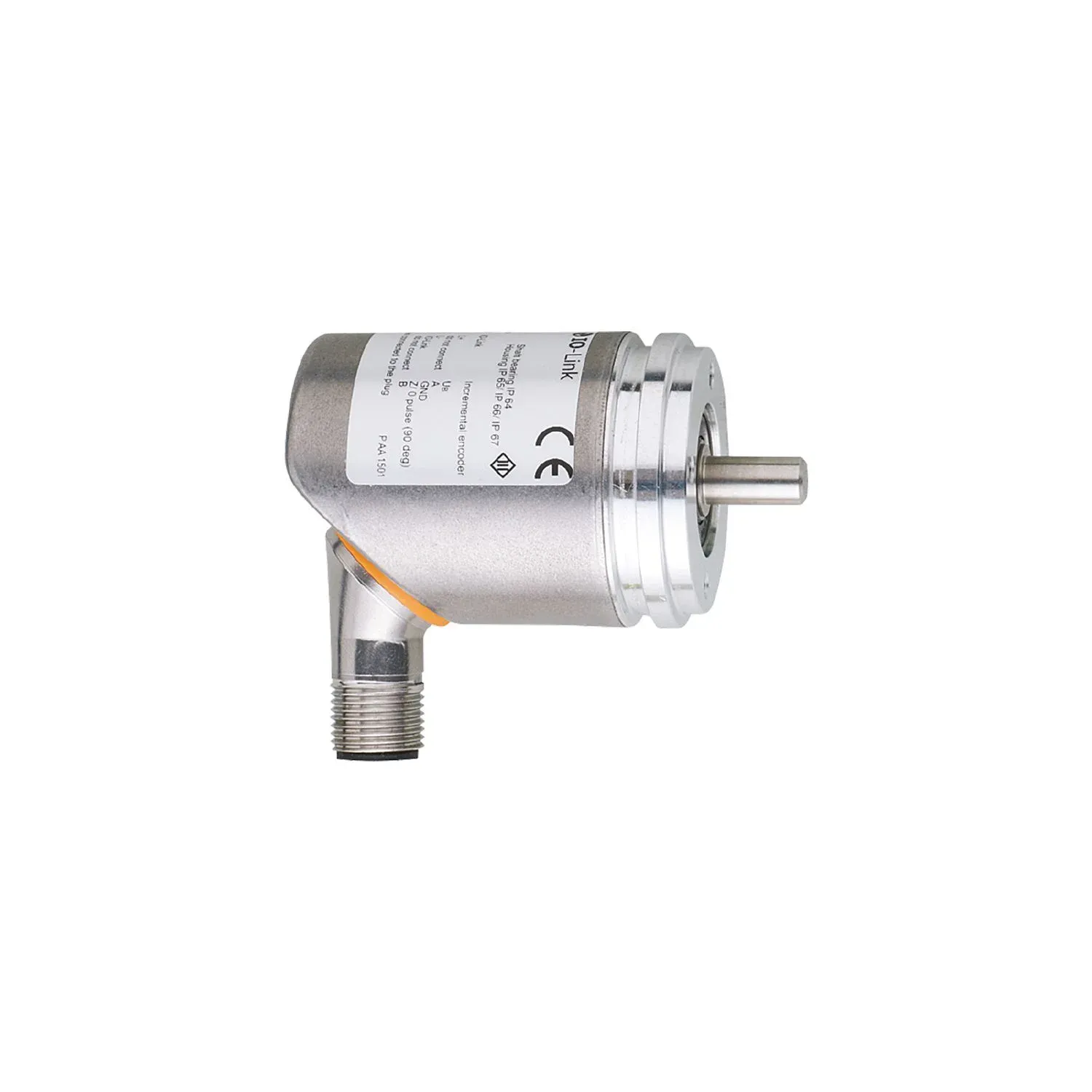

IFM RB3100
RB3100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Defined pulse sequence for the reliable detection of rotational speeds
For precise position determination and linear measurement
High shock and vibration resistance thanks to magnetic sensing principle
Resolution freely programmable from 1 … 10,000
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Resolution | 1...10000; (parameterisable; Factory setting: 1024) resolution |
|---|---|
| Communication interface | IO-Link |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 6 |
Application
| Function principle | incremental |
|---|---|
| Detection system | magnetic |
Electrical data
| Operating voltage[V] [V] | 4.75...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 0.5 |
| Max. revolution electrical[U/min] [U/min] | 12000 |
Outputs
| Electrical design | HTL/TTL |
|---|---|
| Switching frequency[kHz] [kHz] | 1000 |
| Factory setting | Output function: HTL (50 mA) |
| Short-circuit protection | yes |
| Phase difference A and B[°] [°] | 90 |
Measuring/setting range
| Resolution | 1...10000; (parameterisable; Factory setting: 1024) resolution |
|---|
Accuracy / deviations
| Accuracy[°] [°] | 0.1 |
|---|
Software / programming
| Parameter setting options | Resolution; direction of rotation; HTL; TTL |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | yes |
| Min. process cycle time[ms] [ms] | 2.3 |
| Supported DeviceIDs | default 499 |
| default | 499 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 95; (condensation not permissible) |
| Protection | IP 65; IP 66; (on the housing: IP 67; on the shaft: IP 64) |
Tests / approvals
| Shock resistance | 100 g |
|---|---|
| Vibration resistance | 20 g |
| MTTF[years] [years] | 292 |
Mechanical data
| Weight[g] [g] | 245 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 36.5 / L = 65 |
| Materials | flange: aluminium; housing: stainless steel (444/1.4521) |
| Max. revolution, mechanical[U/min] [U/min] | 12000 |
| Max. starting torque[Nm] [Nm] | 0.01 |
| Reference temperature torque[°C] [°C] | 20 |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 6 |
| Shaft material | stainless steel |
| Max. shaft load axial (at the shaft end)[N] [N] | 10 |
| Max. shaft load radial (at the shaft end)[N] [N] | 20 |
| Fixing flange | Ø 36.5 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (316 / 1.4401); Maximum cable length: 100 m; (IO-Link: max. 20 m) |
|---|
