Fast delivery within 72 Hours

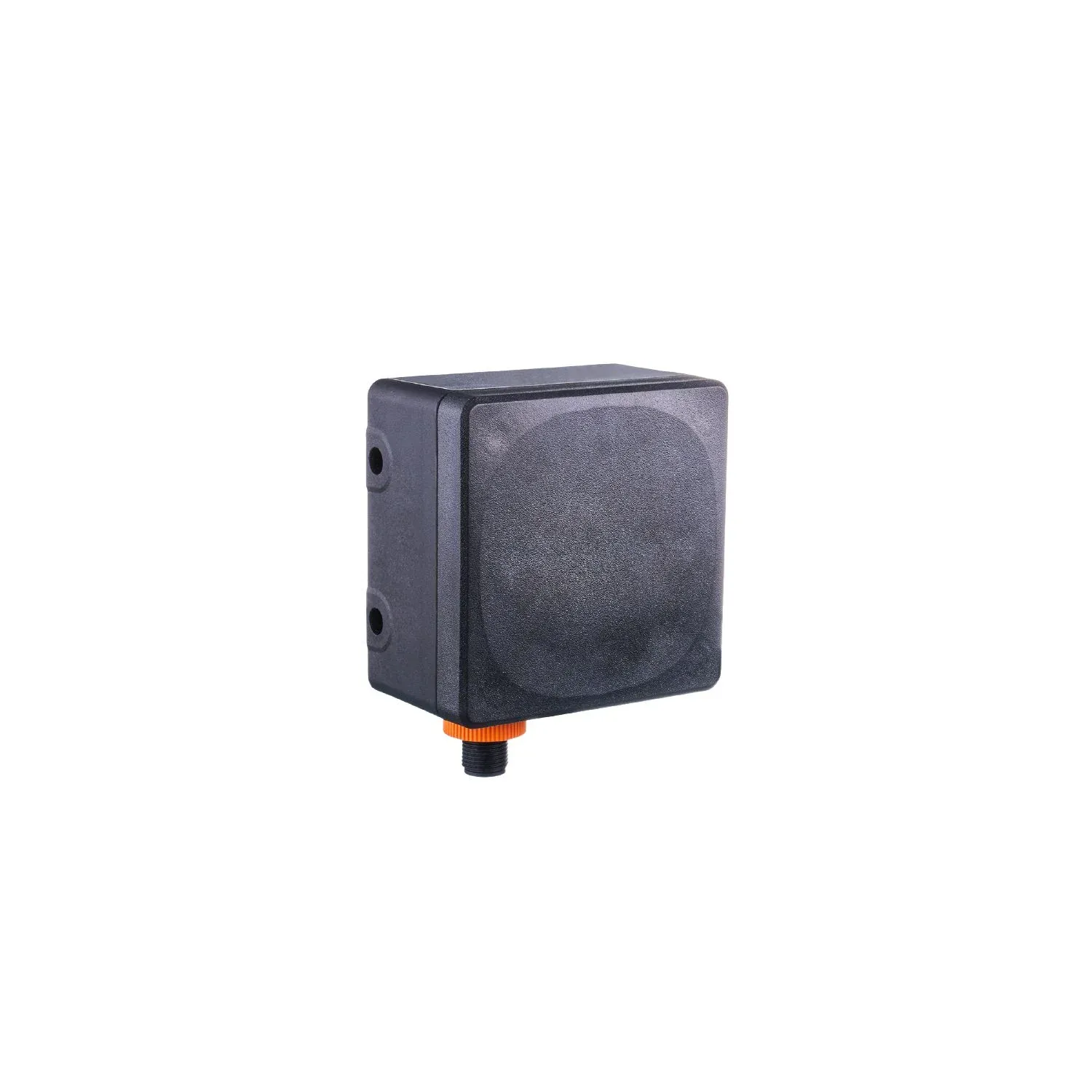

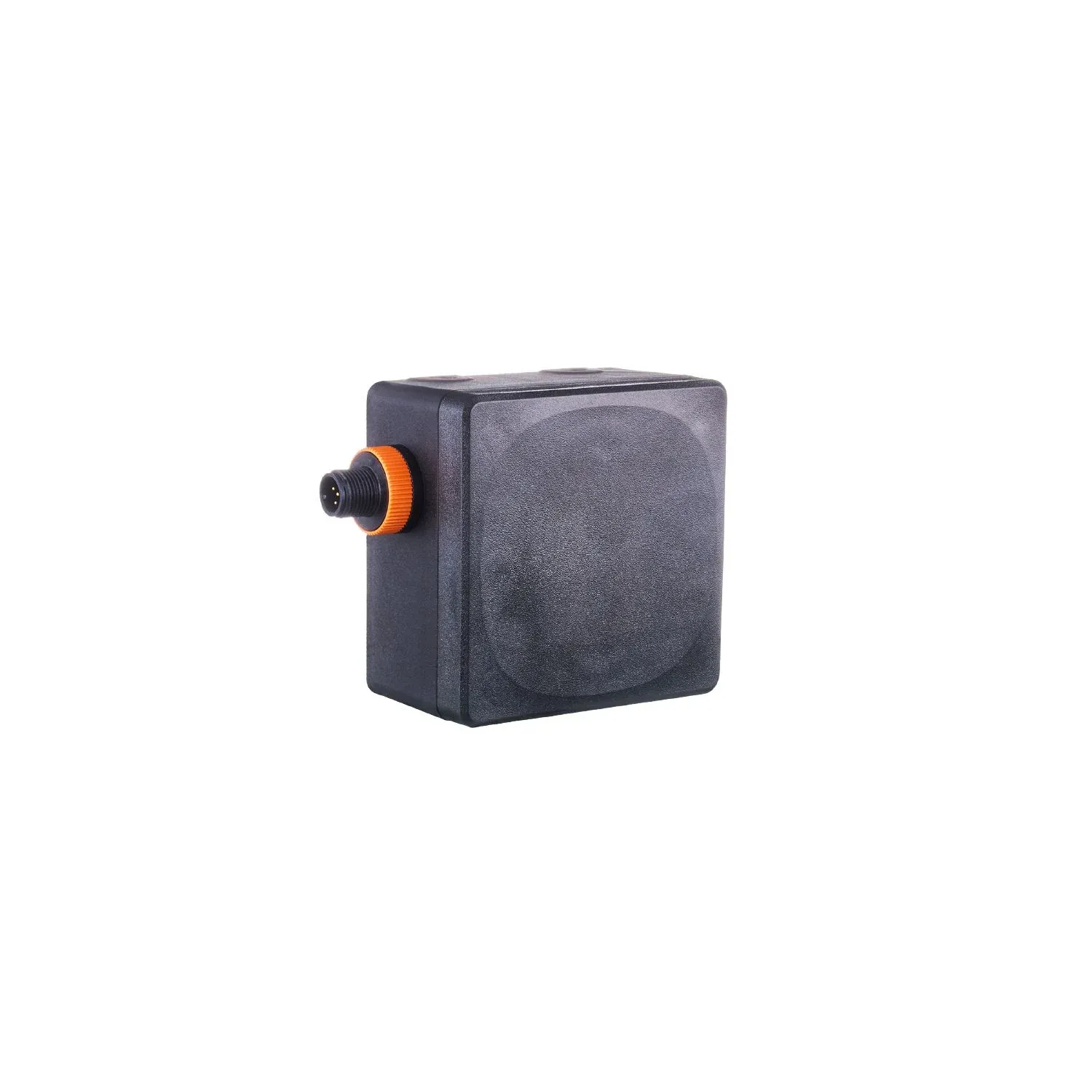

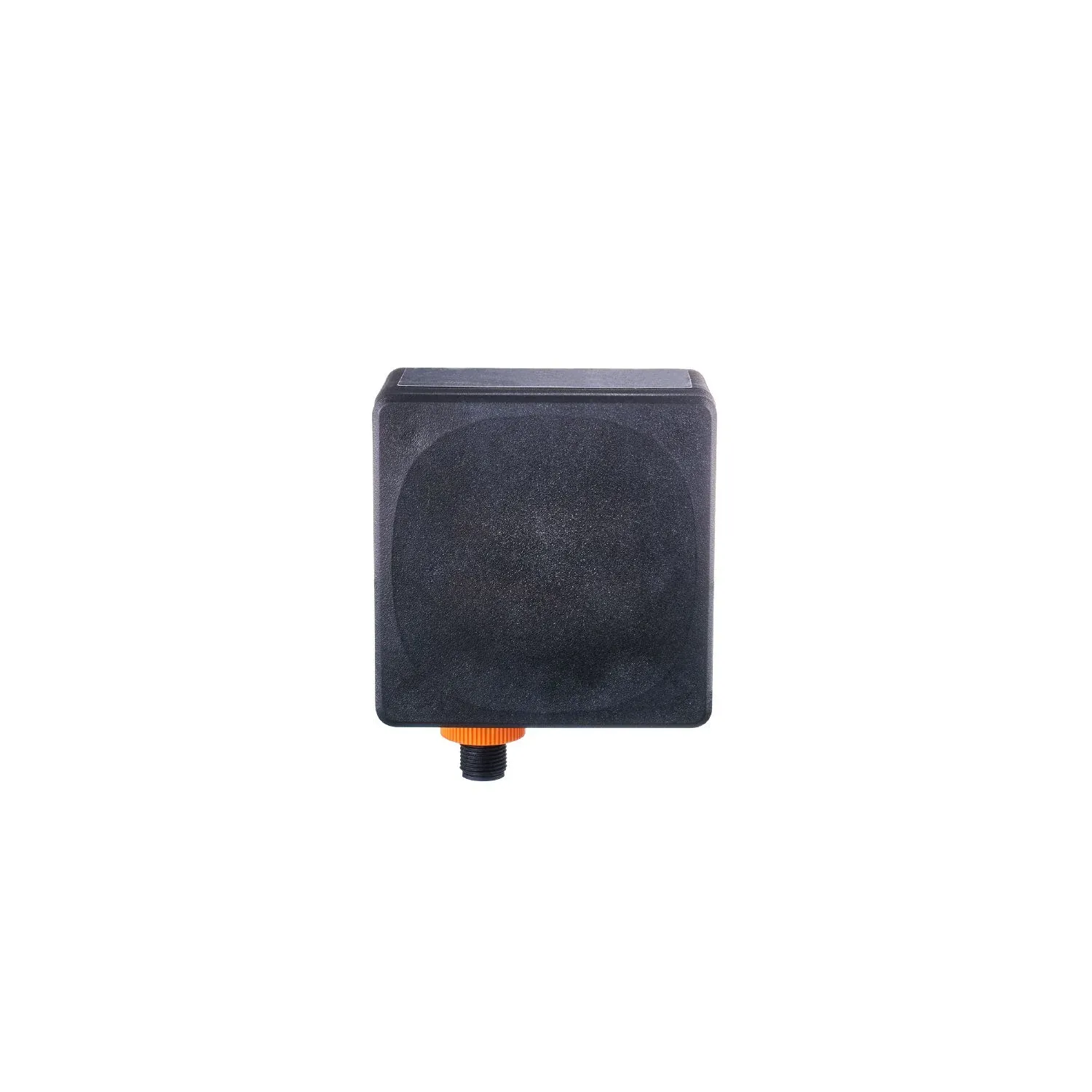

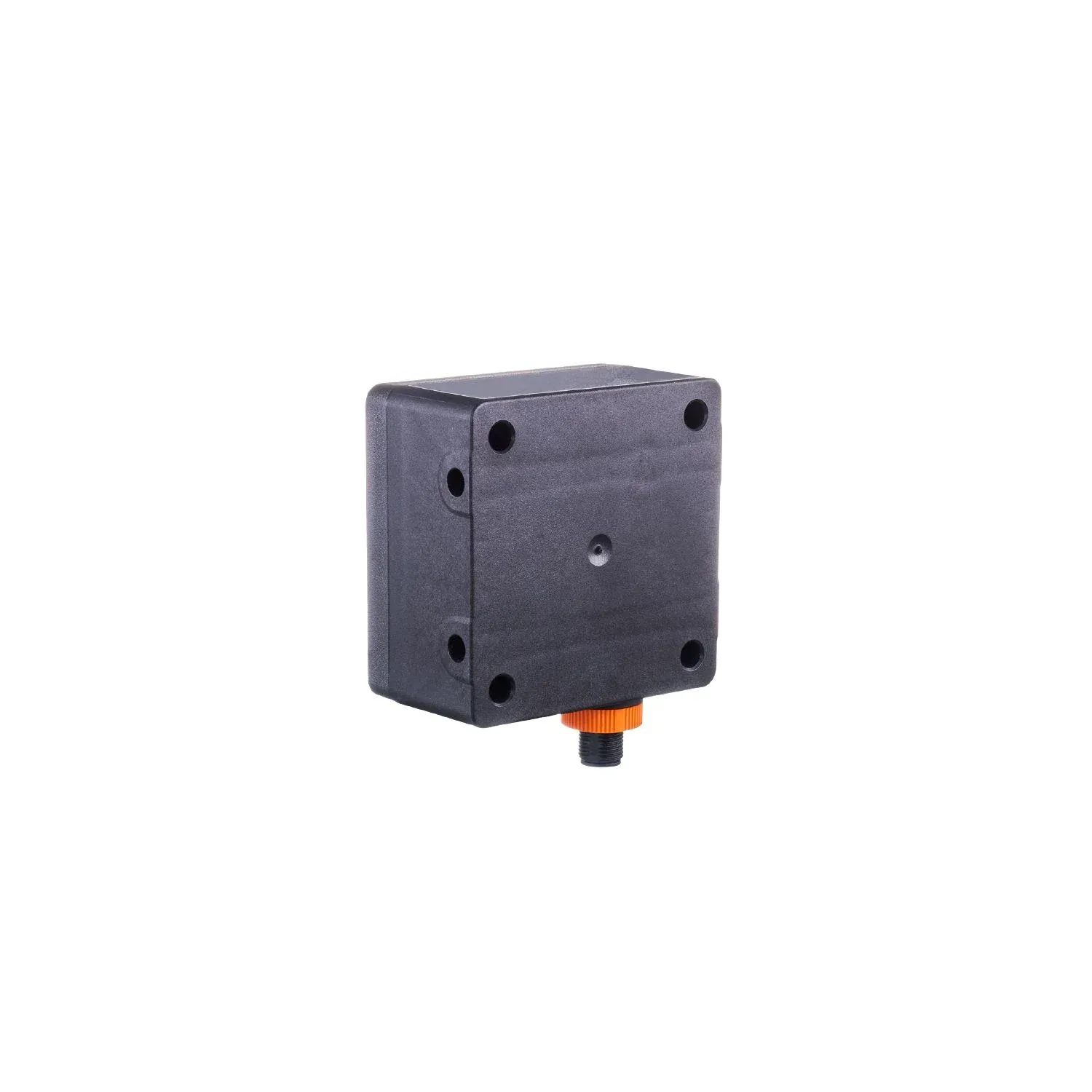

IFM R2D212

R2D212

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Angular resolution for precise output of position coordinates
Reliable measurements even in precipitation, fog, dust and dirt
Individual adjustment of the horizontal and vertical detection range
Operating modes can be set in accordance with the specific application
Intuitive set-up and visualisation of the measured data using the ifm Vision Assistant software

Specification

Product characteristics

Communication interfaceIO-Link
Housingrectangular
Dimensions[mm] [mm]80 x 80 x 45
Electrical designPNP/NPN; (parameterisable)
Output functionnormally open / normally closed; (parameterisable)

Application

Radio approval forArgentina; India

Electrical data

Operating voltage[V] [V]10...30 DC; (to SELV/PELV ; energy-limited circuits according to IEC/UL 61010-1 3rd ed. cl. 9.4)
Current consumption[mA] [mA]< 300; (mean value: 150 mA)
Power consumption[W] [W]21; (maximum)
Protection classIII
Reverse polarity protectionyes
Max. power-on delay time[ms] [ms]1000
Operating frequency [GHz]76...77
Mean radiated power24

Inputs / outputs

Total number of inputs and outputs3

Inputs

InputsIN1
activation/deactivation of the radar
IN1activation/deactivation of the radar

Outputs

Total number of outputs2
Output signalOUT1
switching signal; IO-Link
OUT2
switching signal
OUT1switching signal; IO-Link
OUT2switching signal
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Electrical designPNP/NPN; (parameterisable)
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2.5
Permanent current rating of switching output DC[mA] [mA]200

Detection zone

Range[m] [m]0.35...50; (referred to E23013)
Angle of aperture cylindrical[°] [°]horizontal
140
vertical
30
horizontal140
vertical30
Notestatic objects are not stably detected in the range < 1 m

Measuring/setting range

Measuring range[m] [m]0.35...50; (see diagram:)
Sampling rate[Hz] [Hz]20
Notestatic objects are not stably detected in the range < 1 m

Software / programming

Parameter setting optionsonly via IO-Link

Interfaces

Communication interfaceIO-Link
Transmission typeCOM3 (230,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesBLOB
Binary Large Object transfer
Common - I&D
Identification and Diagnosis
Function
Locator
Function
ProductURI
BLOBBinary Large Object transfer
Common - I&DIdentification and Diagnosis
FunctionProductURI
SIO modeyes
Required master port typeA
Min. process cycle time[ms] [ms]3.2
IO-Link process data (cyclical)alarm zone status
8
position X of object 1
16
position Y of object 1
16
speed X of object 1
16
speed Y of object 1
16
performance of object 1
8
RCS of object 1
8
confidence of object 1
8
position X of object 2
16
position Y of object 2
16
speed X of object 2
16
speed Y of object 2
16
performance of object 2
8
RCS of object 2
8
confidence of object 2
8
device status
4
sensor inclination
1
alarm zone status8
position X of object 116
position Y of object 116
speed X of object 116
speed Y of object 116
performance of object 18
RCS of object 18
confidence of object 18
position X of object 216
position Y of object 216
speed X of object 216
speed Y of object 216
performance of object 28
RCS of object 28
confidence of object 28
device status4
sensor inclination1
IO-Link functions (acyclical)application specific tag; operating hours counter; number of trigger events; internal temperature; ROI setting; switch-on delays; transmitter can be switched off
Supported DeviceIDsdefault
1520
default1520
NoteFor further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature[°C] [°C]-40...85
Storage temperature[°C] [°C]-40...85
ProtectionIP 65; IP 66; IP 67; IP 69K; (with mounted connectors or protective caps)

Tests / approvals

EMCDIN EN 61000-4-2 ESD
4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated
10 V/m
DIN EN 61000-4-4 Burst
2 kV
DIN EN 61000-4-6 HF conducted
10 V
DIN EN 61000-6-2
immunity / industrial environments
EN 55032 emission
Class A
DIN EN 61000-4-2 ESD4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated10 V/m
DIN EN 61000-4-4 Burst2 kV
DIN EN 61000-4-6 HF conducted10 V
DIN EN 61000-6-2immunity / industrial environments
EN 55032 emissionClass A
Impact resistanceIEC 62262
IK06 (1J)
IEC 62262IK06 (1J)
Vibration resistanceDIN EN 60068-2-6 Fc
10 g 10 frequency cycles, 1 octave/minute, in 3 axes
DIN EN 60068-2-6 Fc10 g 10 frequency cycles, 1 octave/minute, in 3 axes
Shock resistanceDIN EN 60068-2-27 Ea
50 g 11 ms half-sine; 10 shocks each in every direction along the 3 coordinate axes
DIN EN 60068-2-27 Ea50 g 11 ms half-sine; 10 shocks each in every direction along the 3 coordinate axes
Continuous shock resistanceDIN EN 60068-2-29 Eb
40 g 6 ms half-sine; 4,000 shocks each in every direction along the 3 coordinate axes
DIN EN 60068-2-29 Eb40 g 6 ms half-sine; 4,000 shocks each in every direction along the 3 coordinate axes
Fast temperature changeDIN EN 60068-2-14 Na
TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 30 s; 300 cycles
DIN EN 60068-2-14 NaTA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 30 s; 300 cycles
Salt spray testDIN EN 60068-2-11 Ka
8 test cycles
DIN EN 60068-2-11 Ka8 test cycles
Electrical safetyDIN EN 61010-2-201
electric shock / electrical supply only via SELV/PELV circuits
DIN EN 61010-2-201electric shock / electrical supply only via SELV/PELV circuits
MTTF[years] [years]54

Mechanical data

Weight[g] [g]402.9
Housingrectangular
Mountingflush mountable
Dimensions[mm] [mm]80 x 80 x 45
Materialshousing: PA; radome: PEI; Sealing: HNBR

Displays / operating elements

Displayswitching status
2x LED, yellow
operation
1x LED, green
errors
1x LED, red
switching status2x LED, yellow
operation1x LED, green
errors1x LED, red

Remarks

Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A
