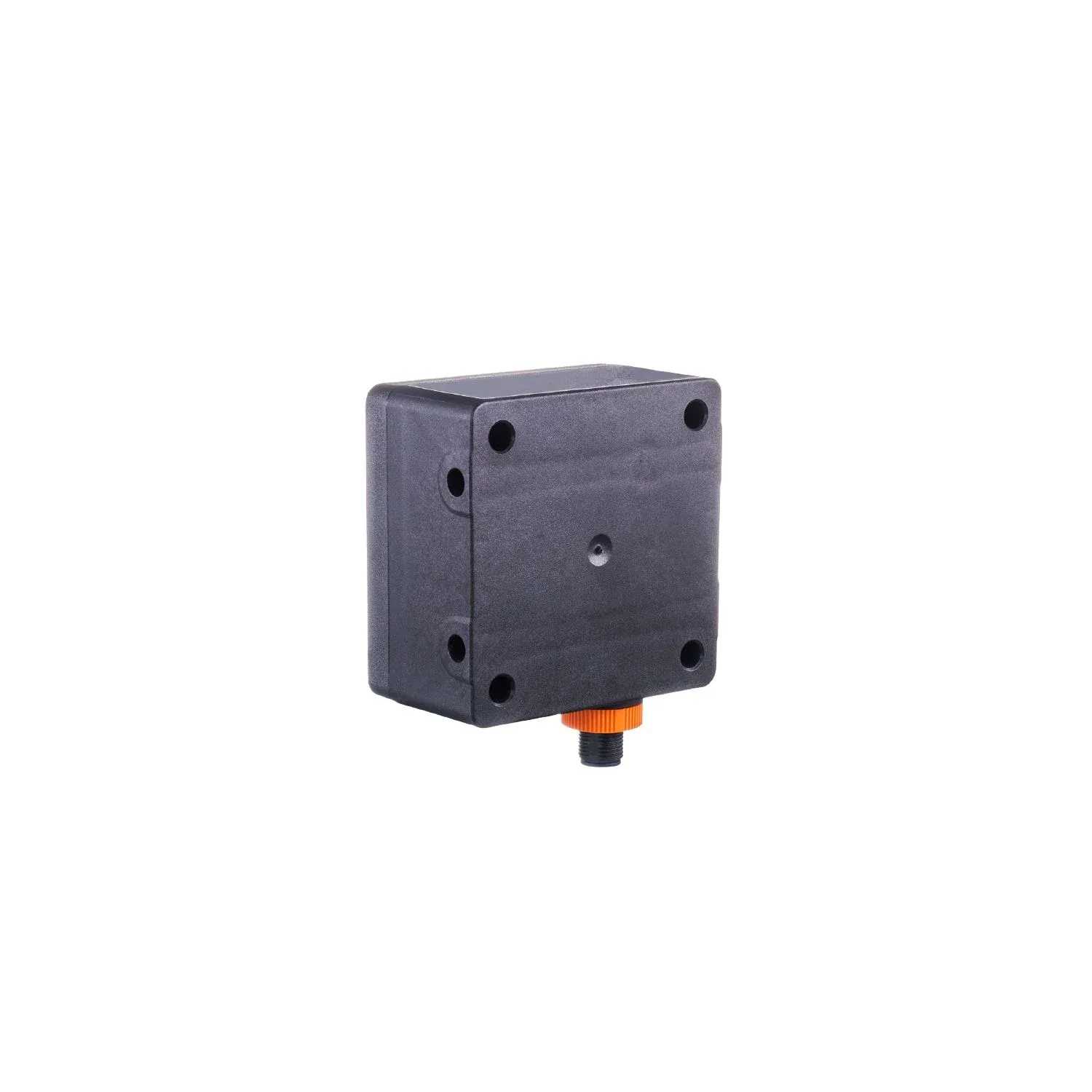

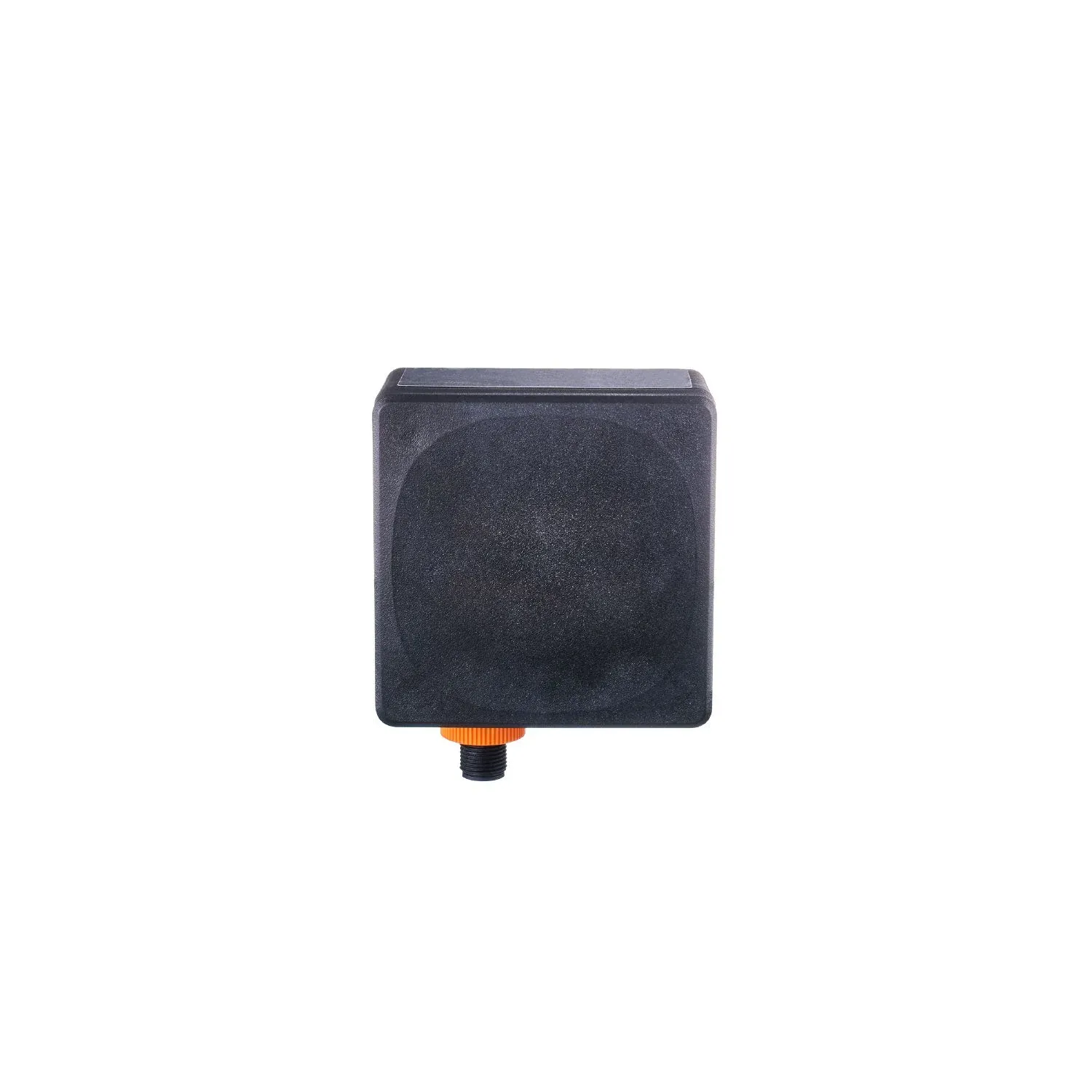

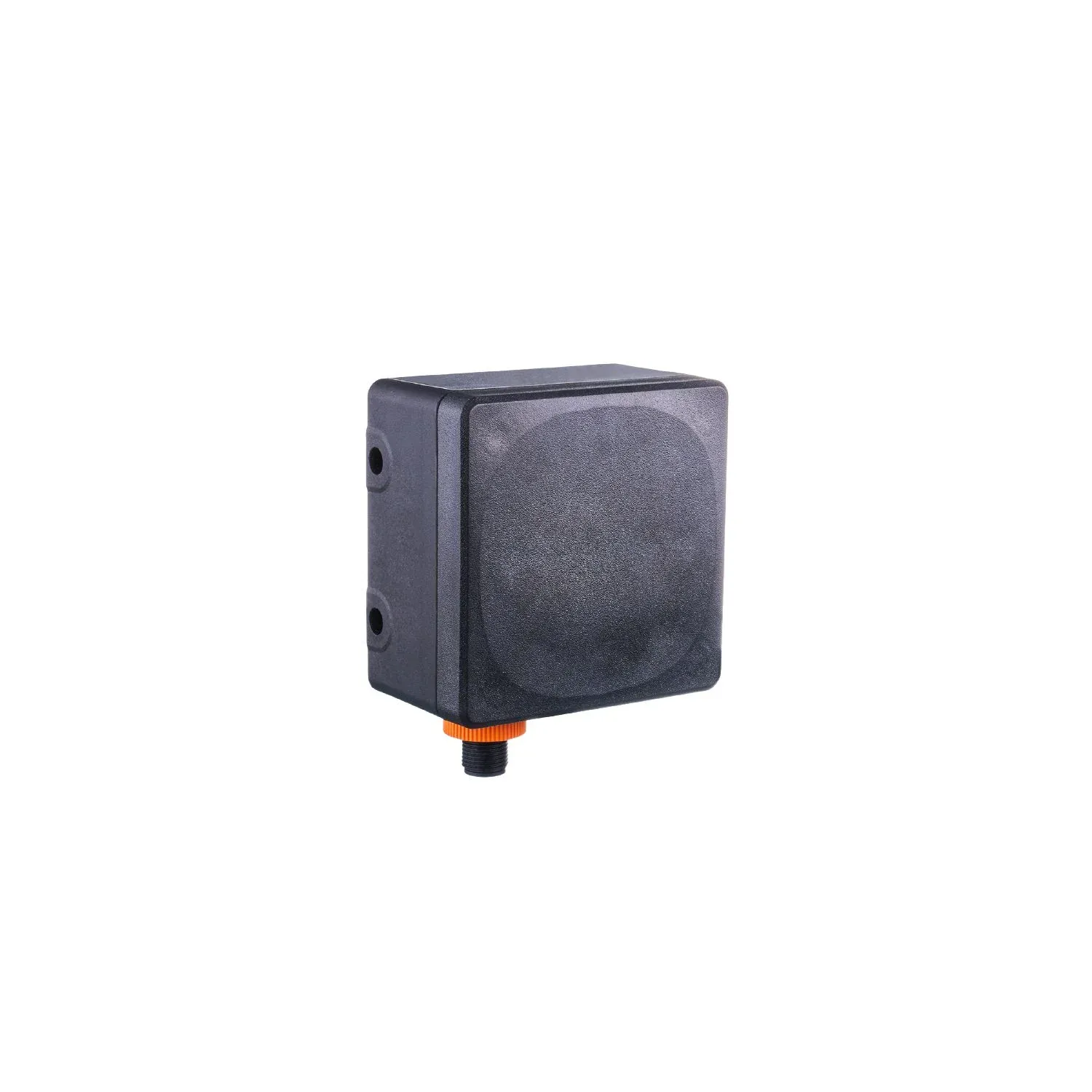

IFM R2D205
R2D205
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Angular resolution for precise output of position coordinates
Reliable measurements even in precipitation, fog, dust and dirt
Individual adjustment of the horizontal and vertical detection range
Operating modes can be set in accordance with the specific application
Intuitive set-up and visualisation of the measured data using the ifm Vision Assistant software
Specification
Product characteristics
| Communication interface | CAN |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 80 x 80 x 45 |
Application
| Radio approval for | Argentina; India |
|---|
Electrical data
| Operating voltage[V] [V] | 9...32 DC; (to SELV/PELV ; energy-limited circuits according to IEC/UL 61010-1 3rd ed. cl. 9.4) |
|---|---|
| Current consumption[mA] [mA] | < 300; (mean value: 150 mA) |
| Power consumption[W] [W] | 9; (maximum) |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 1000 |
| Operating frequency [GHz] | 76...77 |
| Mean radiated power EIRP [dBm] | 24 |
Detection zone
| Range[m] [m] | 0.35...50; (referred to E23013) |
|---|---|
| Angle of aperture cylindrical[°] [°] | horizontal 140 vertical 30 |
| horizontal | 140 |
| vertical | 30 |
| Note | static objects in the range < 1 m are not stably detected in area mode |
Measuring/setting range
| Measuring range[m] [m] | 0.35...50; (see diagram:) |
|---|---|
| Sampling rate[Hz] [Hz] | 20 |
Software / programming
| Parameter setting options | via PC with ifm Vision Assistant |
|---|
Interfaces
| Communication interface | CAN |
|---|---|
| Number of CAN interfaces | 1 |
| Transmission rate | 250 (125...1000) kBaud |
| Protocol | SAE J1939 |
| Factory settings | Baud rate: 250 device address (ECU): 126 UDS interface: 1000 kBaud |
| Usage type | parameter setting; data transmission |
| Note | For further information please refer to the software manual available under "Downloads" |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 65; IP 66; IP 67; IP 69K; (with mounted connectors or protective caps) |
Tests / approvals
| EMC | DIN EN 61000-4-2 ESD 4 kV CD / 8 kV AD DIN EN 61000-4-3 HF radiated 10 V/m DIN EN 61000-4-4 Burst 2 kV DIN EN 61000-4-6 HF conducted 10 V DIN EN 61000-6-2 immunity / industrial environments EN 55032 emission Class A |
|---|---|
| DIN EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| DIN EN 61000-4-3 HF radiated | 10 V/m |
| DIN EN 61000-4-4 Burst | 2 kV |
| DIN EN 61000-4-6 HF conducted | 10 V |
| DIN EN 61000-6-2 | immunity / industrial environments |
| EN 55032 emission | Class A |
| Impact resistance | IEC 62262 IK06 (1J) |
| IEC 62262 | IK06 (1J) |
| Vibration resistance | DIN EN 60068-2-6 Fc 10 g 10 frequency cycles, 1 octave/minute, in 3 axes |
| DIN EN 60068-2-6 Fc | 10 g 10 frequency cycles, 1 octave/minute, in 3 axes |
| Shock resistance | DIN EN 60068-2-27 Ea 50 g 11 ms half-sine; 10 shocks each in every direction along the 3 coordinate axes |
| DIN EN 60068-2-27 Ea | 50 g 11 ms half-sine; 10 shocks each in every direction along the 3 coordinate axes |
| Continuous shock resistance | DIN EN 60068-2-29 Eb 40 g 6 ms half-sine; 4,000 shocks each in every direction along the 3 coordinate axes |
| DIN EN 60068-2-29 Eb | 40 g 6 ms half-sine; 4,000 shocks each in every direction along the 3 coordinate axes |
| Fast temperature change | DIN EN 60068-2-14 Na TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 30 s; 300 cycles |
| DIN EN 60068-2-14 Na | TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 30 s; 300 cycles |
| Salt spray test | DIN EN 60068-2-11 Ka 8 test cycles |
| DIN EN 60068-2-11 Ka | 8 test cycles |
| Electrical safety | DIN EN 61010-2-201 electric shock / electrical supply only via SELV/PELV circuits |
| DIN EN 61010-2-201 | electric shock / electrical supply only via SELV/PELV circuits |
| MTTF[years] [years] | 56 |
Mechanical data
| Weight[g] [g] | 401 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | 80 x 80 x 45 |
| Materials | housing: PA; radome: PEI; Sealing: HNBR |
Displays / operating elements
| Display | operation 1x LED, green errors 1x LED, red |
|---|---|
| operation | 1x LED, green |
| errors | 1x LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
