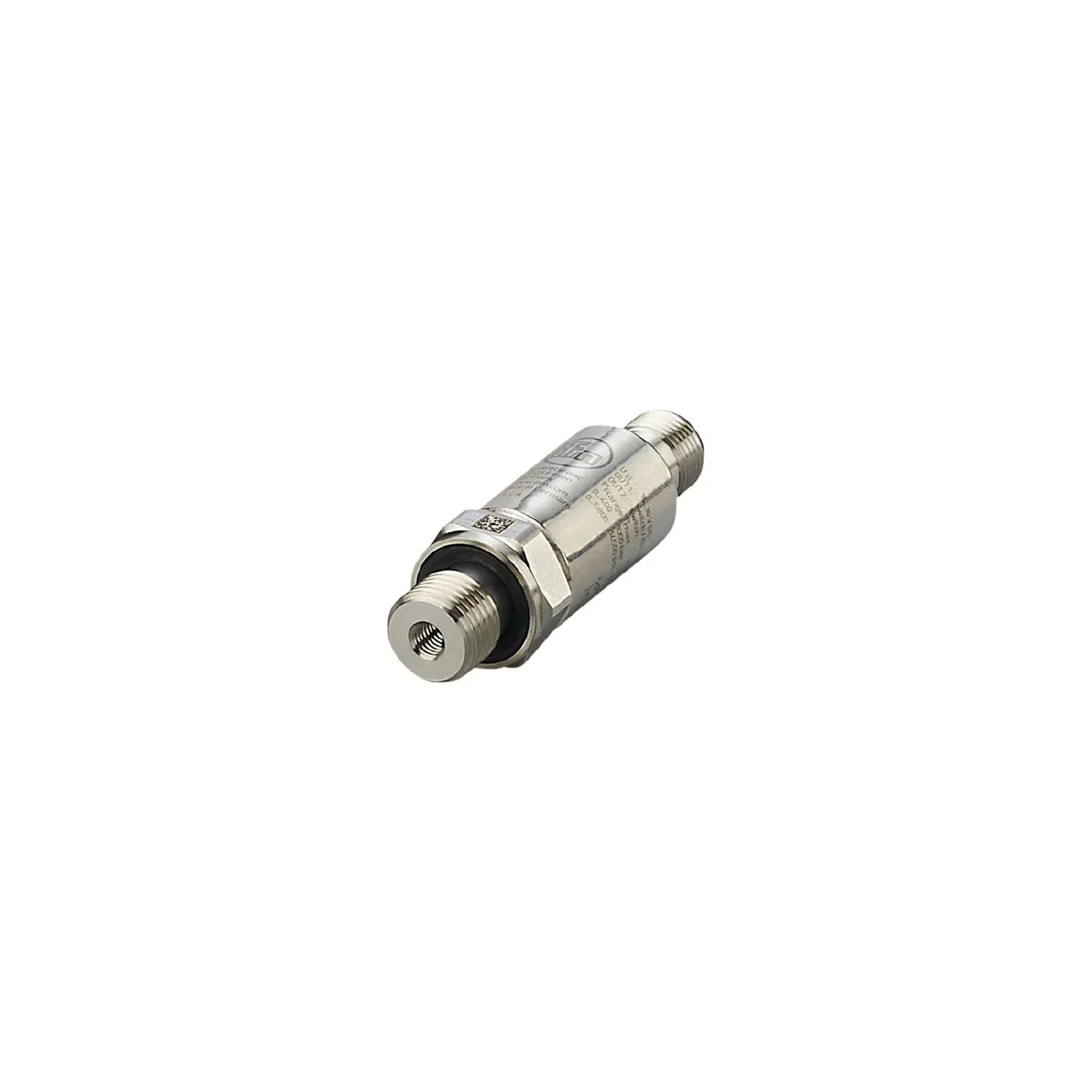

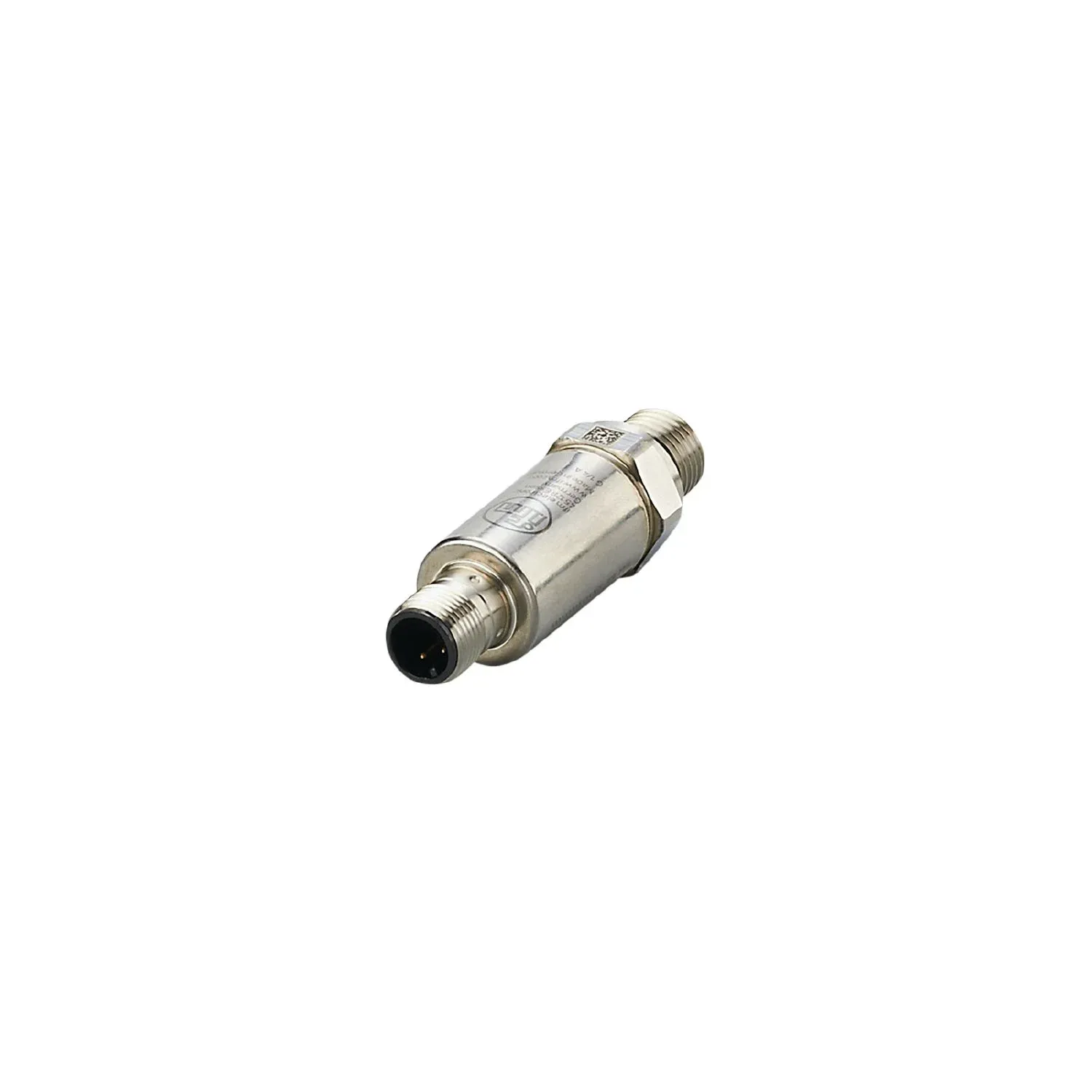

IFM PV8004
IFM PV8004 - Image 2
IFM PV8004 - Image 3
IFM PV8004 - Image 4
IFM PV8004 - Image 5
IFM PV8004 - Image 6

Fast delivery within 72 Hours

IFM PV8004

PV8004

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Compact housing for use where space is restricted
Very high overpressure and vacuum resistance
Robust stainless steel housing with high shock and vibration resistance
Two programmable switching outputs, one of them with IO-Link communication interface
Integrated temperature measurement via IO-Link
User-friendly communication and parameterisation via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2
Measuring range-1...10 bar
-14.5...145 psi
-0.1...1 MPa
-1...10 bar-14.5...145 psi
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5

Application

Measuring elementmetallic thin film cell
Applicationfor industrial applications
Medialiquids and gases
Medium temperature[°C] [°C]-40...90
Min. burst pressure300 bar
4350 psi
30 MPa
300 bar4350 psi
Pressure rating25 bar
360 psi
2.5 MPa
25 bar360 psi
Note on pressure ratingstatic
Vacuum resistance-1000 mbar
-0.1 MPa
-1000 mbar-0.1 MPa
Type of pressurerelative pressure

Electrical data

Operating voltage[V] [V]18...30 DC
Current consumption[mA] [mA]< 15
Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]< 0.3

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2

Outputs

Total number of outputs2
Output signalswitching signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]100
Switching frequency DC[Hz] [Hz]< 130
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range-40...90 °C
-40...194 °F
-1...10 bar-14.5...145 psi
Set point SP-38...90 °C
-36.4...194 °F
-0.9...10 bar-13.1...145 psi
Reset point rP-40...88 °C
-40...19.4 °F
-0.949...9.951 bar-13.8...144.3 psi
In steps of0.1 °C
0.1 °F
0.001 bar0.1 psi
Factory settingSP1 = 2.5 bar
rP1 = 2.3 bar
ou1 = Hno;
SP2 = 7.5 bar
rP2 = 7.3 bar
ou2 = Hno;
dS1/dS2 = 0 ms
dr1/dr2 = 0 ms
coF = 0 %
P-n = PnP
dAP= 60 ms
SP1 = 2.5 barrP1 = 2.3 bar
SP2 = 7.5 barrP2 = 7.3 bar
dS1/dS2 = 0 msdr1/dr2 = 0 ms
coF = 0 %P-n = PnP
-40...90 °C-40...194 °F
-38...90 °C-36.4...194 °F
-40...88 °C-40...19.4 °F
0.1 °C0.1 °F

Accuracy / deviations

Switch point accuracy[% of the span] [% of the span]< ± 0,5 (nach DIN EN 61298-2)
Repeatability[% of the span] [% of the span]< ± 0,05; (with temperature fluctuations < 10 K)
Characteristics deviation[% of the span] [% of the span]< ± 0,5; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1)
Linearity deviation[% of the span] [% of the span]< ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation[% of the span] [% of the span]< ± 0,2
Long-term stability[% of the span] [% of the span]< ± 0,1; (per 6 months)
Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K]< 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C)
Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K]< 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C)
Accuracy[K] [K]± 2 K + (0.1 x (ambient temperature - medium temperature))
Notes on the accuracy / deviationtemperature range -10 to 80 °C

Response times

Response time[ms] [ms]< 3
Dynamic response T05 / T09[s] [s]< 80 / < 210 ( under ifm reference conditions )

Software / programming

Parameter setting optionshysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesCommon - I&D
Identification and Diagnosis
Function
Measurement data, standard resolution
Common - I&DIdentification and Diagnosis
FunctionMeasurement data, standard resolution
SIO modeyes
Required master port typeA
Process data analogue5
Process data binary2
Min. process cycle time[ms] [ms]4.5
IO-Link resolution pressure[bar] [bar]0.005
IO-Link resolution temperature[K] [K]0.2
IO-Link process data (cyclical)pressure
16
temperature
16
device status
4
binary switching information
2
pressure16
temperature16
device status4
binary switching information2
IO-Link functions (acyclical)application specific tag; internal temperature; operating hours counter; switching cycles counter; Pressure peak counter; Temperature peak counter
Supported DeviceIDsdefault
1210
default1210

Operating conditions

Ambient temperature[°C] [°C]-40...90
Storage temperature[°C] [°C]-40...100
ProtectionIP 67; IP 69K

Tests / approvals

EMCDIN EN 61326-1
Shock resistanceDIN EN 60068-2-27
500 g (1 ms)
DIN EN 60068-2-27500 g (1 ms)
Vibration resistanceDIN EN 60068-2-6
20 g (10...2000 Hz)
DIN EN 60068-2-620 g (10...2000 Hz)
MTTF[years] [years]668
UL approvalUL approval no.
J037
File number UL
E174189
UL approval no.J037
File number ULE174189
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]53.5
Housingcylindrical
Dimensions[mm] [mm]Ø 19 / L = 66
Materialsstainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404); PEI
Materials (wetted parts)stainless steel (303/1.4305); stainless steel (630/1.4542/17-4 PH)
Min. pressure cycles60 million; (at 1.2 times nominal pressure)
Tightening torque[Nm] [Nm]25...35; (recommended tightening torque; depends on the lubrication, the seal and the pressure load)
Process connectionthreaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5
Process connection sealingFKM (DIN EN ISO 1179-2)
Restrictor element integratedyes

Remarks

RemarksBFSL = Best Fit Straight Line
LS = limit value setting
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A
