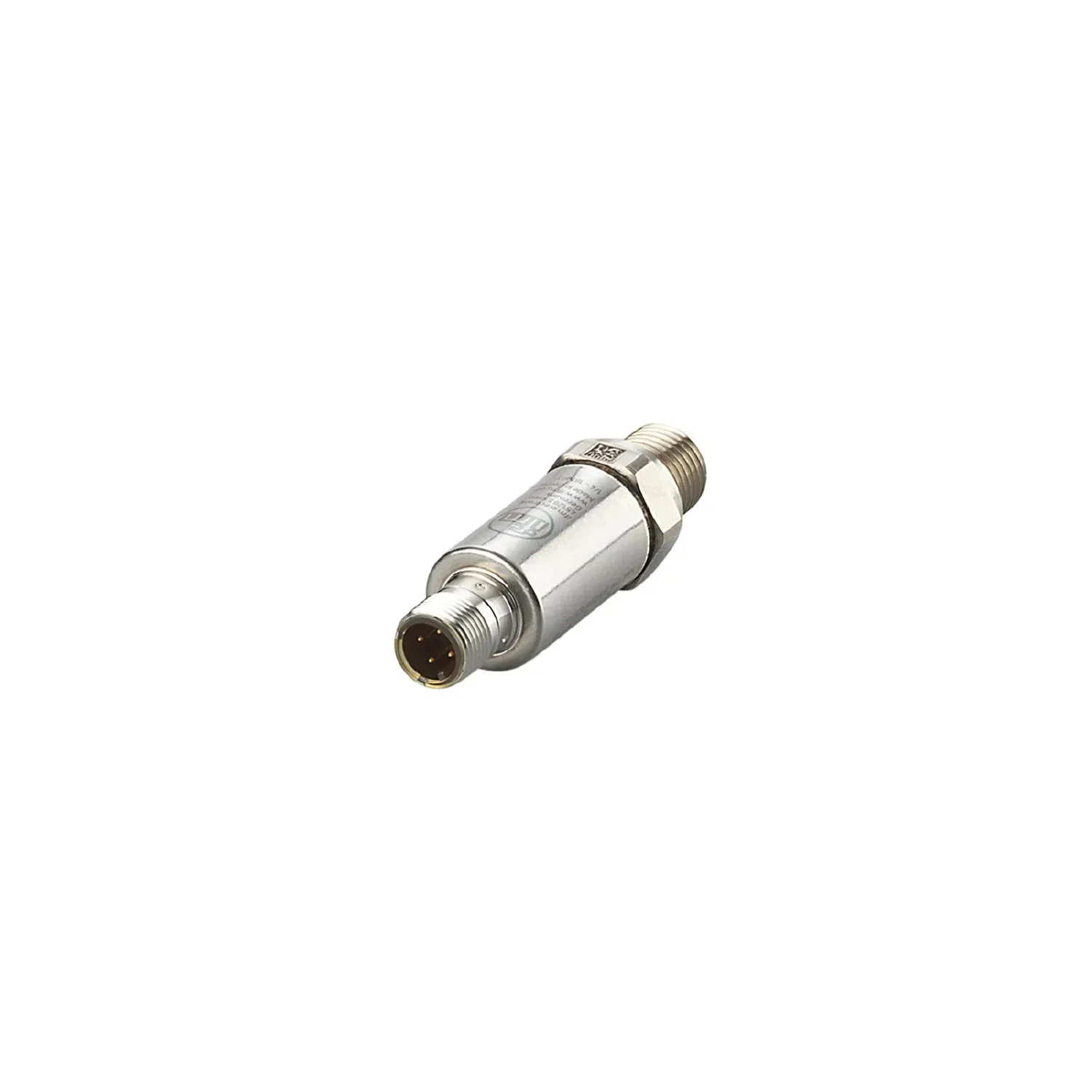

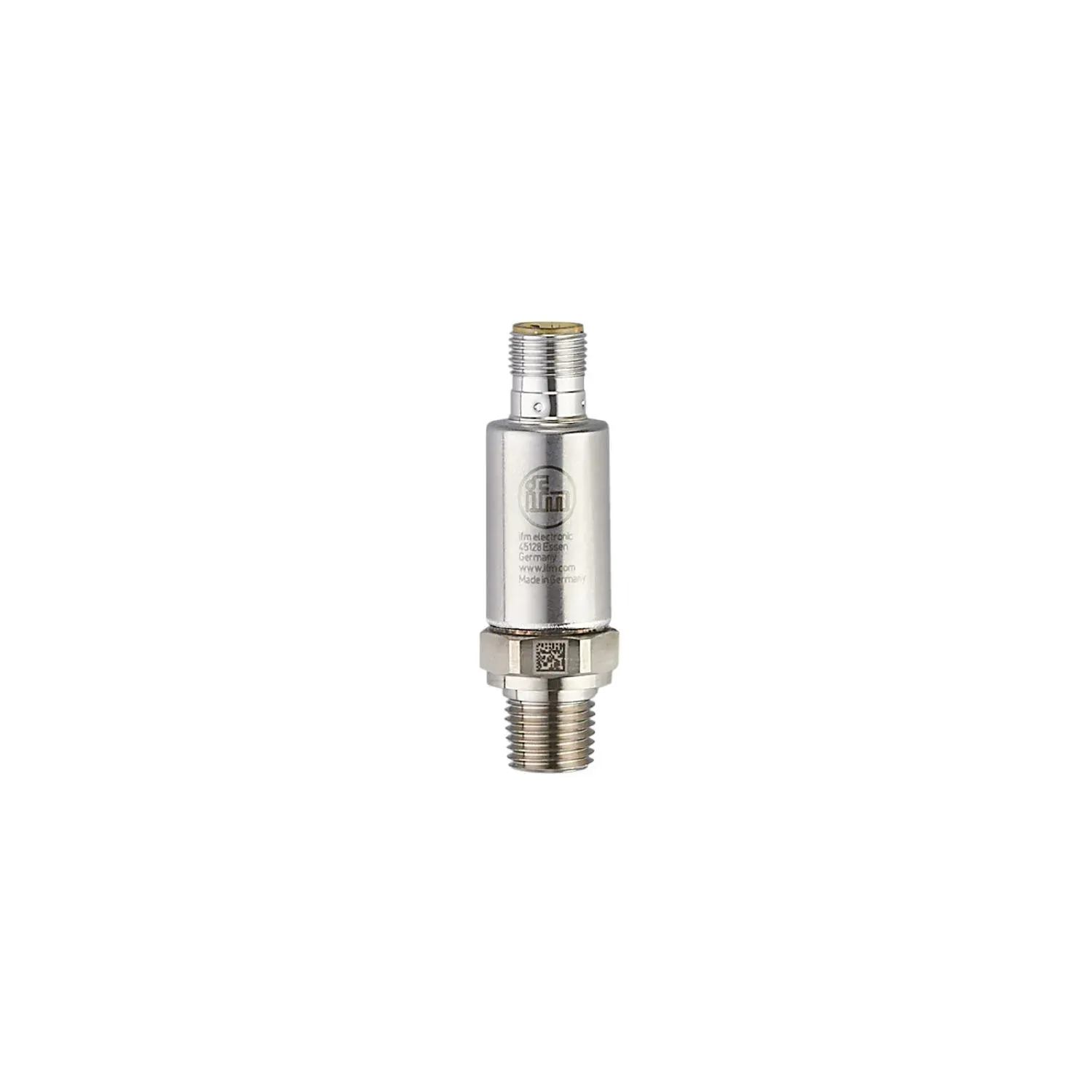

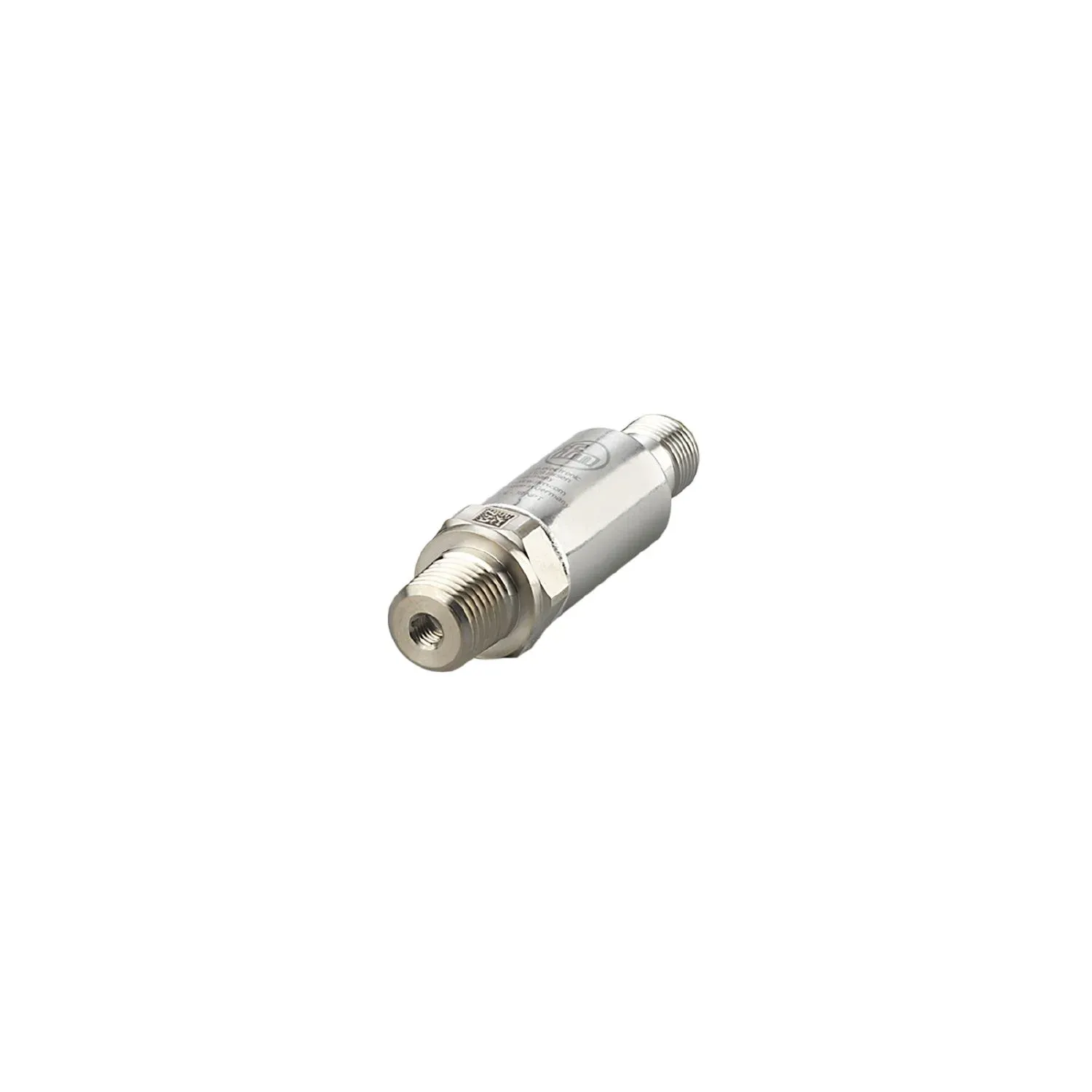

IFM PV7601
IFM PV7601 - Image 2
IFM PV7601 - Image 3
IFM PV7601 - Image 4
IFM PV7601 - Image 5
IFM PV7601 - Image 6

Fast delivery within 72 Hours

IFM PV7601

PV7601

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Compact housing for use where space is restricted
Very high overpressure and vacuum resistance
Robust stainless steel housing with high shock and vibration resistance
Lifespan of more than 60 million pressure cycles
Two programmable switching outputs, one of them with IO-Link communication interface
User-friendly communication and parameterisation via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2
Measuring range0...250 bar
0...3626 psi
0...25 MPa
0...250 bar0...3626 psi
Process connectionthreaded connection 1/4" NPT external thread internal thread:M5

Application

Measuring elementmetallic thin film cell
Applicationfor industrial applications
Medialiquids and gases
Medium temperature[°C] [°C]-40...90
Min. burst pressure1200 bar
17400 psi
120 MPa
1200 bar17400 psi
Pressure rating625 bar
9060 psi
62.5 MPa
625 bar9060 psi
Note on pressure ratingstatic
Vacuum resistance-1000 mbar
-0.1 MPa
-1000 mbar-0.1 MPa
Type of pressurerelative pressure
MAWP for applications according to CRN[bar] [bar]625

Electrical data

Operating voltage[V] [V]18...30 DC
Current consumption[mA] [mA]< 15
Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]< 0.3

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2

Outputs

Total number of outputs2
Output signalswitching signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]100
Switching frequency DC[Hz] [Hz]< 170
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range0...250 bar
0...3626 psi
0...25 MPa
0...250 bar0...3626 psi
Set point SP2.5...250 bar
37...3626 psi
0.25...25 MPa
2.5...250 bar37...3626 psi
Reset point rP1.3...248.8 bar
18...3608 psi
0.13...24.88 MPa
1.3...248.8 bar18...3608 psi
In steps of0.1 bar
1 psi
0.01 MPa
0.1 bar1 psi
Factory settingSP1 = 62.5 bar
rP1 = 57.5 bar
ou1 = Hno;
SP2 = 187.5 bar
rP2 = 182.5 bar
ou2 = Hno;
dS1/dS2 = 0 ms
dr1/dr2 = 0 ms
coF = 0 %
P-n = PnP
dAP= 60 ms
SP1 = 62.5 barrP1 = 57.5 bar
SP2 = 187.5 barrP2 = 182.5 bar
dS1/dS2 = 0 msdr1/dr2 = 0 ms
coF = 0 %P-n = PnP

Accuracy / deviations

Switch point accuracy[% of the span] [% of the span]< ± 0,5 (nach DIN EN 61298-2)
Repeatability[% of the span] [% of the span]< ± 0,05; (with temperature fluctuations < 10 K)
Characteristics deviation[% of the span] [% of the span]< ± 0,5; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1)
Linearity deviation[% of the span] [% of the span]< ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation[% of the span] [% of the span]< ± 0,2
Long-term stability[% of the span] [% of the span]< ± 0,1; (per 6 months)
Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K]< 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C)
Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K]< 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C)

Response times

Response time[ms] [ms]< 3

Software / programming

Parameter setting optionshysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesSmart Sensor - SSP 0
Generic Profiled Sensor
Function
Device identification
Function
Process data variable
Function
Device diagnosis
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionDevice diagnosis
SIO modeyes
Required master port typeA
Process data analogue2
Process data binary2
Min. process cycle time[ms] [ms]5
Supported DeviceIDsdefault
852
default852

Operating conditions

Ambient temperature[°C] [°C]-40...90
Storage temperature[°C] [°C]-40...100
ProtectionIP 67; IP 69K

Tests / approvals

EMCDIN EN 61326-1
Shock resistanceDIN EN 60068-2-27
500 g (1 ms)
DIN EN 60068-2-27500 g (1 ms)
Vibration resistanceDIN EN 60068-2-6
20 g (10...2000 Hz)
DIN EN 60068-2-620 g (10...2000 Hz)
MTTF[years] [years]668
UL approvalUL approval no.
J016
UL approval no.J016
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]66
Housingcylindrical
Dimensions[mm] [mm]Ø 18.9 / L = 66.9
Materialsstainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404); PEI
Materials (wetted parts)stainless steel (303/1.4305); stainless steel (630/1.4542/17-4 PH)
Min. pressure cycles60 million; (at 1.2 times nominal pressure)
Tightening torque[Nm] [Nm]50; (recommended tightening torque; depends on the lubrication, the seal and the pressure load)
Process connectionthreaded connection 1/4" NPT external thread internal thread:M5
Restrictor element integratedyes

Remarks

RemarksBFSL = Best Fit Straight Line
LS = limit value setting
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A
