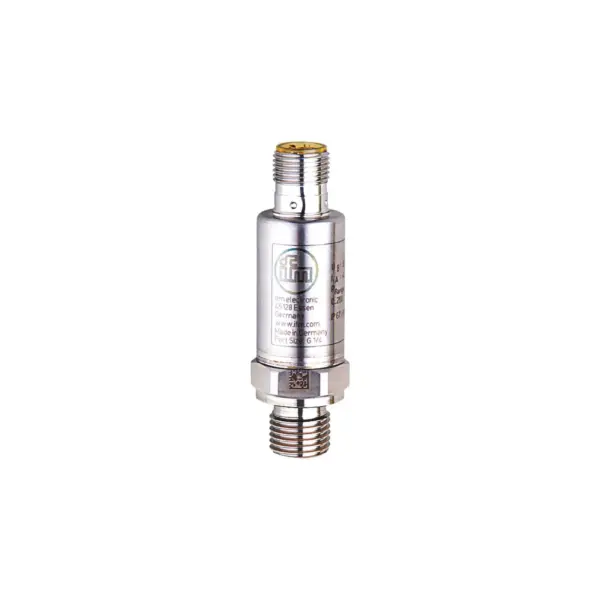

IFM PU5404
PU5404
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of system pressure in industrial applications
High shock and vibration resistance
Excellent repeatability and low linearity error
Lifespan of more than 60 million pressure cycles
Compact and robust stainless steel housing for use where space is restricted
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range | 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa |
| 0...10 bar | 0...145 psi |
| Process connection | threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
Application
| Application | for industrial applications |
|---|---|
| Media | liquids and gases |
| Medium temperature[°C] [°C] | -40...90 |
| Min. burst pressure | 300 bar 4350 psi 30 MPa |
| 300 bar | 4350 psi |
| Pressure rating | 25 bar 360 psi 2.5 MPa |
| 25 bar | 360 psi |
| Note on pressure rating | static |
| Vacuum resistance | -1000 mbar -0.1 MPa |
| -1000 mbar | -0.1 MPa |
| Type of pressure | relative pressure |
Electrical data
| Operating voltage[V] [V] | 16...36 DC |
|---|---|
| Current consumption[mA] [mA] | < 12 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 0.1 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue voltage output[V] [V] | 0...10 |
| Min. load resistance[Ω] [Ω] | 2000 |
| Short-circuit proof | yes |
| Overload protection | yes |
Measuring/setting range
| Measuring range | 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa |
|---|---|
| 0...10 bar | 0...145 psi |
Accuracy / deviations
| Repeatability[% of the span] [% of the span] | < ± 0,05; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation[% of the span] [% of the span] | < ± 0,5; (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis) |
| Linearity deviation[% of the span] [% of the span] | < ± 0,1 (BFSL) / < ± 0,2 (LS) |
| Hysteresis deviation[% of the span] [% of the span] | < ± 0,2 |
| Long-term stability[% of the span] [% of the span] | < ± 0,1; (per 6 months) |
| Temperature coefficient zero point and span[% of the span / 10 K] [% of the span / 10 K] | < ± 0,1 (-25...90 °C) / < ± 0,2 (-40...-25 °C) |
Response times
| Step response time analogue output[ms] [ms] | 1 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...90 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 762 |
| UL approval | UL approval no. J031 |
| UL approval no. | J031 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 59 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 19 / L = 66 |
| Materials | stainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404); PEI |
| Materials (wetted parts) | stainless steel (630/1.4542/17-4 PH) |
| Min. pressure cycles | 60 million; (at 1.2 times nominal pressure) |
| Tightening torque[Nm] [Nm] | 25...35; (recommended tightening torque; depends on the lubrication, the seal and the pressure load) |
| Process connection | threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
| Process connection sealing | FKM (DIN EN ISO 1179-2) |
| Restrictor element integrated | no (can be retrofitted) |
Remarks
| Remarks | BFSL = Best Fit Straight Line LS = limit value setting |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
