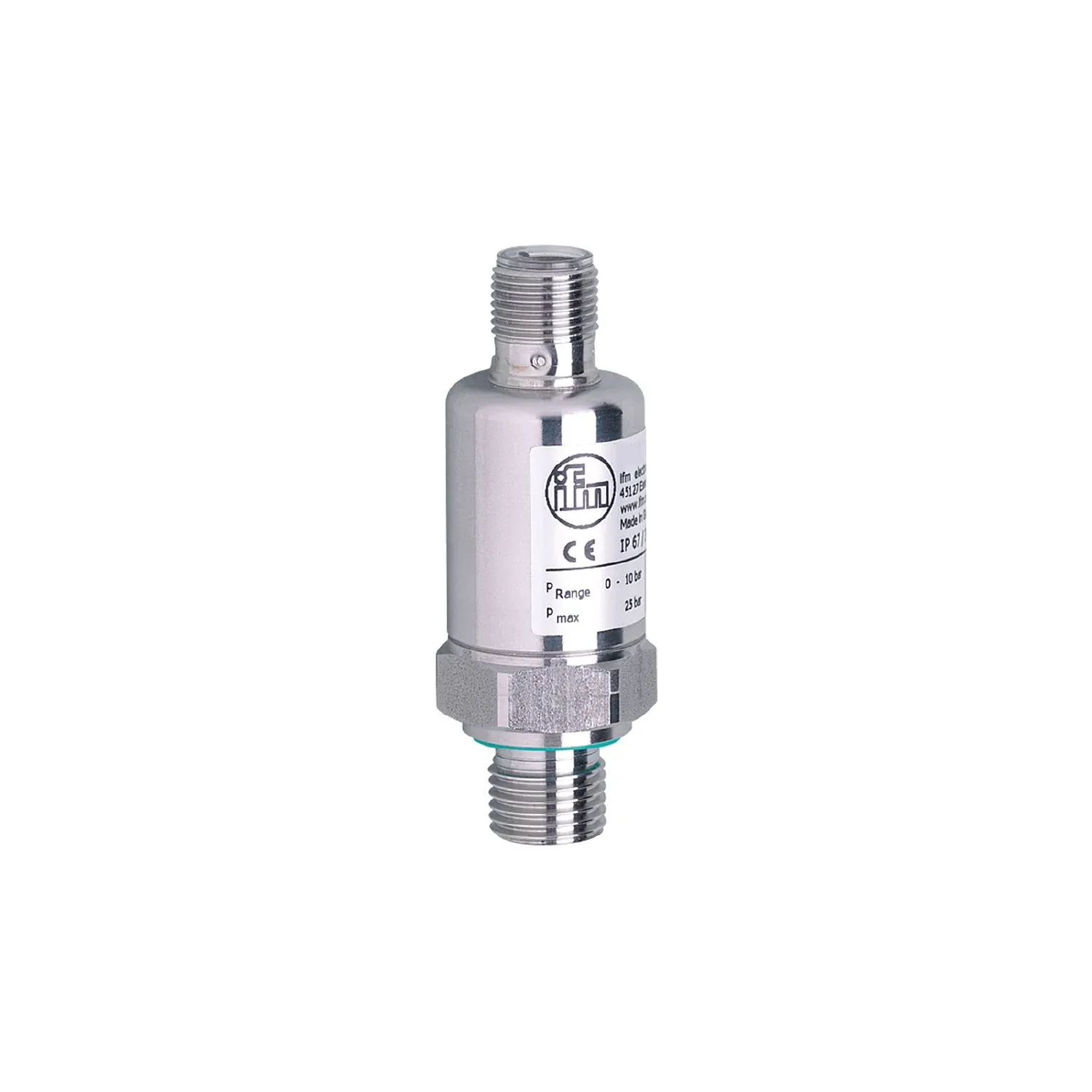

IFM PT9551
PT9551
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable detection of the system pressure in mobile machines
High shock and vibration resistance
Excellent repeatability and low linearity error
Lifespan of more than 50 million pressure cycles
Compact and robust stainless steel housing for use where space is restricted
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range | 0...250 bar 0...3625 psi 0...25 MPa |
| 0...250 bar | 0...3625 psi |
| Process connection | threaded connection G 1/4 external thread |
Application
| Application | for mobile applications |
|---|---|
| Media | liquids and gases |
| Medium temperature[°C] [°C] | -25...90; (on request: -40...100 °C) |
| Min. burst pressure | 1000 bar 14500 psi 100 MPa |
| 1000 bar | 14500 psi |
| Pressure rating | 400 bar 5800 psi 40 MPa |
| 400 bar | 5800 psi |
| Type of pressure | relative pressure |
Electrical data
| Operating voltage[V] [V] | 16...36 DC |
|---|---|
| Current consumption[mA] [mA] | < 6 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (80 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue voltage output[V] [V] | 0...10 |
| Min. load resistance[Ω] [Ω] | 2000 |
Measuring/setting range
| Measuring range | 0...250 bar 0...3625 psi 0...25 MPa |
|---|---|
| 0...250 bar | 0...3625 psi |
Accuracy / deviations
| Repeatability[% of the span] [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation[% of the span] [% of the span] | < ± 1,0; (incl. drift when overtightened, zero point and span error) |
| Linearity deviation[% of the span] [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS) |
| Hysteresis deviation[% of the span] [% of the span] | < ± 0,2 |
| Long-term stability[% of the span] [% of the span] | < ± 0,1; (per 6 months) |
| Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K] | < ± 0,1; (-25...90 °C) |
| Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K] | < ± 0,1; (-25...90 °C) |
Response times
| Step response time analogue output[ms] [ms] | 8 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD immunity according to the automotive directive 1995/54/EC, 2004/104 EC, 2005/83/EC ISO 11452-2 100 V/m ISO 11452-4 100 mA / severity level 4 ISO 7637-2 severity level 4 radiation of interference CISPR 25 EN 61000-6-1 EN 61000-6-4 |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| immunity | according to the automotive directive 1995/54/EC, 2004/104 EC, 2005/83/EC |
| ISO 11452-2 | 100 V/m |
| ISO 11452-4 | 100 mA / severity level 4 |
| ISO 7637-2 | severity level 4 |
| radiation of interference | CISPR 25 |
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| DIN IEC 68-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000 Hz) |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 1069 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 83 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 22 / L = 65.1 |
| Materials | stainless steel (316L/1.4404); PA |
| Materials (wetted parts) | stainless steel (316L/1.4404); FKM |
| Min. pressure cycles | 50 million |
| Process connection | threaded connection G 1/4 external thread |
| Restrictor element integrated | yes |
Remarks
| Remarks | BFSL = Best Fit Straight Line LS = limit value setting |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
