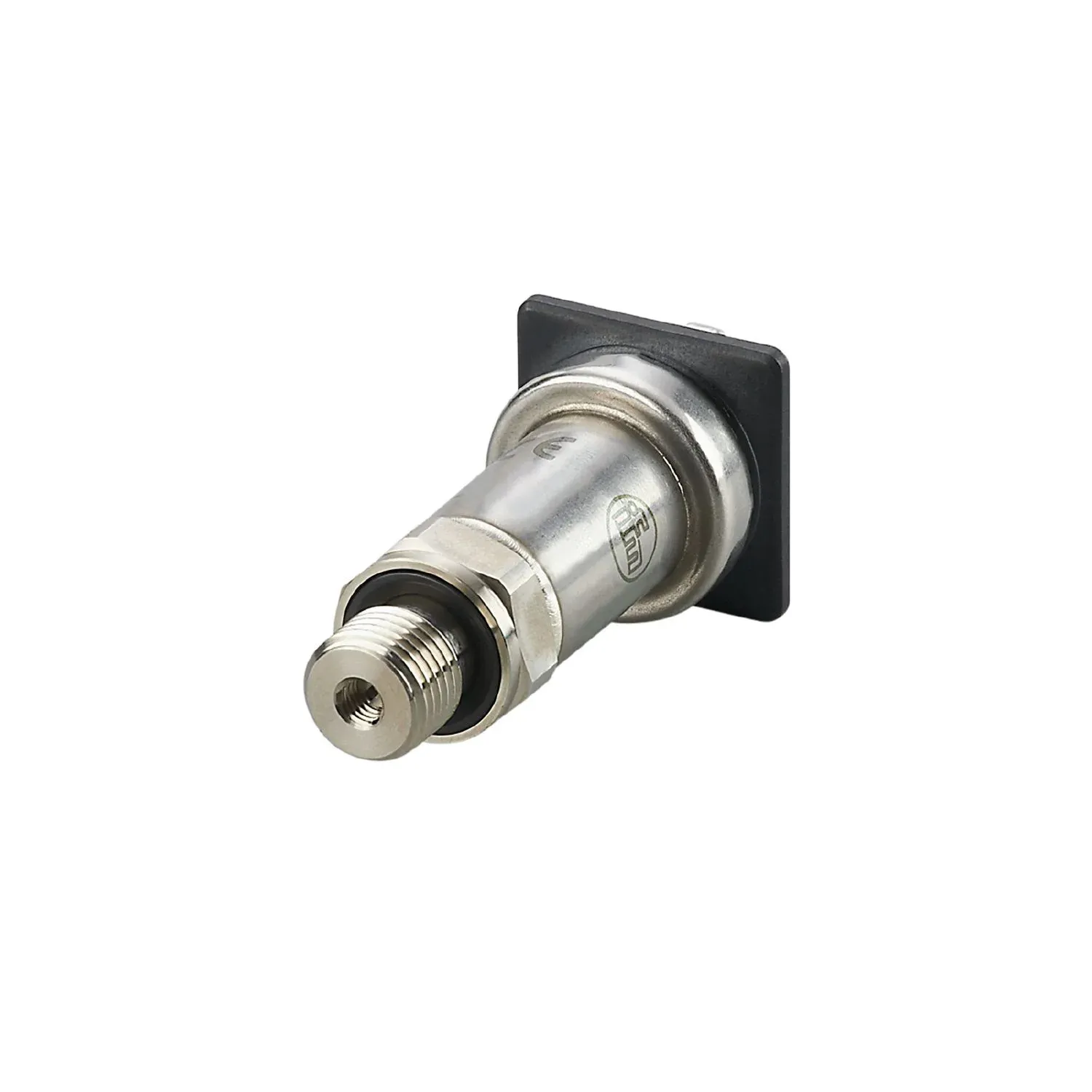

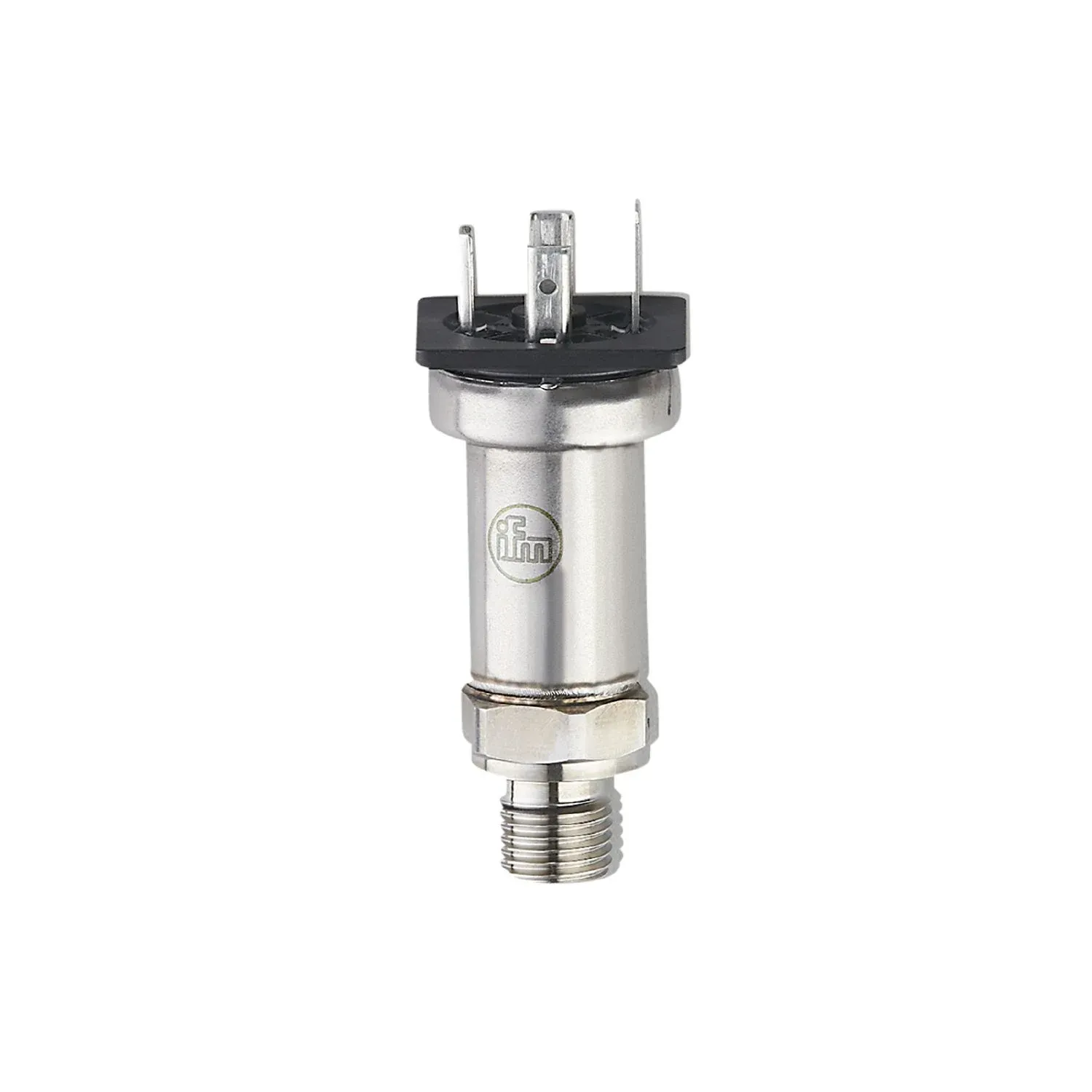

IFM PT5004
PT5004
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of system pressure in industrial and mobile applications
High shock and vibration resistance
Excellent repeatability and low linearity error
Lifespan of more than 60 million pressure cycles
Compact and robust stainless steel housing for use where space is restricted
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range | 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa |
| 0...10 bar | 0...145 psi |
| Process connection | threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
Application
| Measuring element | metallic thin film cell |
|---|---|
| Application | for mobile applications; for industrial applications |
| Media | liquids and gases |
| Medium temperature[°C] [°C] | -40...125 |
| Min. burst pressure | 300 bar 4350 psi 30 MPa |
| 300 bar | 4350 psi |
| Pressure rating | 25 bar 360 psi 2.5 MPa |
| 25 bar | 360 psi |
| Note on pressure rating | static |
| Vacuum resistance | -1000 mbar -0.1 MPa |
| -1000 mbar | -0.1 MPa |
| Type of pressure | relative pressure |
Electrical data
| Operating voltage[V] [V] | 8...36 DC |
|---|---|
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 0.1 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Output signal | analogue signal |
|---|---|
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | (Ub - 8 V) / 21,5 mA ; @8V= 0 Ω ; @12V max. 200 Ω: @24V max. 750 Ω |
| Short-circuit proof | yes |
| Overload protection | yes |
Measuring/setting range
| Measuring range | 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa |
|---|---|
| 0...10 bar | 0...145 psi |
Accuracy / deviations
| Repeatability[% of the span] [% of the span] | < ± 0,05; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation[% of the span] [% of the span] | < ± 0,5; (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis) |
| Linearity deviation[% of the span] [% of the span] | < ± 0,1 (BFSL) / < ± 0,2 (LS) |
| Hysteresis deviation[% of the span] [% of the span] | < ± 0,2 |
| Long-term stability[% of the span] [% of the span] | < ± 0,1; (per 6 months) |
| Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K] | < ± 0,1 (0...80 °C); < ± 0,2 (-40...0 °C / 80...125 °C) |
| Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K] | < ± 0,1 (0...80 °C); < ± 0,2 (-40...0 °C / 80...125 °C) |
Response times
| Step response time analogue output[ms] [ms] | 2 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...100 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67 |
Tests / approvals
| EMC | Compliant with ECE R 10, rev. 5 (E1 compliant) DIN EN ISO 13766-1 : 2018 earthworks and construction machines DIN EN ISO 14982 : 2009 agricultural and forestry machines ISO 11452-2 100 V/m ISO 7637-2 : 2011 pulse 1 Test severity III. function state C ISO 7637-2 : 2011 pulse 2b test severity IV. function state C DIN EN 61326-1 |
|---|---|
| Compliant with ECE R 10, rev. 5 | (E1 compliant) |
| DIN EN ISO 13766-1 : 2018 | earthworks and construction machines |
| DIN EN ISO 14982 : 2009 | agricultural and forestry machines |
| ISO 11452-2 | 100 V/m |
| ISO 7637-2 : 2011 pulse 1 | Test severity III. function state C |
| ISO 7637-2 : 2011 pulse 2b | test severity IV. function state C |
| Shock resistance | DIN EN 60068-2-27 500 g (1 ms) |
| DIN EN 60068-2-27 | 500 g (1 ms) |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 715 |
| UL approval | UL approval no. J078 File number UL E174189 |
| UL approval no. | J078 |
| File number UL | E174189 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 67 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 19 / L = 71 |
| Materials | stainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404); PPS |
| Materials (wetted parts) | stainless steel (630/1.4542/17-4 PH); stainless steel (303/1.4305) |
| Min. pressure cycles | 60 million; (at 1.2 times nominal pressure) |
| Tightening torque[Nm] [Nm] | 25...35; (recommended tightening torque; depends on the lubrication, the seal and the pressure load) |
| Process connection | threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
| Process connection sealing | FKM (DIN EN ISO 1179-2) |
| Restrictor element integrated | yes |
Remarks
| Remarks | BFSL = Best Fit Straight Line LS = limit value setting |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection

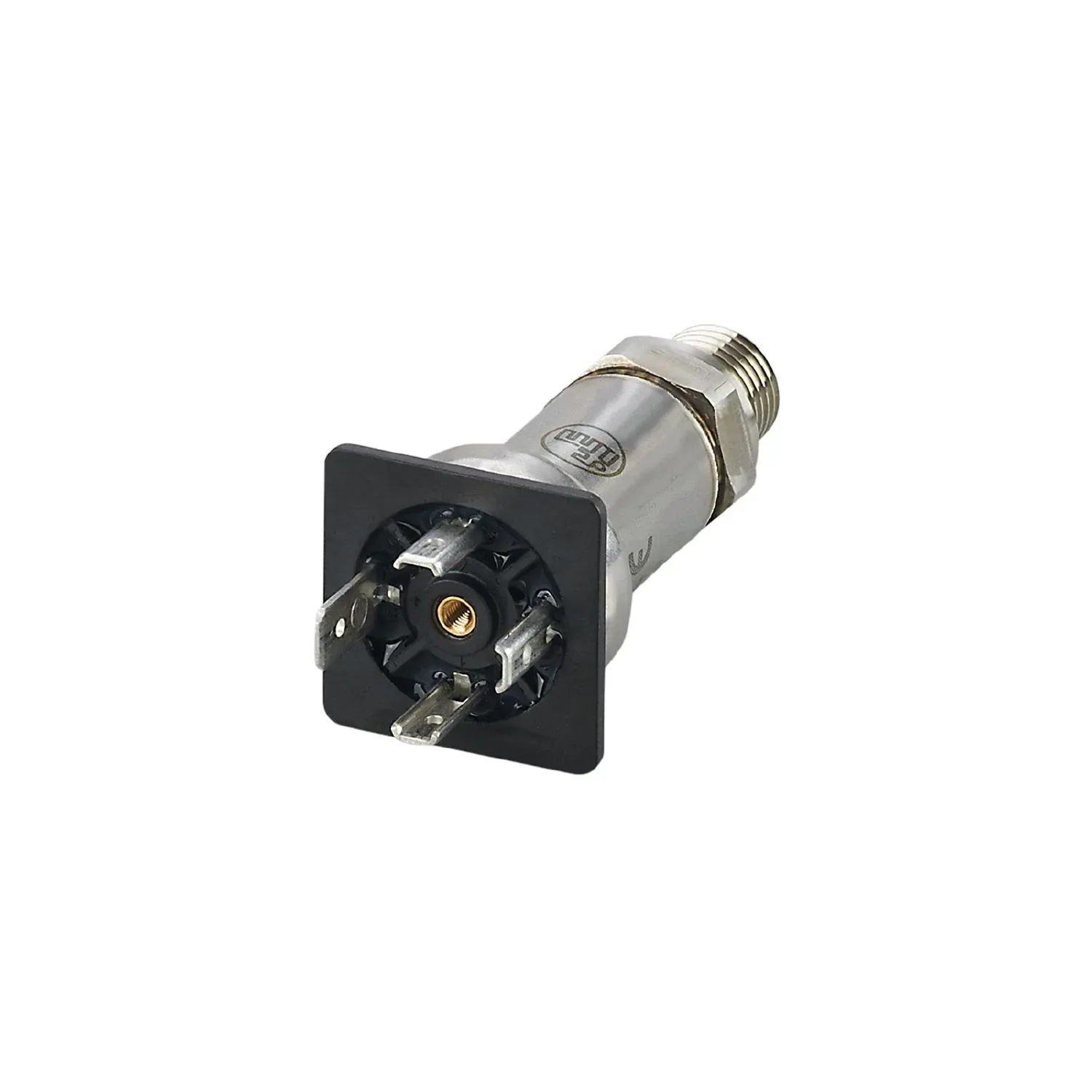

| Connector | 1 x valve plug type A DIN (EN175301-803-A) |
|---|
