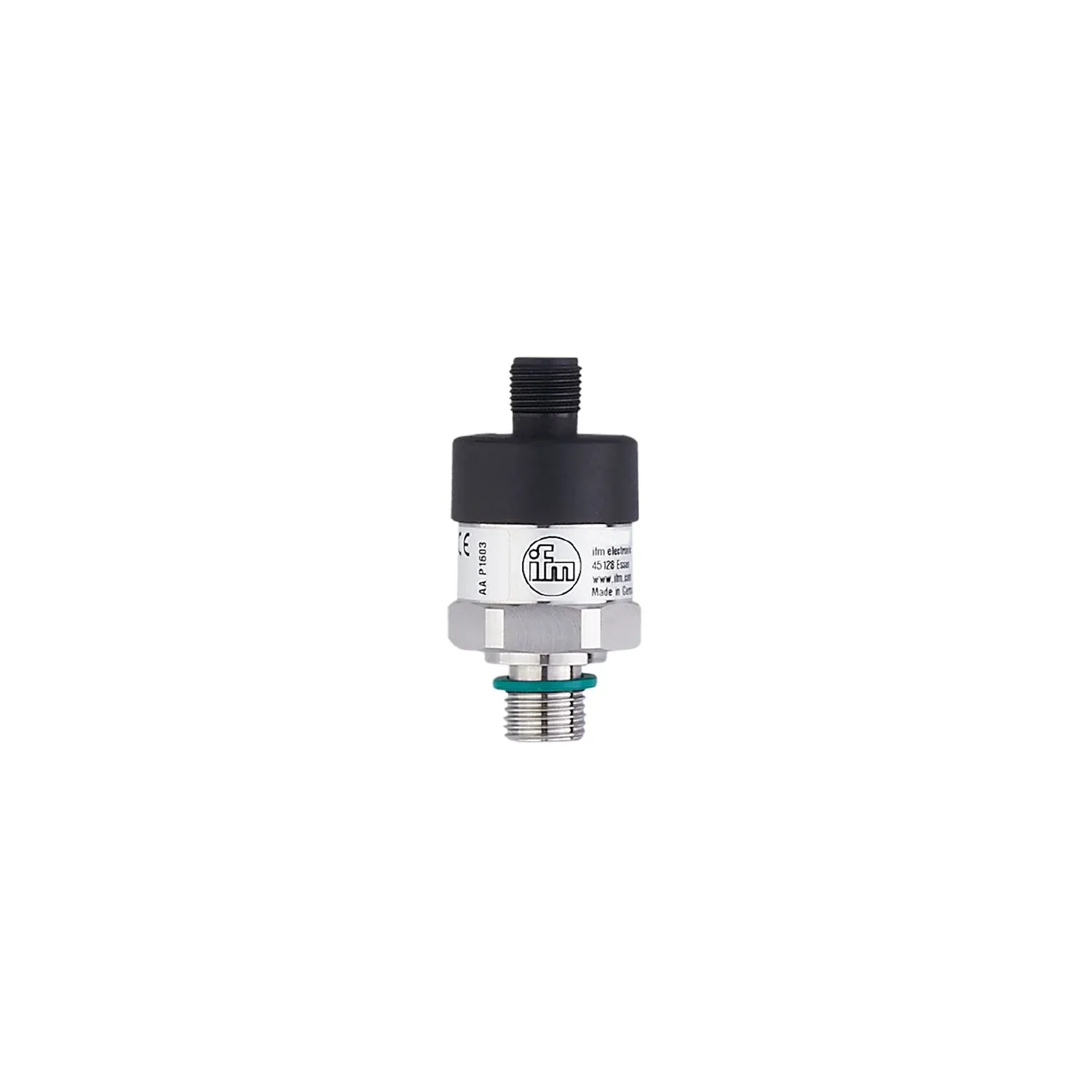

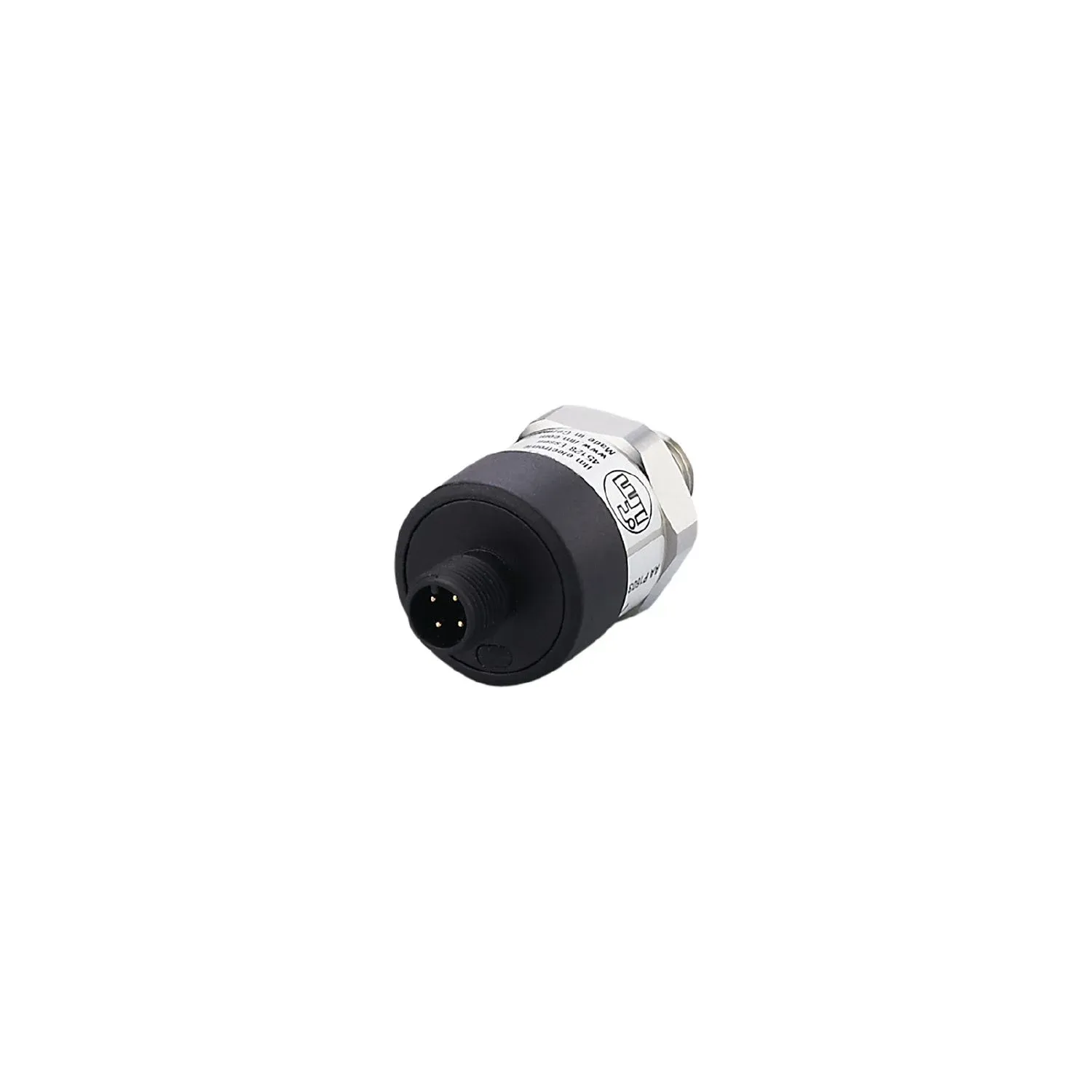

IFM PT0504
PT0504
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise measurement of absolute pressure independent of the surrounding air pressure
For use in applications requiring very precise pressure control
Robust stainless steel housing with high shock and vibration resistance
Compact housing for use where space is restricted
With long-term stability thanks to high repeatability and low linearity error
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range | 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa |
| 0...10 bar | 0...145 psi |
| Process connection | threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
Application
| Application | for industrial applications |
|---|---|
| Media | liquids and gases |
| Medium temperature[°C] [°C] | 0...80 |
| Min. burst pressure | 50 bar 725 psi 5000 kPa 5 MPa |
| 50 bar | 725 psi |
| Pressure rating | 20 bar 290 psi 2000 kPa 2 MPa |
| 20 bar | 290 psi |
| Type of pressure | absolute pressure |
Electrical data
| Operating voltage[V] [V] | 8...30 DC |
|---|---|
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 800; (Ub = 24 V; (Ub - 8 V) / 20 mA) |
| Short-circuit proof | yes |
Measuring/setting range
| Measuring range | 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa |
|---|---|
| 0...10 bar | 0...145 psi |
Accuracy / deviations
| Repeatability[% of the span] [% of the span] | < ± 0,05; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation[% of the span] [% of the span] | < ± 1,0; (incl. zero point and span error, non-linearity, hysteresis) |
| Linearity deviation[% of the span] [% of the span] | < ± 0,5 (BFSL) / < ± 1,0 (LS) |
| Long-term stability[% of the span] [% of the span] | < ± 0,1; (per year) |
| Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K] | < ± 0,2; (0...80 °C) |
| Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K] | < ± 0,2; (0...80 °C) |
Response times
| Step response time analogue output[ms] [ms] | 4 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | 0...80 |
|---|---|
| Storage temperature[°C] [°C] | -20...80 |
| Protection | IP 67 |
Tests / approvals
| EMC | DIN EN 61326-1 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 500 g (1 ms) |
| DIN EN 60068-2-27 | 500 g (1 ms) |
| Vibration resistance | DIN EN 60068-2-6 10 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 10 g (10...2000 Hz) |
| MTTF[years] [years] | 815 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 118.35 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 29 / L = 58.8 |
| Materials | stainless steel (316L/1.4404); HNBR; PA |
| Materials (wetted parts) | stainless steel (316L/1.4404) |
| Min. pressure cycles | 10 million |
| Tightening torque[Nm] [Nm] | 25...35; (recommended tightening torque; depends on the lubrication, the seal and the pressure load) |
| Process connection | threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
| Process connection sealing | NBR (DIN EN ISO 1179-2) |
| Fill fluid for pressure transmission | synthetic oil |
| Restrictor element integrated | no |
Remarks
| Remarks | BFSL = Best Fit Straight Line LS = limit value setting |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
