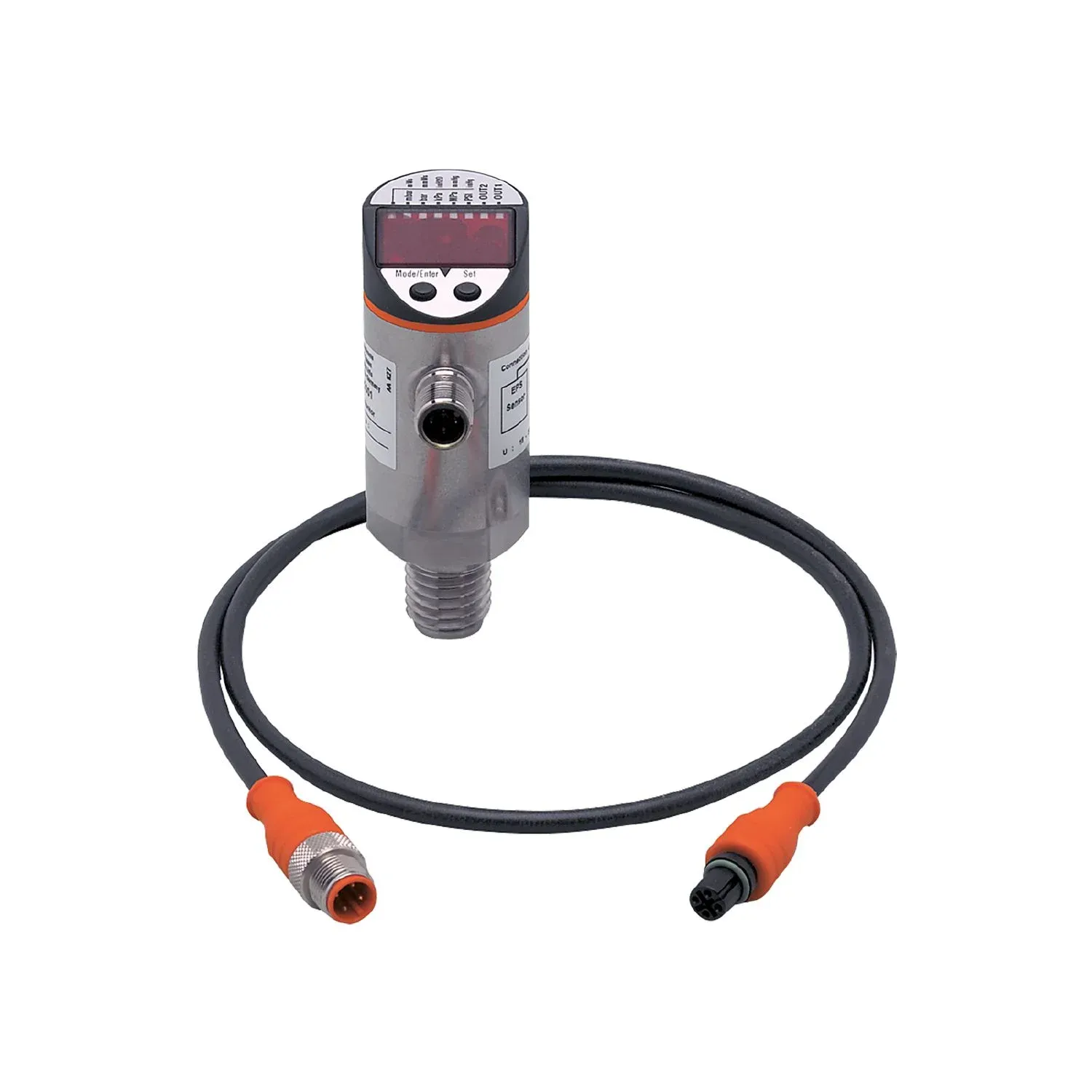

IFM PP2001
PP2001
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For diagnosis and parameter setting of pressure sensors
Automatic recognition of type, measuring range and current parameter set of the sensor
Indication of the current measured value of the sensor in the display
User-friendly sharing of the parameter set of one sensor with other sensors of the same type
Specification
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
Electrical data
| Operating voltage[V] [V] | 18...32 DC |
|---|---|
| Current consumption[mA] [mA] | < 40 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 1.5...10; (depending on the connected sensor) |
Outputs
| Max. voltage drop switching output DC[V] [V] | 2 |
|---|---|
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Response times
| Max. measuring/display cycle[ms] [ms] | 200 |
|---|
Software / programming
| Parameter setting options | depending on the connected sensor |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67; (for unit with screwed-on connectors) |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| DIN IEC 68-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000 Hz) |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 229 |
Mechanical data
| Weight[g] [g] | 333.5 |
|---|---|
| Dimensions[mm] [mm] | 100 x 34 x 48 |
| Materials | stainless steel (316L/1.4404); CO-PC; PBT; FKM |
Displays / operating elements
| Display | Display unit 6 x LED, green switching status 2 x LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit |
|---|---|
| Display unit | 6 x LED, green |
| switching status | 2 x LED, yellow |
| function display | alphanumeric display, 4-digit |
| measured values | alphanumeric display, 4-digit |
Accessories
| Items supplied | jumper cables: 0,8 m, for parameter setting in the offline mode |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; Contacts: gold-plated |
|---|
