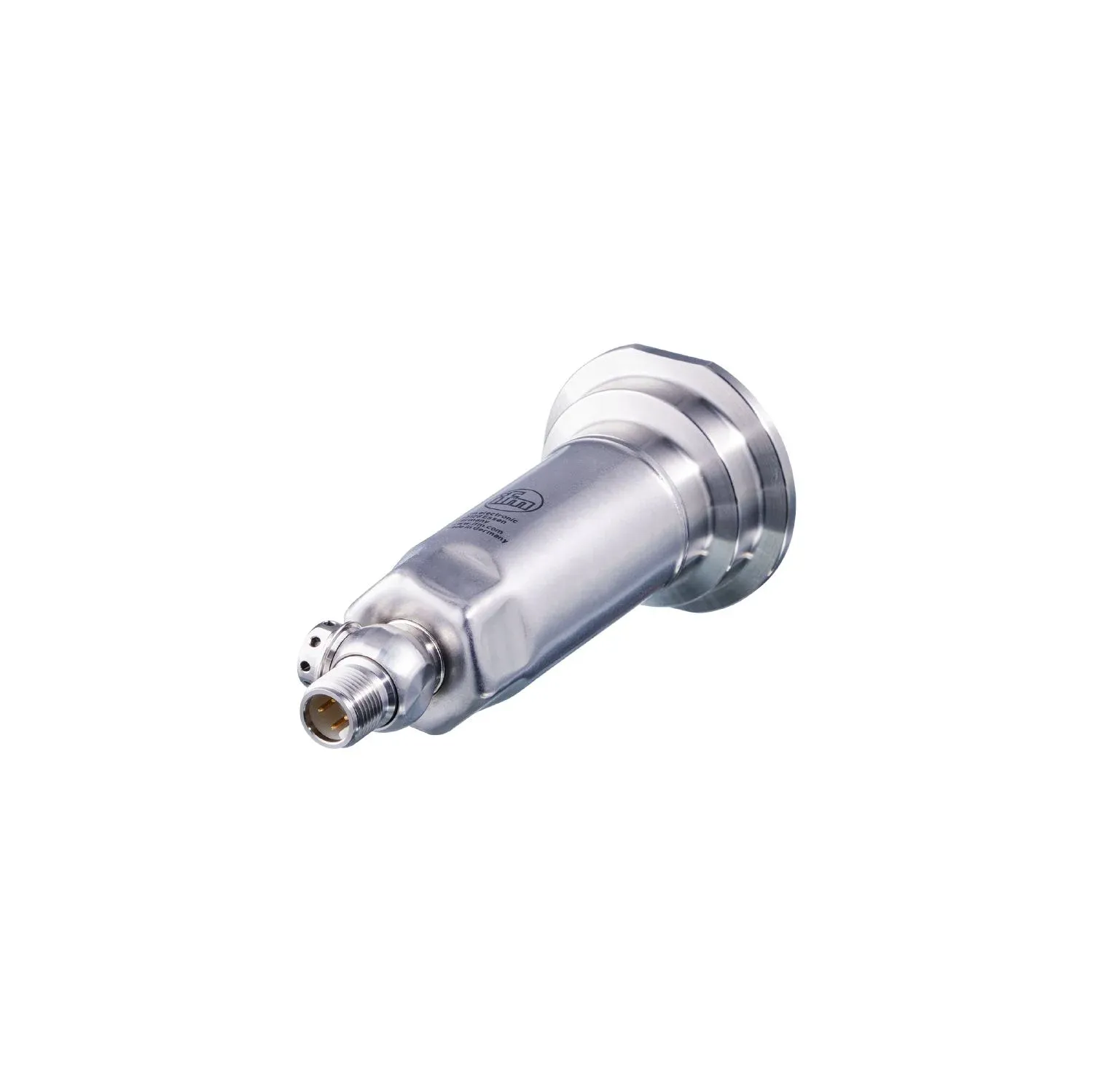

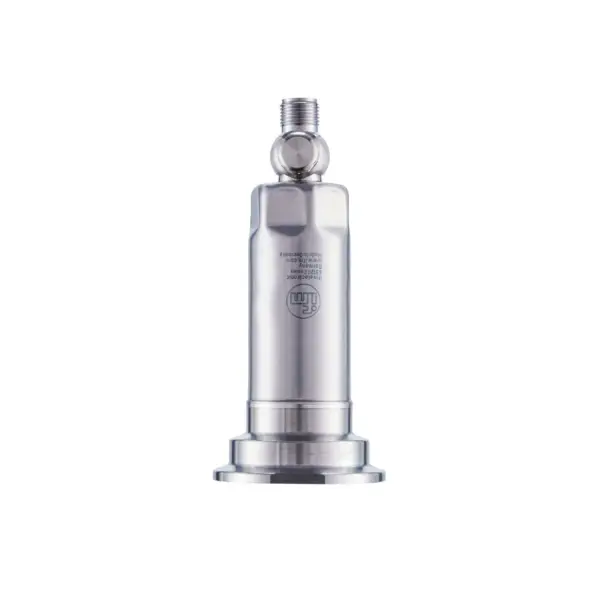

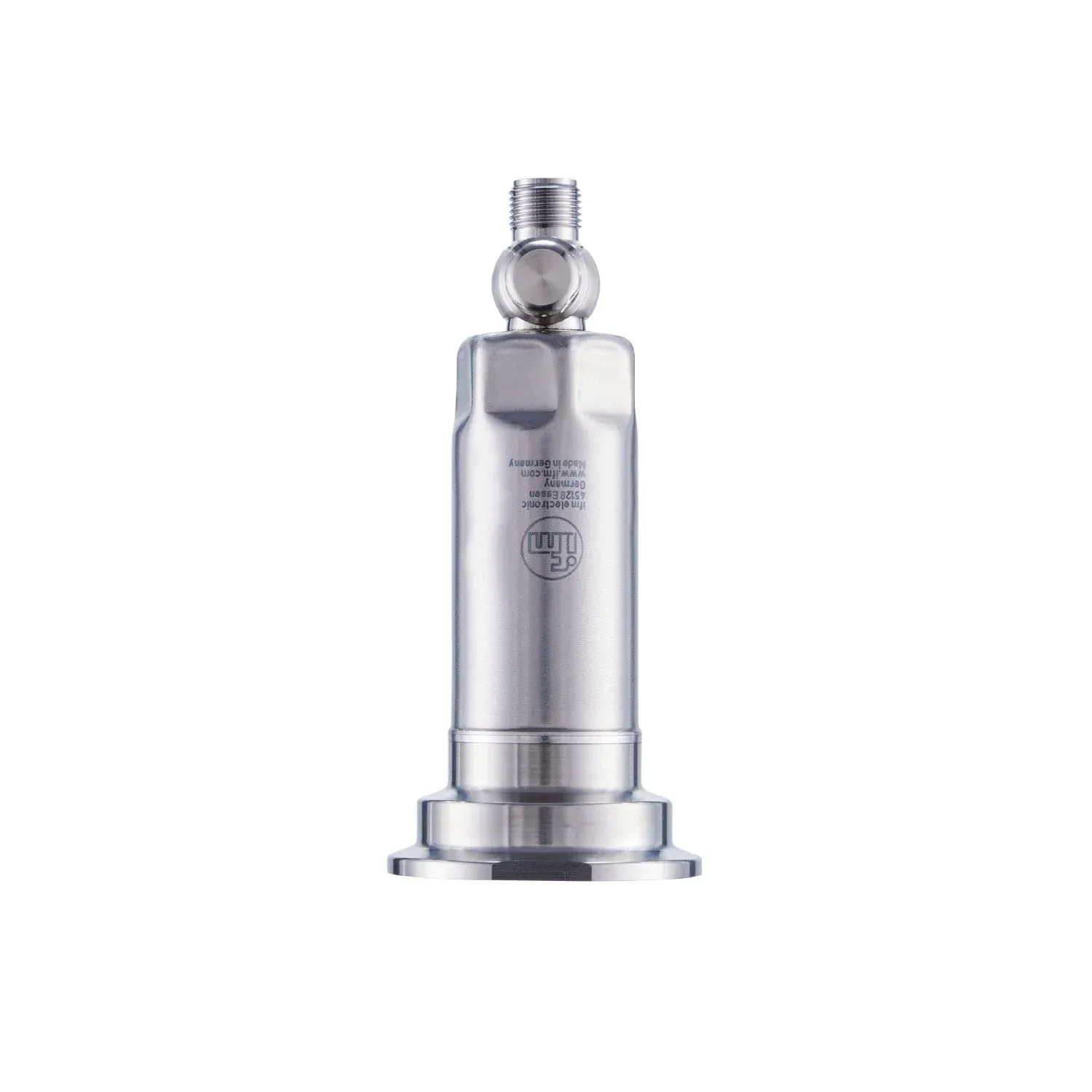

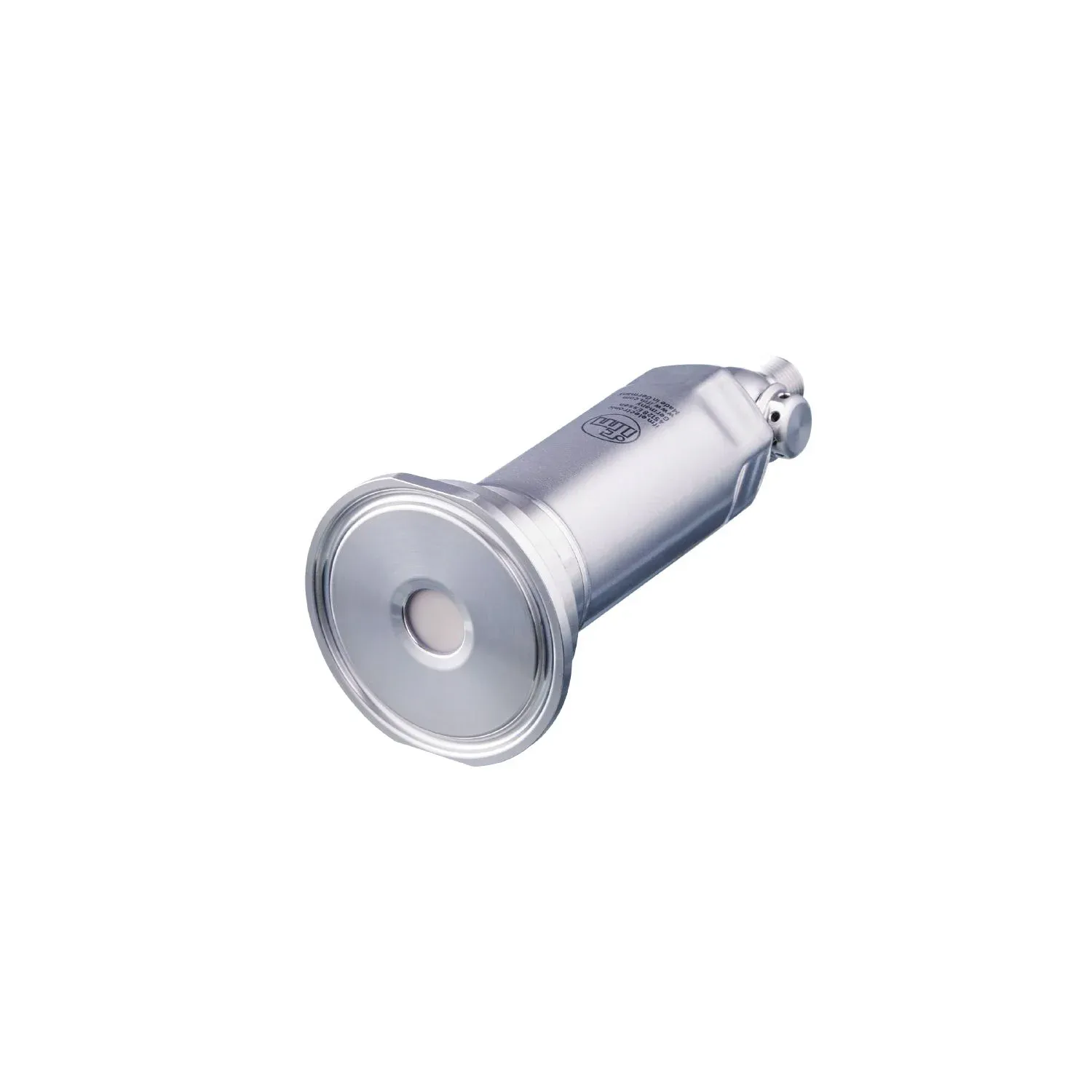

IFM PM1143

PM1143

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Robust stainless steel housing for use in the food and beverage industry
Hygienic, flush design
Resistant to high-pressure cleaning with aggressive cleaning agents
High temperature resistance and high protection rating
Precise analogue output and user-friendly communication via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 1; Number of analogue outputs: 1
Measuring range-1...40 bar
-14.6...580 psi
-0.1...4 MPa
-1...40 bar-14.6...580 psi
Process connectionClamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)

Application

Special featureGold-plated contacts
Measuring elementceramic-capacitive pressure measuring cell
Temperature monitoringno
Applicationflush mountable for the food and beverage industry
Mediaviscous media and liquids with suspended particles; liquids and gases
Conditionally suitable foruse in gases at pressures > 25 bar only on request
Medium temperature[°C] [°C]-25...150
Min. burst pressure150 bar
2175 psi
15 MPa
150 bar2175 psi
Pressure rating125 bar
1800 psi
12.5 MPa
125 bar1800 psi
Note on pressure ratingtake into account the pressure resistance of the bracket and the seal used for clamp connection
Vacuum resistance[mbar] [mbar]-1000
Type of pressurerelative pressure; vacuum
No dead spaceyes
MAWP for applications according to CRN40 bar
4 MPa
40 bar4 MPa

Electrical data

Operating voltage[V] [V]18...30 DC
Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Integrated watchdogyes
Current consumption[mA] [mA]< 45
Power-on delay time[s] [s]0.5

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs2
Output signalanalogue signal; IO-Link; (configurable)
Number of digital outputs1; (IO-Link)
Number of analogue outputs1
Analogue current output[mA] [mA]4...20; (scalable)
Max. load[Ω] [Ω]700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
Short-circuit proofyes
Overload protectionyes

Measuring/setting range

Measuring range-1...40 bar
-14.6...580 psi
-0.1...4 MPa
-1...40 bar-14.6...580 psi
Analogue start point-1...32 bar
-14.6...464.2 psi
-0.1...3.2 MPa
-1...32 bar-14.6...464.2 psi
Analogue end point7...40 bar
101.4...580.2 psi
0.7...4 MPa
7...40 bar101.4...580.2 psi
In steps of0.02 bar
0.2 psi
0.002 MPa
0.02 bar0.2 psi
Factory settingASP = 0.0 bar
AEP = 40.0 bar
ASP = 0.0 barAEP = 40.0 bar

Accuracy / deviations

Repeatability[% of the span] [% of the span]< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation[% of the span] [% of the span]< ± 0,2; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1)
Linearity deviation[% of the span] [% of the span]< ± 0,15; (Turn down 1:1)
Hysteresis deviation[% of the span] [% of the span]< ± 0,15; (Turn down 1:1)
Long-term stability[% of the span] [% of the span]< ± 0,1; (Turn down 1:1; per year)
Total deviation over temperature range-25...15 °C
Characteristics deviation ± 0,05 % of the span / 10 K
15...80 °C
Characteristics deviation
80...150 °C
Characteristics deviation ± 0,1 % of the span / 10 K
-25...15 °CCharacteristics deviation ± 0,05 % of the span / 10 K
15...80 °CCharacteristics deviation
80...150 °CCharacteristics deviation ± 0,1 % of the span / 10 K
Notes on the accuracy / deviationfor further details see section Diagrams and graphs

Response times

Damping for the analogue output dAA[s] [s]0...4
Step response time analogue output[ms] [ms]7

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesSmart Sensor - SSP 3.1
Measuring Sensor
Common - I&D
Identification and Diagnosis
Smart Sensor - SSP 3.1Measuring Sensor
Common - I&DIdentification and Diagnosis
SIO modeno
Required master port typeA
Process data analogue3
Min. process cycle time[ms] [ms]3.2
IO-Link resolution pressure[bar] [bar]0.01
IO-Link process data (cyclical)pressure
16
device status
4
pressure16
device status4
IO-Link functions (acyclical)application specific tag; internal temperature
Supported DeviceIDsdefault
1641
default1641

Operating conditions

Ambient temperature[°C] [°C]-25...80
Storage temperature[°C] [°C]-40...100
ProtectionIP 67; IP 68; IP 69K

Tests / approvals

EMCDIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistanceDIN EN 60068-2-27
50 g (11 ms)
DIN EN 60068-2-2750 g (11 ms)
Vibration resistanceDIN EN 60068-2-6
20 g (10...2000 Hz)
DIN EN 60068-2-620 g (10...2000 Hz)
MTTF[years] [years]320
Note on approvalfactory certificate available as download at www.factory-certificate.ifm
UL approvalUL approval no.
J054
File number UL
E174189
UL approval no.J054
File number ULE174189

Mechanical data

Weight[g] [g]391.7
Housingcylindrical
Dimensions[mm] [mm]Ø 30.2 / L = 111.4
Materialsstainless steel (316L/1.4404); PBT
Materials (wetted parts)ceramics (99.9 % Al2O3); stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; PTFE
Min. pressure cycles100 million
Process connectionClamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)

Remarks

Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
