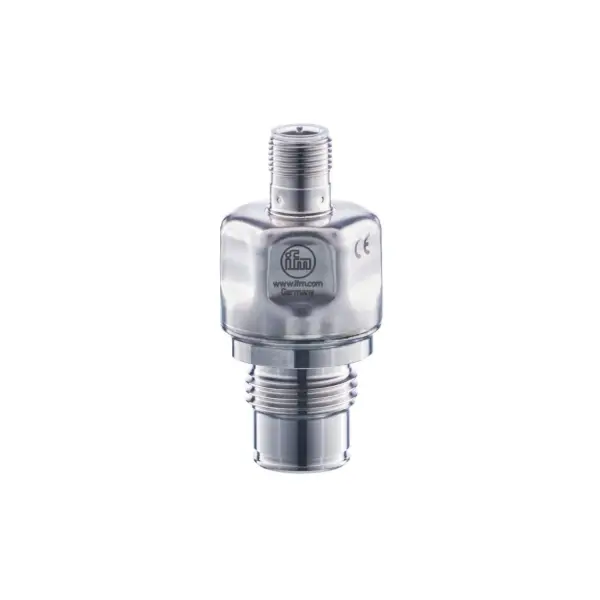

IFM PL1514
PL1514
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of system pressure in industrial and mobile applications
High shock and vibration resistance
Excellent repeatability and low linearity error
Compact and robust stainless steel housing for use where space is restricted
Integrated temperature measurement via IO-Link
Precise analogue output and user-friendly communication via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|---|
| Measuring range | -1...16 bar -14.5...232 psi -0.1...1.6 MPa |
| -1...16 bar | -14.5...232 psi |

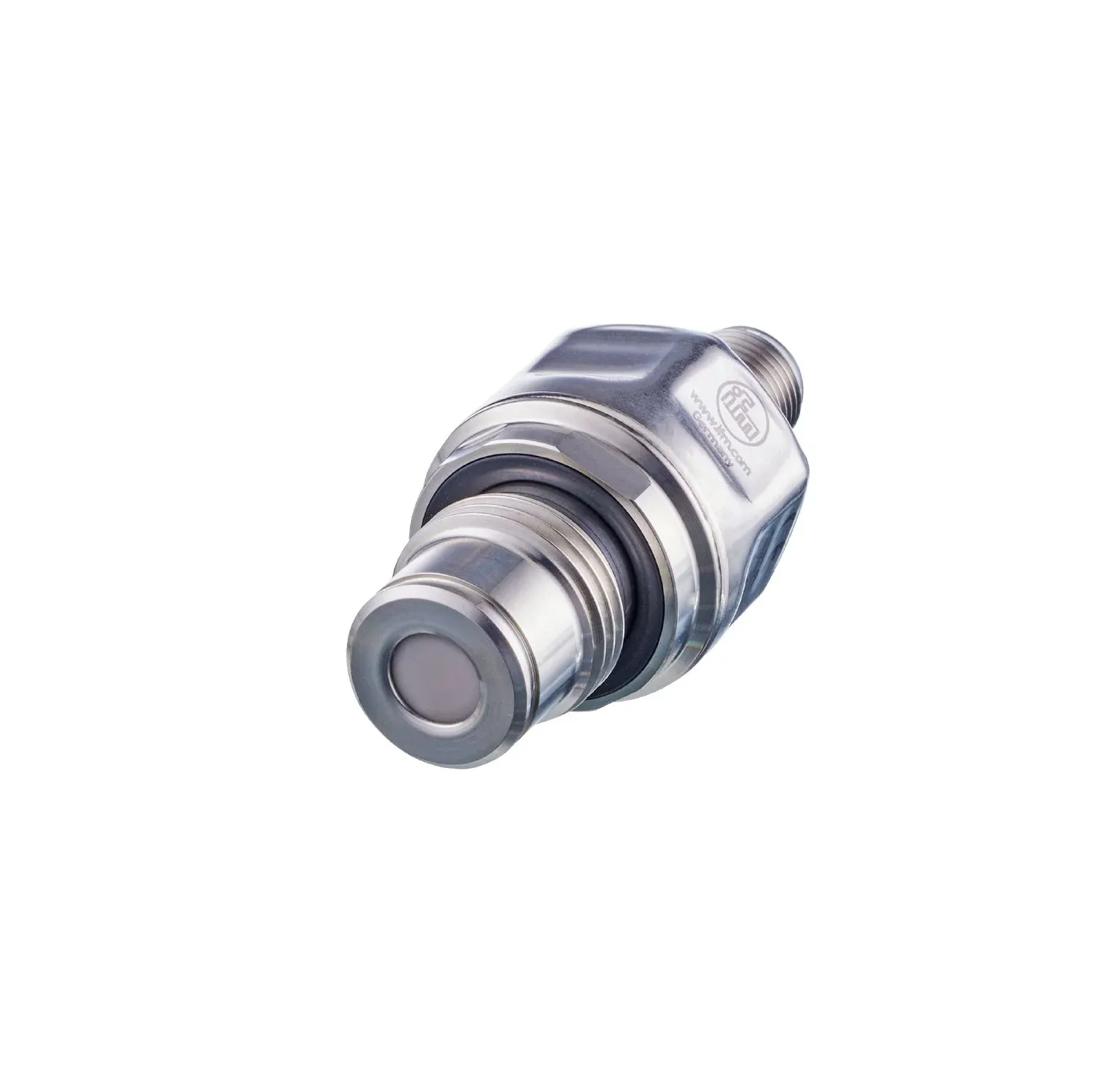

| Process connection | threaded connection G 1/2 external thread |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | ceramic-capacitive pressure measuring cell |
| Temperature monitoring | yes |
| Application | flush mountable for industrial applications; for industrial applications |
| Media | viscous media and liquids with suspended particles; Liquids; other media on request |
| Medium temperature[°C] [°C] | -25...110; (flush mount zero-leak using metal-to-metal seal. for permissible temperatures of other sealing versions, see sealing materials under “Accessories”) |
| Min. burst pressure | 250 bar 3625 psi 25 MPa |
| 250 bar | 3625 psi |
| Pressure rating | 100 bar 1450 psi 10 MPa |
| 100 bar | 1450 psi |
| Vacuum resistance[mbar] [mbar] | -1000 |
| Type of pressure | relative pressure; vacuum |
| No dead space | yes |
Electrical data
| Operating voltage[V] [V] | 9.6...30 DC |
|---|---|
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Integrated watchdog | yes |
| Current consumption[mA] [mA] | < 30 |
| Power-on delay time[s] [s] | < 0.5 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | analogue signal; IO-Link |
| Number of digital outputs | 1; (IO-Link) |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20; (scalable; 1:5) |
| Max. load[Ω] [Ω] | (Ub - 9,6 V) / 21,5 mA; 670 Ω (Ub = 24 V) |
| Short-circuit proof | yes |
| Overload protection | yes |
Measuring/setting range
| Measuring range | -25...110 °C -13...230 °F |
|---|---|
| -1...16 bar | -14.5...232 psi |
| Analogue start point | -1...14 bar -14.5...203.1 psi -0.1...1.4 MPa |
| -1...14 bar | -14.5...203.1 psi |
| Analogue end point | 1...16 bar 14.5...232.1 psi 0.1...1.6 MPa |
| 1...16 bar | 14.5...232.1 psi |
| In steps of | 0.002 bar 0.2 psi 0.0002 MPa |
| 0.002 bar | 0.2 psi |
| Factory setting | ASP = 0.0 bar AEP = 16.0 bar ASP = 0.0 psi AEP = 232.1 psi ASP = 0.0 MPa AEP = 1.6 MPa |
| ASP = 0.0 bar | AEP = 16.0 bar |
| ASP = 0.0 psi | AEP = 232.1 psi |
| ASP = 0.0 MPa | AEP = 1.6 MPa |
| -25...110 °C | -13...230 °F |
Accuracy / deviations
| Repeatability[% of the span] [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
|---|---|
| Characteristics deviation[% of the span] [% of the span] | < ± 0,5; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1) |
| Linearity deviation[% of the span] [% of the span] | < ± 0,15; (Turn down 1:1) |
| Zero-point stabilisation[% of the span] [% of the span] | 0,15; (IO-Link; analogue output; (see operating instructions zero-point behaviour)) |
| Hysteresis deviation[% of the span] [% of the span] | < ± 0,15; (Turn down 1:1) |
| Long-term stability[% of the span] [% of the span] | < ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K] | < ± 0,1 (-25...85 °C) < ± 0,3 (85...110 °C) |
| Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K] | < ± 0,1 (-25...85 °C) < ± 0,3 (85...110 °C) |
| Accuracy[K] [K] | ± 2.5 K + (0.045 x (ambient temperature - medium temperature)) |
Response times
| Damping process value dAP[s] [s] | 0...99.99 |
|---|---|
| Damping for the analogue output dAA[s] [s] | 0...99.99 |
| Step response time analogue output[ms] [ms] | 3 |
| Dynamic response T05 / T09[s] [s] | < 10 / <45; (DIN EN 60751 water; > 0,9 m/s) |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis Function Measurement data, standard resolution |
| Common - I&D | Identification and Diagnosis |
| Function | Measurement data, standard resolution |
| SIO mode | no |
| Required master port type | A; (when pin 2 not connected: B) |
| Min. process cycle time[ms] [ms] | 3.5 |
| IO-Link resolution pressure[bar] [bar] | 0.002 |
| IO-Link resolution temperature[K] [K] | 0.2 |
| IO-Link process data (cyclical) | pressure 16 temperature 16 device status 4 |
| pressure | 16 |
| temperature | 16 |
| device status | 4 |
| IO-Link functions (acyclical) | application specific tag; internal temperature |
| Supported DeviceIDs | default 1490 |
| default | 1490 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67; IP 68; IP 69 |
Tests / approvals
| EMC | DIN EN 61326-1 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 427 |
| Embedded software included | yes |
| UL approval | UL approval no. J050 File number UL E174189 |
| UL approval no. | J050 |
| File number UL | E174189 |
| Embedded Software entwickelt nach | ISO 13849-1 : 2015 (clause 4.6.2) |
Mechanical data
| Weight[g] [g] | 114 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 30 / L = 63 |
| Materials | stainless steel (316L/1.4435); stainless steel (316L/1.4404); PA; PTFE; FKM |
| Materials (wetted parts) | stainless steel (316L/1.4435); Al2O3 (ceramics) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; PTFE; (FKM for sealing with seal DIN EN ISO 1179-2, see operating instructions) |
| Min. pressure cycles | 100 million |
| Tightening torque[Nm] [Nm] | 25 |
| Process connection | threaded connection G 1/2 external thread |
Displays / operating elements
| Display | operating status 2 LED, green |
|---|---|
| operating status | 2 LED, green |
Accessories
| Items supplied | Gasket: G1/2, FKM DIN EN ISO1179-2 (-15...110°C), E30492 |
|---|---|
| Accessories (optional) | Gasket: G1/2, FKM DIN EN ISO1179-2 (-15...110°C), E30492 Gasket: G1/2, EPDM DIN EN ISO1179-2 (-25...110°C), E30451 Gasket: G1/2, FFKM DIN EN ISO1179-2 (-5...110°C), E30513 O-ring: 16,4 x 1, FKM (-15...110°C), E30510 O-ring: 16,4 x 1, EPDM (-25...110°C), E30511 O-ring: 16,4 x 1, FFKM (-5...110°C), E30512 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection

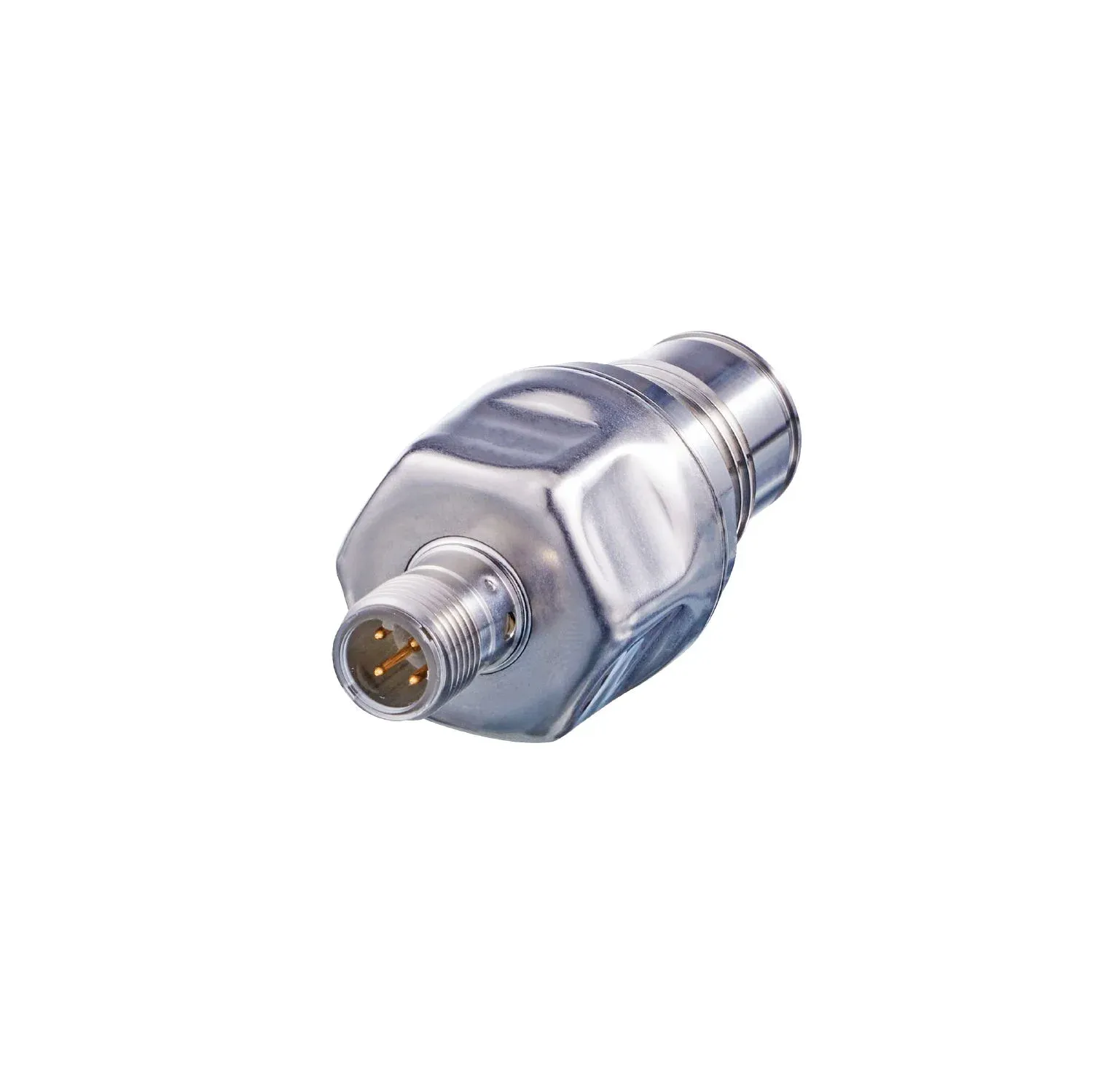

| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
