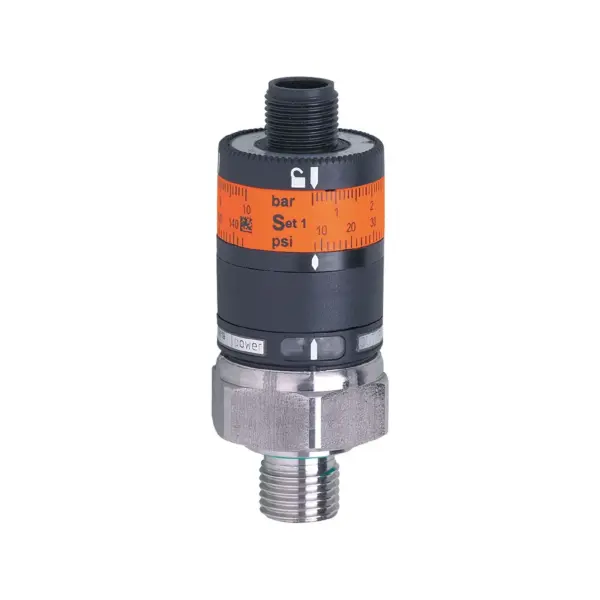

IFM PK5524
PK5524
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Simple switch point setting via setting ring
Stainless steel measuring cell, e.g. for freons in refrigerating technology
Mechanical locking prevents inadvertent switch point manipulation
High burst pressure
For use in hydraulic and pneumatic applications
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|---|
| Measuring range | 0...10 bar 0...145 psi |
| 0...10 bar | 0...145 psi |
| Process connection | threaded connection G 1/4 external thread internal thread:M5 |
Application
| Application | for industrial applications |
|---|---|
| Media | liquids and gases |
| Medium temperature[°C] [°C] | -25...80 |
| Min. burst pressure | 300 bar 4350 psi 30 MPa |
| 300 bar | 4350 psi |
| Pressure rating | 25 bar 362 psi 2.5 MPa |
| 25 bar | 362 psi |
| Type of pressure | relative pressure |
Electrical data
| Operating voltage[V] [V] | 9.6...32 DC |
|---|---|
| Current consumption[mA] [mA] | < 25 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 500 |
| Switching frequency DC[Hz] [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range | 0...10 bar 0...145 psi |
|---|---|
| 0...10 bar | 0...145 psi |
| Set point SP | 0.5...10 bar 7.5...145 psi |
| 0.5...10 bar | 7.5...145 psi |
| Hysteresis | 0.2 bar 2.9 psi |
| 0.2 bar | 2.9 psi |
Accuracy / deviations
| Switch point accuracy[% of the final value] [% of the final value] | < ± 2,5; (Setting accuracy) |
|---|---|
| Repeatability[% of the final value] [% of the final value] | < ± 0,5; (with temperature fluctuations < 10 K) |
| Characteristics deviation[% of the final value] [% of the final value] | < ± 1,5 (BFSL) / < ± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Temperature drift per 10 K | < ± 0.5 |
Software / programming
| Adjustment of the switch point | setting ring |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67 |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| DIN IEC 68-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000 Hz) |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 576 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 92.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 27 / L = 71.6 |
| Materials | PBT; PC; FKM; stainless steel (316L/1.4404) |
| Materials (wetted parts) | stainless steel (316L/1.4404); FKM |
| Min. pressure cycles | 50 million |
| Tightening torque[Nm] [Nm] | 25 |
| Process connection | threaded connection G 1/4 external thread internal thread:M5 |
| Restrictor element integrated | no (can be retrofitted) |
Displays / operating elements
| Display | operation LED, green switching status LED, yellow |
|---|---|
| operation | LED, green |
| switching status | LED, yellow |
| With scale | yes |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
