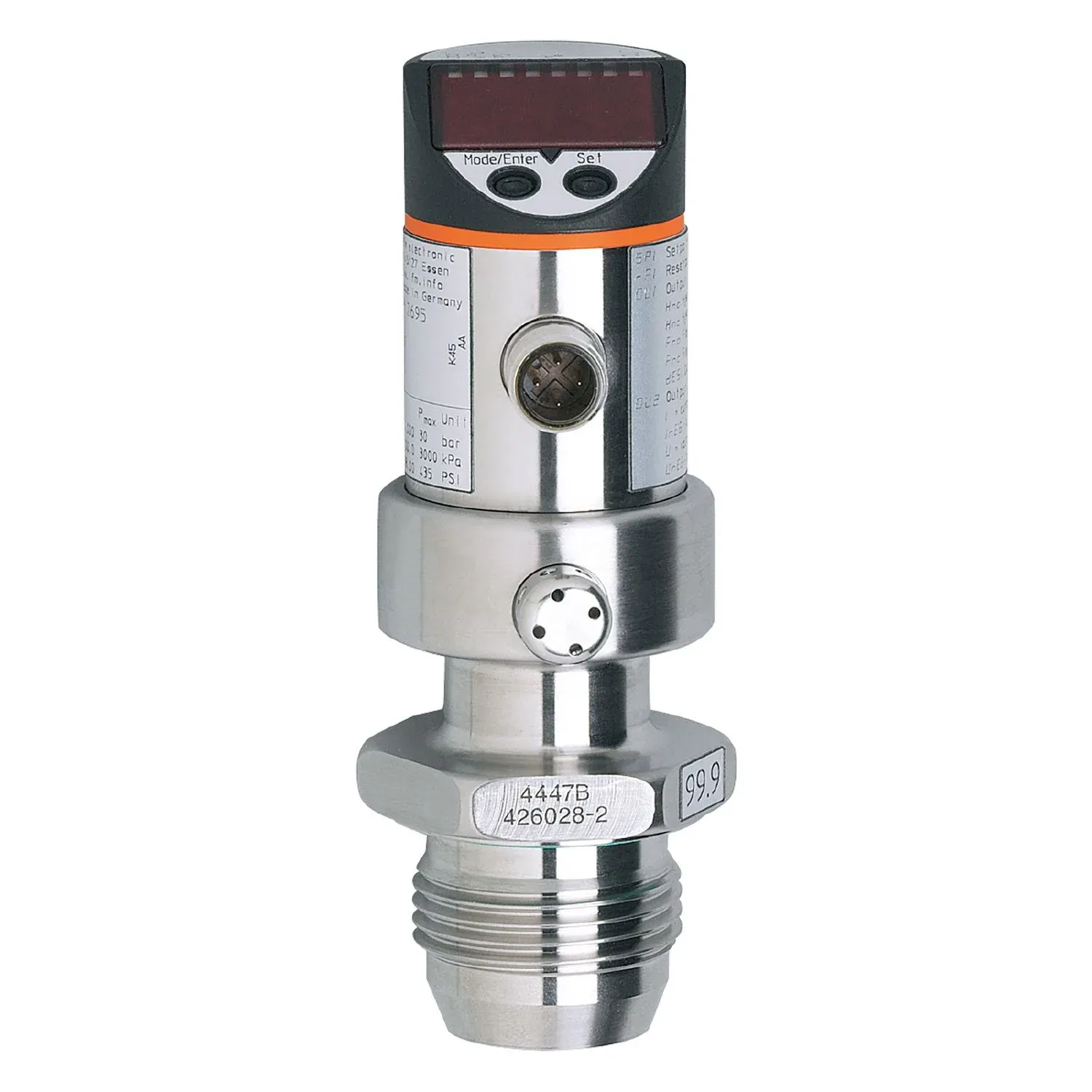

IFM PIM694

PIM694

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Two functions in one unit: Pump monitoring and pressure detection
Reliable diagnosis of disturbances in the suction area and detection of cavitation
Detection of outgassing liquids or trapped air in the pump
Independent system-pressure monitoring with second switching output
Pump control via analogue output

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range-1...10 bar
-14.5...145 psi
-0.1...1 MPa
-1...10 bar-14.5...145 psi
Process connectionthreaded connection G 1 external thread sealing cone

Application

Special featureGold-plated contacts
Applicationflush mountable for the food and beverage industry
Installationfreely rotatable housing 350°
Mediaviscous media and liquids with suspended particles; liquids and gases
Medium temperature[°C] [°C]-25...125; (145 max. 1h)
Min. burst pressure150 bar
2175 psi
15 MPa
150 bar2175 psi
Pressure rating50 bar
725 psi
5 MPa
50 bar725 psi
Type of pressurerelative pressure; vacuum
No dead spaceyes

Electrical data

Operating voltage[V] [V]18...32 DC
Current consumption[mA] [mA]< 50
Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]0.2
Integrated watchdogyes

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; (configurable)
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]250
Switching frequency DC[Hz] [Hz]350
Notes on switching frequency[Hz] [Hz]OUT2
Number of analogue outputs1
Analogue current output[mA] [mA]4...20, invertible; (scalable)
Max. load[Ω] [Ω](Ub - 10 V) / 20 mA
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range-1...10 bar
-14.5...145 psi
-0.1...1 MPa
-1...10 bar-14.5...145 psi
Set point SP-0.98...10 bar
-14.2...145 psi
-0.098...1 MPa
-0.98...10 bar-14.2...145 psi
Reset point rP-1...9.98 bar
-14.5...144.7 psi
-0.1...0.998 MPa
-1...9.98 bar-14.5...144.7 psi
Analogue start point-1...7.25 bar
-14.5...105.1 psi
-0.1...0.725 MPa
-1...7.25 bar-14.5...105.1 psi
Analogue end point1.5...10 bar
21.8...145 psi
0.15...1 MPa
1.5...10 bar21.8...145 psi
In steps of0.01 bar
0.1 psi
0.001 MPa
0.01 bar0.1 psi
Factory settingOU1 = Fnc
OU2 = I
ASP = 0.00 bar
AEP = 10.00 bar

Accuracy / deviations

Switch point accuracy[% of the span] [% of the span]< ± 0,2; (Turn down 1:1)
Repeatability[% of the span] [% of the span]< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation[% of the span] [% of the span]< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation[% of the span] [% of the span]< ± 0,15; (Turn down 1:1)
Hysteresis deviation[% of the span] [% of the span]< ± 0,15; (Turn down 1:1)
Long-term stability[% of the span] [% of the span]< ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K]< ± 0,15; (0...70 °C)
Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K]< ± 0,1; (0...70 °C)

Response times

Response time[ms] [ms]< 2.5
Damping process value dAP[s] [s]0...10
Damping for the analogue output dAA[s] [s]0...10
Step response time analogue output[ms] [ms]0.2

Software / programming

Parameter setting optionszero point; span

Operating conditions

Ambient temperature[°C] [°C]-25...80
Storage temperature[°C] [°C]-40...100
ProtectionIP 67; IP 69K

Tests / approvals

EMCEN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5/1 kV
EN 61000-4-6 HF conducted
10 V
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-5 Surge0,5/1 kV
EN 61000-4-6 HF conducted10 V
Shock resistanceDIN IEC 68-2-27
50 g (11 ms)
DIN IEC 68-2-2750 g (11 ms)
Vibration resistanceDIN IEC 68-2-6
20 g (10...2000 Hz)
DIN IEC 68-2-620 g (10...2000 Hz)
MTTF[years] [years]188

Mechanical data

Weight[g] [g]455.5
Housingcylindrical
Dimensions[mm] [mm]Ø 34 / L = 119
Materialsstainless steel (316L/1.4404); PC; PBT; PEI; FKM; PTFE
Materials (wetted parts)ceramics (99.9 % Al2O3); stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; PTFE
Min. pressure cycles100 million
Process connectionthreaded connection G 1 external thread sealing cone

Displays / operating elements

DisplayDisplay unit
4 x LED, green
switching status
2 x LED, yellow
function display
alphanumeric display, 4-digit
measured values
alphanumeric display, 4-digit
Display unit4 x LED, green
switching status2 x LED, yellow
function displayalphanumeric display, 4-digit
measured valuesalphanumeric display, 4-digit

Remarks

Remarkspump diagnosis for pumps with constant rotational speed (+/- 10 % deviation of the taught rotational speed)
speed range 40...3000 U/min
minimum pressure for pump diagnosis 0,5 bar
The 3-A qualification is only valid if adapters with 3-A qualification are used for installation.
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
