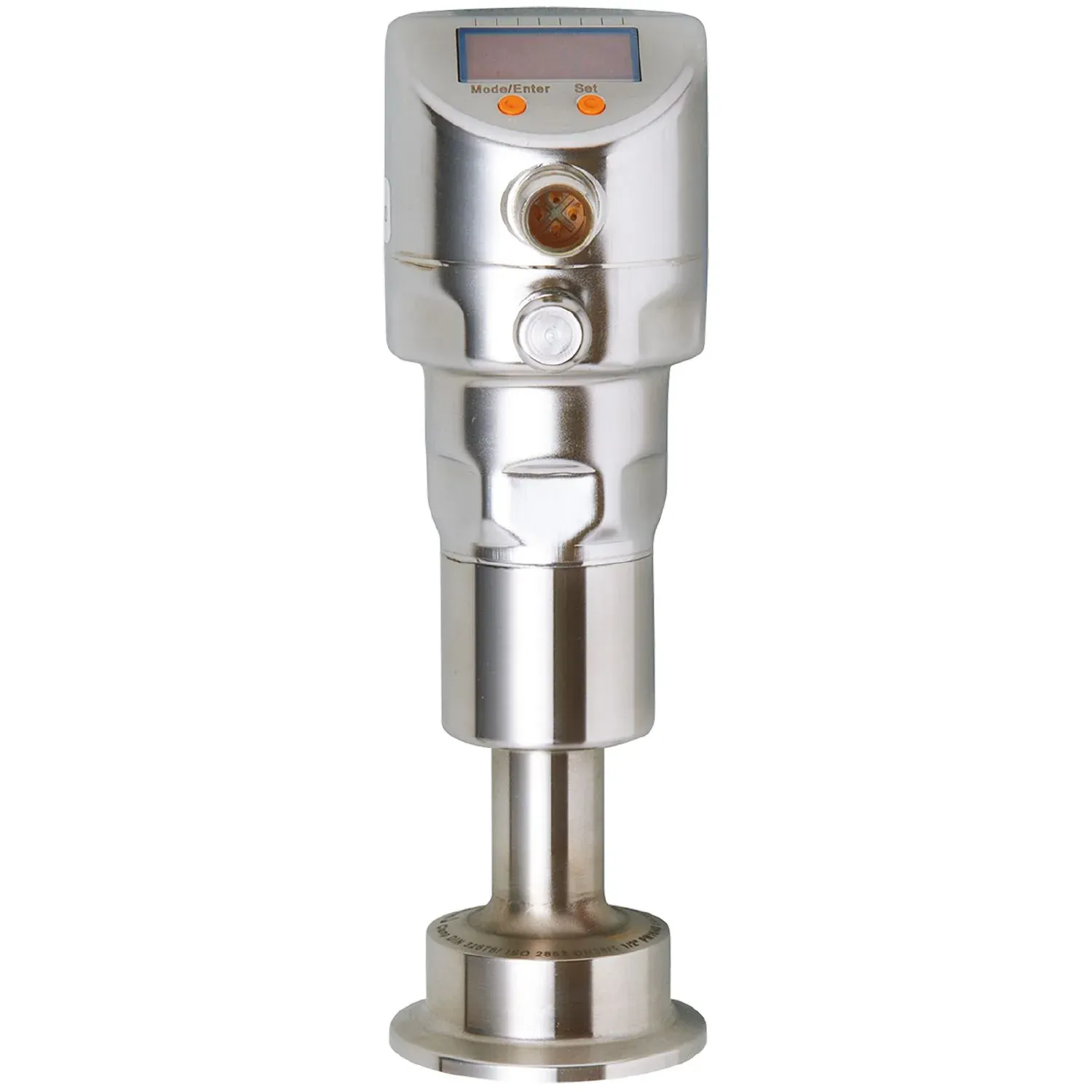

IFM PI2206 - Image 1

Fast delivery within 72 Hours

IFM PI2206

PI2206

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

For use in high temperatures in the food and beverage industry
Robust stainless steel housing with hygienic front-flush design
With two-wire and three-wire connection technology
Reduced wiring complexity when operated as two-wire current loop
Integrated clamp diaphragm seal with stainless steel membrane
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range-0.124...2.5 bar
-1.8...36.27 psi
-12.4...250 kPa
-0.124...2.5 bar-1.8...36.27 psi
Process connectionClamp DN40 (1,5") DIN 32676 (ISO 2852)

Application

Special featureGold-plated contacts
Applicationflush mountable for the food and beverage industry
Mediaviscous media and liquids with suspended particles; liquids and gases
Medium temperature[°C] [°C]-20...200; (-20...90 < 0 bar)
Min. burst pressure50 bar
725 psi
5000 kPa
50 bar725 psi
Pressure rating20 bar
290 psi
2000 kPa
20 bar290 psi
Type of pressurerelative pressure

Electrical data

Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Integrated watchdogyes
Operating voltage[V] [V]18...32 DC
Current consumption[mA] [mA]< 45
Power-on delay time[s] [s]0.5

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Number of analogue outputs1
Analogue current output[mA] [mA]4...20, invertible; (scalable)
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Max. load[Ω] [Ω](Ub - 10 V) / 20 mA
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]250
Switching frequency DC[Hz] [Hz]125

Measuring/setting range

Measuring range-0.124...2.5 bar
-1.8...36.27 psi
-12.4...250 kPa
-0.124...2.5 bar-1.8...36.27 psi
Set point SP-0.12...2.5 bar
-1.74...36.27 psi
-12...250 kPa
-0.12...2.5 bar-1.74...36.27 psi
Reset point rP-0.124...2.496 bar
-1.8...36.21 psi
-12.4...249.6 kPa
-0.124...2.496 bar-1.8...36.21 psi
Analogue start point-0.124...1.88 bar
-1.8...27.27 psi
-12.4...188 kPa
-0.124...1.88 bar-1.8...27.27 psi
Analogue end point0.5...2.5 bar
7.26...36.27 psi
50...250 kPa
0.5...2.5 bar7.26...36.27 psi
In steps of0.002 bar
0.03 psi
0.2 kPa
0.002 bar0.03 psi
Factory settingSP1 = 0.624 bar
rP1 = 0.574 bar
SP2 = 1.874 bar
rP2 = 1.824 bar
ASP = 0.000 bar
AEP = 2.500 bar

Accuracy / deviations

Switch point accuracy[% of the span] [% of the span]< ± 0,2; (Turn down 1:1)
Repeatability[% of the span] [% of the span]< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation[% of the span] [% of the span]< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation[% of the span] [% of the span]< ± 0,15; (Turn down 1:1)
Zero-point stabilisation[% of the span] [% of the span]IO-Link, analogue output
0,15
display, switching output
0,2
IO-Link, analogue output0,15
display, switching output0,2
Hysteresis deviation[% of the span] [% of the span]< ± 0,15; (Turn down 1:1)
Long-term stability[% of the span] [% of the span]< ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K]< ± 0,2; (0...200 °C)
Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K]< ± 0,15; (0...200 °C)

Response times

Damping process value dAP[s] [s]0...30
Damping for the analogue output dAA[s] [s]0.01...99.99
Step response time analogue output[ms] [ms]7
Min. response time of switching output (dAP)[ms] [ms]3

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.0
SDCI standardIO-Link Communication Specification, Version 1.0, January 2009, Ordner No: 10.002
SIO modeyes
Required master port typeA
Process data analogue1
Process data binary2
Min. process cycle time[ms] [ms]2.3
Supported DeviceIDsdefault
159
default159

Operating conditions

Ambient temperature[°C] [°C]-25...65
Note on ambient temperatureMedium temperature: ≤ 200 °C
Storage temperature[°C] [°C]-25...100
ProtectionIP 67; IP 68; IP 69K

Tests / approvals

EMCDIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistanceDIN EN 60068-2-27
50 g (11 ms)
DIN EN 60068-2-2750 g (11 ms)
Vibration resistanceDIN EN 60068-2-6
20 g (10...2000 Hz)
DIN EN 60068-2-620 g (10...2000 Hz)
MTTF[years] [years]142
Note on approvalIncluding free 6-point calibration certificate.

Mechanical data

Weight[g] [g]1067.4
Housingcylindrical
Dimensions[mm] [mm]Ø 50 / L = 163
Materialsstainless steel (316L/1.4404); stainless steel (316L/1.4435); PBT; PEI; PFA
Materials (wetted parts)stainless steel (316L/1.4435)
Min. pressure cycles10 million
Process connectionClamp DN40 (1,5") DIN 32676 (ISO 2852)
Surface characteristics Ra/Rz of the wetted partsRa < 0.38 µm
Fill fluid for pressure transmissionNEOBEE (food grade, FDA compliant)
Diaphragm diameter[mm] [mm]34

Displays / operating elements

DisplayDisplay unit
LED, green
switching status
LED, yellow
function display
alphanumeric display, 4-digit
measured values
alphanumeric display, 4-digit
Display unitbar; kPa; psi; inH2O; mWS; % of the span
switching statusLED, yellow
function displayalphanumeric display, 4-digit
measured valuesalphanumeric display, 4-digit

Remarks

Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
