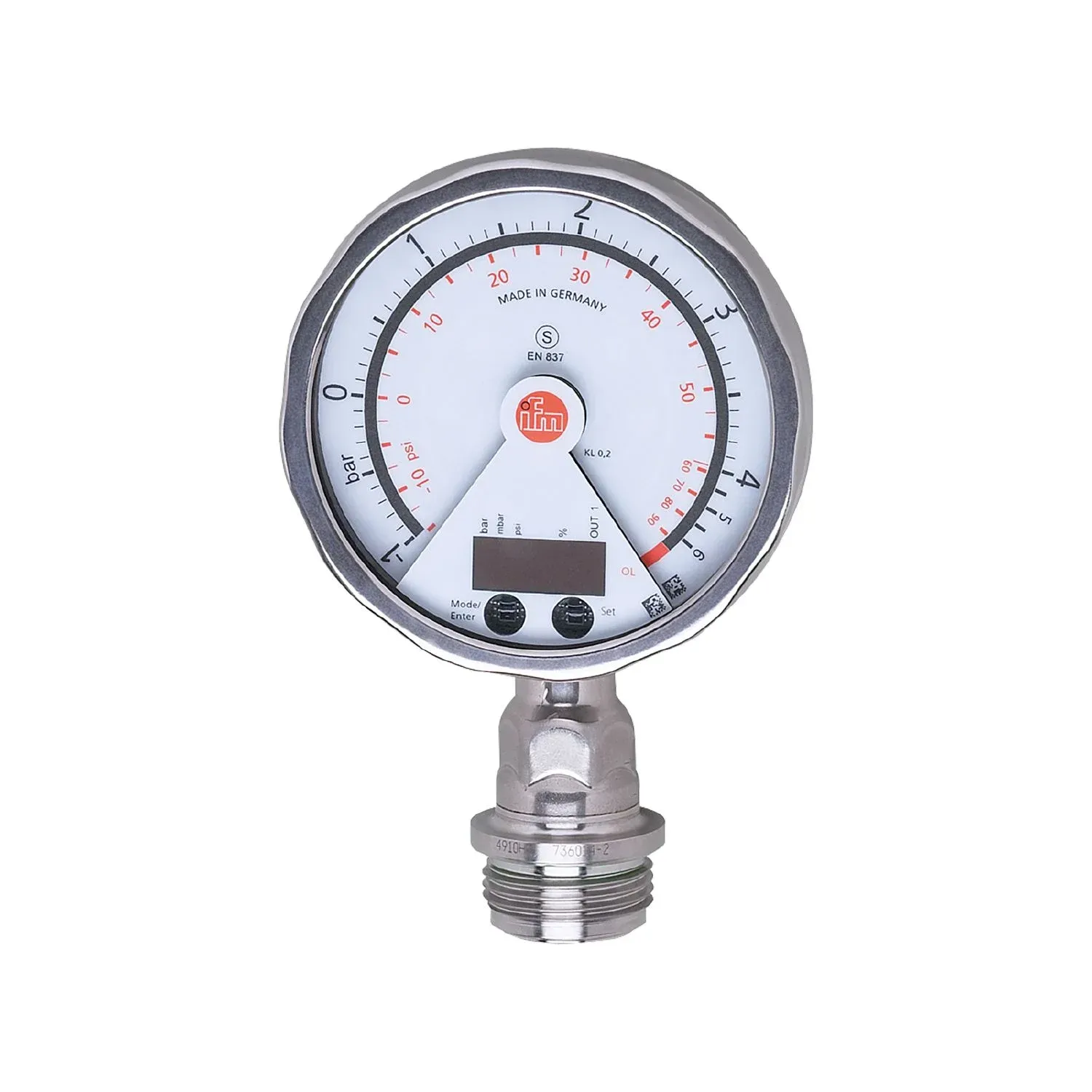

Analogue display, pressure switch and transmitter in one unit
Excellent readability also over a long distance
Rotatable display with LED bar graph for switch point indication
Hygienic, robust stainless steel housing for the requirements of the food and beverage industry
Flush process connection for use in CIP and SIP processes

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 1; Number of analogue outputs: 1
Measuring range-1...4 bar
-14.5...58 psi
-1...4 bar-14.5...58 psi
Process connectionthreaded connection G 1 external thread Aseptoflex Vario

Application

Special featureGold-plated contacts
Applicationflush mountable for the food and beverage industry
Mediaviscous media and liquids with suspended particles; liquids and gases
Medium temperature[°C] [°C]-25...125; (145 max. 1h)
Min. burst pressure100 bar
1450 psi
10 MPa
100 bar1450 psi
Pressure rating30 bar
435 psi
3 MPa
30 bar435 psi
Type of pressurerelative pressure; vacuum
No dead spaceyes
MAWP for applications according to CRN[bar] [bar]30

Electrical data

Operating voltage[V] [V]18...32 DC
Current consumption[mA] [mA]< 70; (24 V)
Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]6
Integrated watchdogyes

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; (configurable)
Electrical designPNP/NPN
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]250
Switching frequency DC[Hz] [Hz]50
Number of analogue outputs1
Analogue current output[mA] [mA]4...20, invertible; (scalable)
Max. load[Ω] [Ω](Ub - 10 V) / 20 mA
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range-1...4 bar
-14.5...58 psi
-1...4 bar-14.5...58 psi
Set point SP-0.99...6.4 bar
-14.35...92.8 psi
-0.99...6.4 bar-14.35...92.8 psi
Reset point rP-1...6.39 bar
-14.5...92.65 psi
-1...6.39 bar-14.5...92.65 psi
Analogue start point-1...5.4 bar
-14.5...78.3 psi
-1...5.4 bar-14.5...78.3 psi
Analogue end point0...6.4 bar
0...92.8 psi
0...6.4 bar0...92.8 psi
In steps of0.005 bar
0.05 psi
0.005 bar0.05 psi

Accuracy / deviations

Switch point accuracy[% of the span] [% of the span]< ± 0,2; (Turn down 1:1)
Repeatability[% of the span] [% of the span]< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation[% of the span] [% of the span]< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation[% of the span] [% of the span]< ± 0,15; (Turn down 1:1)
Hysteresis deviation[% of the span] [% of the span]< ± 0,15; (Turn down 1:1)
Long-term stability[% of the span] [% of the span]< ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K]< ± 0,05; (0...70 °C)
Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K]< ± 0,15; (0...70 °C)

Response times

Response time[ms] [ms]< 10
Damping process value dAP[s] [s]0.01...30
Damping for the analogue output dAA[s] [s]0.01...30
Step response time analogue output[ms] [ms]25

Operating conditions

Ambient temperature[°C] [°C]-25...80
Storage temperature[°C] [°C]-40...100
ProtectionIP 67; IP 69K

Tests / approvals

EMCEN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5/1 kV
EN 61000-4-6 HF conducted
10 V
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-5 Surge0,5/1 kV
EN 61000-4-6 HF conducted10 V
Shock resistanceDIN EN 60068-2-27
50 g (11 ms)
DIN EN 60068-2-2750 g (11 ms)
Vibration resistanceDIN EN 60068-2-6
10 g (10...2000 Hz)
DIN EN 60068-2-610 g (10...2000 Hz)
MTTF[years] [years]100
Note on approvalfactory certificate available as download at www.factory-certificate.ifm

Mechanical data

Weight[g] [g]522.5
Dimensions[mm] [mm]153 x 100 x 57
Materialsstainless steel (316L/1.4404); PA; FKM; PTFE; viewing glass: laminated safety glass 4 mm
Materials (wetted parts)stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; ceramics (99.9 % Al2O3); PTFE
Min. pressure cycles100 million
Process connectionthreaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

DisplayDisplay unit
2 x LED, green
switching status
LED, yellow
switch points
LED ring, red
function display
alphanumeric display, red 4-digit
measured values
analogue display, 0...350° rotatable, pointer not visible when unit disconnected
measured values
alphanumeric display, red 4-digit
Display unit2 x LED, green
switching statusLED, yellow
switch pointsLED ring, red
function displayalphanumeric display, red 4-digit
measured valuesalphanumeric display, red 4-digit
With scaleyes
Extended display range (max.)6.4 bar
92.8 psi
6.4 bar92.8 psi

Remarks

Remarkscharacteristics deviation in the extended display range: 1.5 % of the span
switch point accuracy in the extended display range: 1.5 % of the span
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
