Description

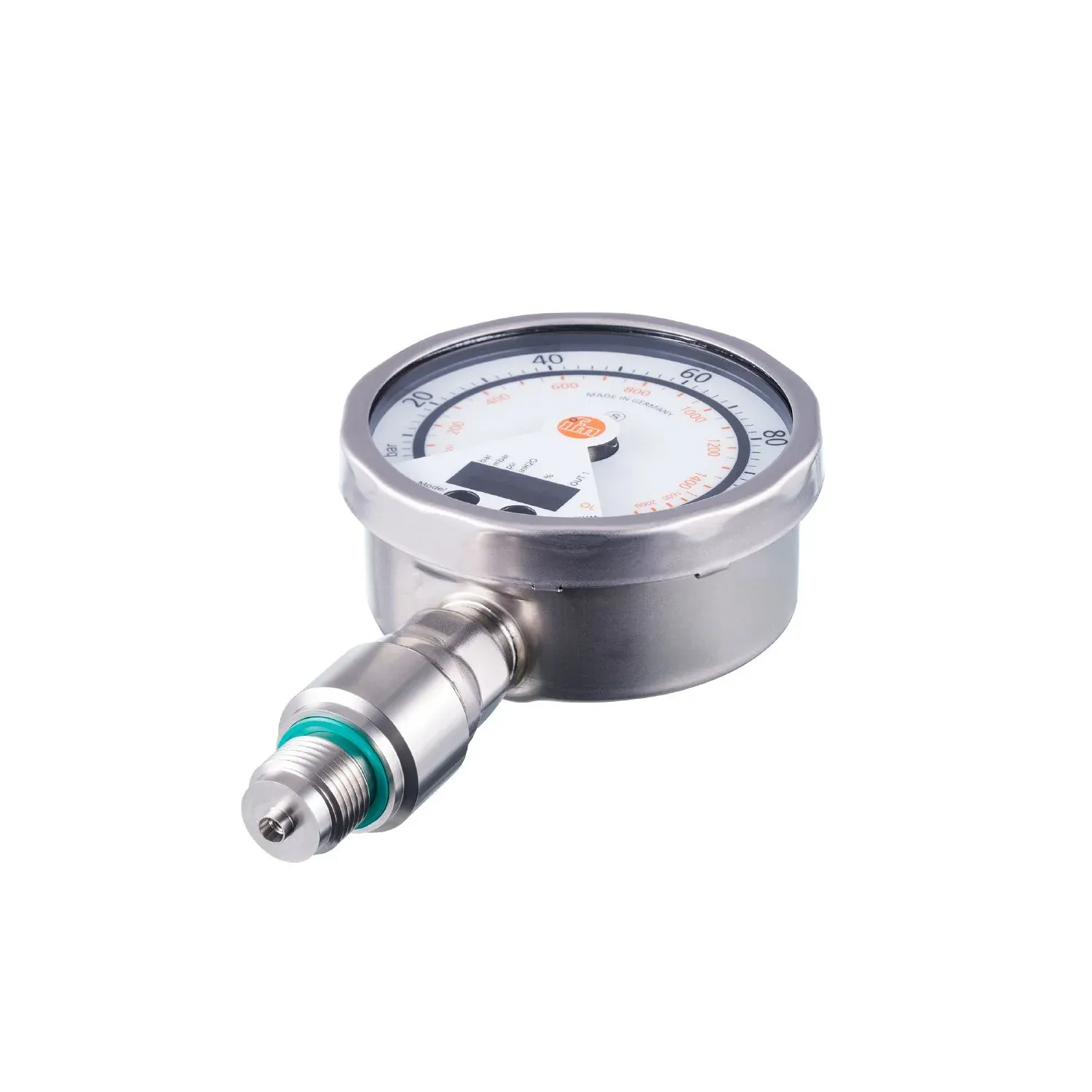

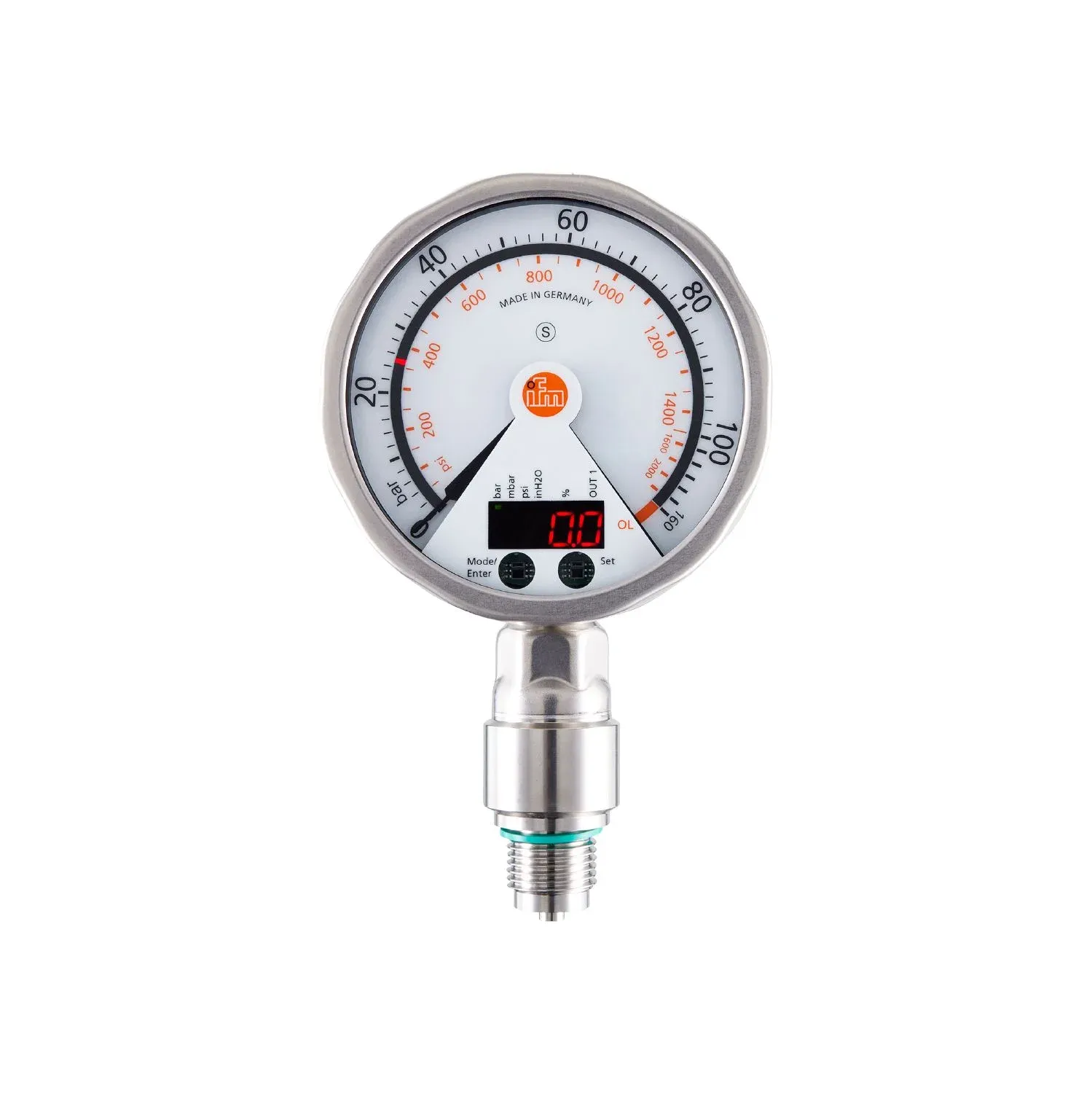

Analogue display, pressure switch and transmitter in one unit
Excellent readability also over a long distance
Rotatable display with LED bar graph for switch point indication
Programmable switching output and scalable analogue output

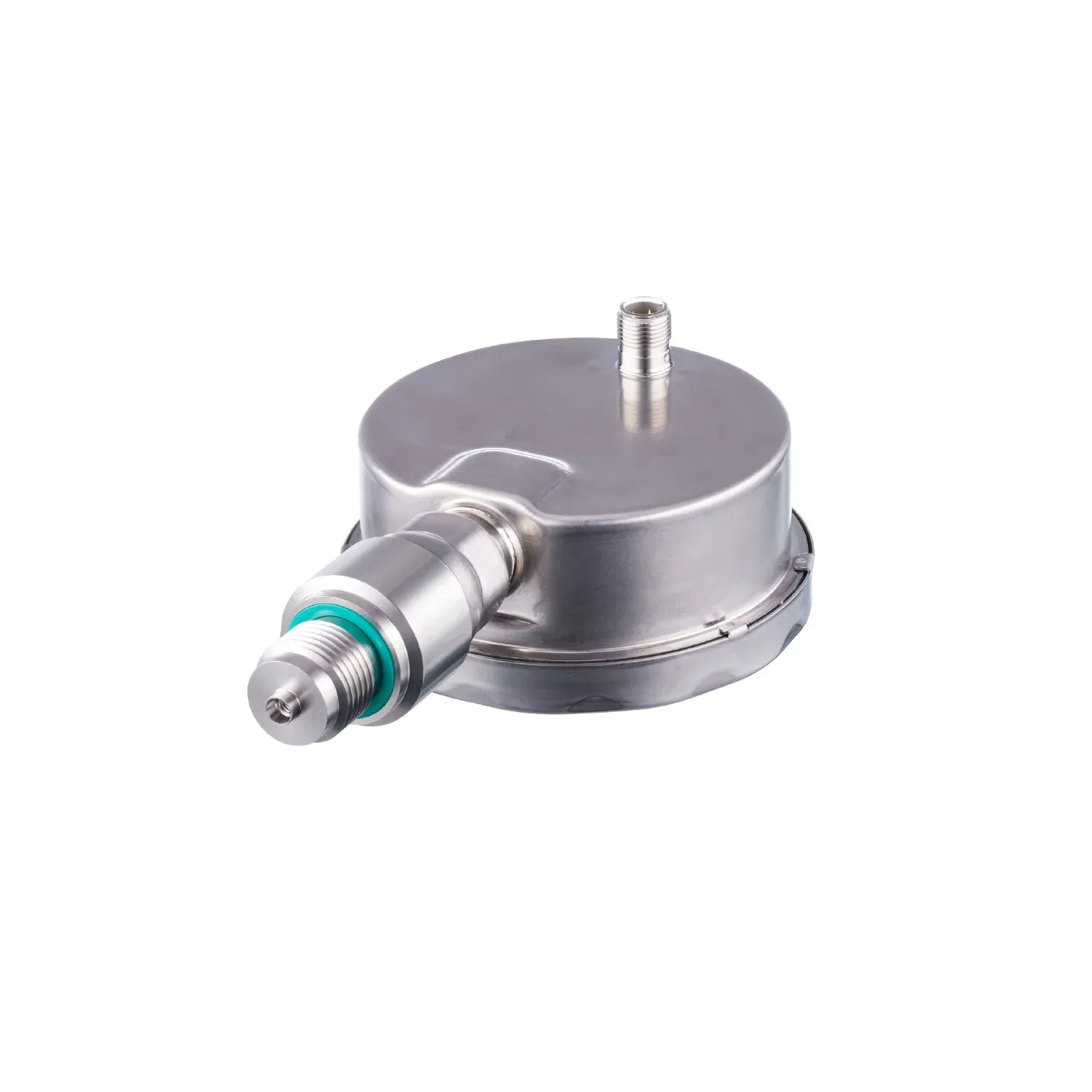

Robust stainless steel housing for use in harsh industrial environments

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 1; Number of analogue outputs: 1
Measuring range0...100 bar
0...1449 psi
0...100 bar0...1449 psi
Process connectionthreaded connection G 1/2 external thread

Application

Special featureGold-plated contacts
Applicationfor industrial applications
Medialiquids and gases
Conditionally suitable foruse in gases at pressures > 25 bar only on request
Medium temperature[°C] [°C]-25...80
Min. burst pressure700 bar
9400 psi
70 MPa
700 bar9400 psi
Pressure rating300 bar
4350 psi
30 MPa
300 bar4350 psi
Type of pressurerelative pressure

Electrical data

Operating voltage[V] [V]18...32 DC
Current consumption[mA] [mA]< 70; (24 V)
Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]6
Integrated watchdogyes

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; (configurable)
Electrical designPNP/NPN
Number of digital outputs1
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]250
Switching frequency DC[Hz] [Hz]75
Number of analogue outputs1
Analogue current output[mA] [mA]4...20, invertible; (scalable)
Max. load[Ω] [Ω](Ub - 10 V) / 20 mA
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range0...100 bar
0...1449 psi
0...100 bar0...1449 psi
Set point SP0.4...160 bar
6...2322 psi
0.4...160 bar6...2322 psi
Reset point rP0...159.6 bar
0...2316 psi
0...159.6 bar0...2316 psi
Analogue start point0...135 bar
0...1959 psi
0...135 bar0...1959 psi
Analogue end point25...160 bar
363...2322 psi
25...160 bar363...2322 psi
In steps of0.2 bar
3 psi
0.2 bar3 psi

Accuracy / deviations

Switch point accuracy[% of the span] [% of the span]< ± 0,5; (Turn down 1:1)
Repeatability[% of the span] [% of the span]< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation[% of the span] [% of the span]< ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line)
Hysteresis deviation[% of the span] [% of the span]< ± 0,25; (Turn down 1:1)
Long-term stability[% of the span] [% of the span]< ± 0,1; (Turn down 1:1; per 6 months)
Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K]< ± 0,2; (0...70 °C)
Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K]< ± 0,2; (0...70 °C)

Response times

Response time[ms] [ms]< 9
Damping process value dAP[s] [s]0.01...30
Damping for the analogue output dAA[s] [s]0.01...30
Step response time analogue output[ms] [ms]28

Operating conditions

Ambient temperature[°C] [°C]-20...80
Storage temperature[°C] [°C]-40...100
ProtectionIP 67; IP 69K

Tests / approvals

EMCEN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5/1 kV
EN 61000-4-6 HF conducted
10 V
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-5 Surge0,5/1 kV
EN 61000-4-6 HF conducted10 V
Shock resistanceDIN EN 60068-2-27
50 g (11 ms)
DIN EN 60068-2-2750 g (11 ms)
Vibration resistanceDIN EN 60068-2-6
10 g (10...2000 Hz)
DIN EN 60068-2-610 g (10...2000 Hz)
MTTF[years] [years]100
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]564.2
Dimensions[mm] [mm]169 x 100 x 57
Materialsstainless steel (316L/1.4404); PA; FKM; PTFE; viewing glass: laminated safety glass 4 mm
Materials (wetted parts)Al2O3 (ceramics); FKM; stainless steel (316L/1.4404)
Min. pressure cycles100 million
Process connectionthreaded connection G 1/2 external thread
Restrictor element integratedno (can be retrofitted)

Displays / operating elements

DisplayDisplay unit
2 x LED, green
switching status
LED, yellow
switch points
LED ring, red
function display
alphanumeric display, red 4-digit
measured values
analogue display, 0...350° rotatable, pointer not visible when unit disconnected
measured values
alphanumeric display, red 4-digit
Display unit2 x LED, green
switching statusLED, yellow
switch pointsLED ring, red
function displayalphanumeric display, red 4-digit
measured valuesalphanumeric display, red 4-digit
With scaleyes
Extended display range (max.)160 bar
2322 psi
160 bar2322 psi

Remarks

Remarksswitch point accuracy in the extended display range: 1.5 % of the span
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
